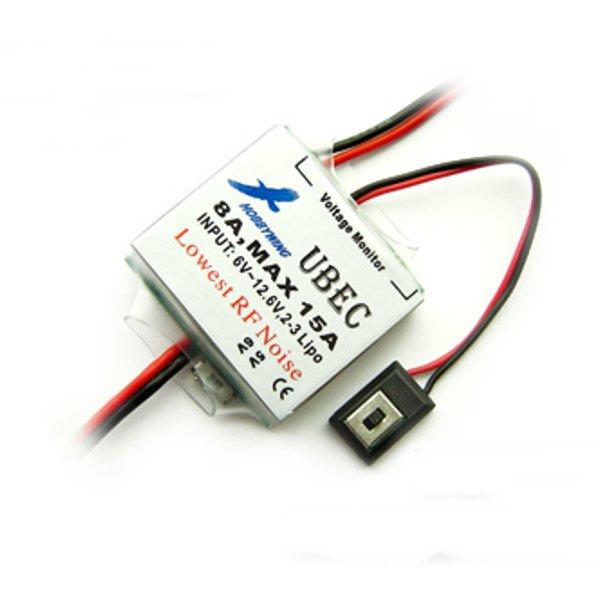

Hobbywing 2-3S External 8A MAX 15A UBEC Switch Mode
Description:
The 8A-UBEC is a switch-mode DC-DC regulator works with a 2-3S Lipo battery, it outputs a consistent safe voltage for your receiver, gyro and servos.
It is very suitable for large scale RC models with many servos such as nitro powered RC helicopters and airplanes.
Specification:
Brand Name: Hobbywing
Item Name: External 8A UBEC
Output Voltage: 5V or 6V (Changeable with a switch )
Continuous output current: 8 Amps
Burst output current: 15 Amps
Input: 6V-12.6V (2-3S Lipo battery)
Quiescent current: 60mA
Size: 42mm*39mm*9mm (length*width*height)
Weight: 36g
Features:
- Uses advanced switch-mode DC-DC regulator IC.
- The output current is very large to supply all electric equipments.
- Output short-circuit protection function.
- A metal shield and a filter significantly reduce the electromagnetic interference.
- Automatically detects the amount of the Lipo battery pack (2S or 3S).
- Shows the battery capacity with 4 LEDs.
- Shows the working status with a LED, it lights when the UBEC works normally.
- There are 2 output leads to reduce the resistance when connecting the UEBC to the receiver.
- With a step-down voltage regulator of 0.7V down as accessory (It changes the output from 6.0V to 5.3V for some special equipments that cannot work with 6V inputs).
English Manual,please Click Here
Package Included:
1x Hobbywing 8A UBEC
