Hobbywing FlyFun 12A Brushless ESC Speed Controller For RC Model
Banggood
Regular price
$19.99
$15.99
Sale

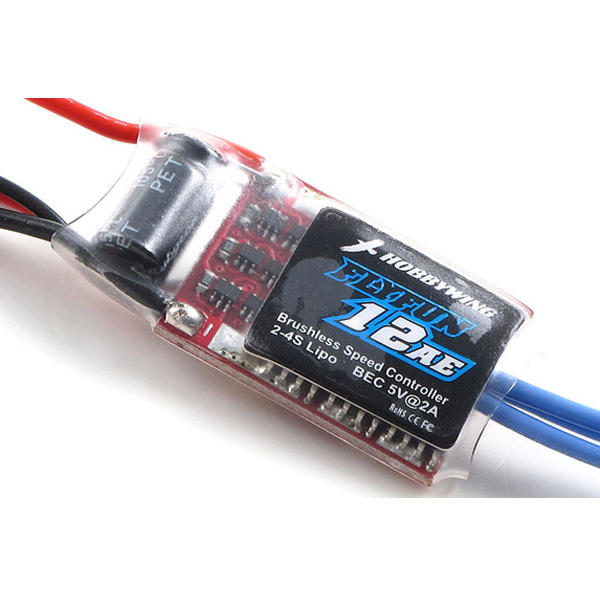

Hobbywing FlyFun 12AE Brushless ESC Speed Controller For RC Model
Specification:
Brand Name: Hobbywing
Item Name: FlyFun 12AE Brushless ESC
Output: Continuous 12A, Burst 15A up to 10 seconds
Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NiMh battery
BEC: 2A / 5V Linear mode BEC
Refresh rate of the throttle signal: 50Hz to 432Hz
Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.(BLM = BrushLess Motor)
Size: 38 x 18 x 7mm
Weight: 10.2g
Features:
Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
Throttle calibration function: Throttle range can be calibrated to be compatible with different transmitters.
User programmable.
Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
Compatible with Lipo battery and NiCd/NiMH battery.
Internal timing can be changed to be suitable for different brushless motors.
Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.
Package Included:
1 x Hobbywing FlyFun 12AE Brushless ESC
Specification:
Brand Name: Hobbywing
Item Name: FlyFun 12AE Brushless ESC
Output: Continuous 12A, Burst 15A up to 10 seconds
Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NiMh battery
BEC: 2A / 5V Linear mode BEC
Refresh rate of the throttle signal: 50Hz to 432Hz
Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.(BLM = BrushLess Motor)
Size: 38 x 18 x 7mm
Weight: 10.2g
Features:
Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
Throttle calibration function: Throttle range can be calibrated to be compatible with different transmitters.
User programmable.
Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
Compatible with Lipo battery and NiCd/NiMH battery.
Internal timing can be changed to be suitable for different brushless motors.
Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.
Package Included:
1 x Hobbywing FlyFun 12AE Brushless ESC
