HOT Sales Hobbywing SkyWalker 15A 20A 40A 50A 60A 80A 2-4S 2-6S Electric Speed Control ESC for RC Aircraft Multicopter
Drone Spark
Regular price
$185.99
$432.99
Features:
1. Special core program for multi-rotor controllers meets various functional requirements against multi-rotors.
2. Specially optimized software for excellent compatibility with disc-type motors.
3. The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
Specifications:
15A
Model: Skywalker-15A
Continuous Current: 15A
Burst Current (>10s): 20A
BEC Mode: Linear
BEC Output: 5V2A
BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)
Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)
Weight: 16.5g
Dimension (L x W x H): 48 x22.5 x 6mm
20A
Model: Skywalker-20A
Continuous Current: 20A
Burst Current (>10s): 25A
BEC Mode: Linear
BEC Output: 5V2A
BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)
Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)
Weight: 19g
Dimension (L x W x H): 42 x25 x 8mm
30A:
Output: Continuous 30A, Burst 40A up to 10 secondsInput Voltage: 2-3 cells lithium battery or 4-10 cells NiCd/NiMh battery
BEC: 1A / 5V (Linear mode)
PWM Frequency: 2 kHz
Size: 45 x 21 x 8mm
Weight: 21g
40A
Model: Skywalker-40A
Continuous Current: 40A
Burst Current (>10s): 55A
BEC Mode: Linear
BEC Output: 5V2A
BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)
Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)
Weight: 39g
Dimension (L x W x H): 68 x25 x 8mm
50A
Model: Skywalker-50A
Continuous Current: 50A
Burst Current (>10s): 65A
BEC Mode: Switch
BEC Output: 5V5A
BEC Output Capability: 8 Servos (2S Lipo) / 8 Servos (3S Lipo) / 6 Servos (4S Lipo) / 6 Servos (6S Lipo)
Battery Cell: 2-4S (Lipo) / 5-12 cells (NiMH)
Weight: 41g
Dimension (L x W x H): 65 x29 x 10mm
60A
Model: Skywalker-60A
Continuous Current: 80A
Burst Current (>10s): 65A
BEC Mode: Switch
BEC Output: 5V5A
BEC Output Capability: 8 Servos (2S Lipo) / 8 Servos (3S Lipo) / 6 Servos (4S Lipo) / 6 Servos (6S Lipo)
Battery Cell: 2-6S (Lipo) / 5-18 cells (NiMH)
Weight: 63g
Dimension (L x W x H): 77 x34 x 14mm
80A
Model: Skywalker-80A
Continuous Current: 80A
Burst Current (>10s): 100A
BEC Mode: Switch
BEC Output: 5V5A
BEC Output Capability: 8 Servos (2S Lipo) / 8 Servos (3S Lipo) / 6 Servos (4S Lipo) / 6 Servos (6S Lipo)
Battery Cell: 2-6S (Lipo) / 5-18 cells (NiMH)
Weight: 82g
Dimension (L x W x H): 83 x38 x 12mm

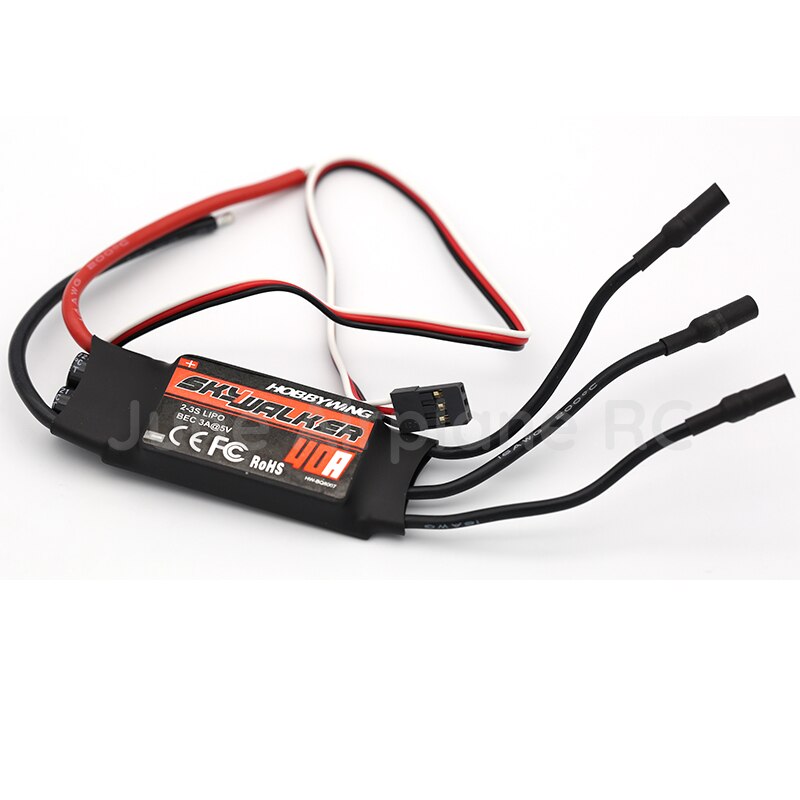

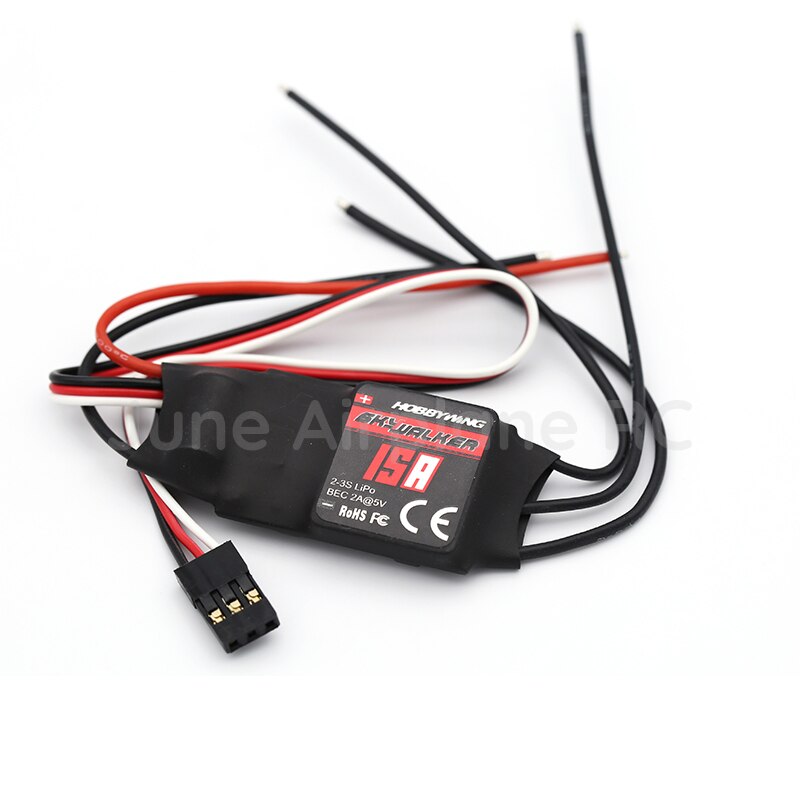

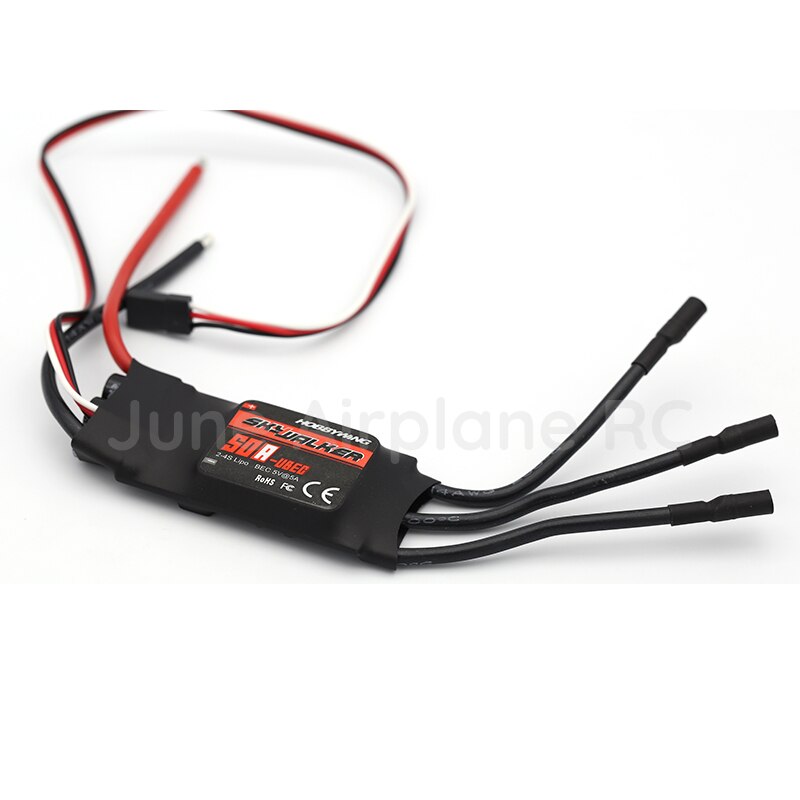

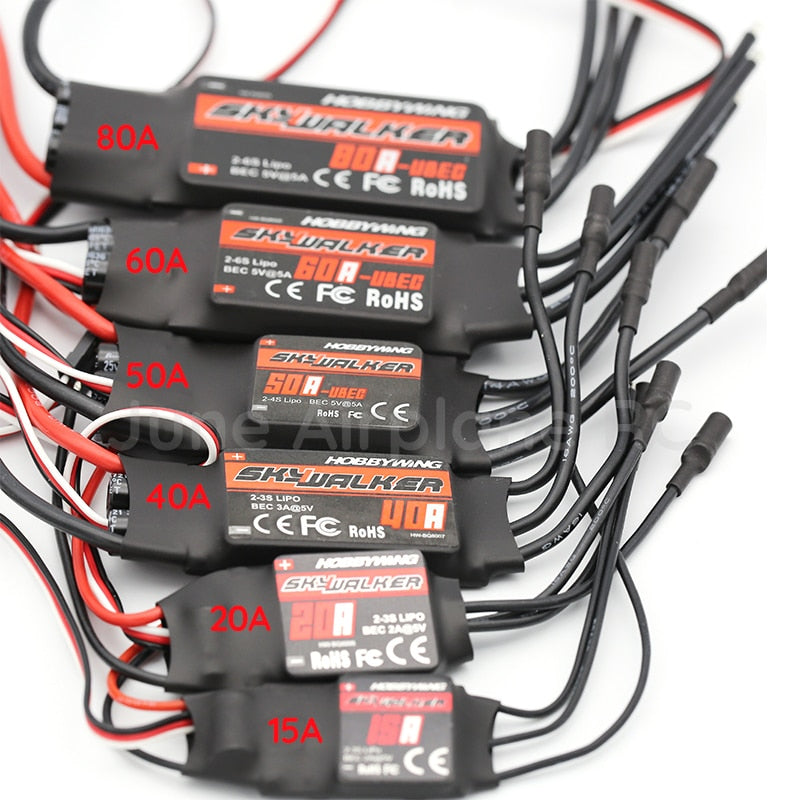

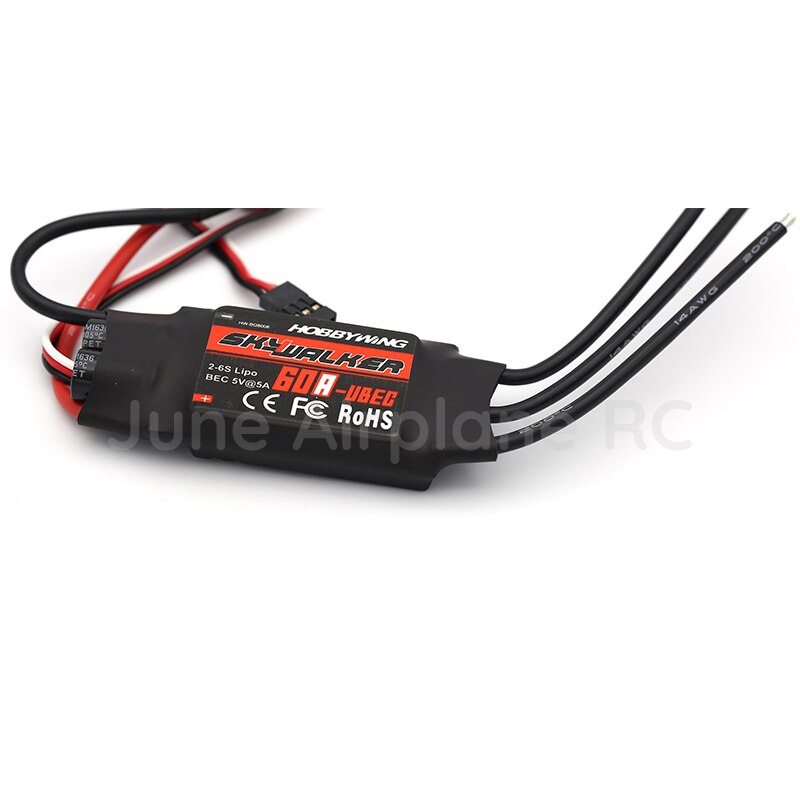

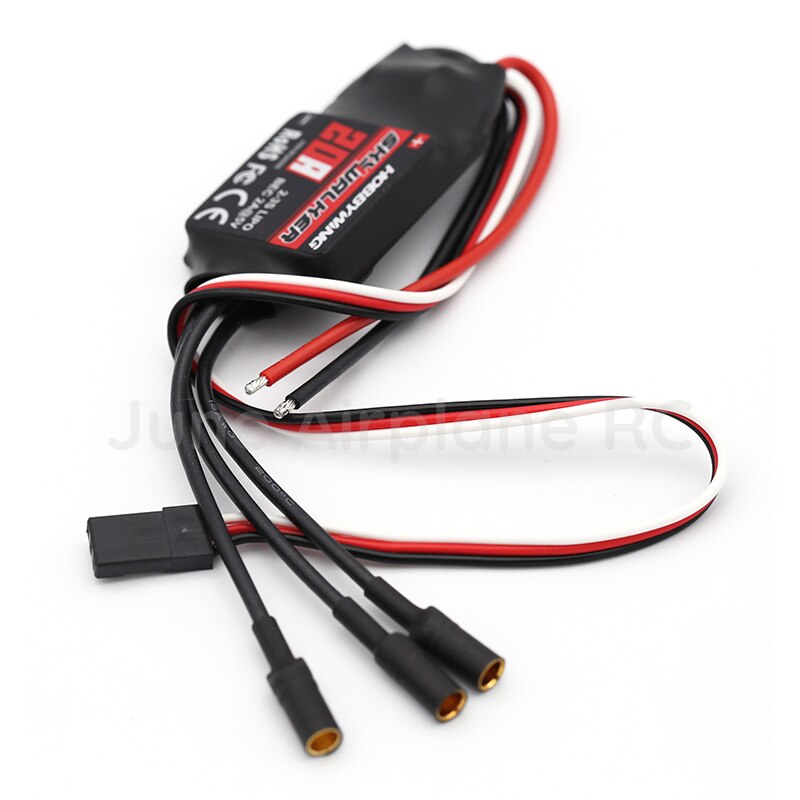

Product Pictures:
