DroneSpark

$24.99 $19.99 Sale

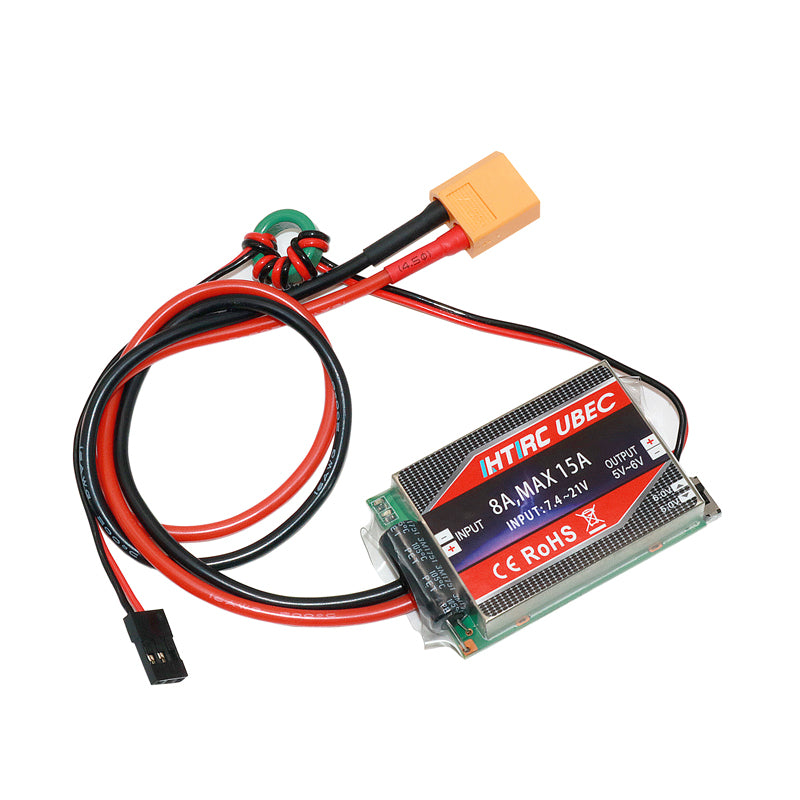

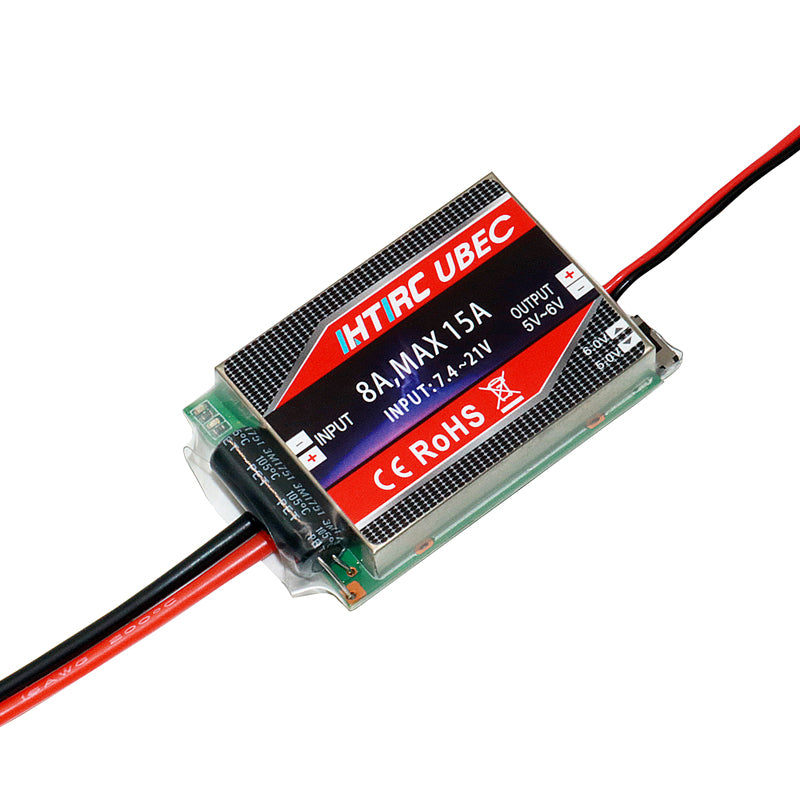

Htirc SBEC UBEC 8A SISO Brushless ESC Single Input Single Output 2S 3S 4S 5S for RC Racing Drone Airplane Aircraft

FEATURES
Ultra low stand-by power consumption
Power indicator

SPECIFICATION
Model : SBEC 8A DISO
Continue current : 8A
Instantaneous current : 15A
Type : SBEC
Output : 5.0V/6.0V/8A
Support LiPo: 2S-5S
Support NC : 5-15NC
Size : 53*37*12.5
Weight : 33g

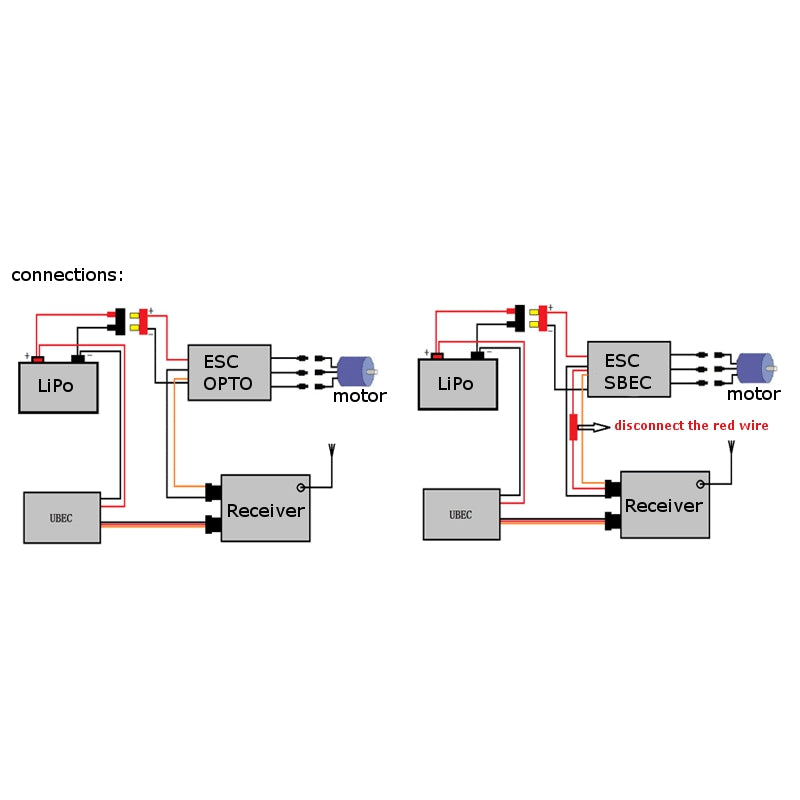

Operation
1. Must connect with external UBEC when uses OPTO ESC
No change is needed for brushless esc, just make the input port of UBEC connect with battery pack in parallel, and its output port connect to any free channel of the receiver.
2. Connection between ESC with built-in SBEC and UBEC
Disconnect the red wire of SBEC signal cables of ESC, which is the output of built-in SBEC ,then connect the ESC with UBEC(same as OPTO)

PACKAGE INCLUDED
1 x Htirc SBEC 8A SISO ESC For RC Airplane Aircraft Drone
