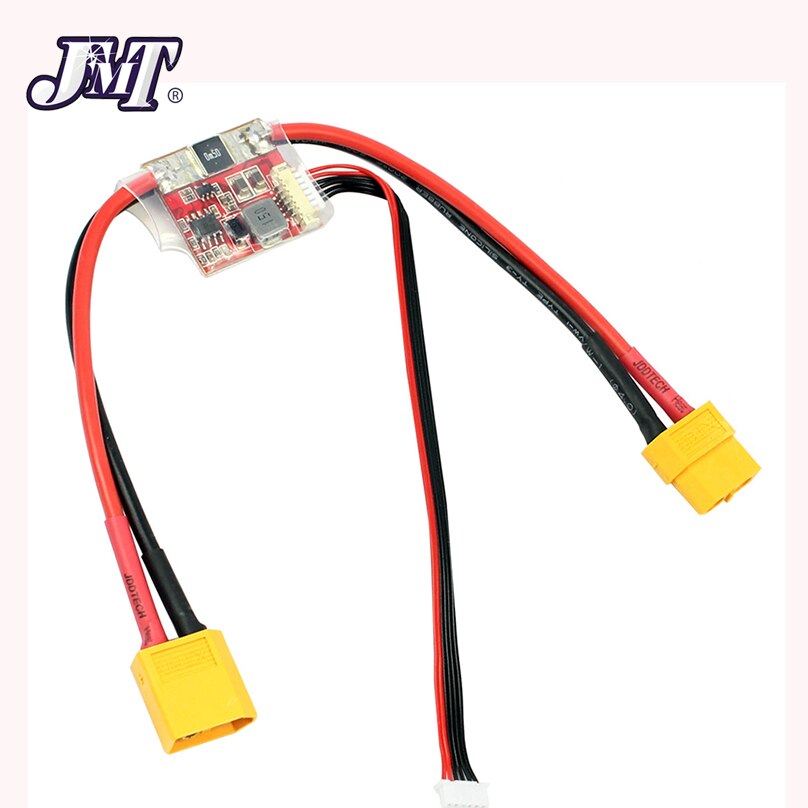

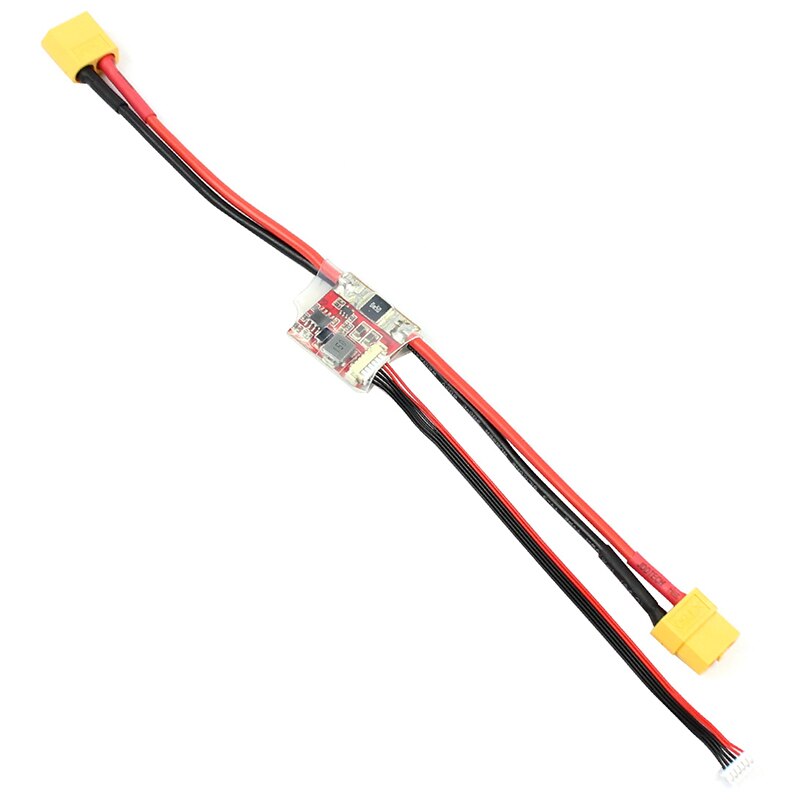

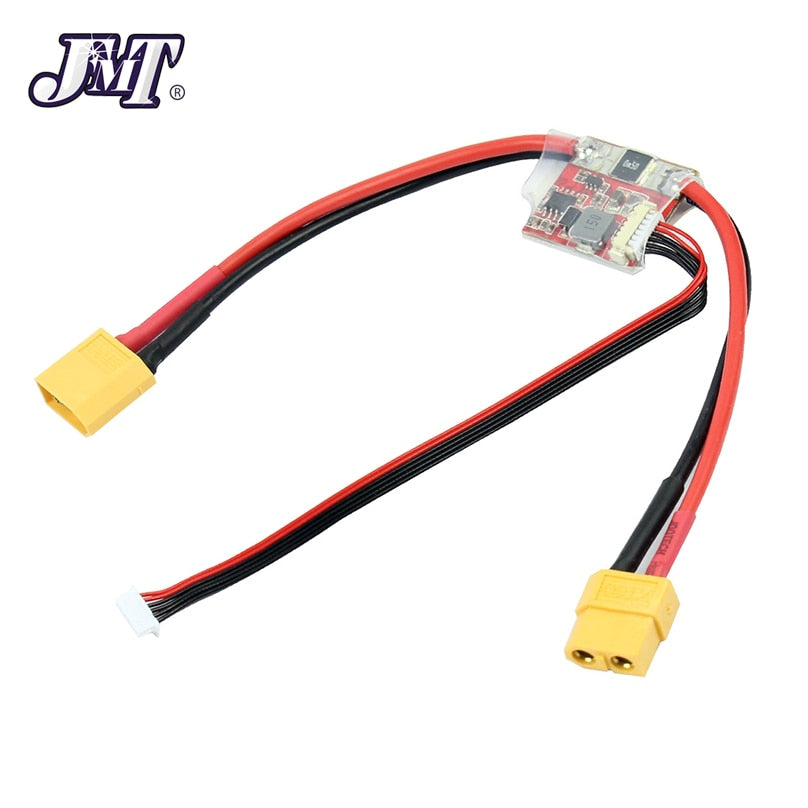

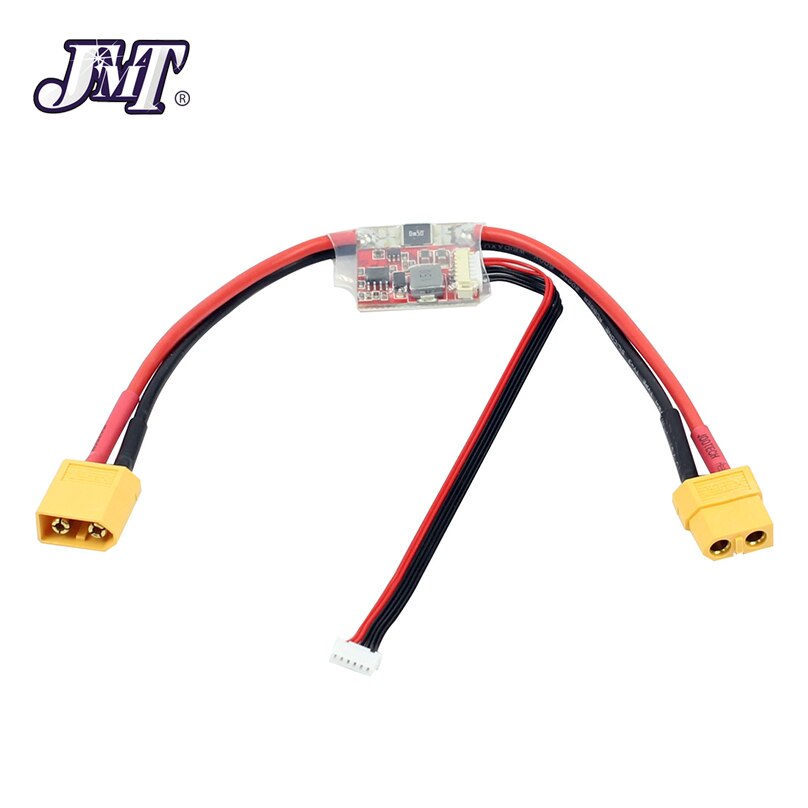

JMT APM2.6 2.5 2.52 PIXHAWK Power Module Current Module APM with 5.3V DC BEC for APM 2.8 PIX PIXHAWK Flight Conttroller
JMT APM2.6 2.5 2.52 PIXHAWK Power Module Current Module APM with 5.3V DC BEC for APM 2.8 PIX PIXHAWK Flight Conttroller
JMT APM2.6 2.5 2.52 PIXHAWK Power Module Current Module APM with 5.3V DC BEC for APM 2.8 PIX PIXHAWK Flight Conttroller
JMT APM2.6 2.5 2.52 PIXHAWK Power Module Current Module APM with 5.3V DC BEC for APM 2.8 PIX PIXHAWK Flight Conttroller
JMT APM2.6 2.5 2.52 PIXHAWK Power Module Current Module APM with 5.3V DC BEC for APM 2.8 PIX PIXHAWK Flight Conttroller
JMT APM2.6 2.5 2.52 PIXHAWK Power Module Current Module APM with 5.3V DC BEC for APM 2.8 PIX PIXHAWK Flight Conttroller

JMT APM2.6 2.5 2.52 PIXHAWK Power Module Current Module APM with 5.3V DC BEC for APM 2.8 PIX PIXHAWK Flight Conttroller

Drone Spark

$43.99 $101.99 Sale

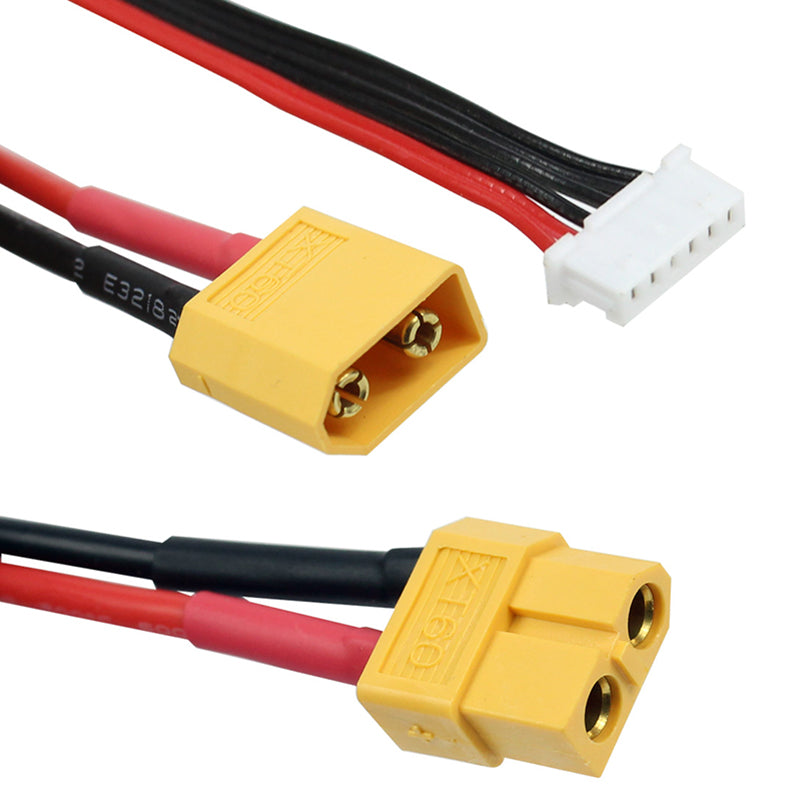

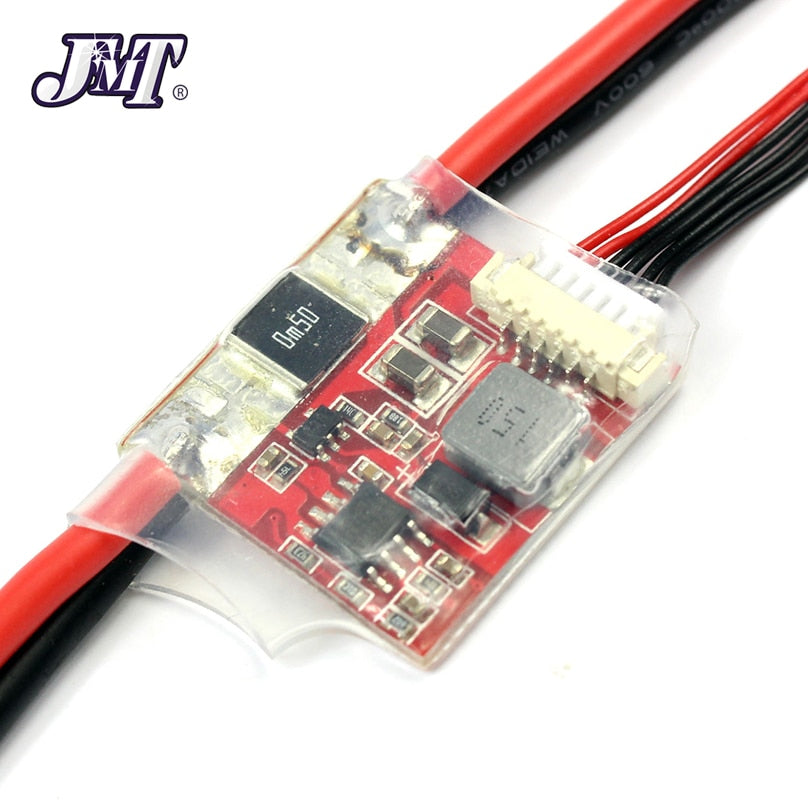

The APM 2.5 Power Module is a simple way of providing your APM 2.5 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.
Note: The Power Module is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio). It is notdesigned to power servos. Use your aircraft's own ESC/BEC for that.
Specifications:
Voltage and current measurement configured for 5V ADC
Switching regulator outputs 5.3V and 2.25A max
6-pos DF13 cable plugs directly to APM 2.5's 'PM' connecto
For APM 2.8 PIX PIXHAWK
