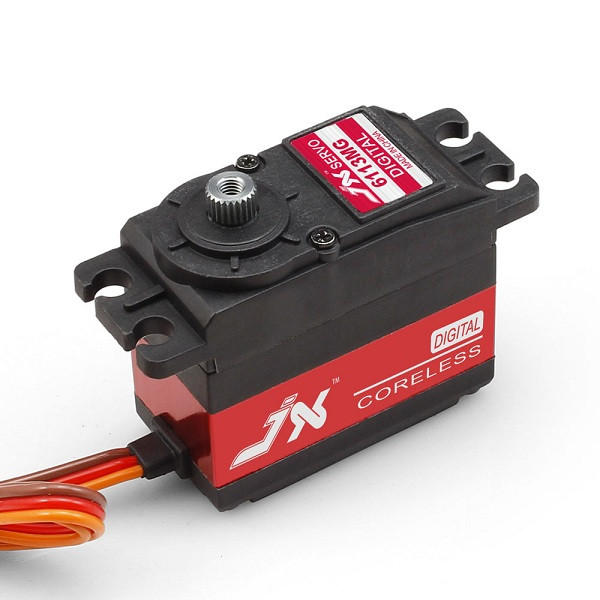

JX Servo PDI-6113MG 13KG High Torque Digital Coreless Standard 61g Servo
DroneSpark
Regular price
$39.99
$31.99
Sale
JX Servo PDI-6113MG 13KG High Torque Digital Coreless Standard 61g Servo
Description:
Brand:JX Servo
Item:PDI-6113MG Servo
Operating Speed: (4.8V) 0.125sec/60°
Operating Speed: (6V) 0.103sec/60°
Stall Torque: (4.8V) 11.53 kg.cm
Stall Torque: (6V) 13.83kg.cm
Dimensions: 40.5X20.5X36.5mm
Weight: 61g
Features:
Standard size digital servo
Metal gear train
Coreless motor
Dual ball bearing supported output shaft
Durable plastic and alloy case
Fast 0.103sec transit time
13.83 kg-cm of torque
Package Included:
1 x JX Servo PDI-6113MG Servo
| Weight(g) | 61 |
| A(mm) | 41 |
| B(mm) | 40 |
| C(mm) | 38 |
| D(mm) | 20.5 |
| E(mm) | 56 |
| F(mm) | 27 |
Description:
Brand:JX Servo
Item:PDI-6113MG Servo
Operating Speed: (4.8V) 0.125sec/60°
Operating Speed: (6V) 0.103sec/60°
Stall Torque: (4.8V) 11.53 kg.cm
Stall Torque: (6V) 13.83kg.cm
Dimensions: 40.5X20.5X36.5mm
Weight: 61g
Features:
Standard size digital servo
Metal gear train
Coreless motor
Dual ball bearing supported output shaft
Durable plastic and alloy case
Fast 0.103sec transit time
13.83 kg-cm of torque
Package Included:
1 x JX Servo PDI-6113MG Servo
