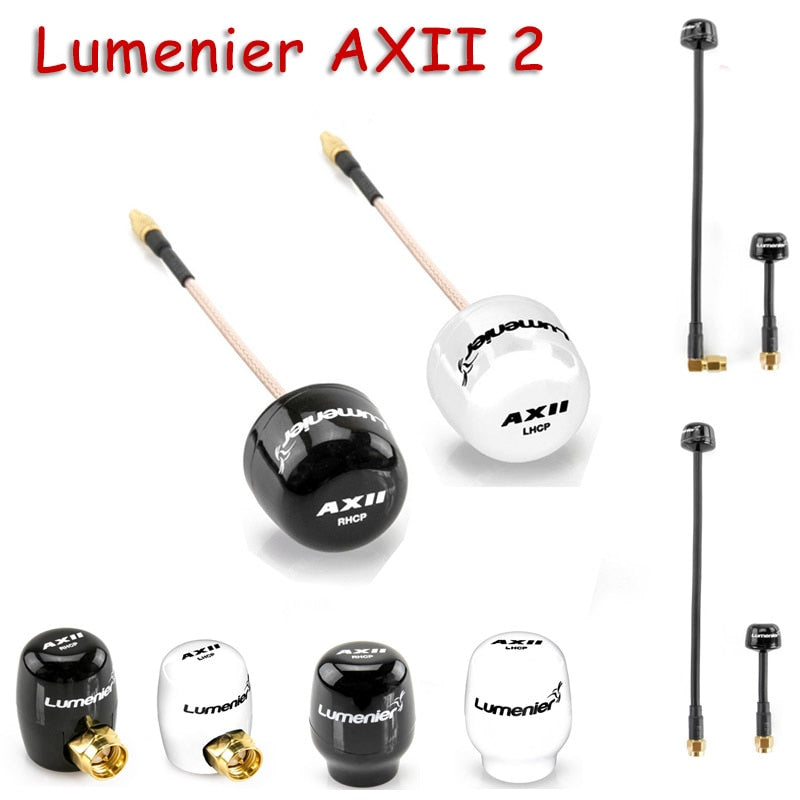

Lumenier AXII 2 5.8GHz 2.2dBi Gain FPV Antenna MMCX/Straight MMCX /U.FL/Right-Angle Stubby/Long Range SMA Antenna RC Drone Accs

Overview:

The Lumenier AXII is known to be the most versatile and highest performing antenna line for FPV today. Lumenier has been able to improve on the best and make it even better!

Improved Features:

Significantly Improved ran&ge with a Higher Gain (2.2dBic Gain)

Wider Bandwidth (5.3-6.2GHz)

Cleaner Signal And Better Rejection to Interference

More Durable - Improved Injection Molded Housing

Virtually Perfect Axial Ratio

While almost every aspect of the AXII 2 was improved upon, the size and weight managed to stay the same. The AXII 2 is still one of the smallest and lightest circular polarized antennas on the market, perfect for both lightweight racing builds or freestyle quads.

The AXII 2 comes in many connector types such as SMA, MMCX, U.FL, Stubby SMA, and Long SMA. engineering has giv en this antenna a virtually perfect 1.0 Axial ratio resulting in a true circularity. On top of that, the AXII 2 has an amazing max gain of 2.2dBic, a true upgrade over the original AXII.

Sup&er Tough

Antennas take a lot of abuse, especially when put onto a quad. The AXII 2's robust antenna housing is made out of injected molded polycarbonate, significantly improving durability compared to the original AXII housing. The flexible 45mm long RG178 cable allows for complete freedom in placement.

Note: When installing, secure the antenna via the SMA connector, do not the cap.

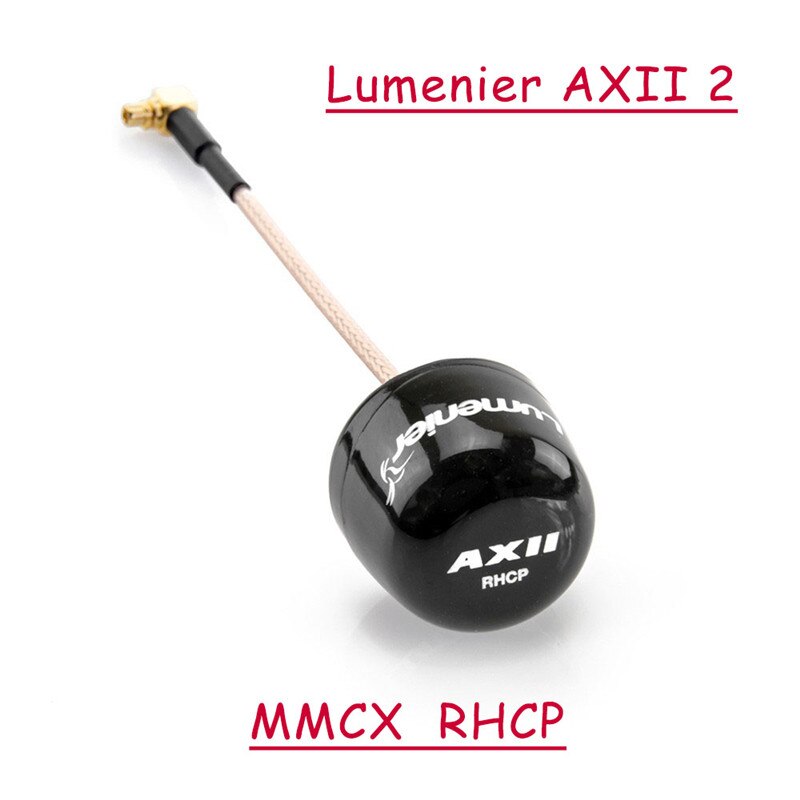

MMCX/Straight MMCX Connector

Brand Name: Lumenier
Item Name: AXII

Polarization(optional): Right Hand Circular (RHCP), Left Hand Circular (LHCP)
Connector: MMCX, Straight MMCX (optional)

Gain: 2.2dbic

Axial ratio: 1.0 (near perfect)

Bandwidth: 5.3GHz-6.2GHz

Radiation Efficiency: 98%

SWR: <=1.5:1

Weight: 3g

Size: 78mm x 17.5mm

Cable: Flexible RG178

Works great as both a transmitting or receiving antenna

Compatible with other styles of 5.8GHz RHCP antennas

Package Included:
1x Lumenier AXII 2 MMCX/Straight MMCX 5.8GHz Antenna

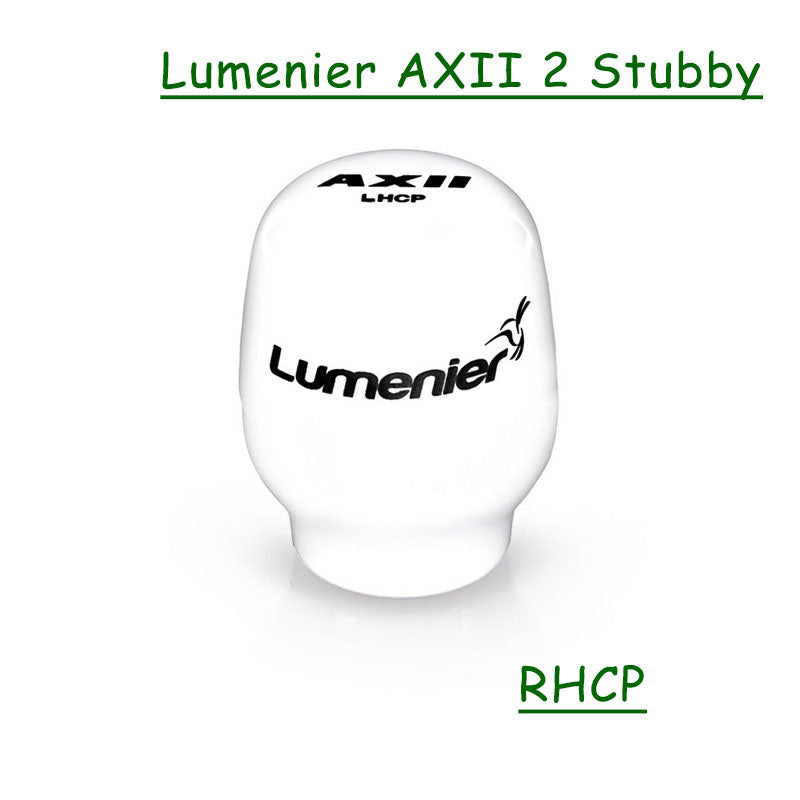

SMA Connector

SWR: <=1.5:1

Weight: 4.8g

Size: 22.1mm x 17.5mm

Cable: None

Connector: SMA

Works great as both a transmitting or receiving antenna

Compatible with other styles of 5.8GHz RHCP/LHCP antennas

Package Included:
1x Lumenier AXII 2 Stubby 5.8GHz Antenna

U.FL Connector

SWR: <=1.5:1
Weight: 2.4g
Size: 77mm x 17mm
Cable: Flexible RG178
Connector: U.FL
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP/LHCP antennas

Package Included:
1x Lumenier AXII 2 U.FL 5.8GHz Antenna

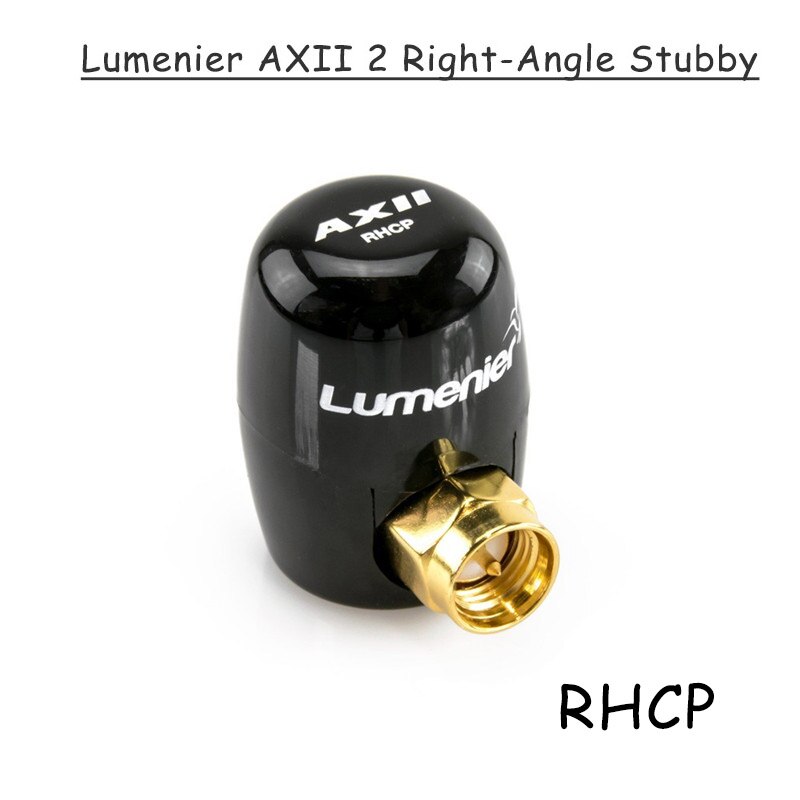

Right-Angle SMA Connector

SWR: <=1.5:1
Weight: 6.7g
Size: 23.6mm x 17.5mm
Cable: None
Connector: Right-Angle SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP/LHCP antennas

Package Included:
1x Lumenier AXII 2 Right-Angle Stubby 5.8GHz Antenna

Straight SMA/ Right-Angle SMA Connector

SWR: <=1.5:1

Weight: 10.8g

Size: 125mm x 17.5mm

Cable: Semi-rigid RG402

Works great as both a transmitting or receiving antenna

Compatible with other styles of 5.8GHz RHCP/LHCP antennas

Package Included:
1x Lumenier AXII 2 Long ran&ge 5.8GHz Antenna

02 SMA Connector

SWR: <=1.5:1

Weight: 7.8g

Size: 73mm x 17.5mm

Cable: Semi-rigid RG402

Connector: SMA

Works great as both a transmitting or receiving antenna

Compatible with other styles of 5.8GHz RHCP/LHCP antennas

Package Included:

2x Lumenier AXII 2 5.8GHz Antennas(RHCP or LHCP)
