Lumenier Micro AXII Bare Wire 5.8GHz 1.6dBi FPV Antenna LHCP for RC Drone Tiny Whoop
DroneSpark
Regular price
$38.99
$30.99
Sale
The next e'volution in FPV Antennas is here with the Lumenier Mi cro AXII 5.8GHz Antenna.
A mi cro sized 5.8GHz FPV antenna with a 1.6dBic and industry leading crosspolar rejection.
A mi cro sized 5.8GHz FPV antenna with a 1.6dBic and industry leading crosspolar rejection.
Specification:
Gain: 1.6dbic
Cross-Polar Rejection: -10 to -28dB (2.4%)
Bandwidth: 5.5GHz-6.0GHz
Radiation Efficiency: 98%
SWR: <=1.5:1
Weight: 1.4g
Size: 12mm x 9mm

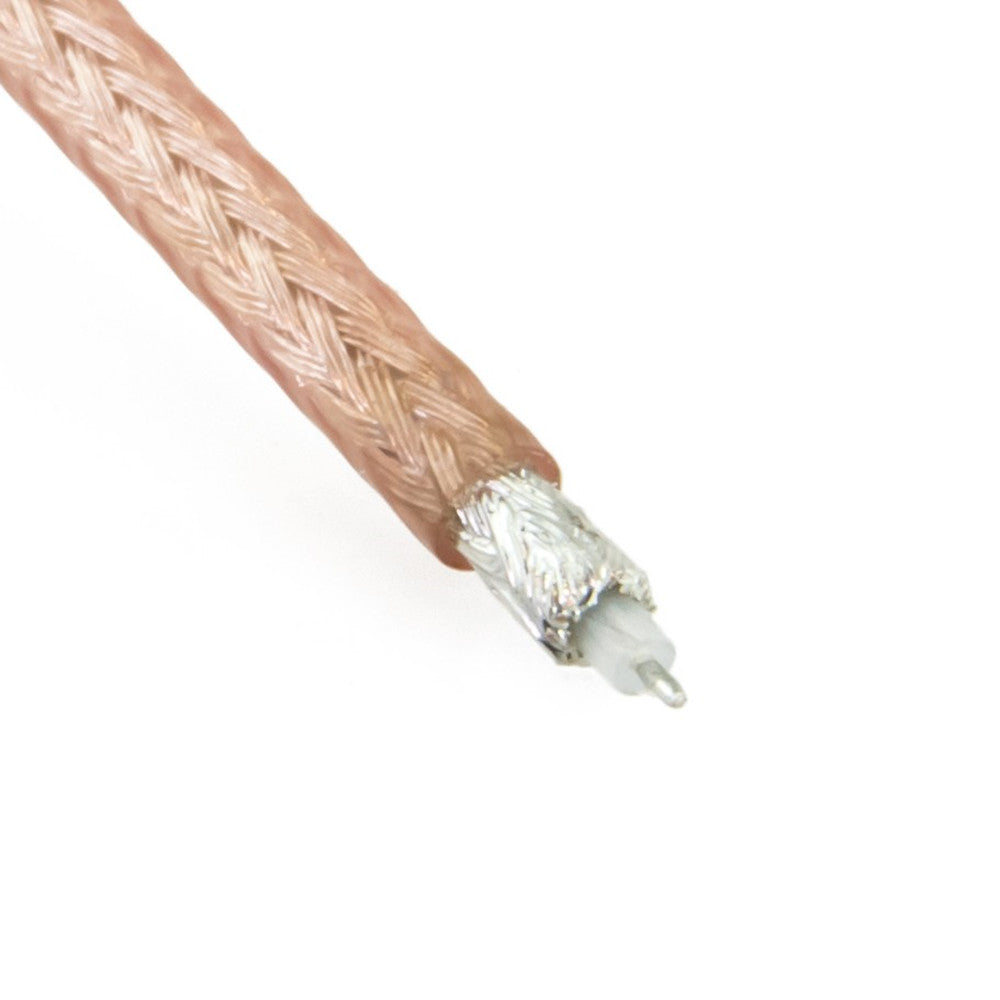

Cable: Flexible RG178
Cable Length: 25mm
Connector: Bare wire
Compatible with other styles of 5.8GHz LHCP antennas
Polarization
Left Hand Circular (LHCP)
Package Included:

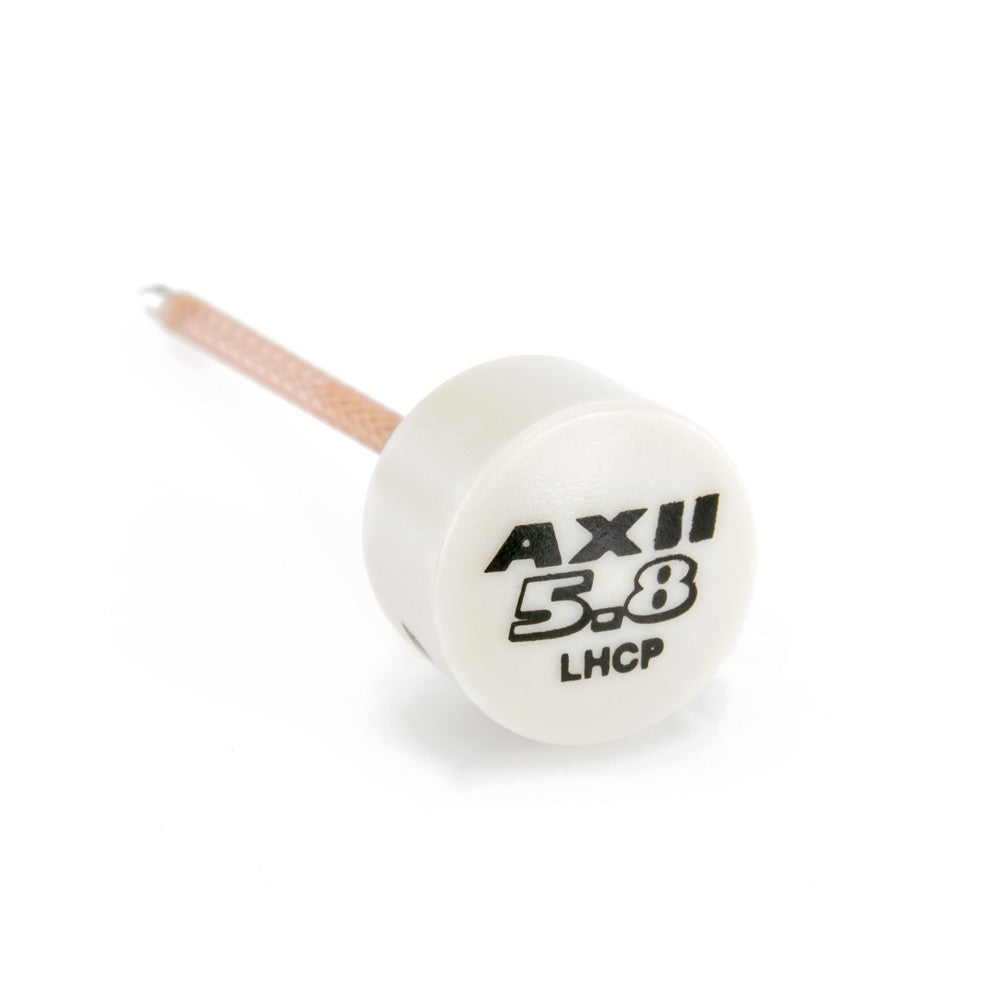

1x Lumenier Mi cro AXII Bare Wire 5.8GHz Antenna (LHCP)

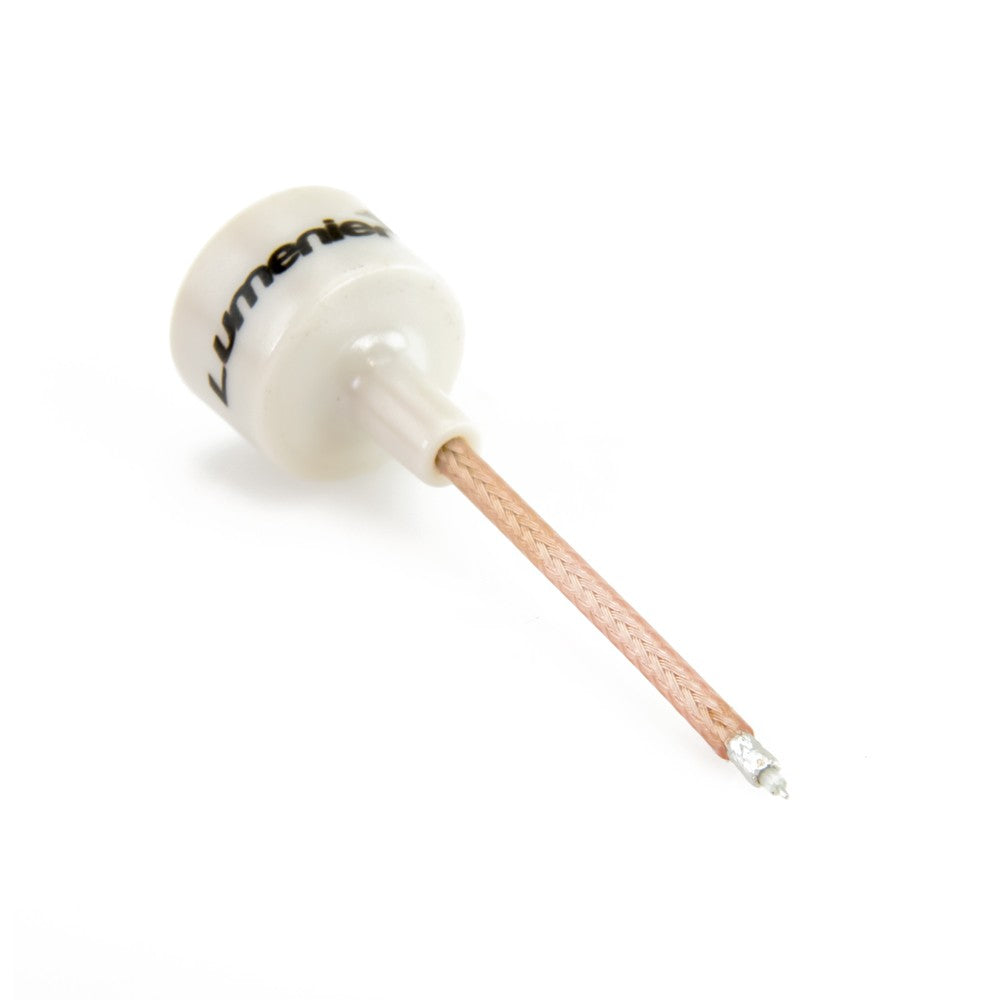

For all you custom builders out there, we present the Mi cro AXII with no connector, just bare wire!
The Mi cro AXII is the best way to improve video signal on your micro/whoop drone. But many of those micro drones don't use
connectors on their VTX, hence the bare wire Mi cro AXII! Solder directly onto your VTX's antenna connection and off you go!
Saving you time having to snip your own wires and run the risk of cutting the delicate signal wire. Another great bonus is the wires come pre-tinned!
connectors on their VTX, hence the bare wire Mi cro AXII! Solder directly onto your VTX's antenna connection and off you go!
Saving you time having to snip your own wires and run the risk of cutting the delicate signal wire. Another great bonus is the wires come pre-tinned!
The Lumenier Mi cro AXII 5.8GHz Antenna is the next e'volution of the world's most popular FPV antenna. The Mi cro AXII has the same incredible performance as the original AXII antenna, but now 1/2 the size and weight! Lumenier, in collaboration with renowned FPV antenna designer Hugo of TrueRC, brings you the smallest, lightest and best performing FPV antennas in the world. The Mi cro AXII antenna is an original design that features a new RF pathway technology (unique hy brid network) allowing it to be incredibly lightweight (1.6g) making it the smallest and lightest 5.8GHz CP antenna.
Even though the Mi cro AXII is both small and lightweight, it does not sacrifice on performance. In fact, it outperforms most other antennas in all categories. P'recision engineering has g'iven this antenna a near perfect Cross-Polar Rejection resulting in a true circularity. This means an RHCP Mi cro AXII antenna rejects nearly 100% of LHCP signals, giving you a crystal clear image free of multi-pathing noise. On top of that, the Mi cro AXII has a high max gain of 1.6dBic enabling better range and penetration. It has a wide bandwidth covering the popular FPV 5GHz band from 5.5GHz-6.0GHz, ensuring you have a clear and strong signal no matter which frequency you're on.
The Mi cro AXII is designed to be ultra durable and put up with the beatings FPV pilots put on their antennas. The entire antenna array is securely protected inside the injection molded outer casing. The outer shell case is made from an impact resistant polycarbonate material, and it is sealed shut to guard the antenna elements inside.
