M8N 8N GPS / BN-880 Mini GPS Built in Compass For APM APM 2.6 APM 2.8 PX4 PIXHAWK for RC Quadcopter
Drone Spark
Regular price
$193.99
$451.99

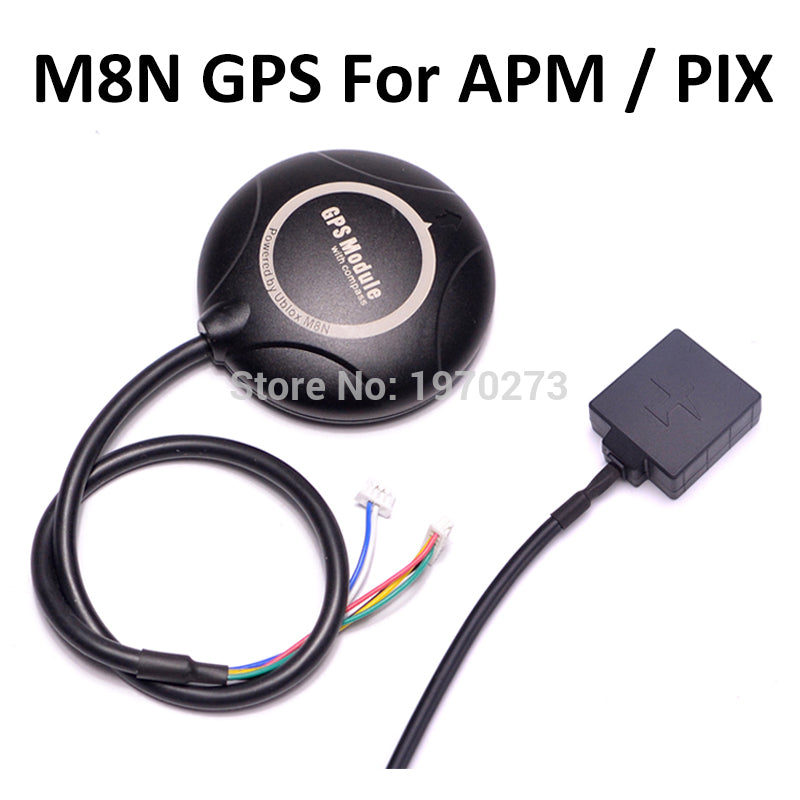

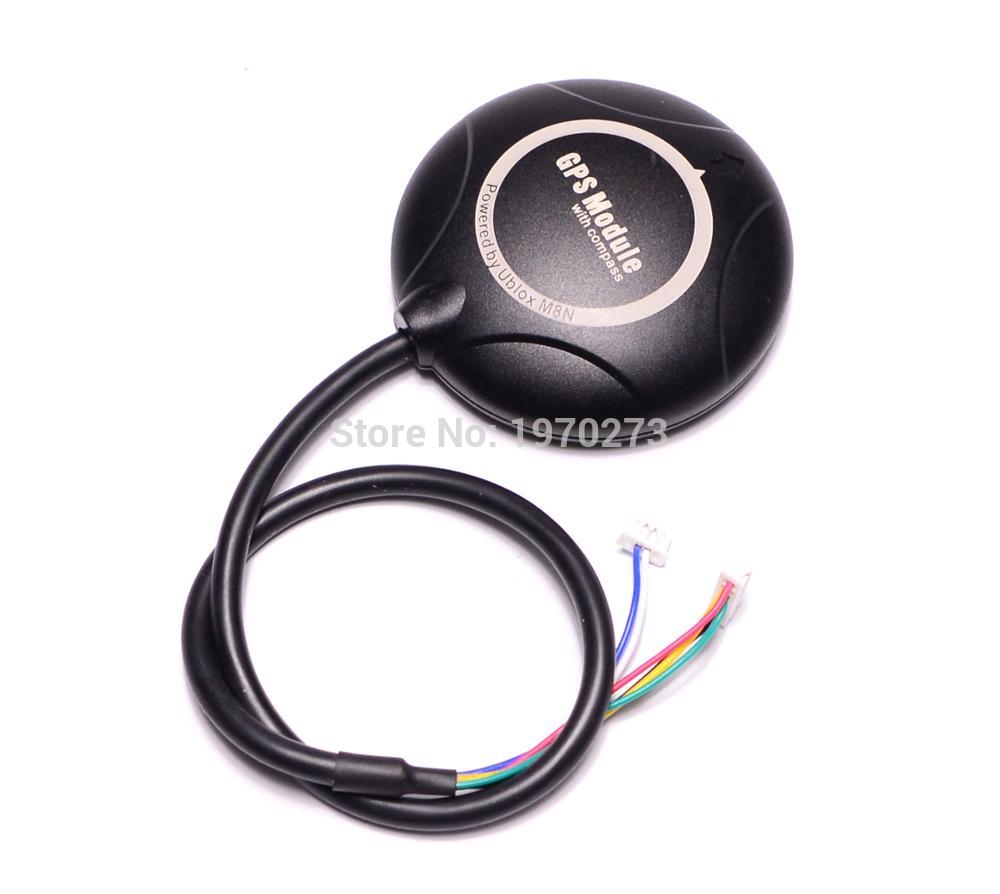

M8N GPS Module:
GPS Chip parameters:
Receiver type 72-channel M8 engine
GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
SBAS L1 C/A: WAAS, EGNOS, MSAS
Galileo-ready E1B/C (M8N)
Nav. update rate1 Single GNSS: up to 18 HZ
Concurrent GNSS: up to 10 Hz
Position accuracy2 2.0 m CEP
Acquisition2 Cold starts: 26 s
Aided starts: 2 s
Reacquisition: 1.5 s
Sensitivity2 Tracking & Nav: –167 dBm
Cold starts: –148 dBm
Hot starts: –156 dBm
Assistance AssistNow GNSS Online
AssistNow GNSS Offline (up to 35 days)3
AssistNow Autonomous (up to 6 days)
OMA SUPL & 3GPP compliant
Oscillator TCXO (M8N/Q),
Crystal (M8M)
RTC crystal Built-In
Noise figure On-chip LNA (M8M). Extra LNA for
lowest noise figure (M8N/Q)
Anti jamming Active CW detection and removal. Extra
onboard SAW band pass filter (M8N/Q)
Supported antennas Active and passive
Odometer Travelled distance
Data-logger For position, velocity, and time (M8N)
Operating temp. –40° C to 85° C
Storage temp. –40° C to 85° C (M8N/Q)
–40° C to 105° C (M8M)
RoHS compliant (lead-free)
Qualification according to ISO 16750
Manufactured and fully tested in ISO/TS 16949 certified production sites
Uses M8 chips qualified according to AEC-Q100
Supply voltage 1.65 V to 3.6 V (M8M)
2.7 V to 3.6 V (M8N/Q)
Power consumption4 23 mA @ 3.0 V (continuous)
5 mA @ 3.0 V Power Save Mode
(1 Hz, GPS mode only)
Backup Supply 1.4 to 3.6 V
Timepulse Configurable 0.25 Hz to 10 MHz

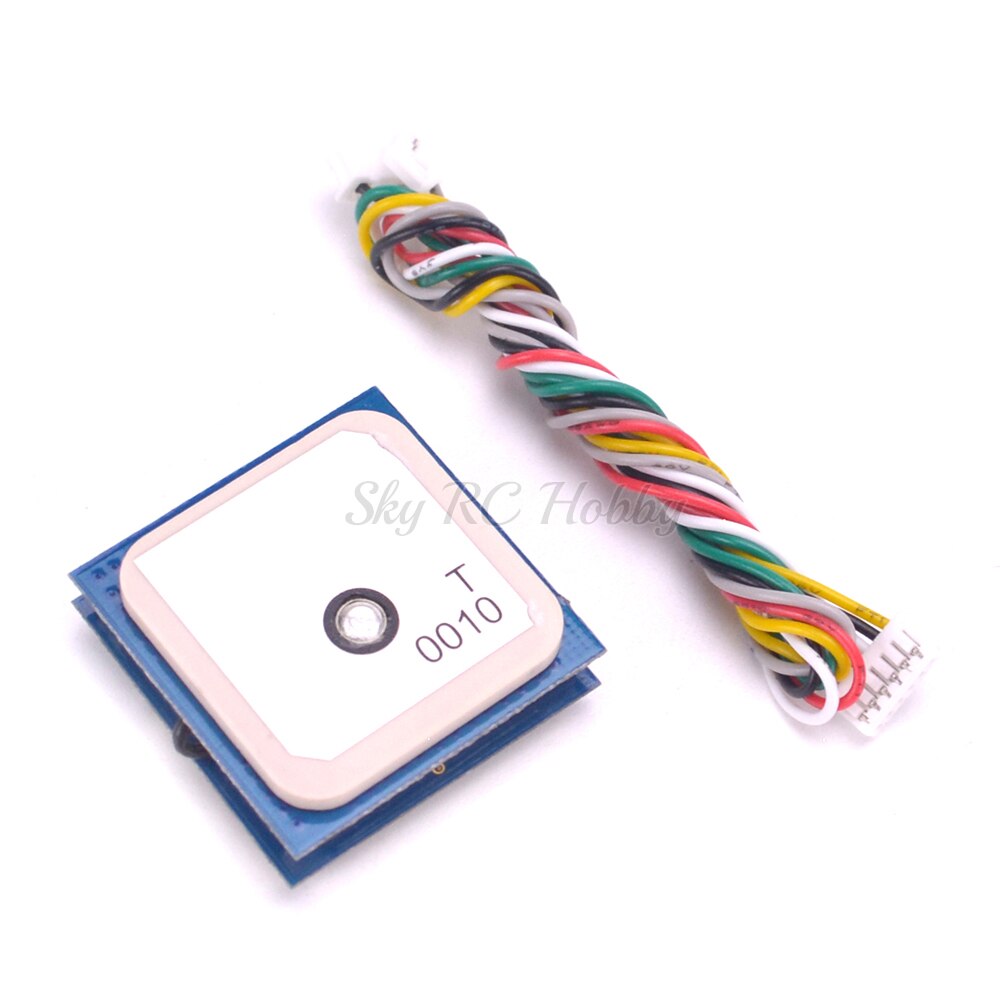

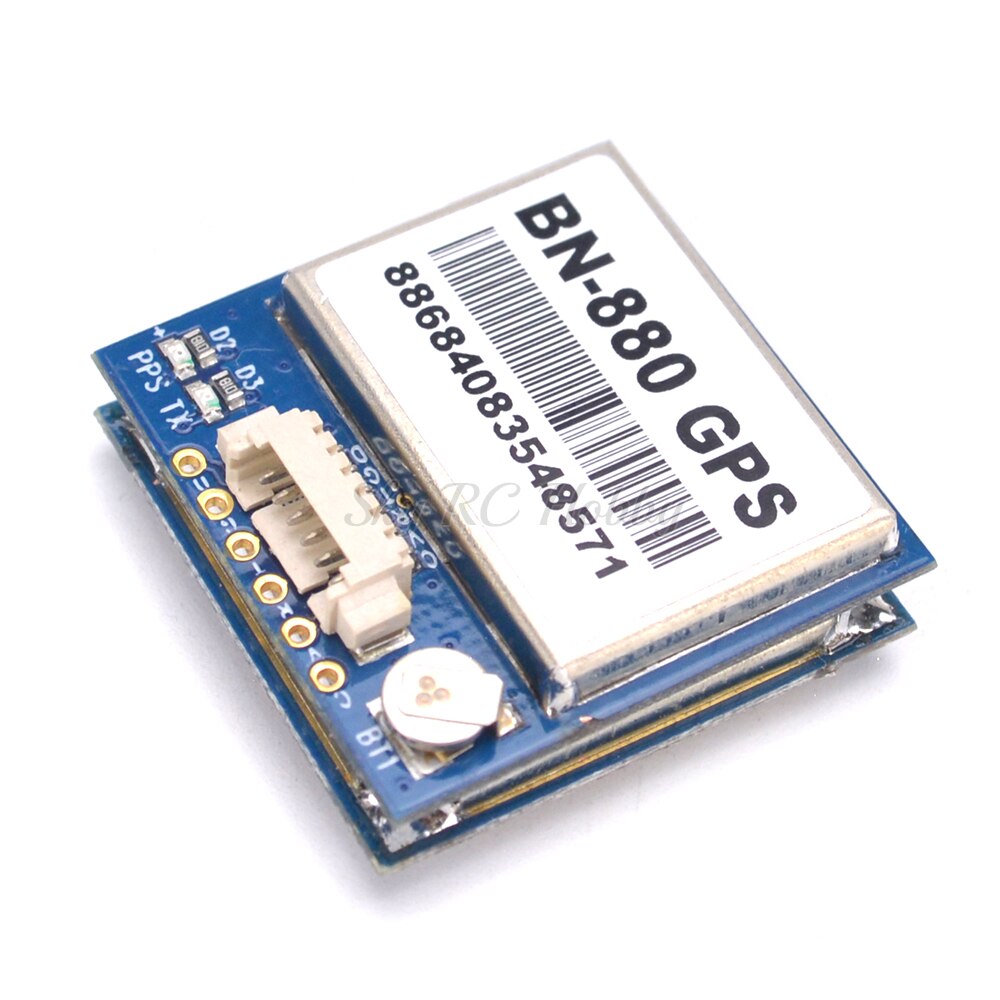

BN-880 GPS Description:
Model:BN-880
Power Supply: DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V
Consumption: Capture 50mA@5V
Receiving Format: GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Receiving Channel: 72 Searching Channel
Receiving Sensitivity: Trace -167dBm
Capture-148dBm
Positioning Time: Cold Start:avg26s
Warm Start:avg25s
Hot Start:avg3s
Level Positioning Precison: 2m At Open Wind
Output Frequency: 1Hz-10Hz,Default 1Hz
Speed Precison: 0.1 m/s (Without Aid)
Acceleration Precison: 0.1 m/s (Without Aid)
Dynamic Characteristics: Max Height:18000m
Max Speed:5153m/s
Max Acceleration:4G
UART Interface:UART Port: TXDA and RXDA
Support Rate: 4800bps to 115200bps,Default 38400dps
Working Temperature: -40-+85
Storage Temperature: -40-+85
Size: 28mm x 28mm x 10mm
Weight: 10g
The Module's Pins: SDA,GND,TX,RX,VCC,SCL
Features:
GPS Module,Dual Module Compass
With electronic compass IC HMC5883L
1.25mm spacing between the 6pins patch seat
Note:Can not use for flight control with SCM,but it is suitable for Open source flight controller.
Package included:
1 x M8N / BN-880 GPS Module with Shell
Note:
1.Apm connector or Pixhawk connector , send it as your choice .
2.The firmware of GPS is fixed , do not need to revise it; You can use it directly after receiving the GPS.
