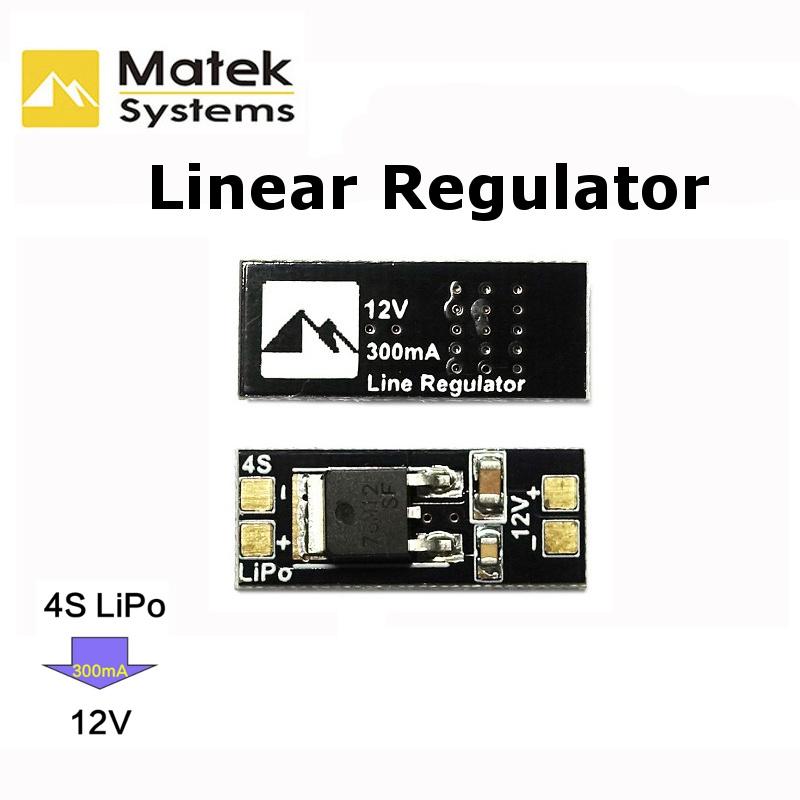

Matek 4S Lipo to 12V Linear Voltage Regulator Regulate Module For FPV Camera Multicopter
Description:
Brand Name: Matek
Item Name: Linear Voltage Regulator
Input Voltage:13~17V, 4S LiPo
Output Voltage: 12V, accuracy 2.5%
Output Current: Continuous 300mA
Size: 25*10*3mm
Weight: 1g
Features:
Suitable for FPV Camera
Compared with BEC12V, linear voltage regulator with low-ripple, does't interfere the image signal
Temp. 25℃, 16V input, 12V output 300mA, 5min, the highest measured temperature is 58℃
Can be connected with extra only one 12V 1.5W LED light.
If the 3S and 4S mixed, it support 3S battery too. Output voltage=3S voltage-1V, eg. the battery voltage is 12V, actual output is 11V, and the camera can work normally.
Package Included:
1 x Module
