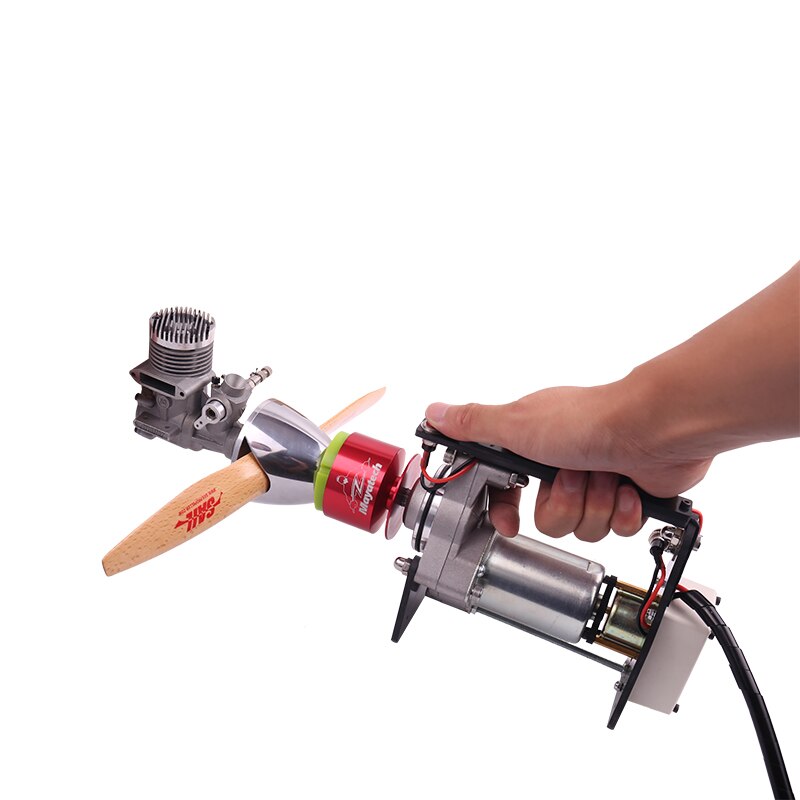

mayatech TOC Electric rc Engine Starter for 15cc - 80cc RC Model Gasoline engine Nitro engine Rc airplane Helicopter
Drone Spark
Regular price
$502.99
$1,172.99

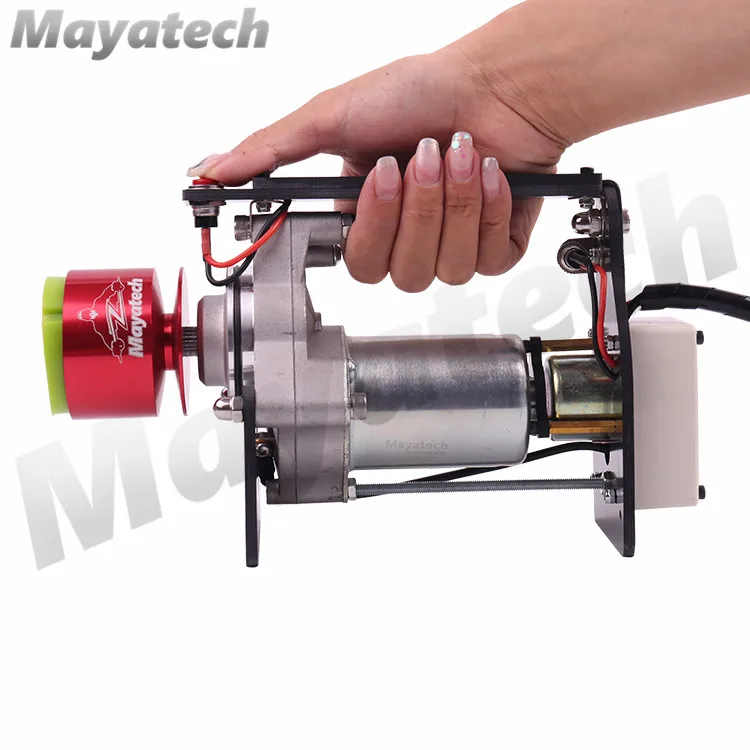

MAYATECH TOC starter single-handedly
Product Introduction：
Increasing Torsion by Using Reducing Tooth Design (Not directly driven)The slight shaking of the starter head during rotation is normal and not a quality problem.

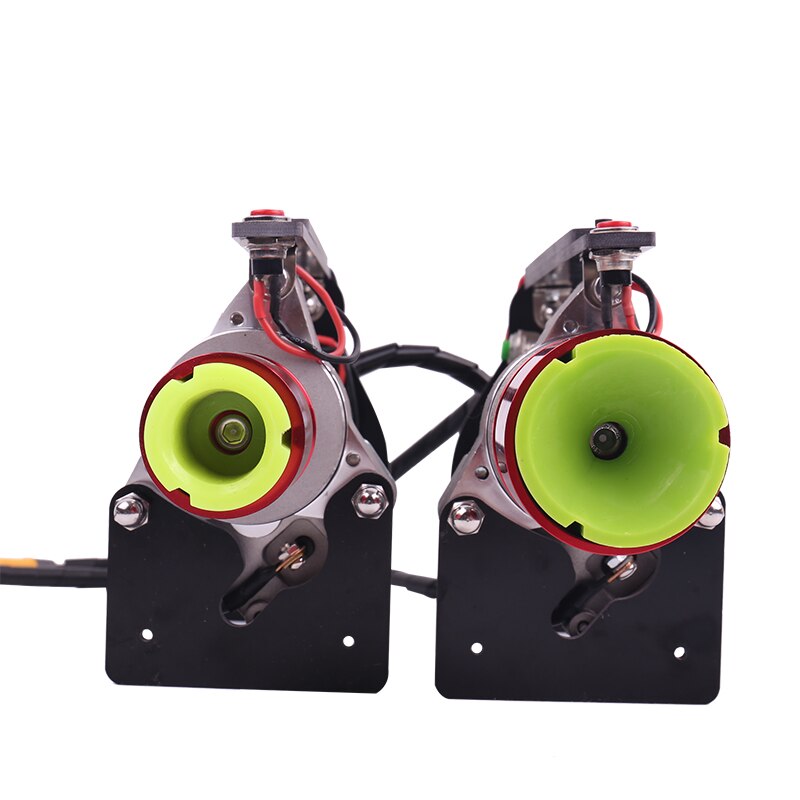

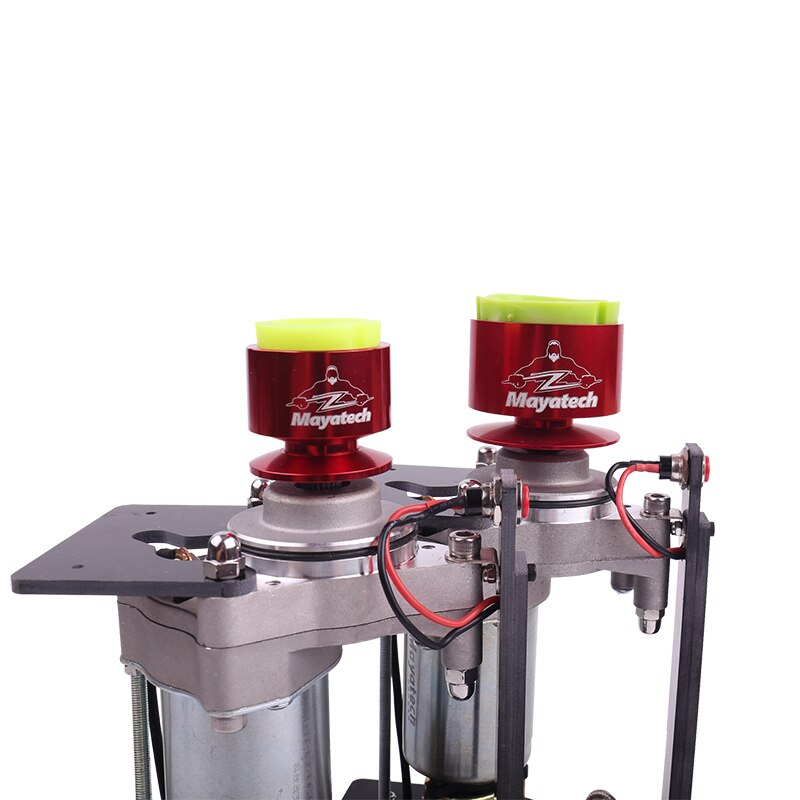

Large diameter starter rubber front page or small diameter starter rubber front page can be selected. Large diameter starter front page is more suitable for starting fixed wing. If starting helicopter must use small diameter version, the maximum starting fixed wing can only reach 2.5 inch propeller hood, larger model must use large diameter version.
Feature:
Applicable voltage: 12V-18V (recommended 11.1V lithium polymer batteries or storage battery above 9AH)
Working current: 40A
Engines Suitable for Starting: 15-400 Class Methanol Engine/15CC-80CC Gasoline Engine
Standardized large caliber starter head, suitable for TOC use. If you need to start a small special aircraft or connect directly to the aircraft, you need to add a standard caliber starter head (rubber head needs to be matched separately).

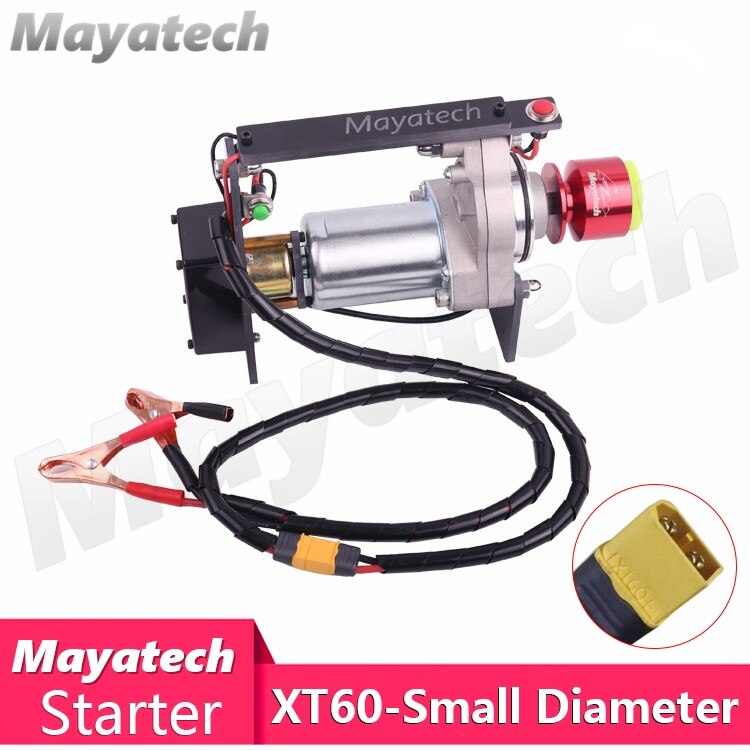

Small diameter version：
Suitable for propeller hood of 15-90 grade methanol fixed wing less than 2.75 inches
Suitable for 15-260 class helicopter with starter pole to start helicopter (starter pole is provided separately)
Line length: 1000mm
Weight: 1470g
Voltage: 12V-18V
Current: 40A

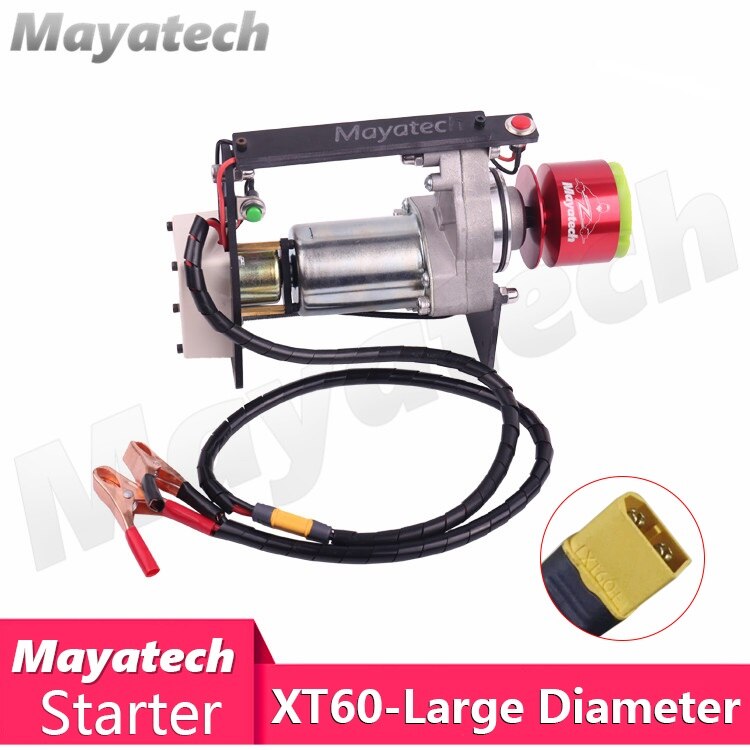

Large diameter version:
Suitable for 45-90 grade methanol fixed wing hood over 2.25 inches
Suitable for 10CC-80 CC gasoline fixed wing hood over 2.25 inches(Starter rod is fitted separately)
Line length: 1000mm
Weight: 1550g
Voltage: 12V-18V
Current: 40A
Starter adopts CNC processing, perfect texture, laser engraving LOGO. Gear technology: For the first time, the starter adopts gear technology, aluminum alloy starter, which solves the skidding phenomenon of most starters and makes them more durable.
On the left is the Mayatech starter with gears, on the right is the common starter without gears on the market.
Wear-resistant rubber head, taper design: Start rubber head is made of high wear-resistant silicone gel, with a certain degree of softness and stickiness, in order to grasp the helicopter starter rod or fixed-wing propeller hood, so that it is more efficient and will not slip. At the same time, it has a certain degree of hardness and wear resistance. Especially for the large diameter starter, the conical design is better to enlarge the contact surface with the propeller hood without slipping.
All-silicone wire: Unlike the electronic wire used in the market to save cost, all of our stores use silicone wire, which costs 10 times as much as the electronic wire! In order to protect the silica gel wire, we also use winding pipe protection. Battery clamping wire is 1 meter long with No. 14 silica gel wire
Winding pipe: In order to protect silica gel wire, we also use winding pipe protection.
Battery clamp: It can be used to clamp car batteries. Remember that both helicopters and fixed wings start counter-clockwise. Make sure that they start, because the direction of positive and negative clamps is different, so the direction of rotation is different. Unless you have other uses, don't reverse it. It will almost destroy the engine.
Replaceable positive and negative pole converter: According to the different needs of customers, some customers need to turn the starter forward, and some customers need to turn the starter backward. Replaceable positive and negative pole converter can solve this problem very well. (purchased separately)

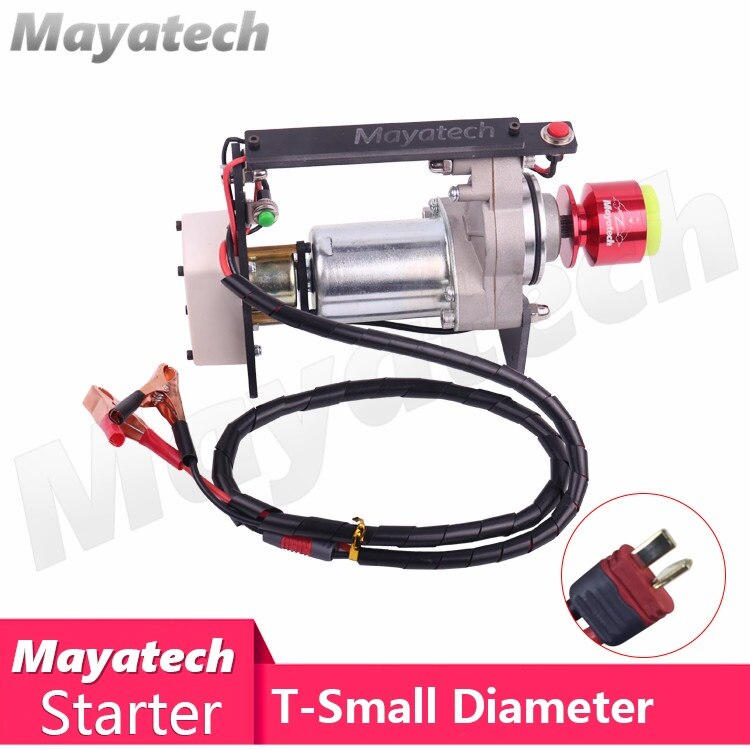

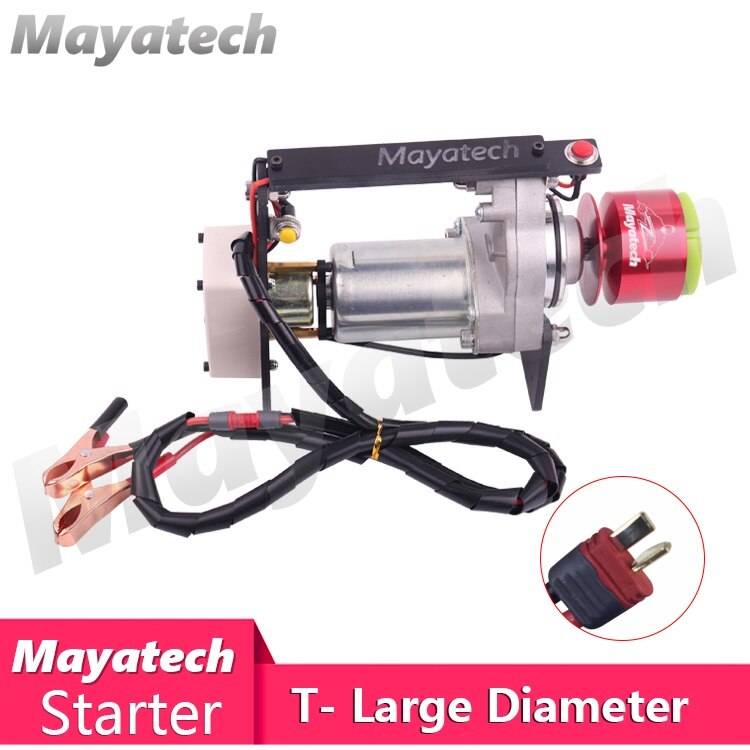

It is easy to use lithium batteries and can directly use 11.1v lithium battery by using T-plug with sheath version of genuine Amass.（Batteries are not included in this product list and need to be purchased separately.）
All plates, using 4.0 glass fiber plate, insulation is not conductive! Ultra-thick sheets are more durable

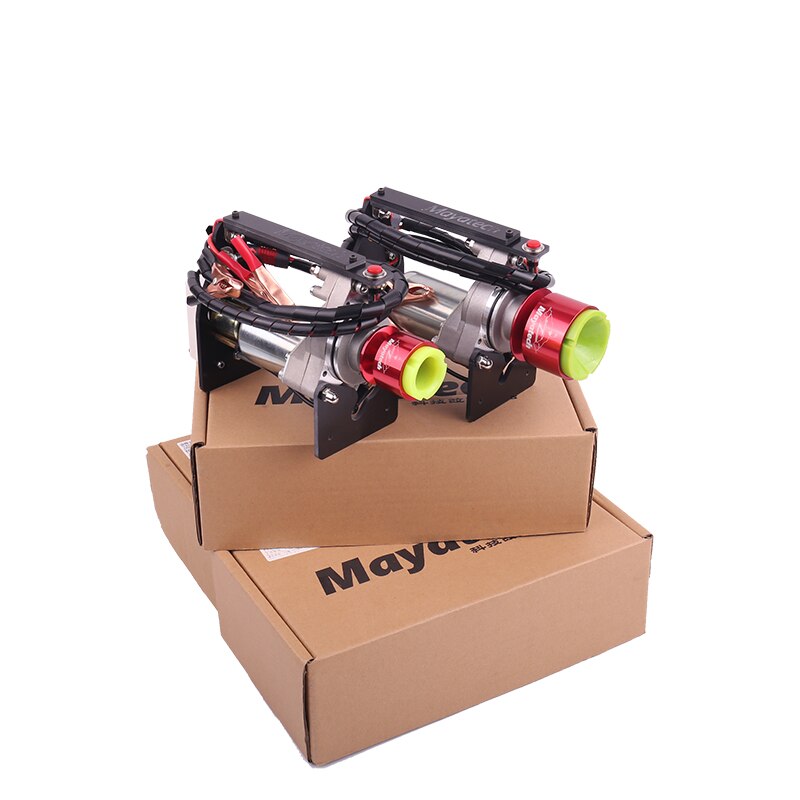

Safety Protection of Fully Regular Packaging
