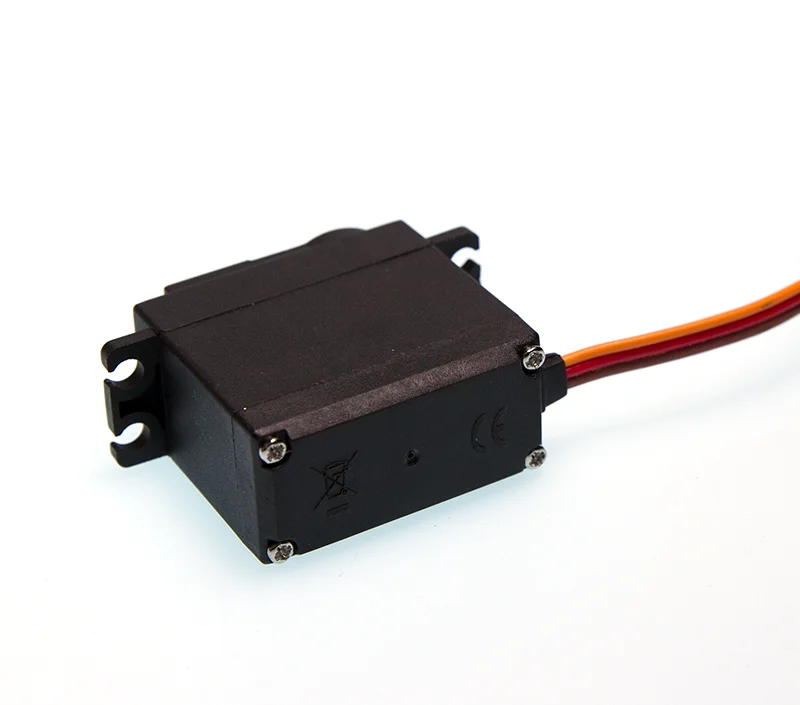

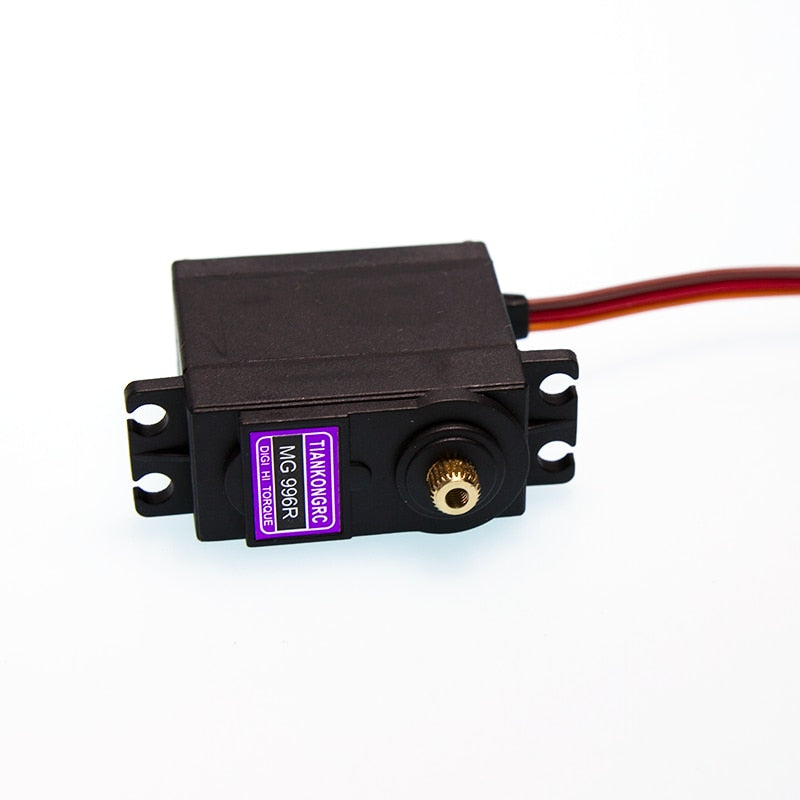

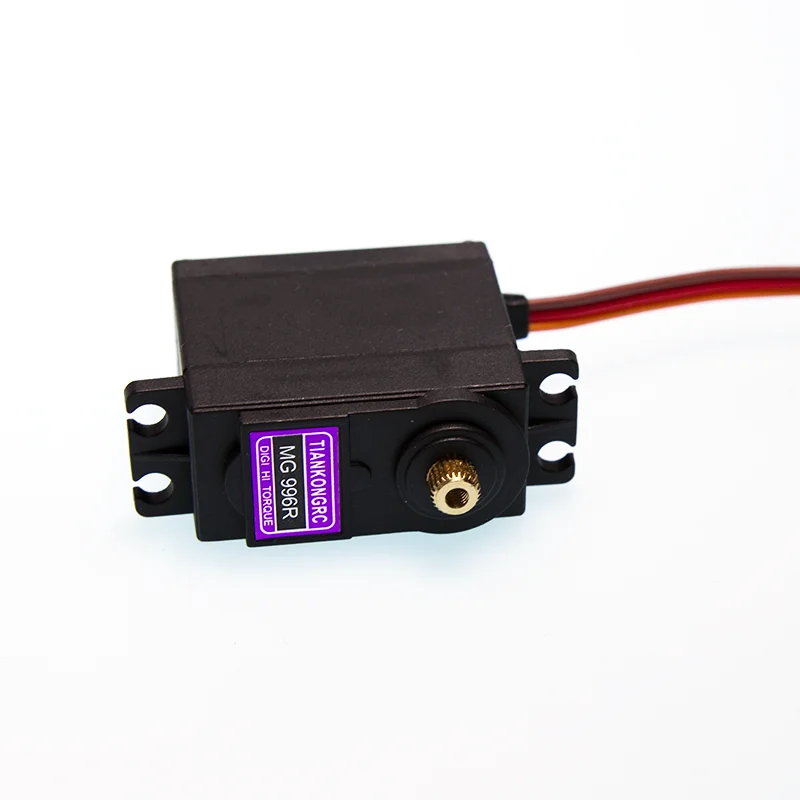

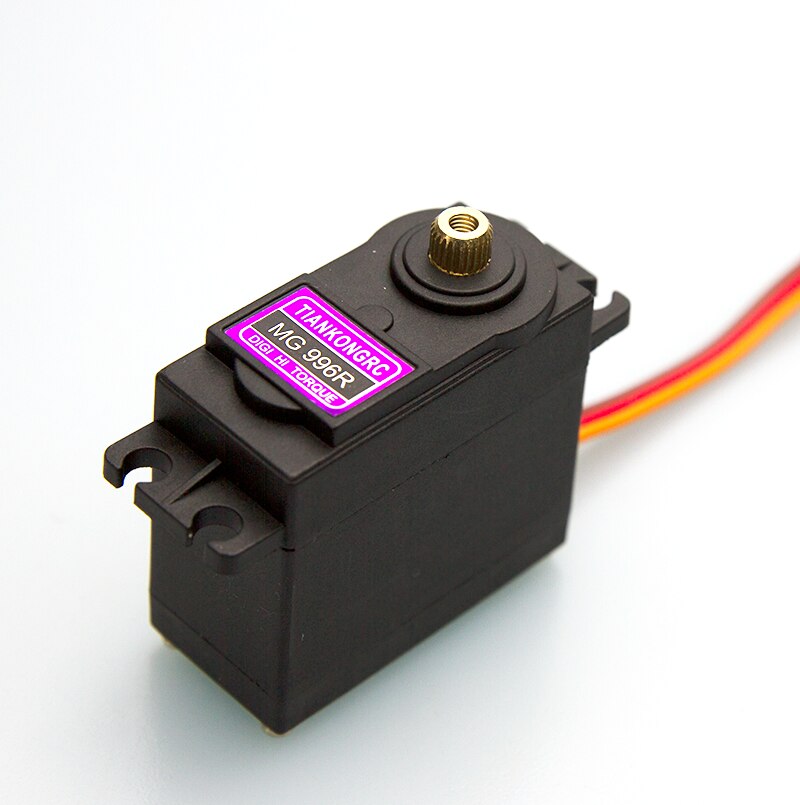

MG995 metal copper gear steering gear / 55g servo / remote control car / boat / 13 kg large torque steering gear 90-180 degrees

MG995 metal copper gear steering gear / 55g servo / remote control car / boat / 13 kg large torque steering gear

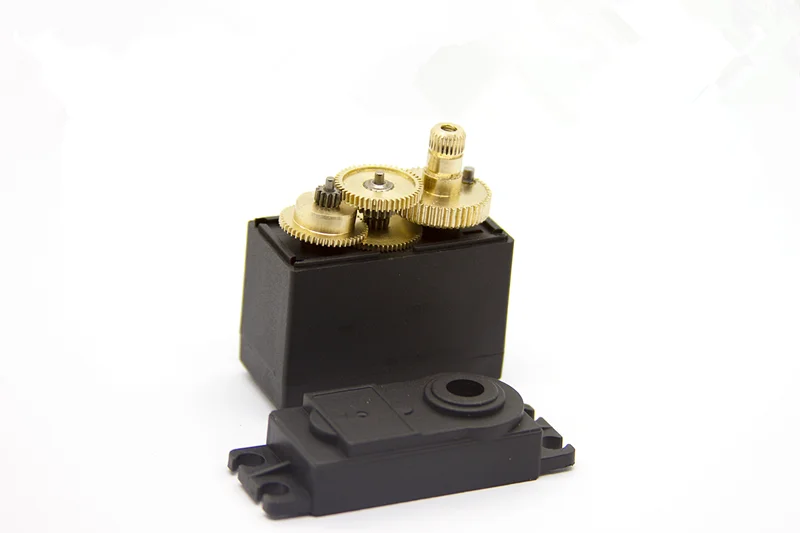

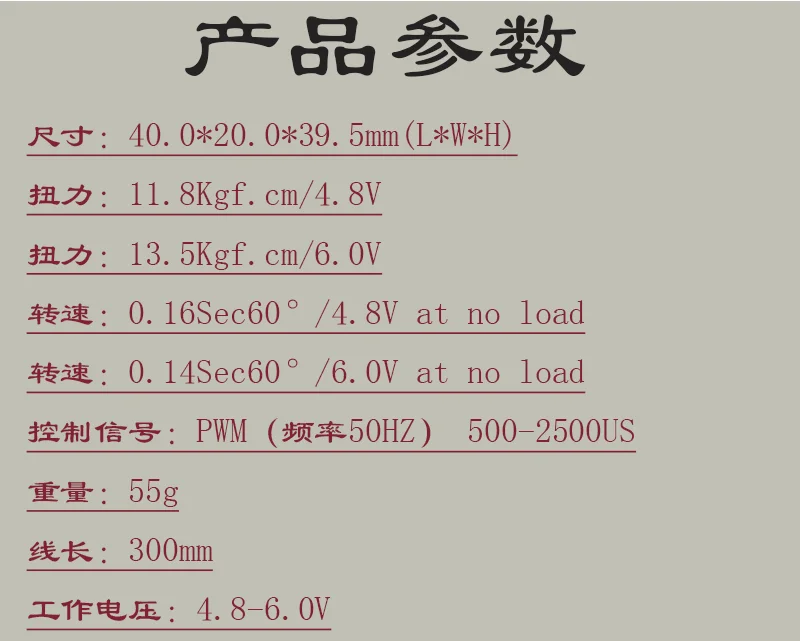

01: Structural material: simulated metal copper teeth

02: Cable length: 30 cm, signal line (yellow line) red line (power cord) brown (ground)
03: Size: 40.7*19.7*42.9mm
04: Weight: 55 grams
05: Reaction speed: no load speed 0.17 seconds / 60 degrees (4.8V); 0.13 seconds / 60 degrees (6.0V)
06: stall torque;
07: Working dead zone: 4 microseconds
08: Plug specification: JR FUTABA universal
09: working voltage; 3.0V-7.2V
10: Working torque: 13KG/cm
11: Operating temperature: -30~~+60 degrees Celsius
12: Suitable for models: biped robot / robot / remote control car, suitable for 50-90 methanol fixed-wing aircraft and
26cc-50cc gasoline fixed-wing aircraft and other models

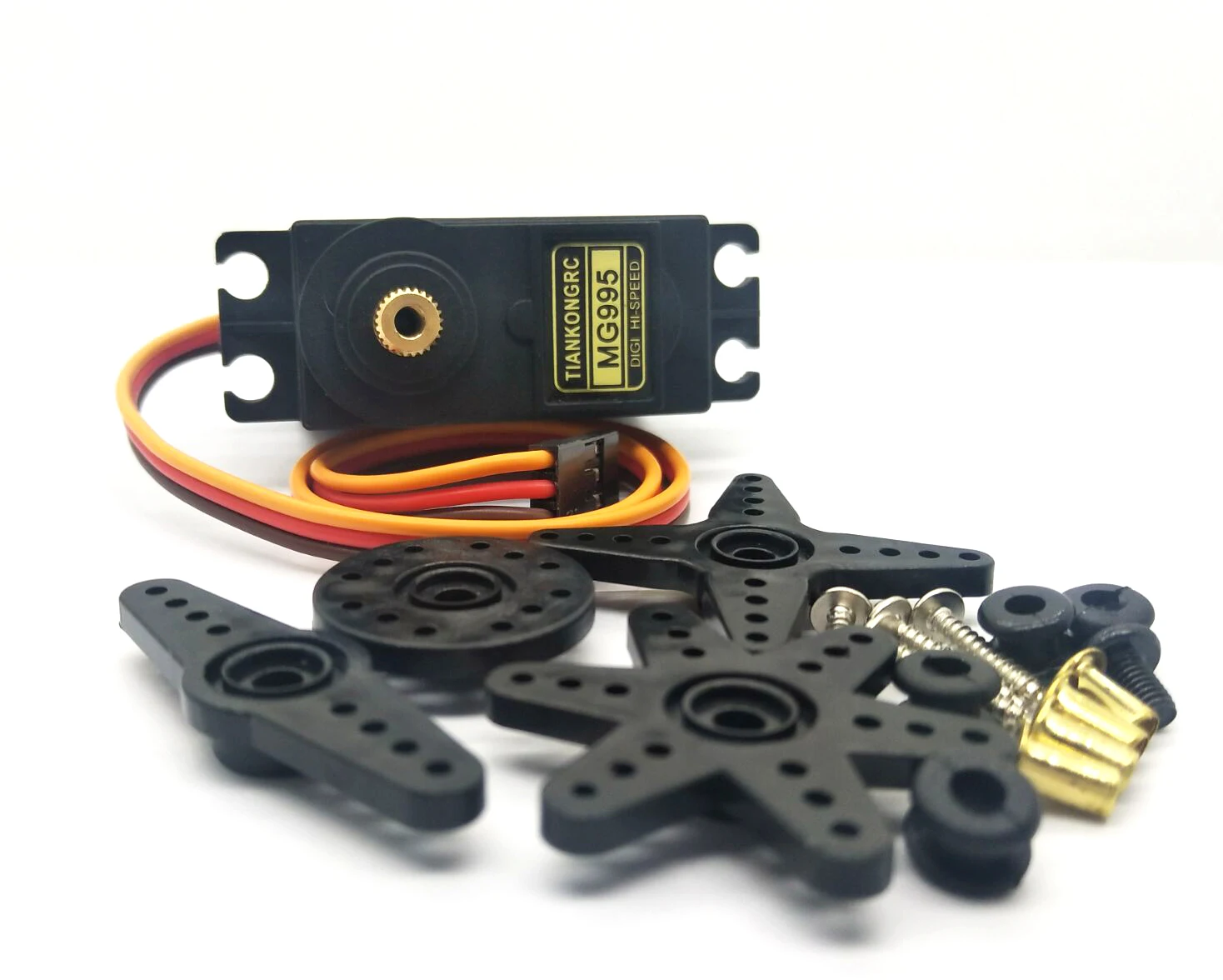

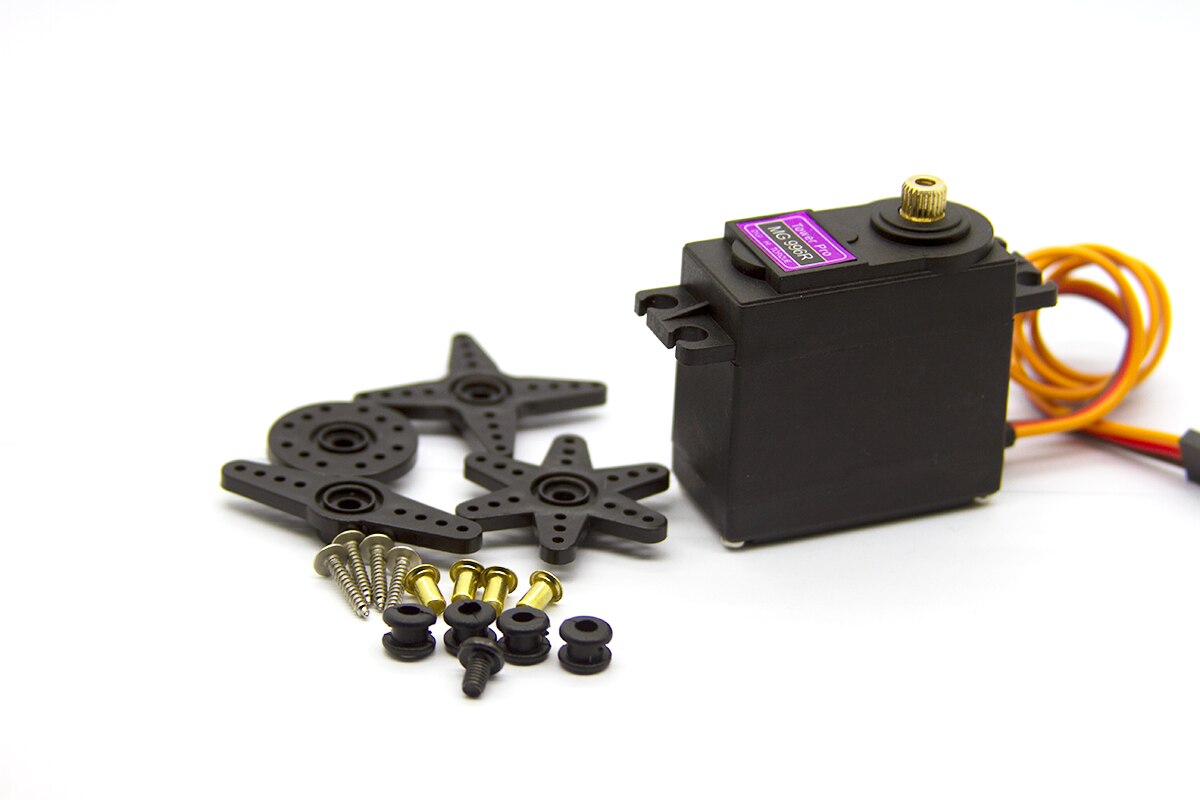

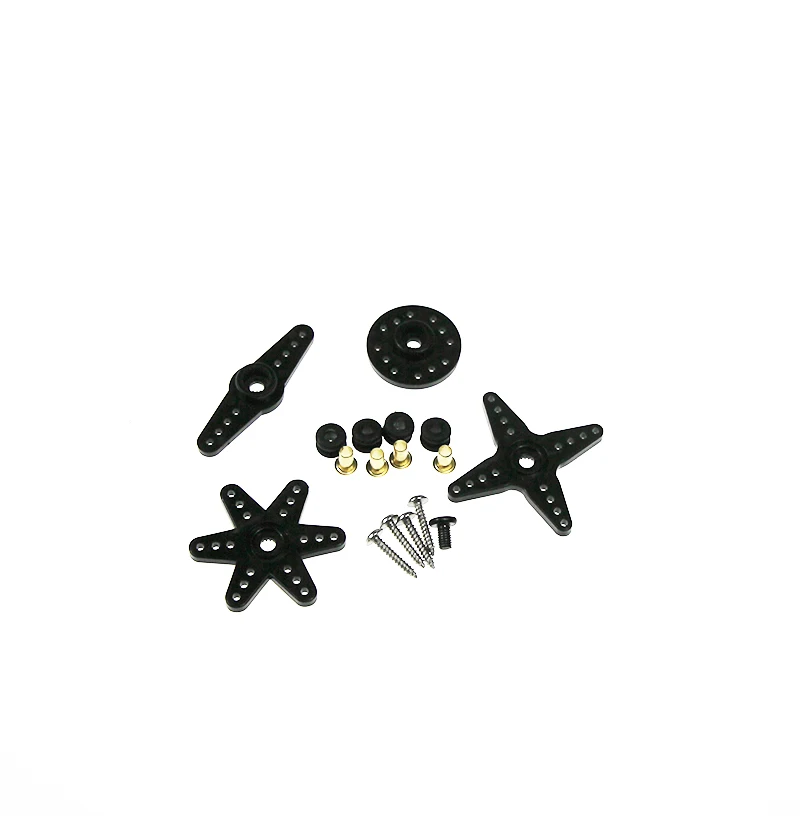

13: accessories; steering wheel, fixing screws, damping rubber sleeves and aluminum sleeves.

The control of the steering gear generally requires a time base pulse of about 20 ms. The high level portion of the pulse is generally an angle control pulse portion in the range of 0.5 ms to 2.5 ms, with a total interval of 2 ms. Taking the 180 degree angle servo as an example, the corresponding control relationship is this:
0.5ms--------------0 degrees;
1.0ms------------45 degrees;
1.5ms------------90 degrees;
2.0ms-----------135 degrees;
2.5ms-----------180 degrees;
Uses: 1:10 and 1:8 flat sports cars, off-road vehicles, trucks, trucks, climbing cars, biped robots, robots,

The remote control boat is suitable for models such as 50-90 methanol fixed-wing aircraft and 26cc-50cc gasoline fixed-wing aircraft.
360 degree servo: Actually equivalent to the stepless speed reduction motor, you can control the speed and direction. There is no 0-360 degree angle control function. The control method is the same as that of the general steering gear. It is a suitable power source for Watson modification.
(When the high level is 1 millisecond to 1.5 milliseconds, the steering gear rotates forward (the forward rotation speed is the fastest at 1 millisecond, the slower the 1.5 millisecond, the servo is stopped at 1.5 milliseconds), and the high level is 1.5 milliseconds~2 The servo is reversed in milliseconds (the servo is stopped at 1.5 milliseconds, the closer to 2 milliseconds, the faster the reverse, and the fastest at 2 milliseconds).)

\
\
