Mini T100 Aluminum Crawler Tank Car Chassis Intelligent Robot Car Maximum Load 5kg + PS2 Control Kit Optional DIY RC Toy Car
Drone Spark
Regular price
$567.99
$1,323.99
-

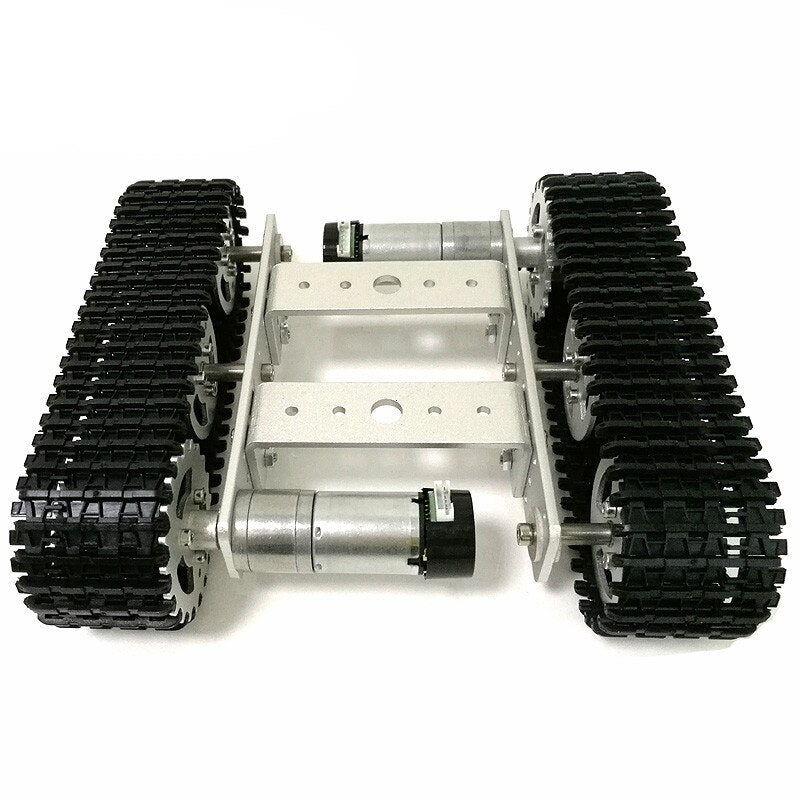

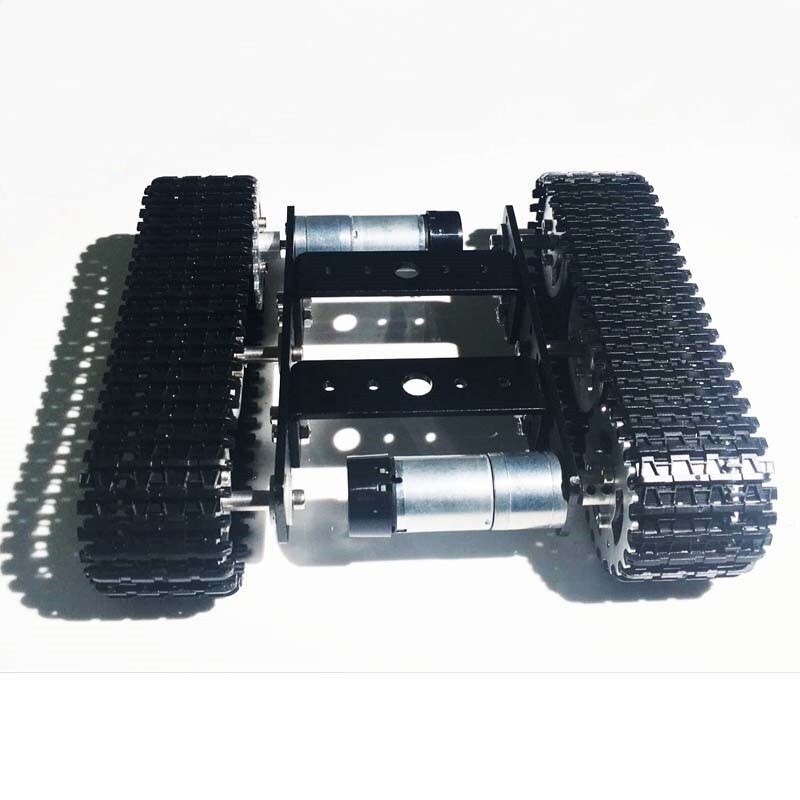

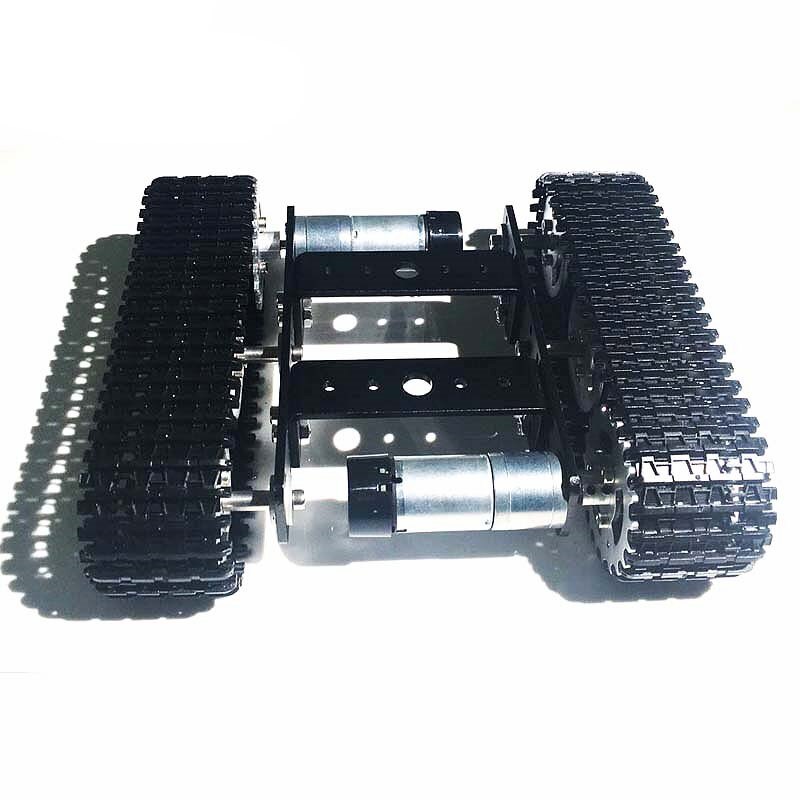

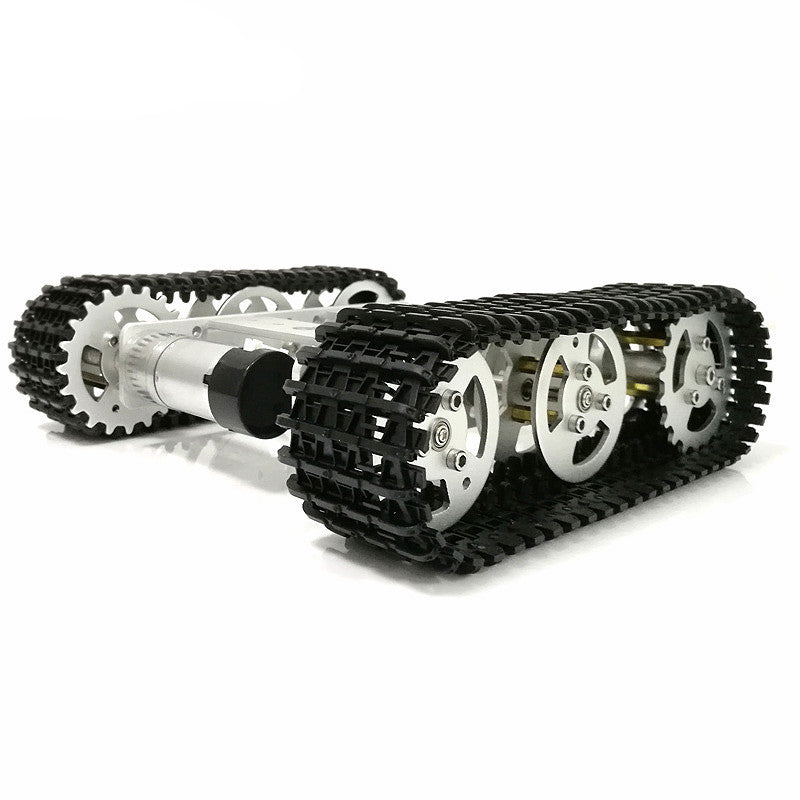

Name: Mini T100 Tracked Tank Chassis
-
Material: Aluminum Alloy
-
Surface treatment: sandblasting oxidation
-

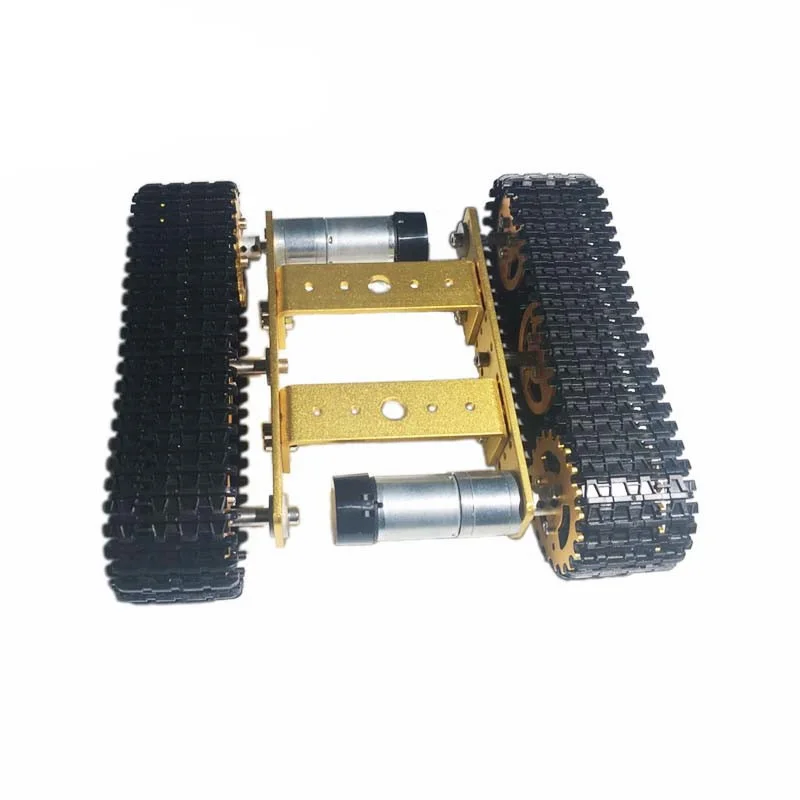

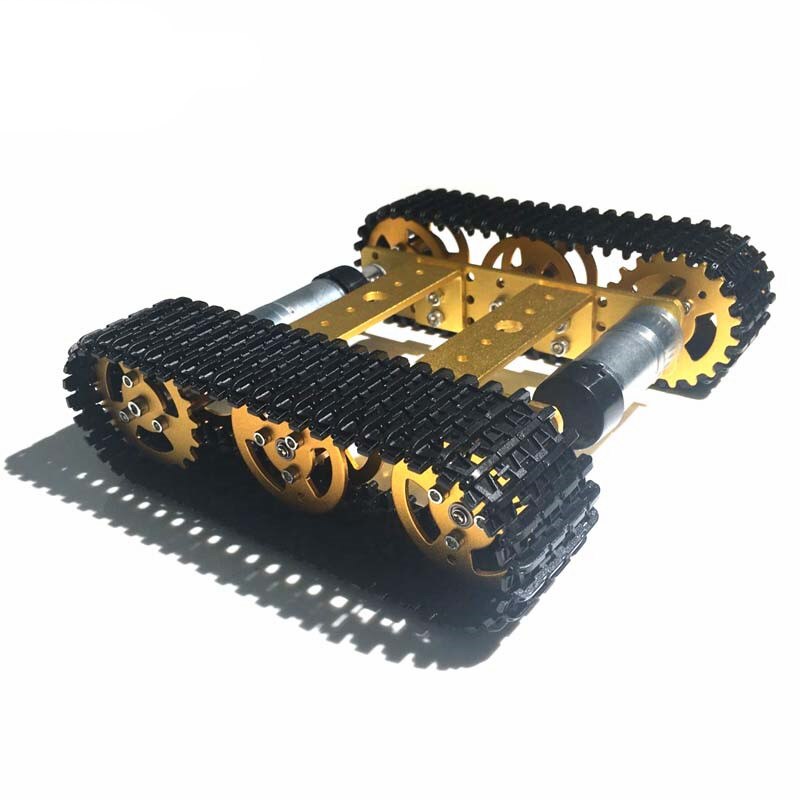

Color: Golden,silver and black (optional)
-
Track: Engineering plastic
-

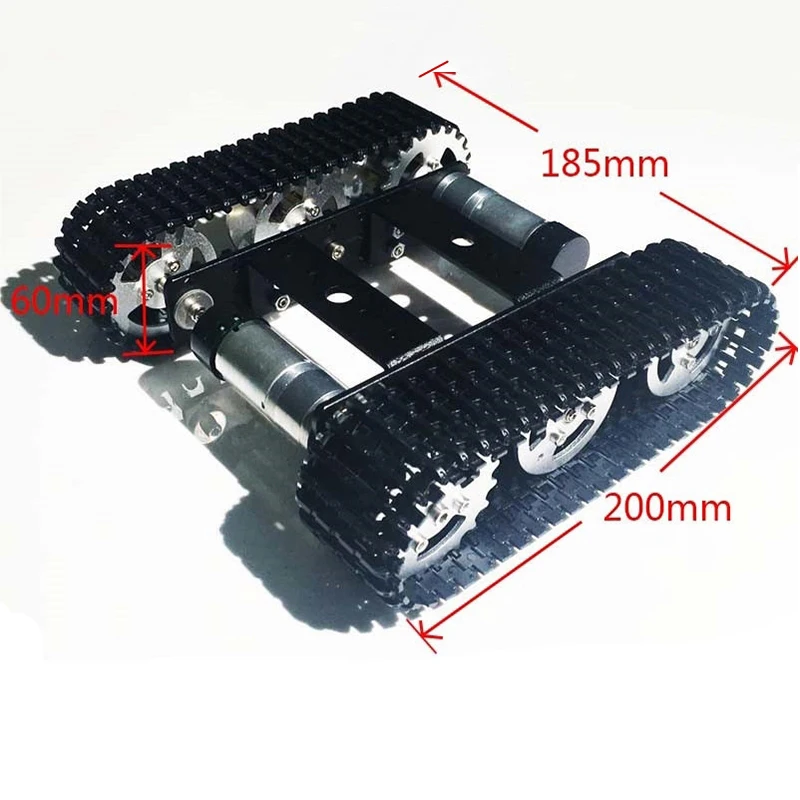

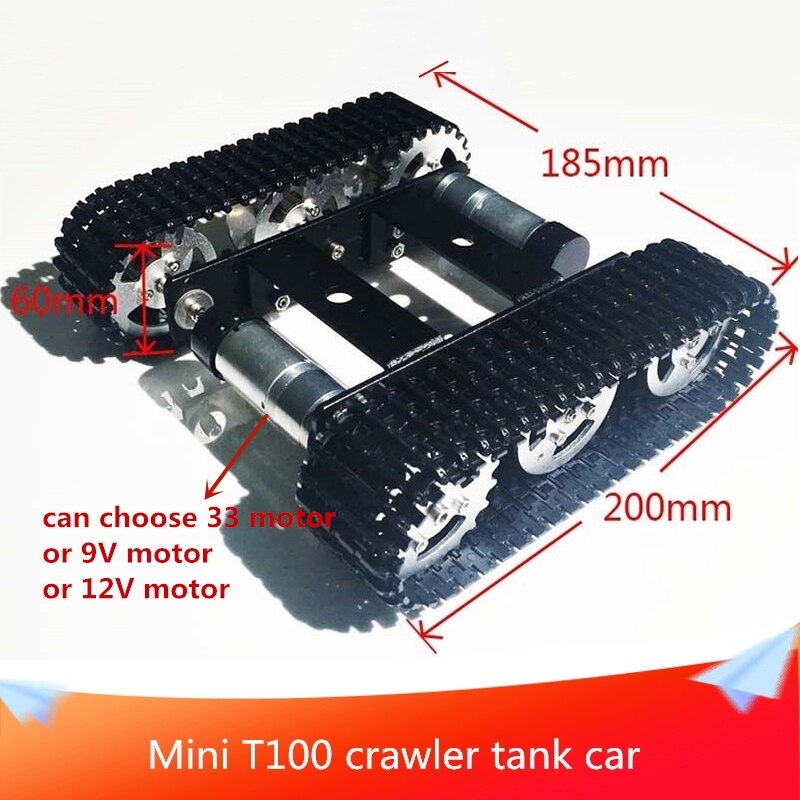

Size: About 200*185*60mm(Length*Width*Height)
-
Weight: 0.65kg
-
Design load: 5kg
-
Motor parameters(33GB-520 motor)
-
33Rated Voltege: DC12V
-
No load Current: 100mA
-
Voltage: 6-12V
-
No load Speed: 170-350r/min
- Weight: 100g
-
Motor parameters (9V&150rpm)
-

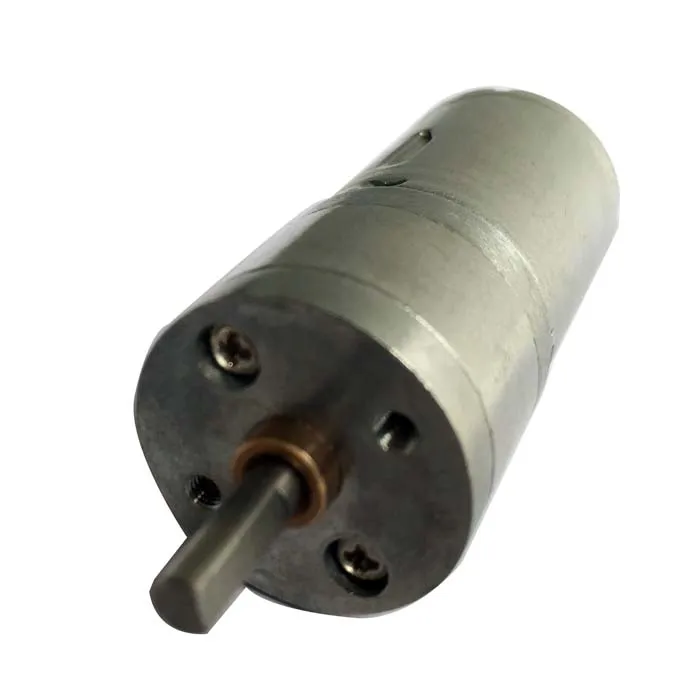

Name: 25 mm carbon brush dc motor (with hall sensor encoder)
-
Output rate: 150 ± 10% for RPM
-
Load current: 1200 mA (Max)
-
Locked-rotor current: 4500 mA (Max)
-
KgNaN locked-rotor torque: 9.5kgNaN
-
Load speed: 100 ± 10%rpm
-
The load torque: 3000 gNaN
-
Load noise: 56 dB
-
Working voltage:9V
-
Axis stretch size: 14.5 mm
-
Axial clearance: 0.05-0.50 mm
-
Screw size: M3.0
-
Trunnion: phi4mm,D3.5
-
Encoder parameters: Two pulse/circle
-
Sensor operating voltage: 3-5 V
- Motor parameters (12V&300rpm)
-
Mini T100 tank car: 1 set (golden,silver and black, optional)
-
Includes: 1-shaped bracket: 2 pcs
-
U-shaped bracket: 2 pcs
-
Tracks: 2 pcs
-
Motor: 2 pcs (33 motor, 9V motor, 12V motor,please leave a message that you need)
-
Bearing wheels: 4 pcs
-
Drive wheels: 2 pcs
-
Screws: 1 pack
-
Free Hex Wrench: 3
-

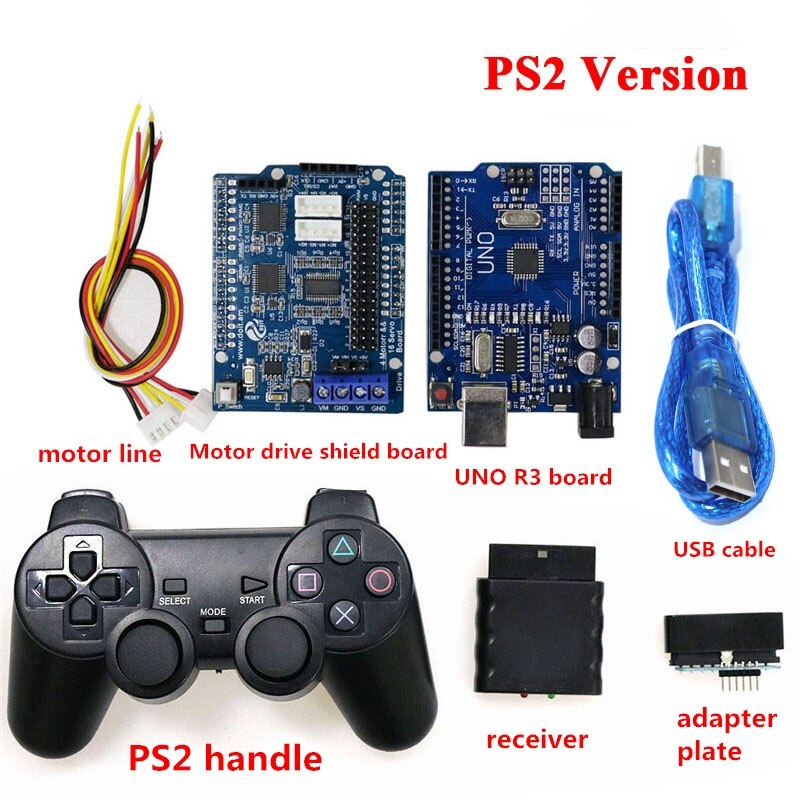

PS2 control kit
-
Motor drive shield board: 1pcs
-
UNO R3 board: 1pcs
-
USB cable: 1pcs
-
Motor line: 2pcs
-
PS2 handle:1pcs
-
Receiver:1pcs
-
Note: The track is removable. Shipped in bulk, please contact us for installation information or watch our official wiki: wiki.doit.am
The final color please refer to our actual goods. Please know this before you buy it. Thank you !
2. The picture we show is 100% Real Object Photography.
3. The size may have 2-3cm differs due to the maunal measurement.
4. For the shipping convenience, the product is unassembled .
