Introduction

Official wiki: wiki.doit.am

  • Name: Mini T100 Tracked Tank Chassis

  • Material: Aluminum Alloy

  • Surface treatment: sandblasting oxidation

  • Color: Golden yellow、silver、black (for optional)

  • Track: Engineering plastic

  • Size: About 185*200*60mm(Length*width*Height)

  • Weight: 0.65kg

  • Design load: 5kg



Motor types:

  • 33GB-520 Motor,

  • 9V&150RPM: has Hall sensor

  • 12V&320RPM: No Hall sensor.



Motor parameters(33GB-520 Motor):

  • Rated Voltege: DC12V

  • No load Current: 100mA

  • Voltage: 6-12V

  • No load Speed: 170-350r/min

  • Weight: 100g



Motor parameters(25mm 9V DC Motor):

  • Name: 25mm gear motor

  • Output speed: 150±10%rpm

  • No_load Current: 200mA (Max)

  • Stall current: 4500mA(max)

  • Stall torque: 9.5kgNaN

  • Rated speed: 100±10%rpm

  • Rated torque: 3000gNaN

  • Rated Current: 1200mA (Max)

  • Noise: 56dB

  • Working voltage: 9V

  • Outside Shaft Length: 14.5mm

  • Shaft End Play: 0.05-0.50mm

  • Screw Size: M3.0

  • Dia. Of Shaft phi4mm, D3.5

  • encoder: 2 pulses/circle



Motor parameters(12V DC Motor)

  • Voltage: 12V DC

  • RPM: 320RPM

  • Current: 0.55A

  • Diameter: 25mm

  • Height (excl. shaft): 68mm

  • Shaft length: 9.5mm

  • Shaft diameter: 4mm

  • Weight: 180g

  • Brand new and unused

  • Torque: 13kg.cm

  • max effective point: load 4.0kg.cm/235rpm/2.5W/0.58A

  • Max power: load 7kg.cm/215rpm/3.1w/0.65A

  • Stall current: 4.8A

  • More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wiki to download the source code and the documents.



Shiping list

Silver with 33 motor:

  • Silver mini T100 tank robot chassis: 1set(Motor: 33 motor)

  • ESPduino controller kit: 1set



Silver with 9V motor:

  • Silver mini T100 tank robot chassis: 1set(Motor: 9V motor)

  • ESPduino controller kit: 1set



Silver with 12V motor:

  • Silver mini T100 tank robot chassis: 1set(Motor: 12V motor)

  • ESPduino controller kit: 1set



Black with 33 motor:

  • Black mini T100 tank robot chassis: 1set(Motor: 33 motor)

  • ESPduino controller kit: 1set



Black with 9V motor:

  • Black mini T100 tank robot chassis: 1set(Motor: 9V motor)

  • ESPduino controller kit: 1set



Black with 12V motor:

  • Black mini T100 tank robot chassis: 1set(Motor: 12V motor)

  • ESPduino controller kit: 1set





Golden with 33 motor:

  • Golden mini T100 tank robot chassis: 1set(Motor: 33 motor)

  • ESPduino controller kit: 1set



Golden with 9V motor:

  • Golden mini T100 tank robot chassis: 1set(Motor: 9V motor)

  • ESPduino controller kit: 1set



Golden with 12V motor:

  • Golden mini T100 tank robot chassis: 1set(Motor: 12V motor)

  • ESPduino controller kit: 1set

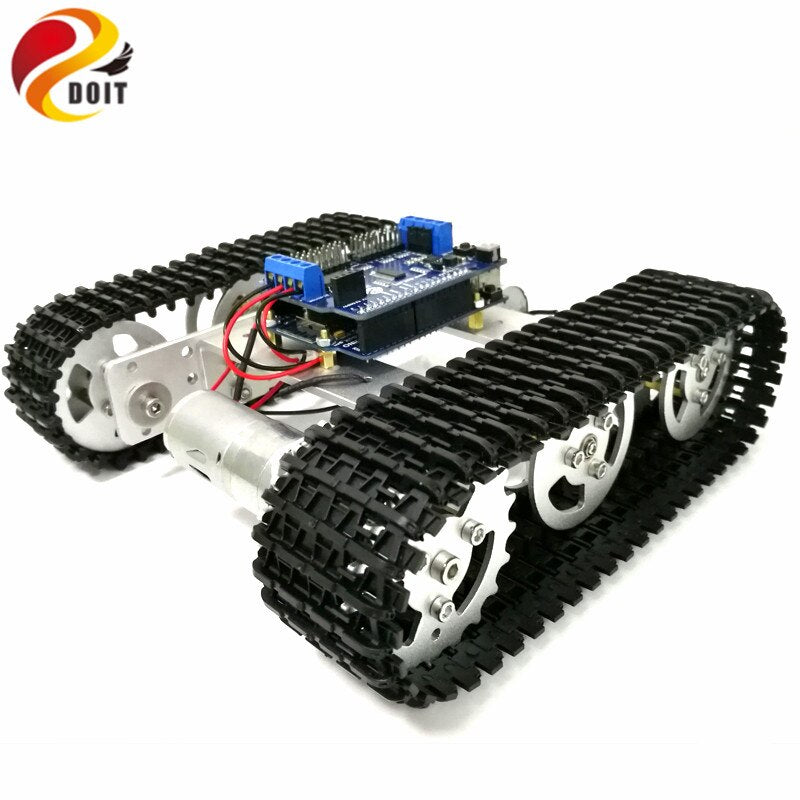

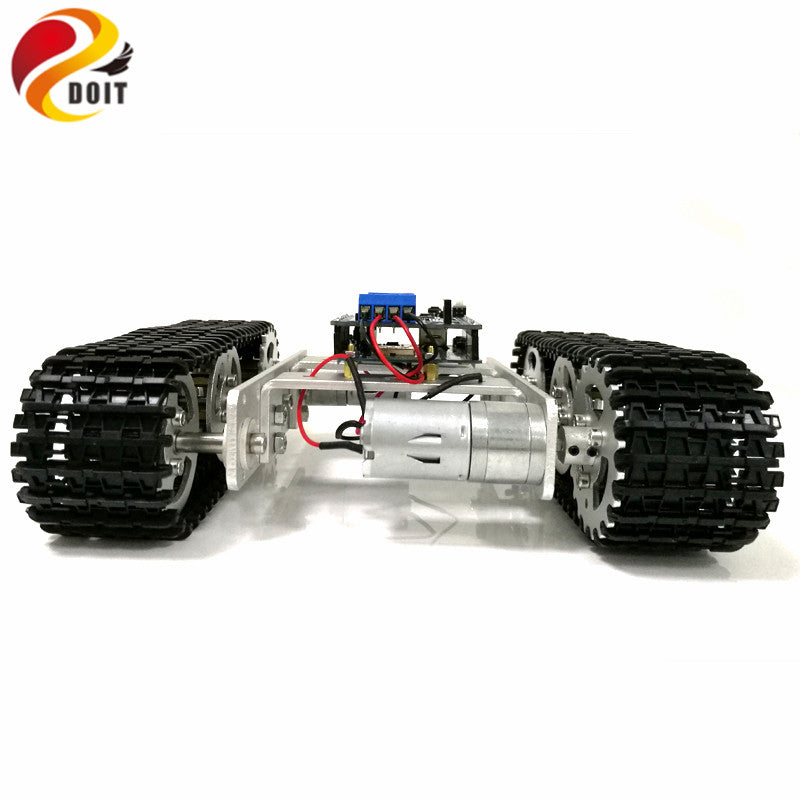

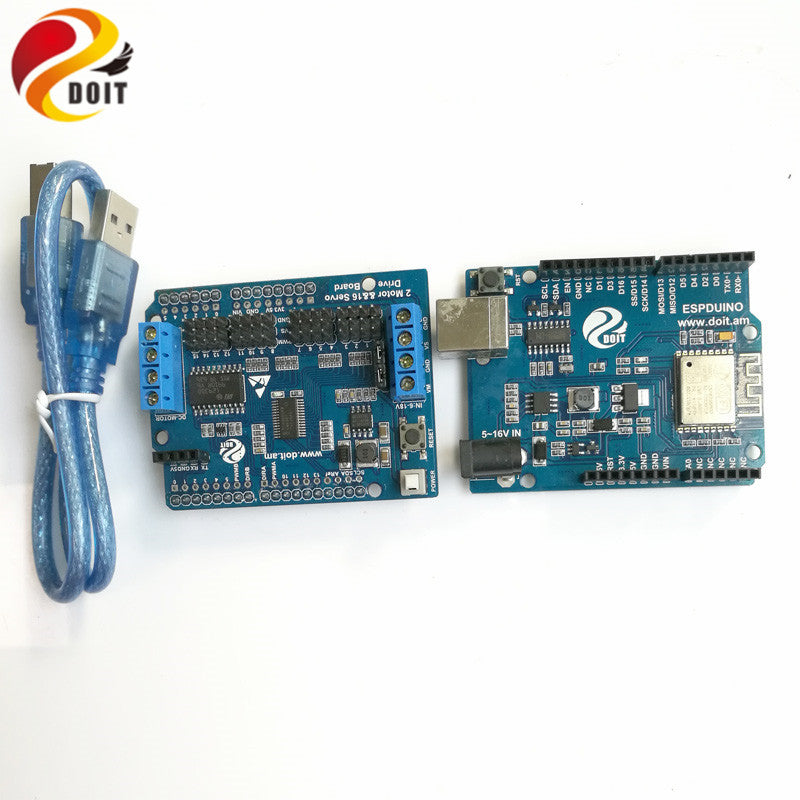

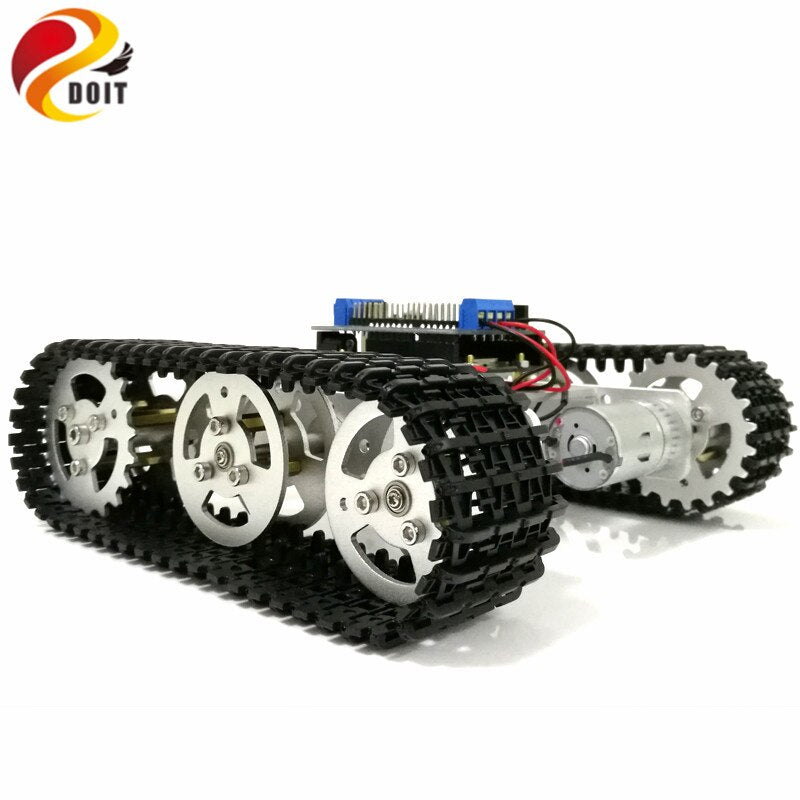

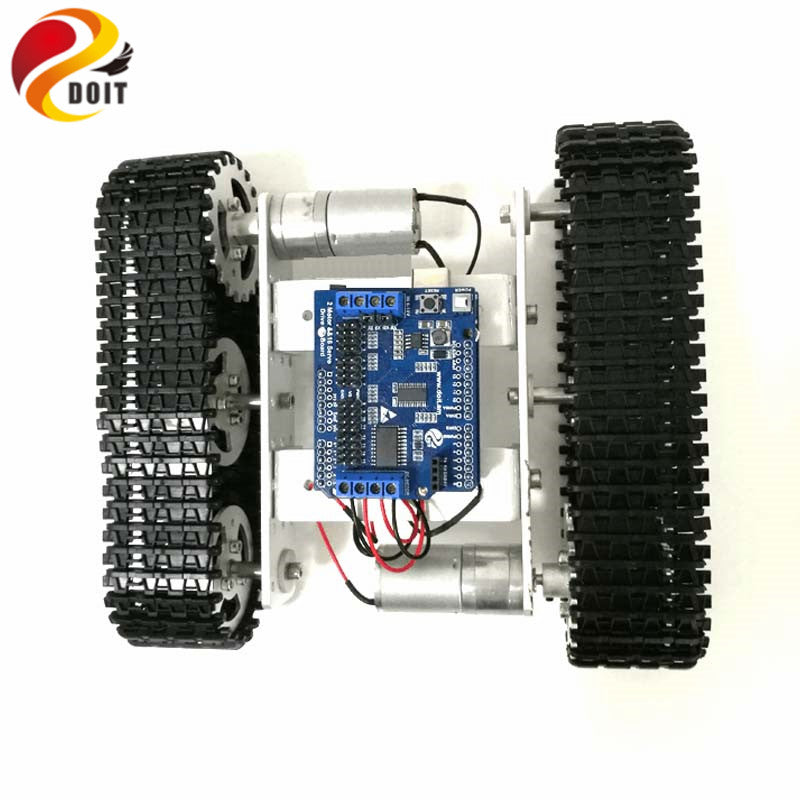

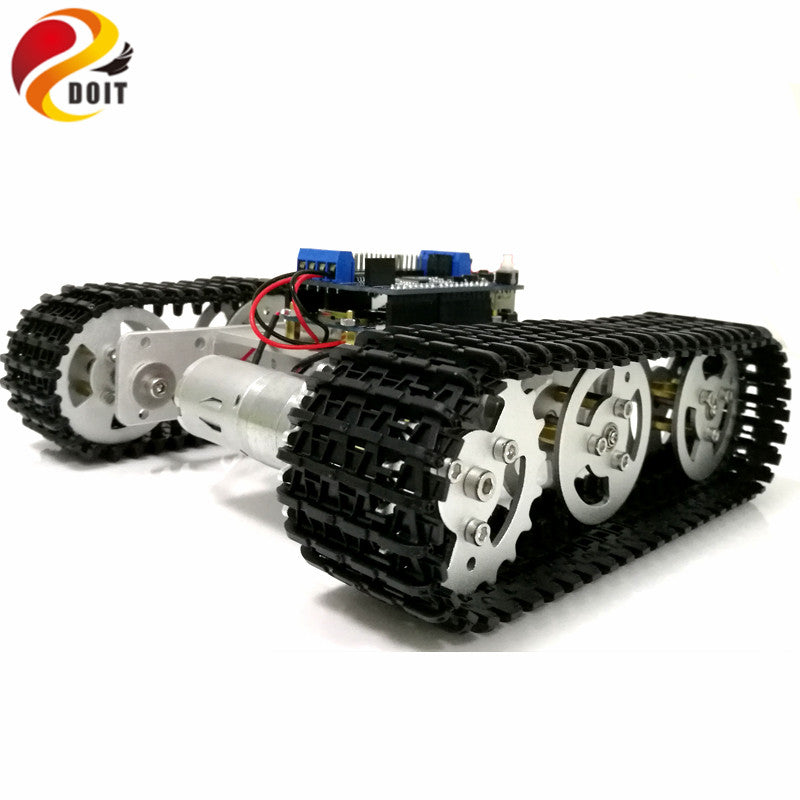

Pictures

23467



Warm Prompt

For the shipping convenience, the tank/car chassis is unassembled.
