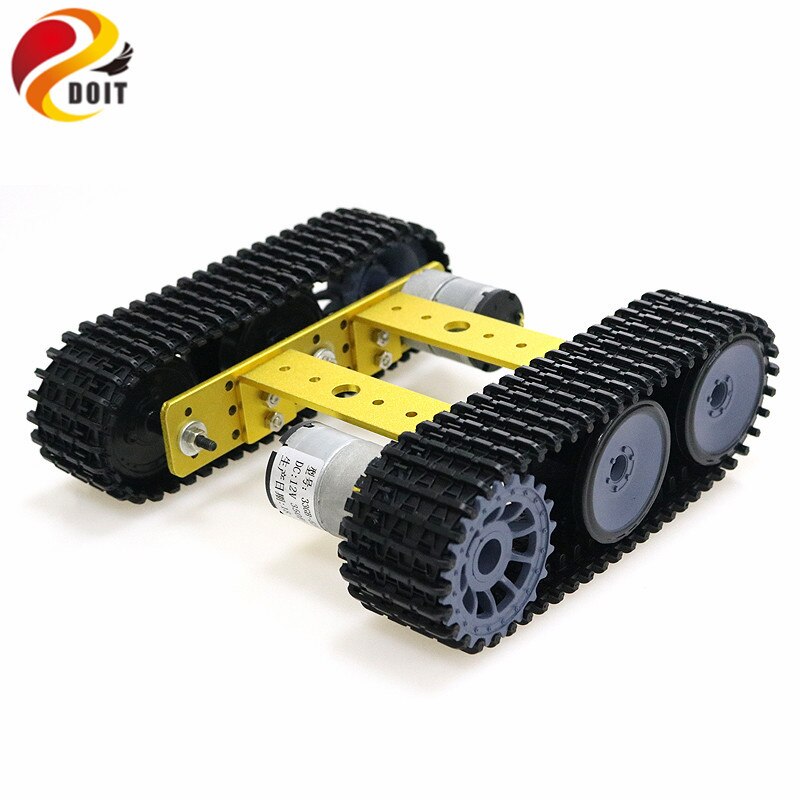

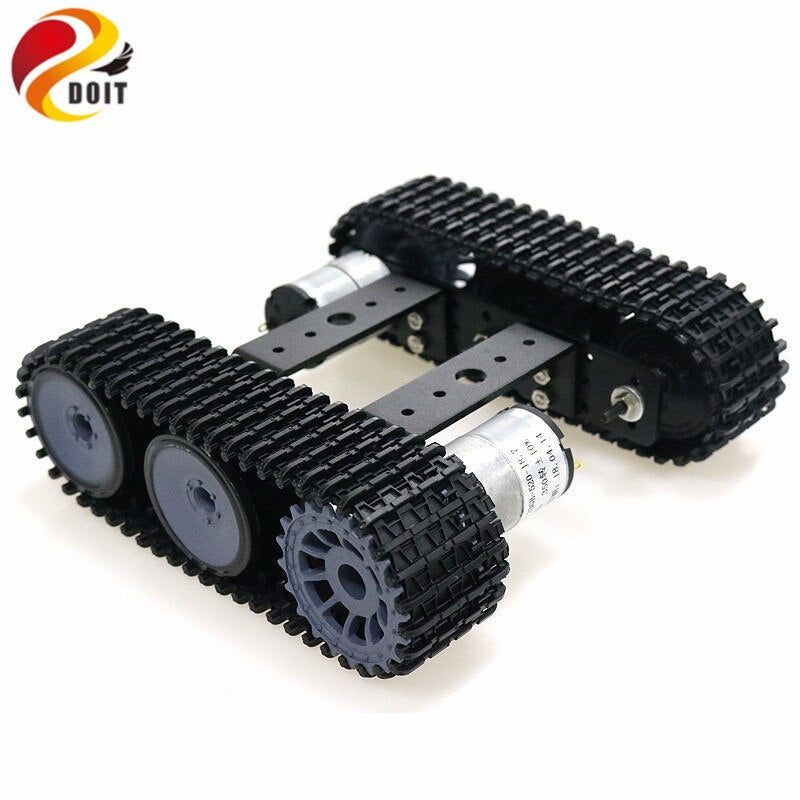

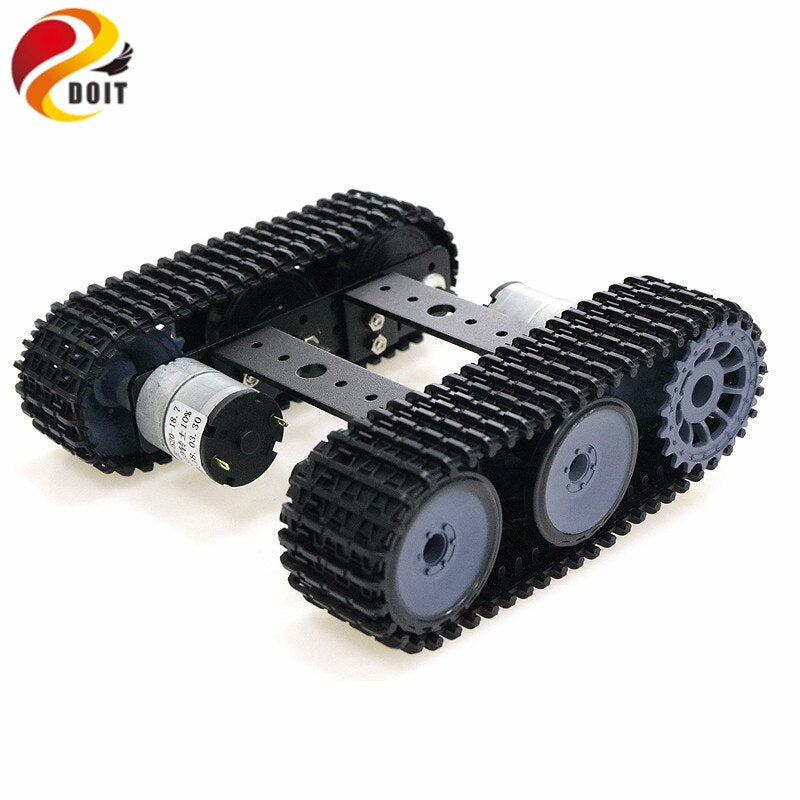

Mini TP100 Aluminum Alloy Tank Robot Chassis Caterpillar Platform With 12V 350rpm Motor DIY Arduino Unassembled Kit

Product Parameters:

• Name: Mini T100 Tracked Tank Chassis

• Material: Aluminum Alloy

• Surface treatment: sandblasting oxidation

• Color: Black/Silver/Golden

• Track: Engineering plastic

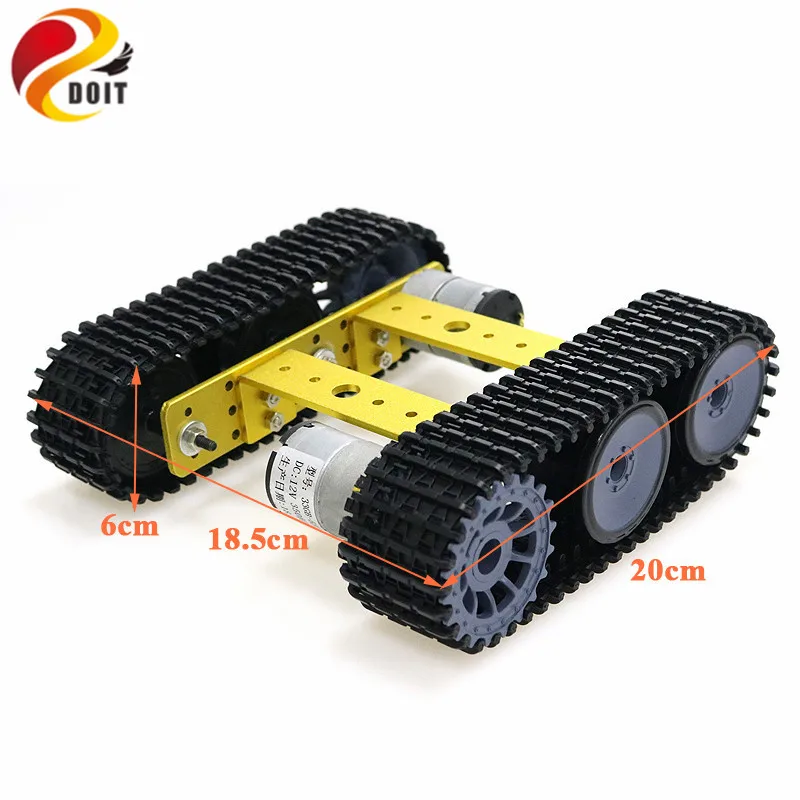

• Size: About 200*185*60mm(Length*width*Height)

• Weight: 0.65kg

• Design load: 5kg

• More documents, please visit: wiki.doit.am

​Package Included:

• 1 set mini TP100 tank chassis

Note: For the convenience of transport, the tank chassis is unassembled. Please contact us to get the installation manual or visit our official wiki: wiki.doit.am.

Motor parameters(12V 350rpm Motor)>>:

• Rated Voltege: DC12V

• No load Current: 100mA

• Voltage: 6-12V

• No load Speed: 170-350r/min

• Weight: 100g

Motor parameters(9V 150rpm Motor)>>:

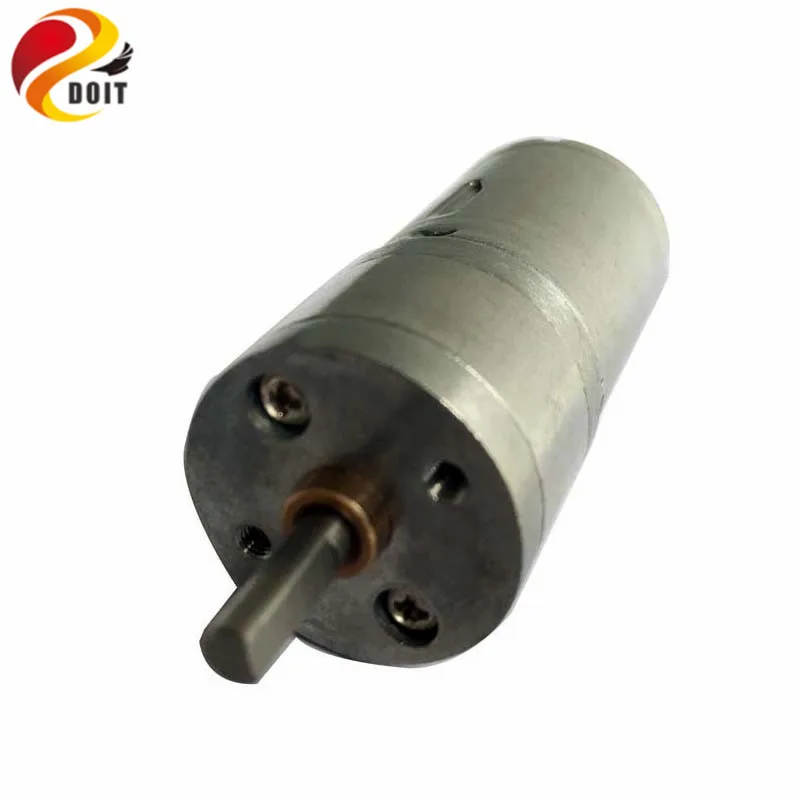

• Name: 25mm gear motor

• Output speed: 150±10%rpm

• No_load Current: 200mA (Max)

• Stall current: 4500mA(max)

• Stall torque: 9.5kgNaN

• Rated speed: 100±10%rpm

• Rated torque: 3000gNaN

• Rated Current: 1200mA (Max)

• Noise: 56dB

• Working voltage: 9V

• Outside Shaft Length: 14.5mm

• Shaft End Play: 0.05-0.50mm

• Screw Size: M3.0

• Dia. Of Shaft phi4mm, D3.5

• encoder: 2 pulses/circle

​

Motor parameters(12V 330rpm Motor)>>:

• Voltage: 12V DC

• RPM: 320RPM

• Current: 0.55A

• Diameter: 25mm

• Height (excl. shaft): 68mm

• Shaft length: 9.5mm

• Shaft diameter: 4mm

• Weight: 180g

• Brand new and unused

• Torque: 13kg.cm

• max effective point: load 4.0kg.cm/235rpm/2.5W/0.58A

• Max power: load 7kg.cm/215rpm/3.1w/0.65A

• Stall current: 4.8A

Images:

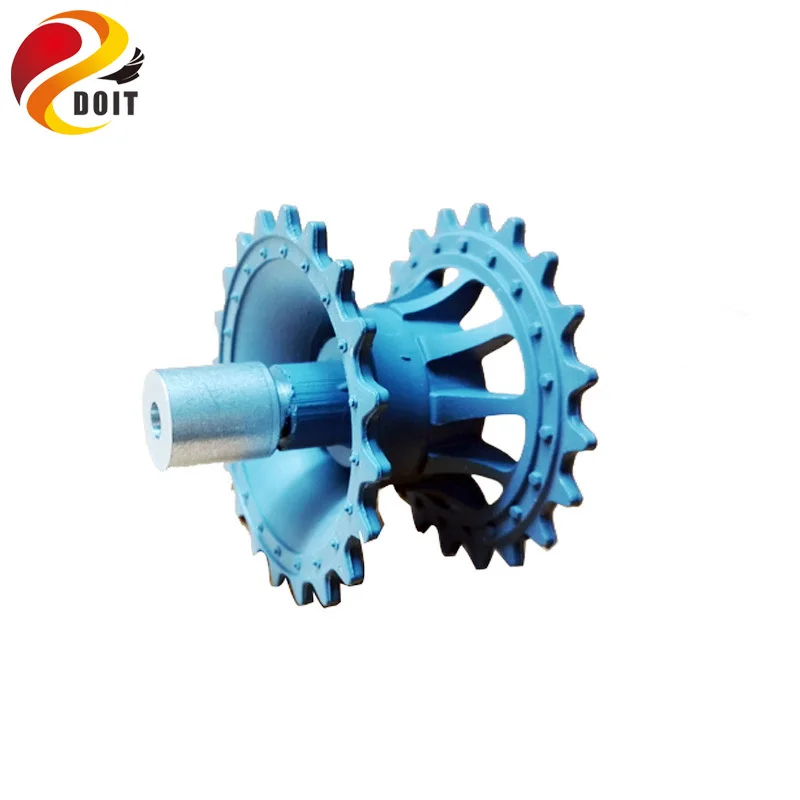

Driving Wheel>>

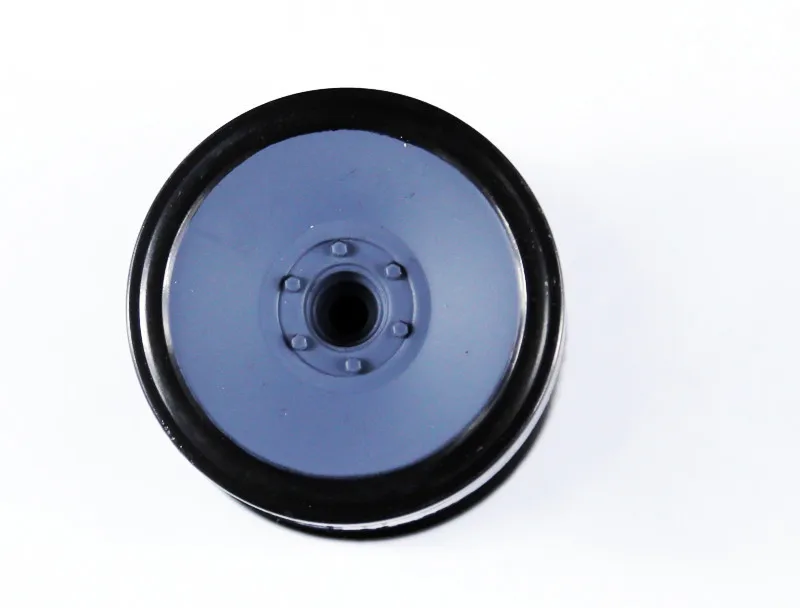

Bearing Wheel>>

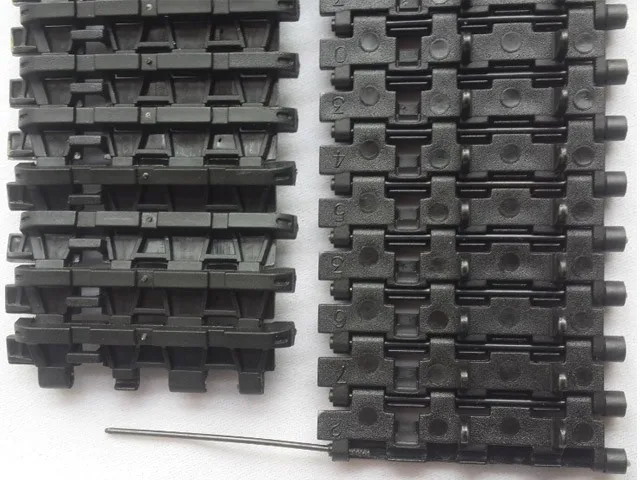

Tracks>>

How to pull off the track? pls see:   http://github.com/SmartArduino/SZDOITWiKi/wiki/2.-how-to-install-the-track
