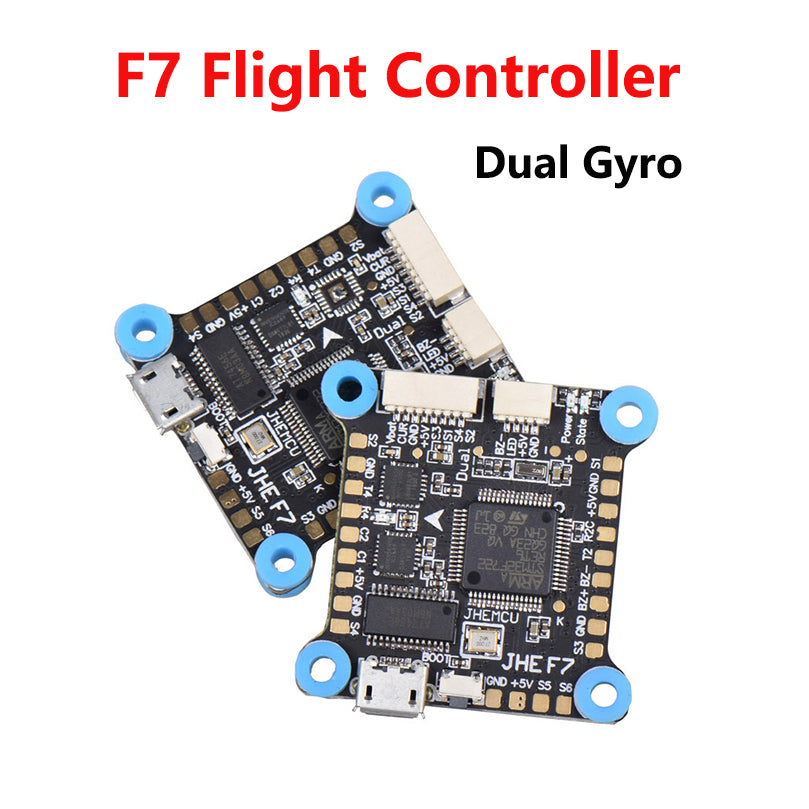

NEW F7 Flight Controller Dual Gyro AIO OSD 5V 8V BEC & Black Box 2-6S for RC Drone FPV Racing Multicopter VS SucceX F7
Drone Spark
Regular price
$266.99
$621.99
NEW F7 Flight Controller Dual Gyro AIO OSD 5V 8V BEC & Black Box 2-6S for RC Drone FPV Racing Multicopter
Specification:
Item Name: Dual Gyro F7 Flight Controller AIO OSD BEC

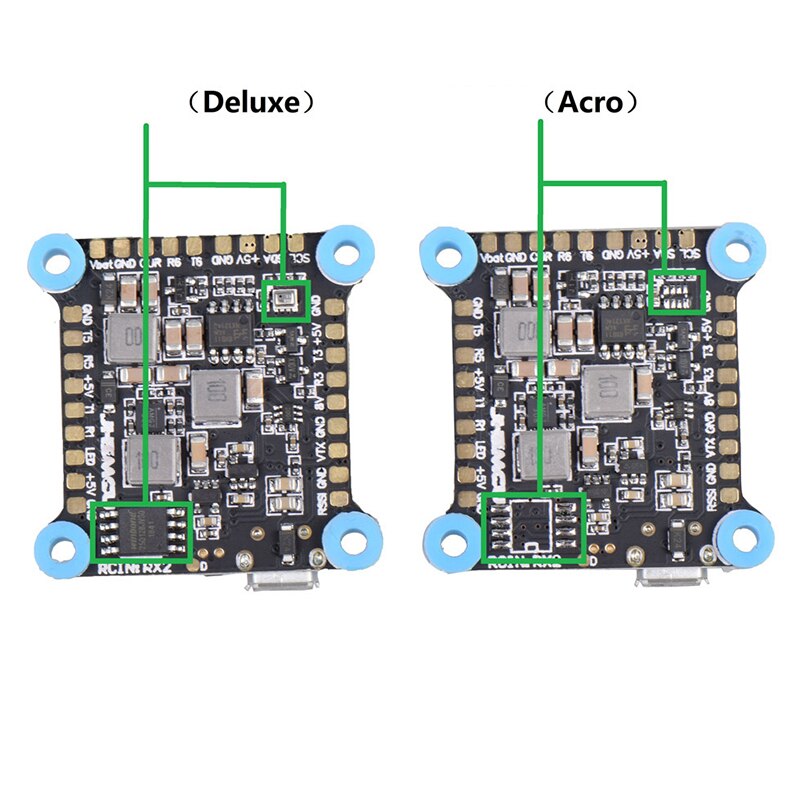

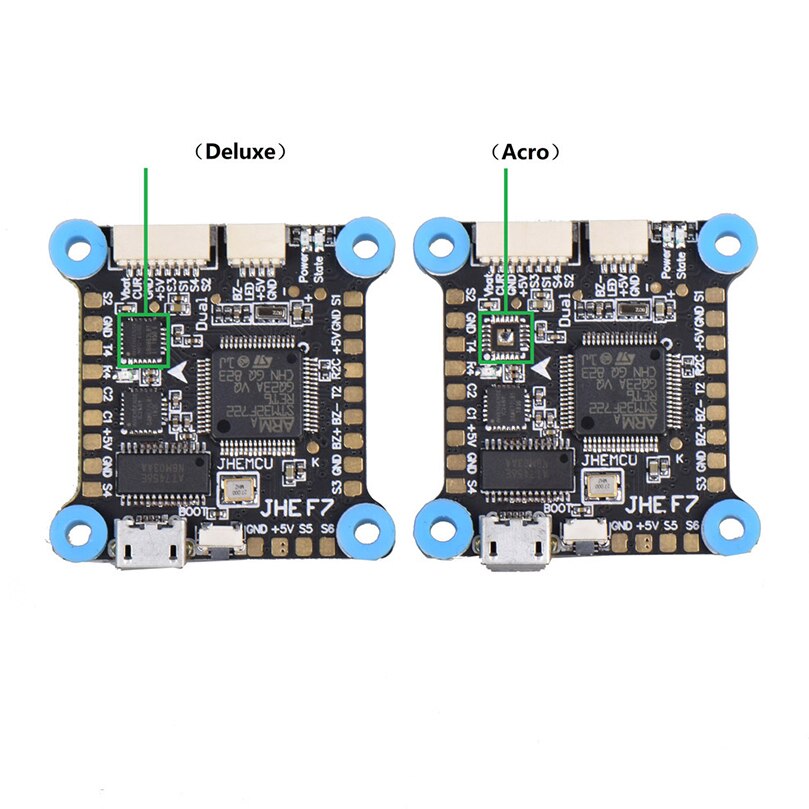

Optional Version: Acro(Standard) Version ( Without Barometer & Blackbox & MPU6000)

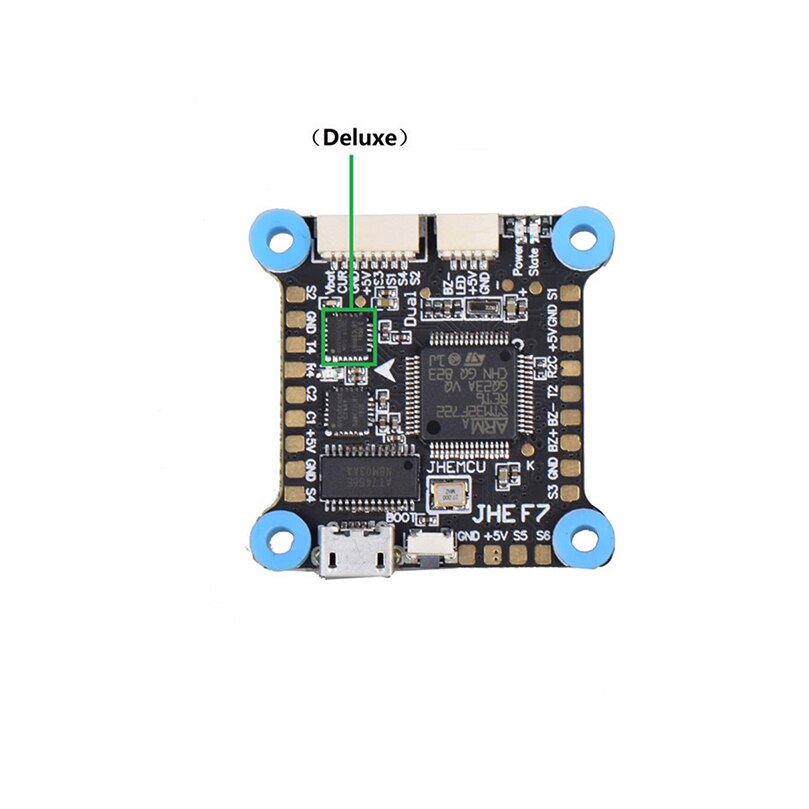

Deluxe Version ( With Barometer & Blackbox)
Input Voltage: 2-6S Lipo
MCU: STM32F722RET6 216MHz
IMU: MPU6000 & ICM20689, Dual Gyros (SPI) ;
ACRO(Standard) Version Don't support MPU6000
ACRO(Standard) Version Don't support MPU6000
Baro: BMP280 ( ONLY Deluxe Version Having)
OSD: AT7456E (SPI)
Blackbox:16MB ( ONLY Deluxe Version Having)
BEC 1 : 5V 2A ( for LED, Buzzer, Receiver etc.)
BEC 2: 8V 3A ( for Camera, VTX, open/close it by USER2)
UART Series: 6 UARTS ( UART1-UART6)
Support Dual Camera Input ( C1, C2 for Video Input; C1 in default, can switch by USER1)
BEC 1 : 5V 2A ( for LED, Buzzer, Receiver etc.)
BEC 2: 8V 3A ( for Camera, VTX, open/close it by USER2)
UART Series: 6 UARTS ( UART1-UART6)
Support Dual Camera Input ( C1, C2 for Video Input; C1 in default, can switch by USER1)
Firemware: BetaFlight
Size: 36x46mm
Mounting Hole: 30.5x30.5mm

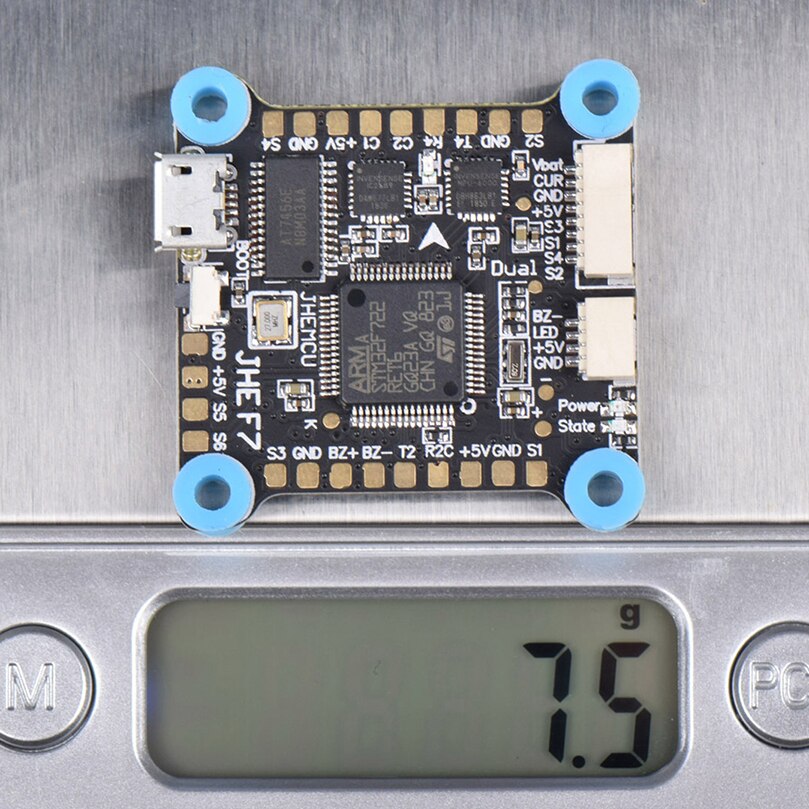

Weight: 7.5g
Package Included:
1x F7 Flight Controller Board
4x M3 Anti-vibration Standoff
