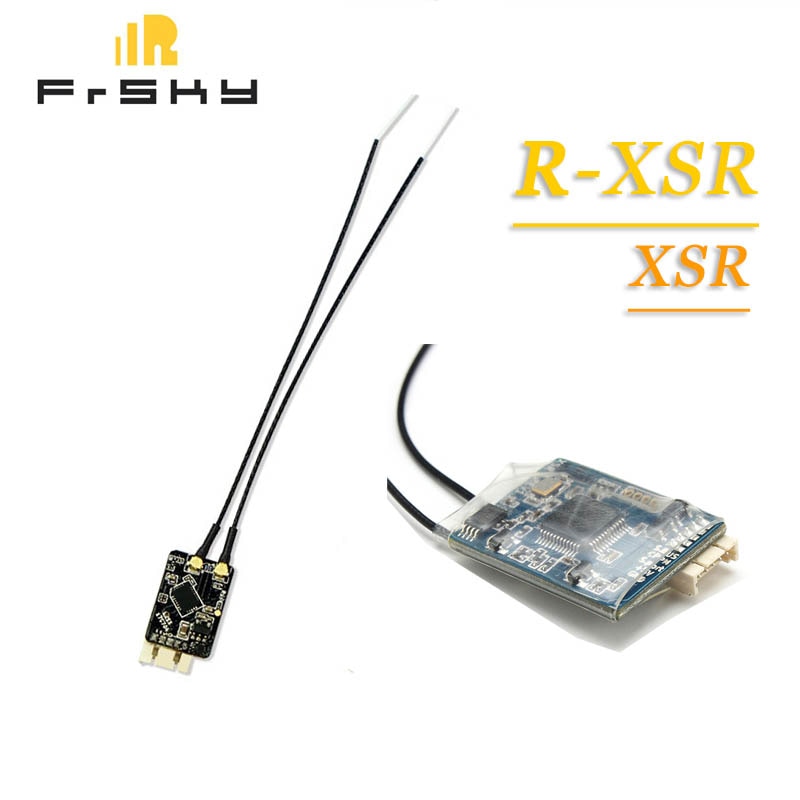

Original FrSky R-XSR/XSR Ultra SBUS/CPPM D16 16CH Mini Redundancy Receiver For RC Quadcopter Multirotor Antenna Spare Part

OVERVIEW:
    FrSky ultra mini receiver R-XSR is the evolution of FrSky full range XSR receiver. The R-XSR
is a standalone receiver with all the functions of XSR, in addition, it’s almost 1/3 size and 1/3
weight of XSR receiver. Moreover, there redundancy function is integrated into this tiny receiver
ensures the security, and the IPEX connector makes it more convenient for you to replace antennas.

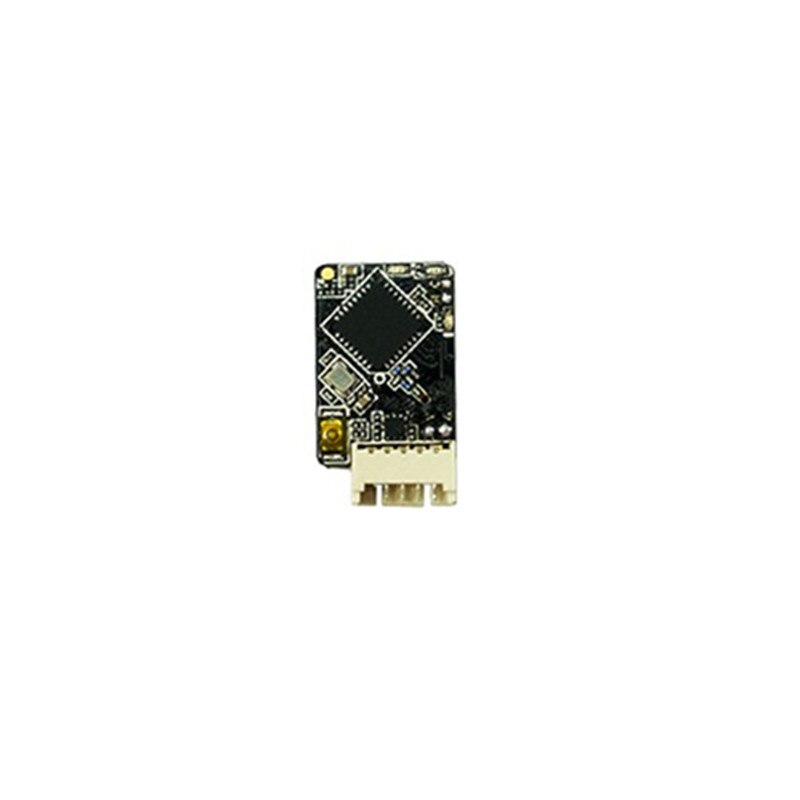

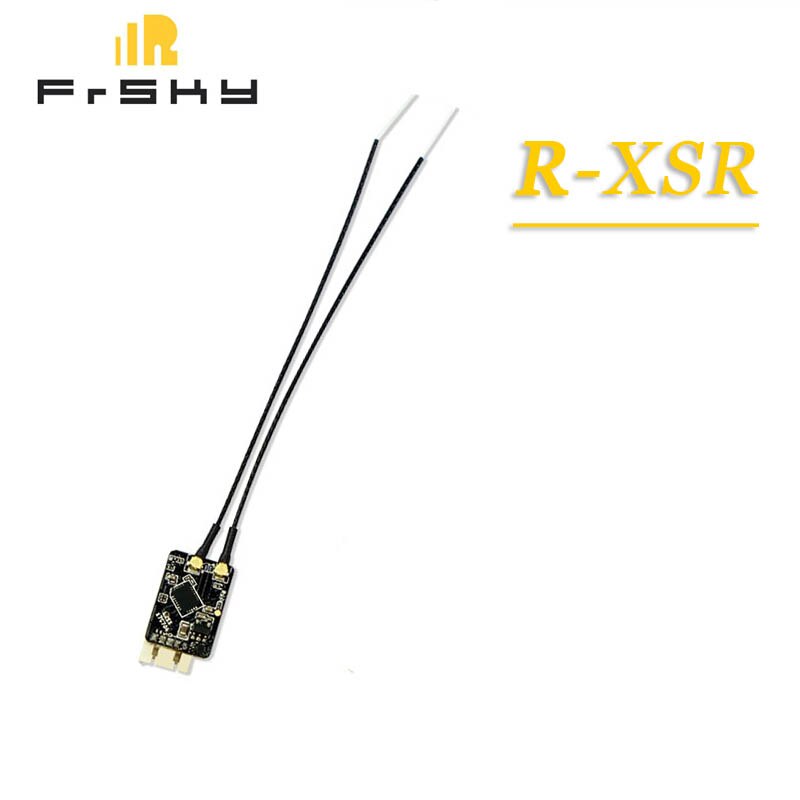

FrSky R-XSR receiver
SPECIFICATION:
Dimension: 16*11*5.4mm (L*W*H)
Weight: 1.5g
Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
Operating Voltage Range: 4~10V
Firmware Upgradable
Compatibility: FrSky X Series modules and radios in D16 mode

FEATURES:
Ultra mini size and light weight
Support telemetry and Smart Port enabled
Full range
Switchable SBUS/ CPPM signal output
Supports redundancy function

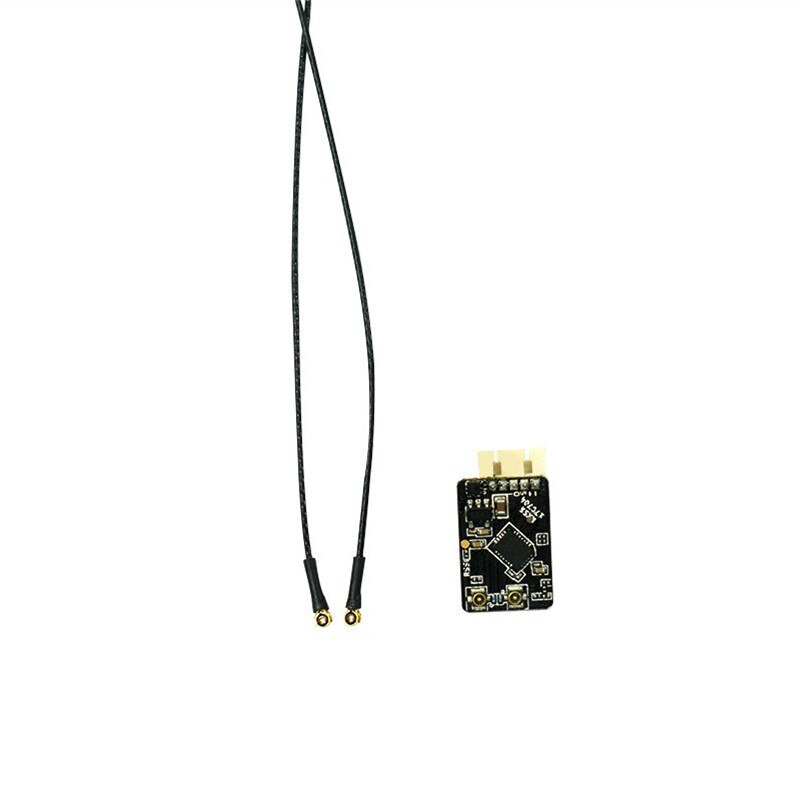

IPEX connector, replaceable antennas

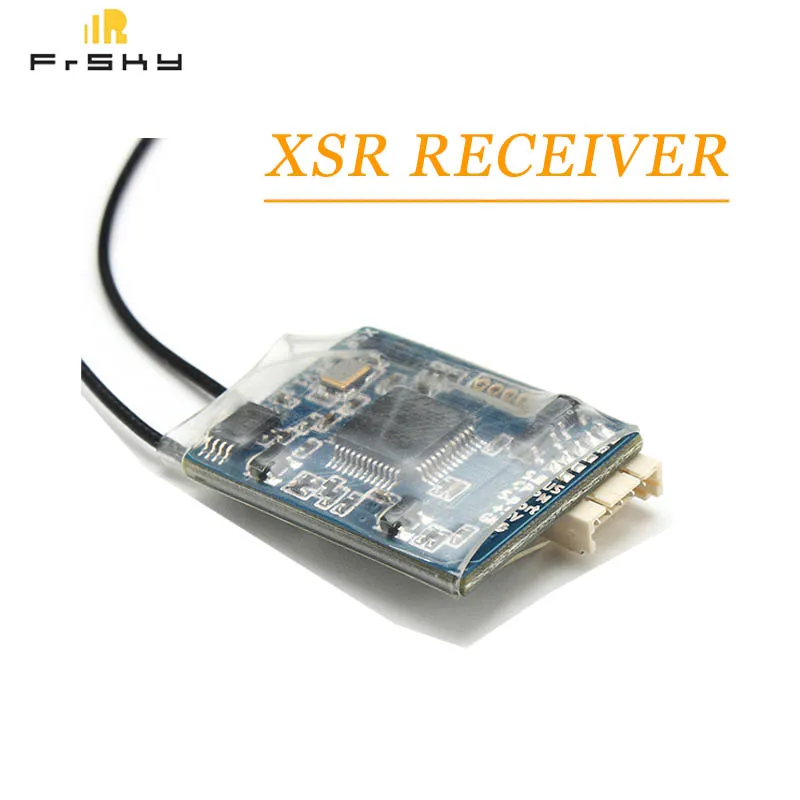

FrSky XSR Receiver

Channel: XSR-16CH(1-16CH from SBUS channel,1-8ch from CPPM Channel)

Dimension: 26 x 19.2 x 5 mm

Weight: 3.8g

Operating Voltage Range: 4.0~10V

Operating Current: 100mA@5V

Firmware  Upgradeable

Compatibility: FrSky X-series Module,X9D,X9DP,X9E,X12S(XSR is incompatible with D-series Module)

Features:

Smart Port enabled,realizing two-way full duplex transmission.

S-BUS output

CPPM output

Lighter weight and physically smaller than X4R

More number of channels:1-16CH from SBUS channel,1-8ch from CPPM Channel

Package included:
1* FrSky R-XSR receiver

or

1 x XSR Receiver
