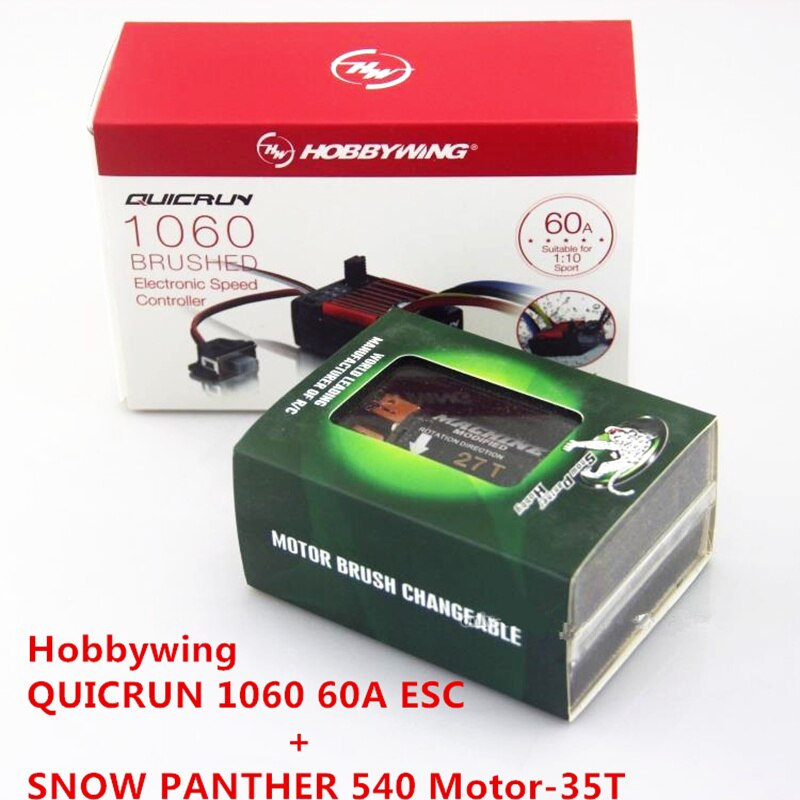

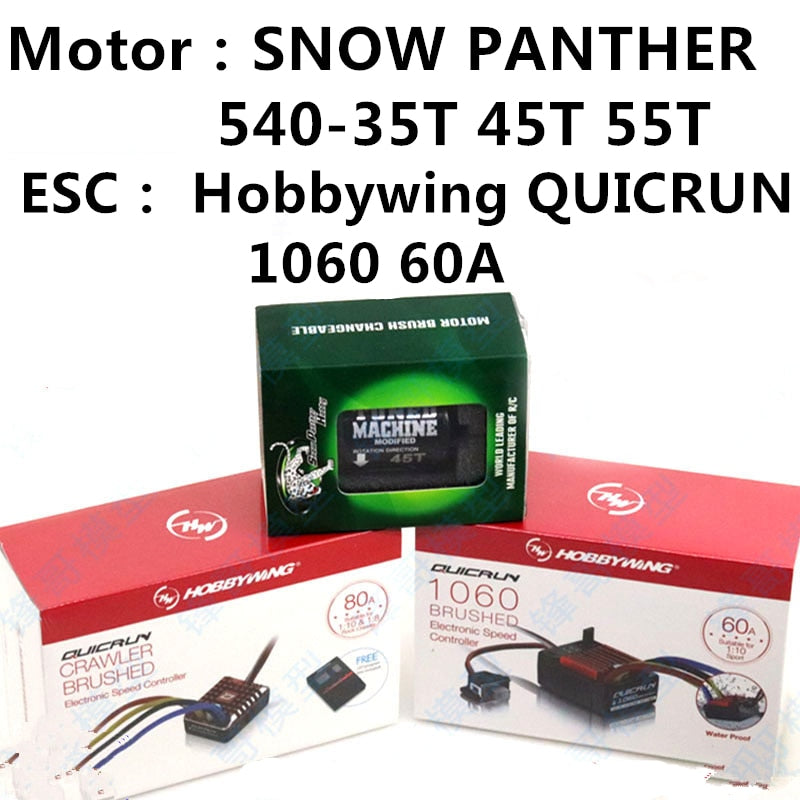

Original Hobbywing QUICRUN 1060 60A ESC and SNOW PANTHER 540 Motor 35T 45T 55T ESC Motor combination for 1/10 1/8 Crawler Scale

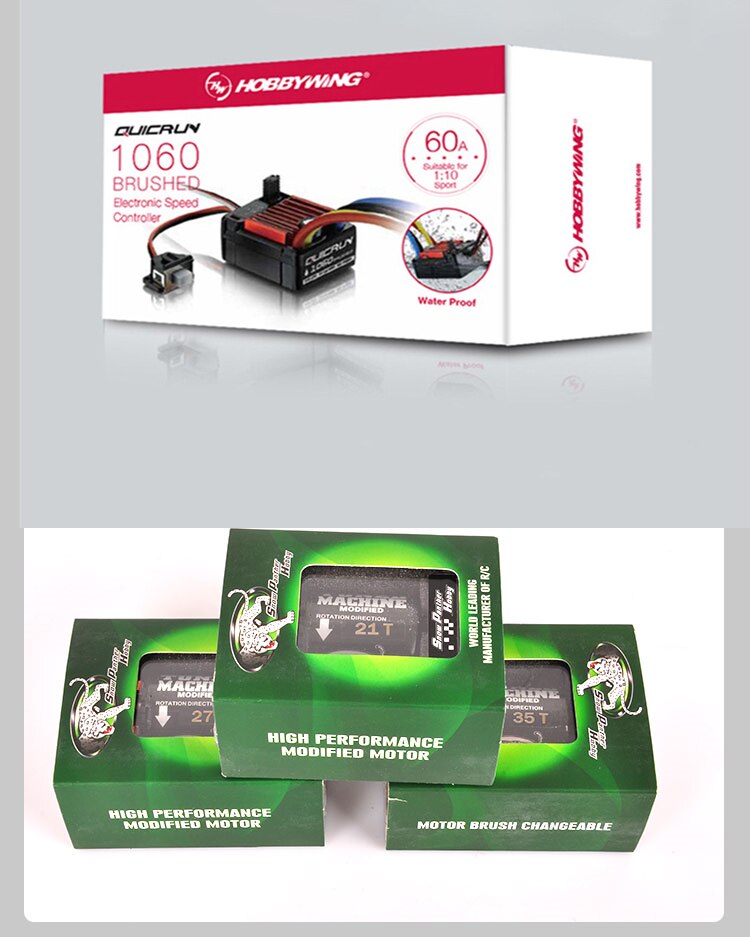

Package List:

1 * Original Hobbywing QUICRUN 1060 60A 1060 ESC
1 * Original SNOW PANTHER 540 Motor （Can choose 35T 45T 55T）

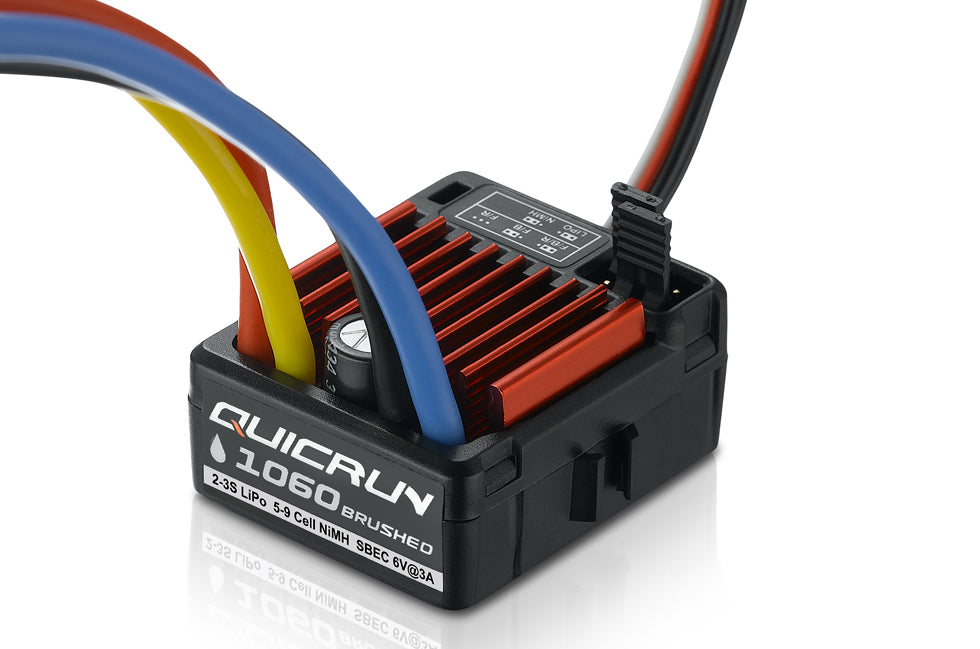

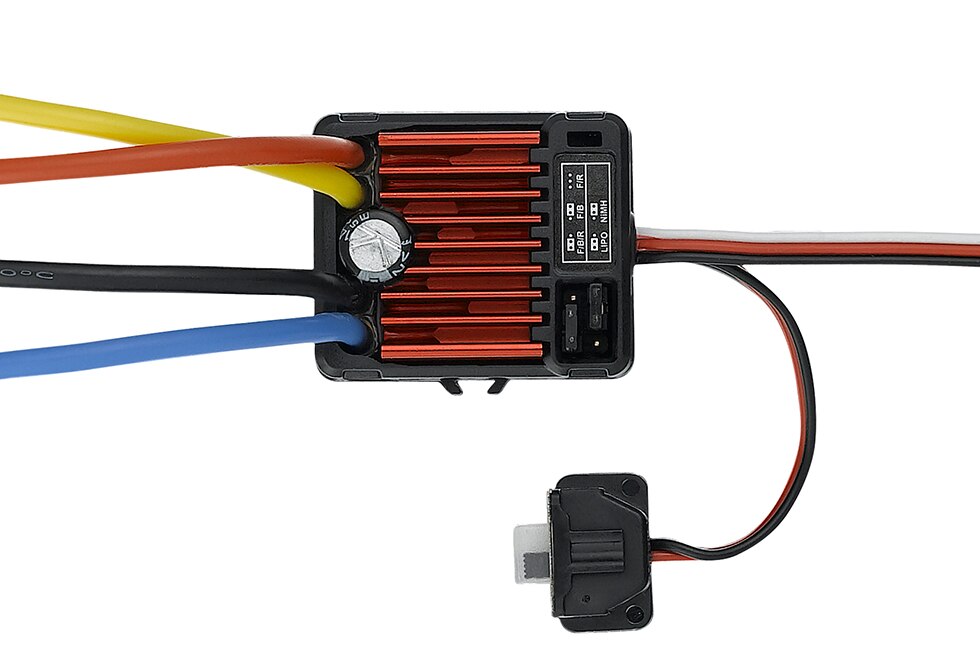

Hobbywing QUICRUN 1060 Introduction

With its waterproof and dustproof function, it will help our RC cars running for all-weather condition races. Then you will not to worry about

the safety or other problems any more.

Features:
Automatic throttle range calibration
Great built-in BEC output capacity
Easy to set the ESC parameters with jumpers
Fully water-proof and dust-proof, suit for all-weather and different environment
For: RC 1/10 Car: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
Three running modes: Fwd/Rev/Br running mode fits for various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse)
Multiple protections: Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection

Specifications:
Brand: HOBBYWING
Model: QuicRun-WP-1060-BRUSHED
Fwd. Cont./Burst Current: 60A/360A
Rev. Cont./Burst Current: 30A/180A
Voltage Range: 2-3S Lipo or 5-9 NiMH
Suit for RC 1/10 Car: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
Motor Limit:
2S Lipo or 6 NiMH: 540 or 550 Size Motor: ≥12T Or RPM<30000 7.2V
3S Lipo or 9 NiMH: 540 or 550 Size Motor: ≥18T Or RPM< 20000 7.2V
4S Lipo or 12 NiMH: Not Available
Resistance: Fwd 0.001Ω, Rev 0.002Ω
BEC Output: 2A/5V Linear Mode
PWM Frequency: 1KHz
Cooling Fan: Without Cooling Fan
Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse

Turn off the ESC switch, wire the battery,motor,ESC,servo,receiver according to the following diagram. Recheck the wiring to ensure all connections are correct beforegetting into the next step.
1.Once the power is wrongly connected(that means the battery polarity is mistakenly reversed),irreparable damage may occur to the ESC and batteries.Therefore,please pay close attention to the battery polarity.
2.Please swap the two wire connections, if the motor rotate in opposite direction.

The power system for RC model can be very dangerous, so please read manual carefully.
Since we have no control over the installation,application, use or maintenance of this product, in no case shall we be liable for anydamages,losses or costs.

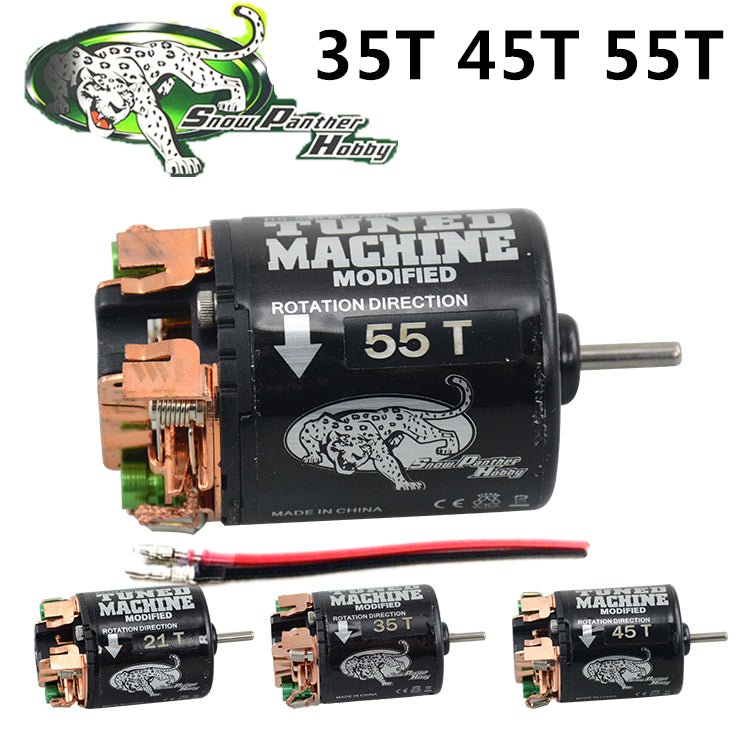

SNOW PANTHER 540 Motor   Introduction

The well-known RC brand SNOW PANTHER HOBBY introduces a large torque high quality 540 motor. High-end packaging, unique design, carbon brush can be replaced, to extend the service life. Both ends of the motor are equipped with bearings to ensure the stability of the operation. The motor is waterproof Design. At any time to deal with various environments! Now that special prices have arrived!

This motor is fully waterproof design, can use soak in water for a long time. But after playing with water to note 3 points of maintenance:

1. Be sure to immediately use lubricating maintenance good motor bearings.

2. Be sure to blow dry copper head and as soon as possible between the carbon brush of moisture, such as the natural air-dry.

3. The plug on the electric harmonic motor will blow dry as soon as possible.

Features:

4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM Oversized Bearings
Precision balanced rotor,smoothness for best reliability and maximum RPM
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion
Rebuildable with an easily accessible commutator and replaceable brushes and springs
High strength magnets for unmatched brush-motor performance
Specifically designed for R/C vehicles that require precise movement control
Excellent torque and long-run times
Direct-Solder Wiring Tabs for flexible soldering options
Dual-ball Bearings Design

Specifications:
Brand:

SNOW PANTHER HOBBY

Type: 540 35T 45T 55T

Max voltage: 13V
Max current: 28A
Suit for 1/10 RC Car
Shaft dia: 3.12mm
Shaft length: 12mm
Motor dia: 36mm
Color: Black




Item   AMP    R.P.M

35T    1.21   13200

45T    1.06    8850

55T    0.84    7550
