Pixhawk PX4 PIX 2.4.8 32 Bit Flight Controller Autopilot with 4G SD Safety Switch Buzzer PPM I2C for RC Quadcopter
Drone Spark
Regular price
$557.99
$1,301.99
Note:
1.If you select Package C or D,by default we will send 433MHZ radio telemetry, if you need 915MHZ, please leave a message.

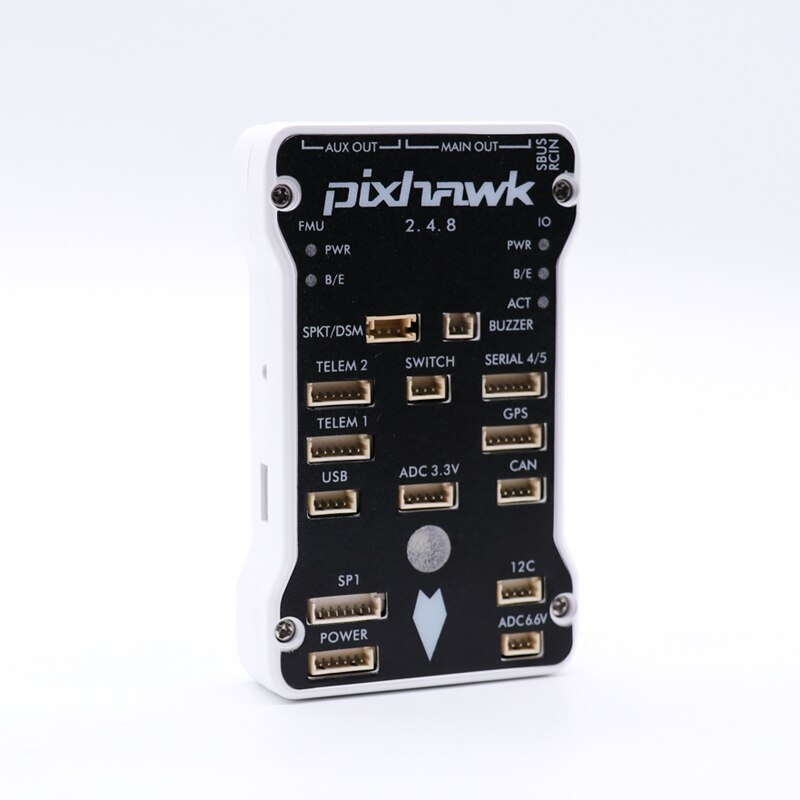

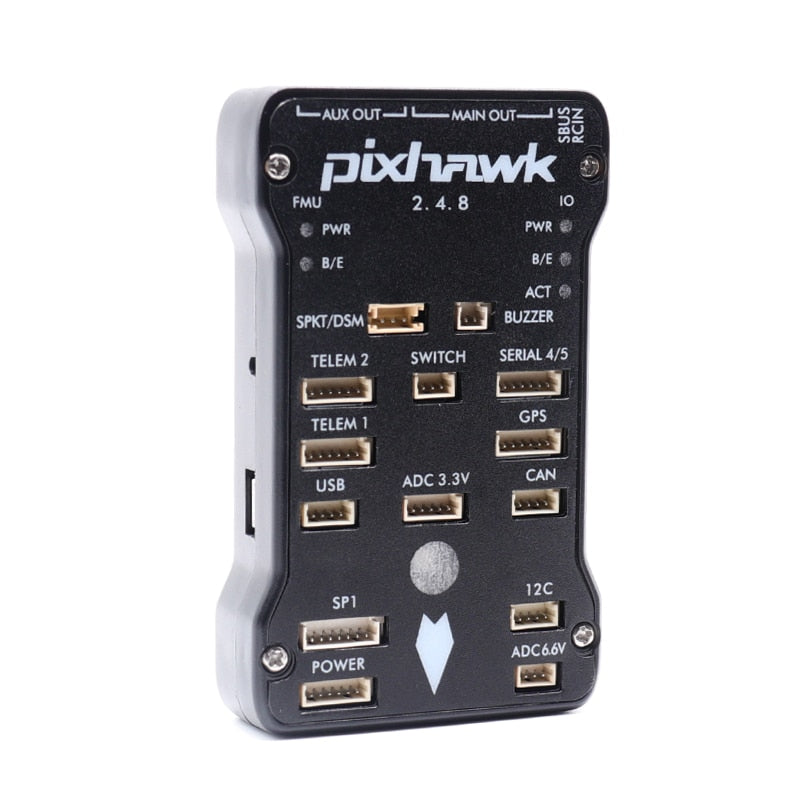

2.You can select White or Black shell of PIXHAWK flight controller, the hardware is same .White is more beautiful.
3. Package ABCD, by default we will send XT60 plug 3DR power Module,if you need T or XT90,please leave a message.

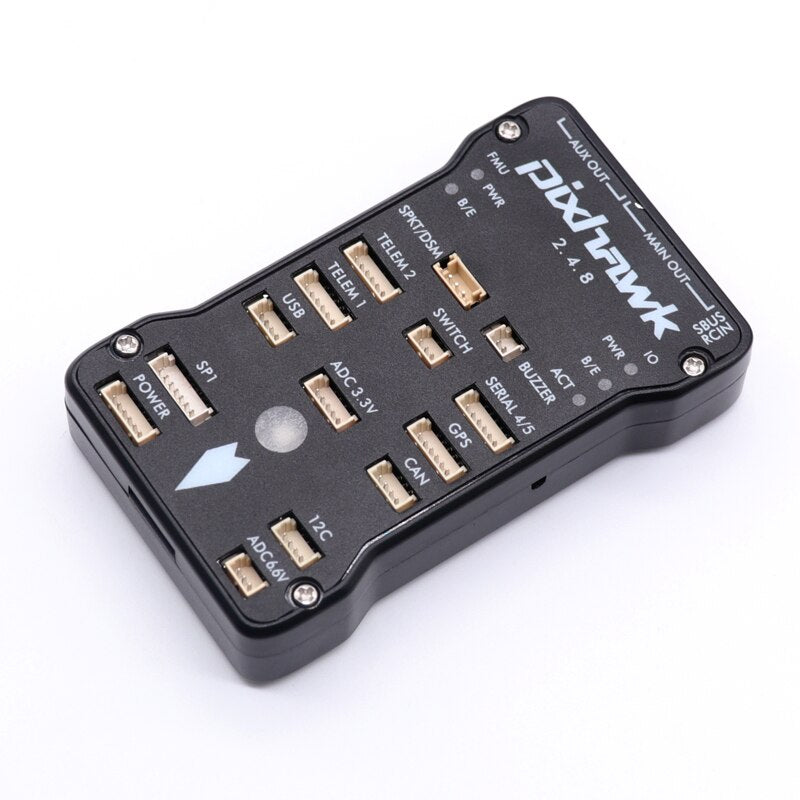

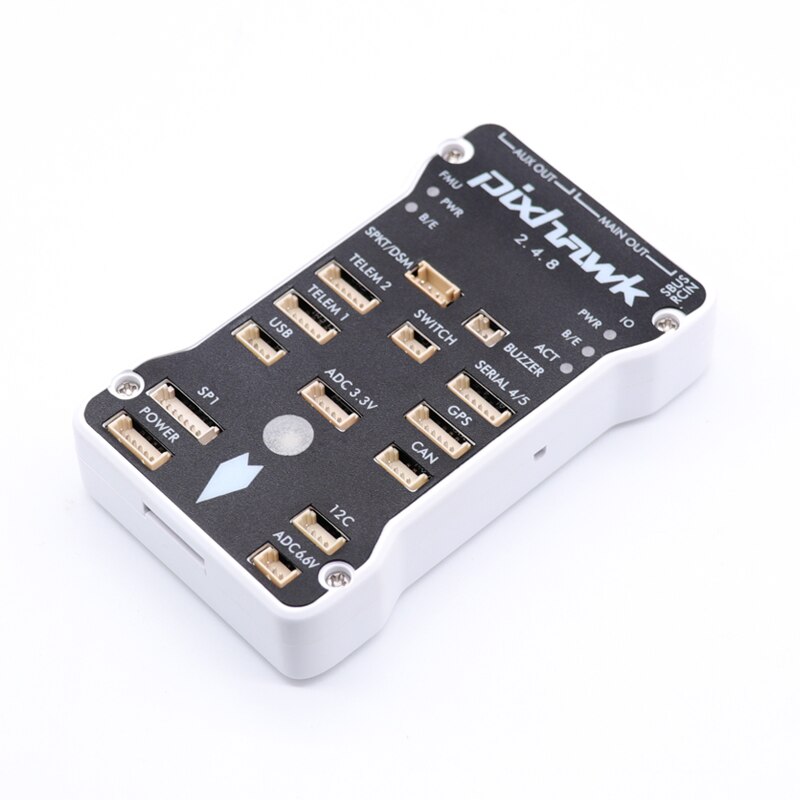

Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller
Features:
1. The advanced 32-bit ARM CortexM4 high-performance processors, can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;
Specifications:
Microprocessor
1.32 2 MB flash STM32F427 Cortex M4, with hardware floating-point processing unit
2. frequency: 168MHZ, 256K RAM
3.32 STM32F103 backup coprocessor
Sensor
1.L3GD20 3-axis digital gyroscope 16
2.LSM303D 3-axis accelerometer 14 / Magnetometer
3.MPU6000 6-axis accelerometer / magnetometer
4.MS5611 precision barometer
Interface
1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface

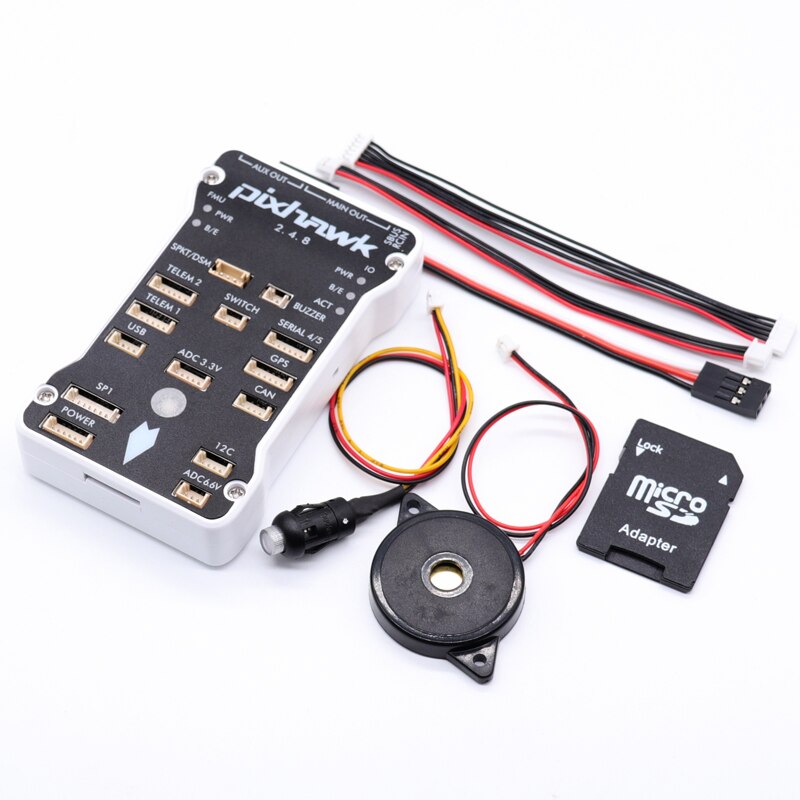

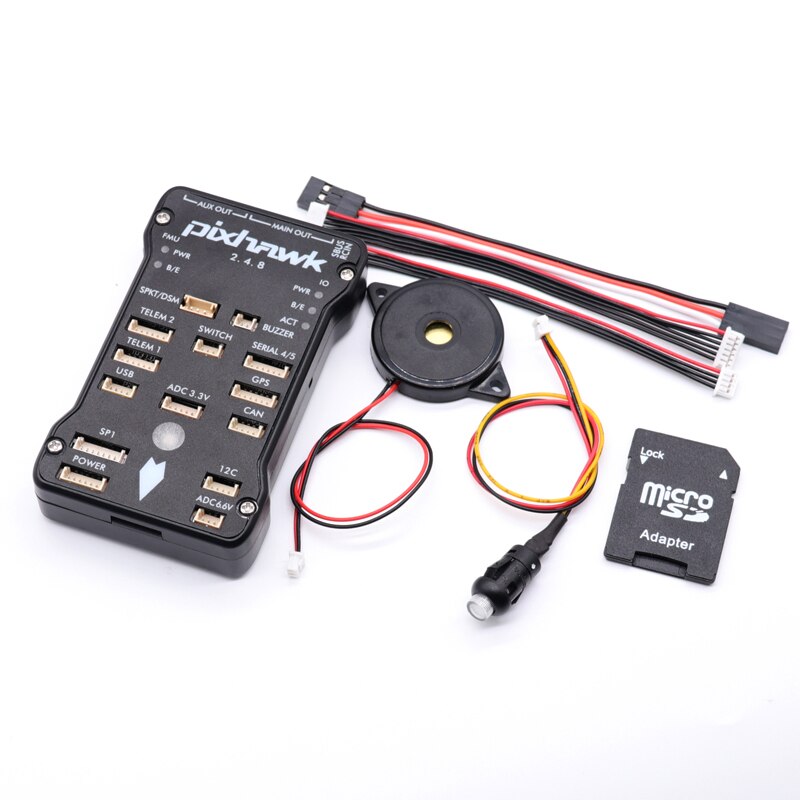

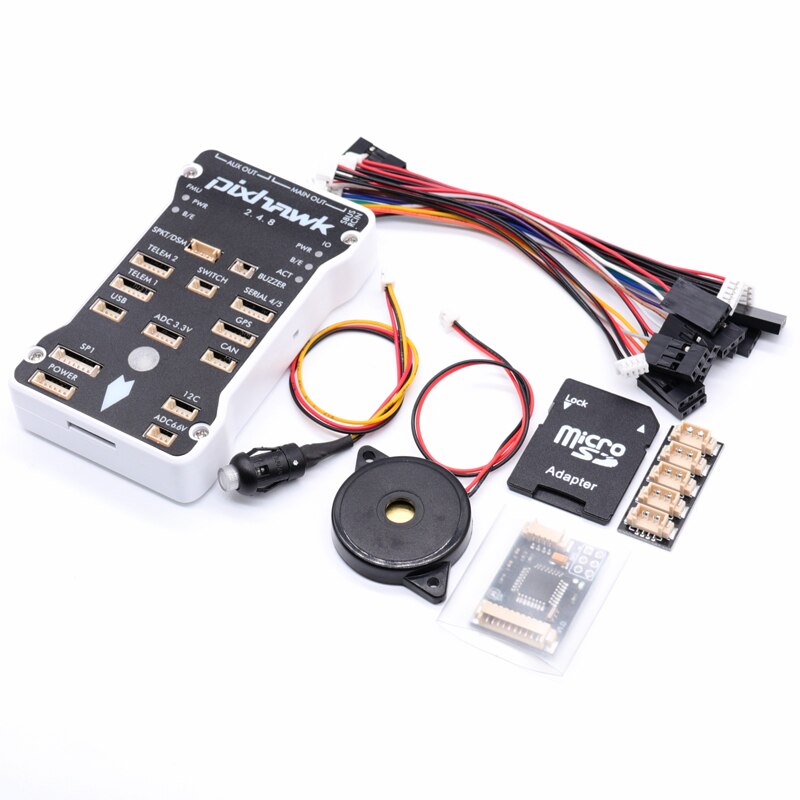

Simple Collocation: PIXHAWK 2.4.8(white or black shell)+ 4G TF Card + Safety Button + Buzzer + 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

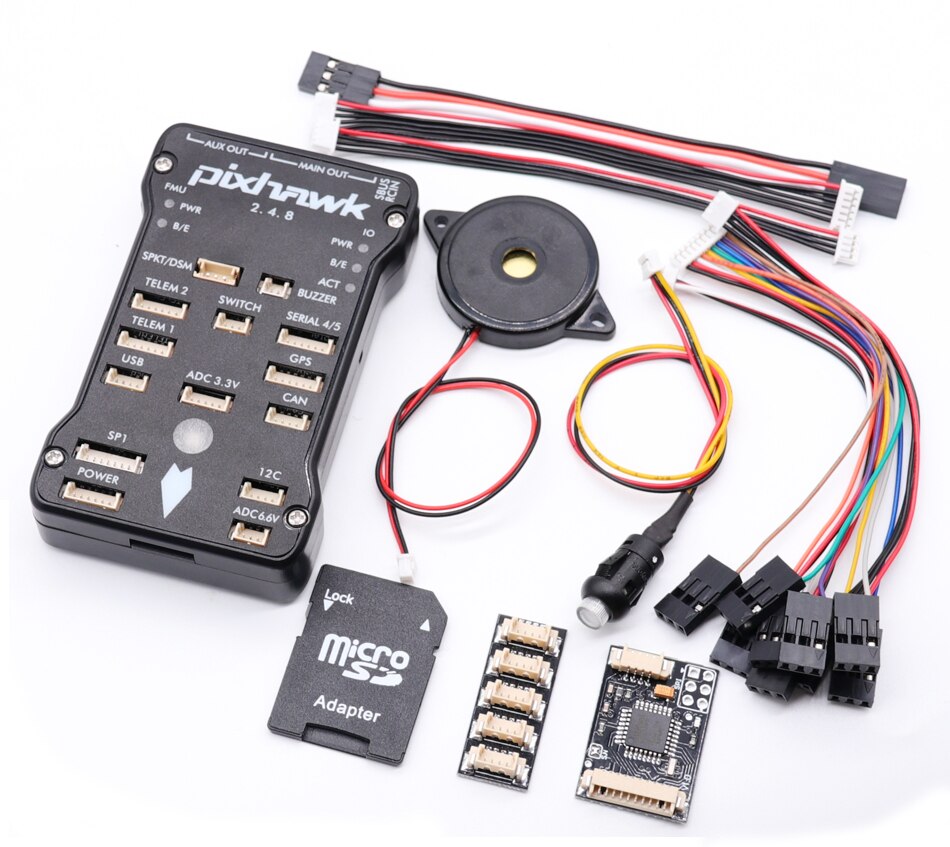

Standard Collocation: PIXHAWK 2.4.8(white or black shell)
+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

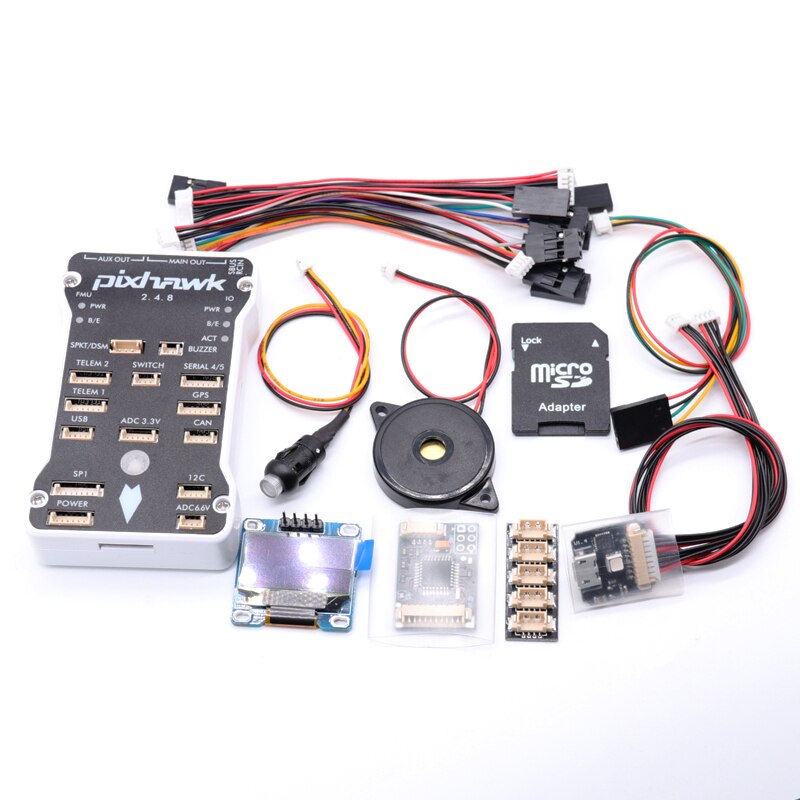

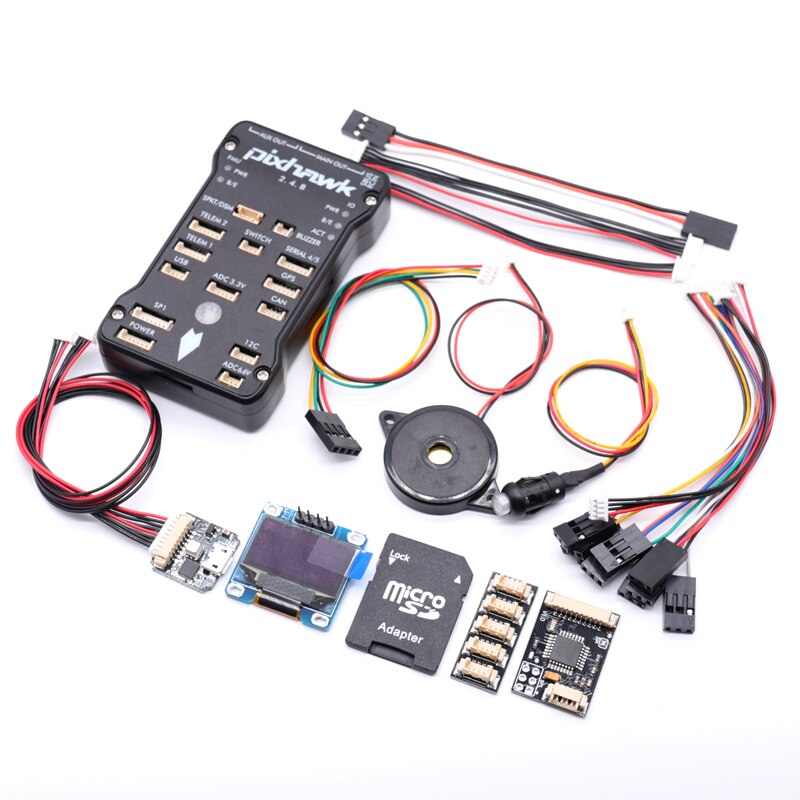

High Collocation: PIXHAWK 2.4.8(white or black shell)
+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB Led + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4)

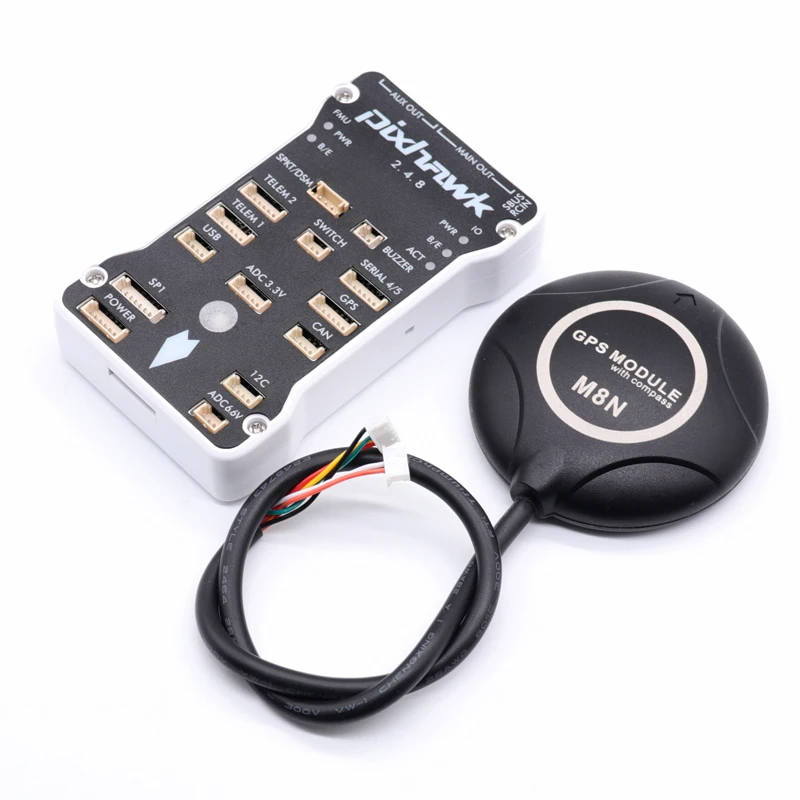

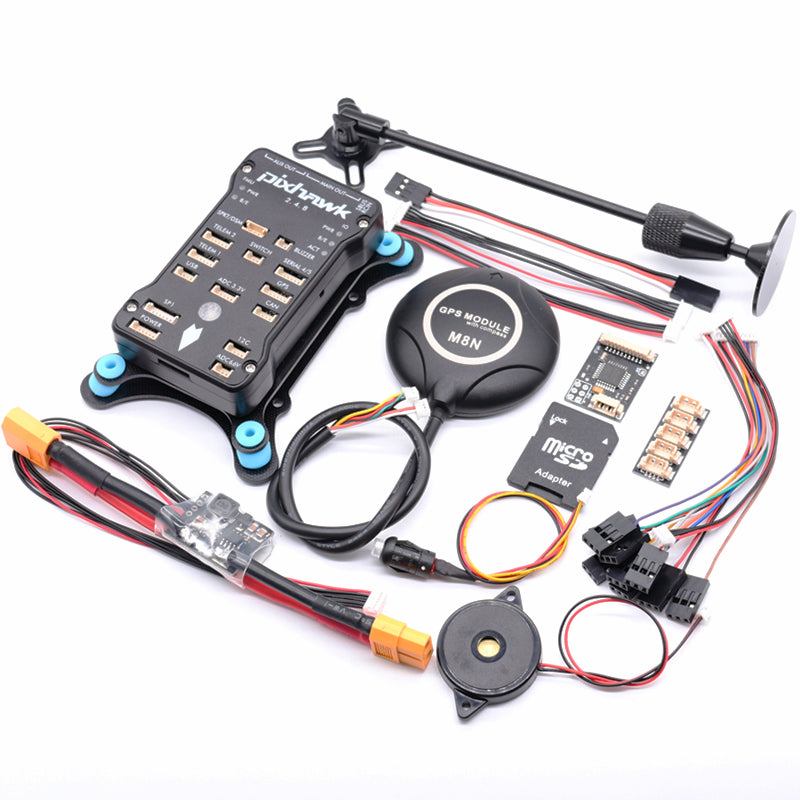

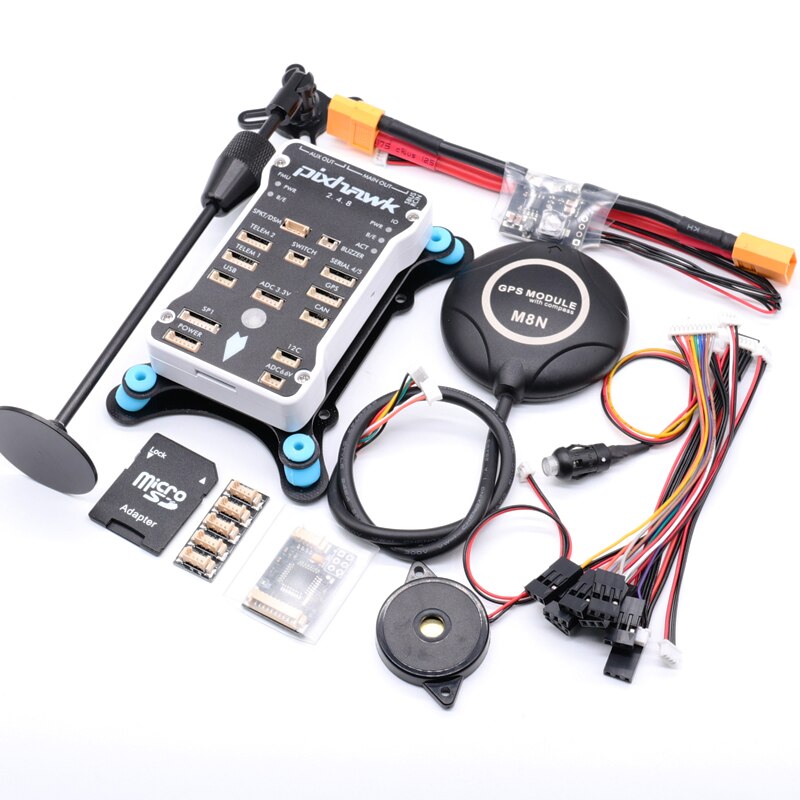

Package A:PIXHAWK 2.4.8(white or black shell)
+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber

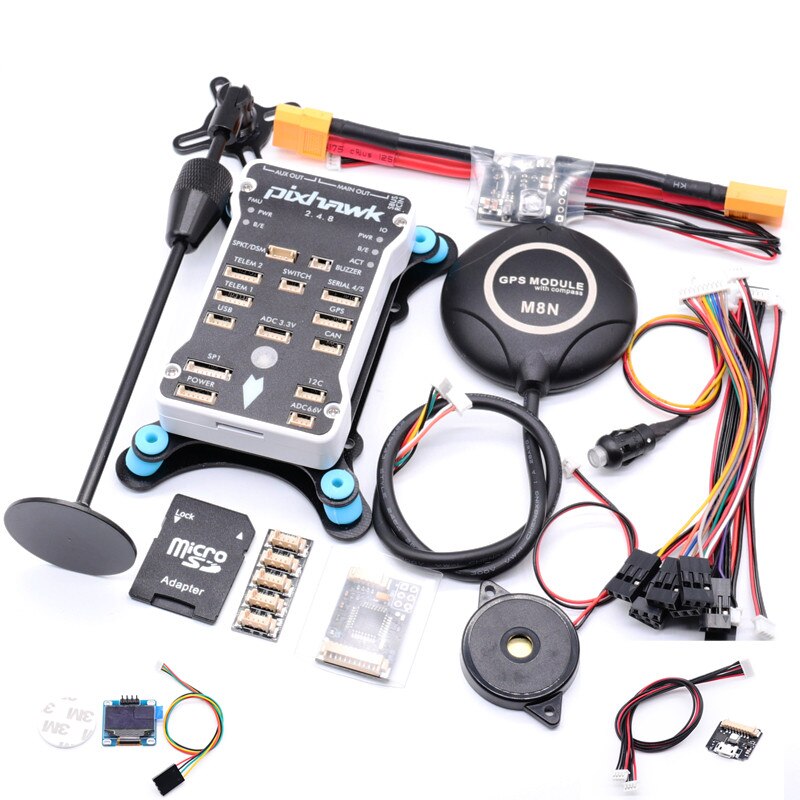

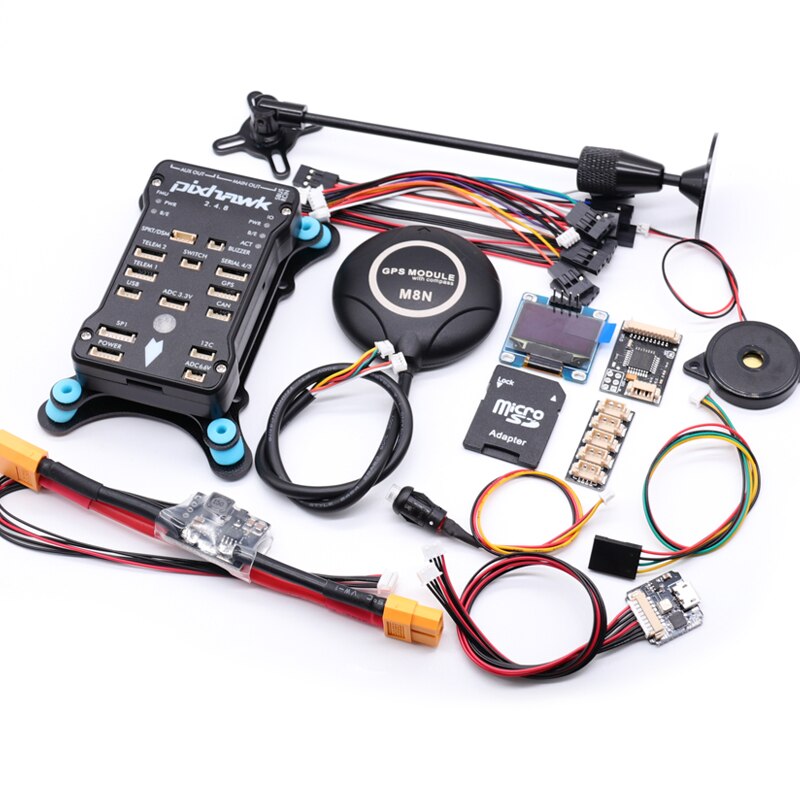

Package B:PIXHAWK 2.4.8(white or black shell)
+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ RGB LED + OLED Screen+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+Shock Absorber

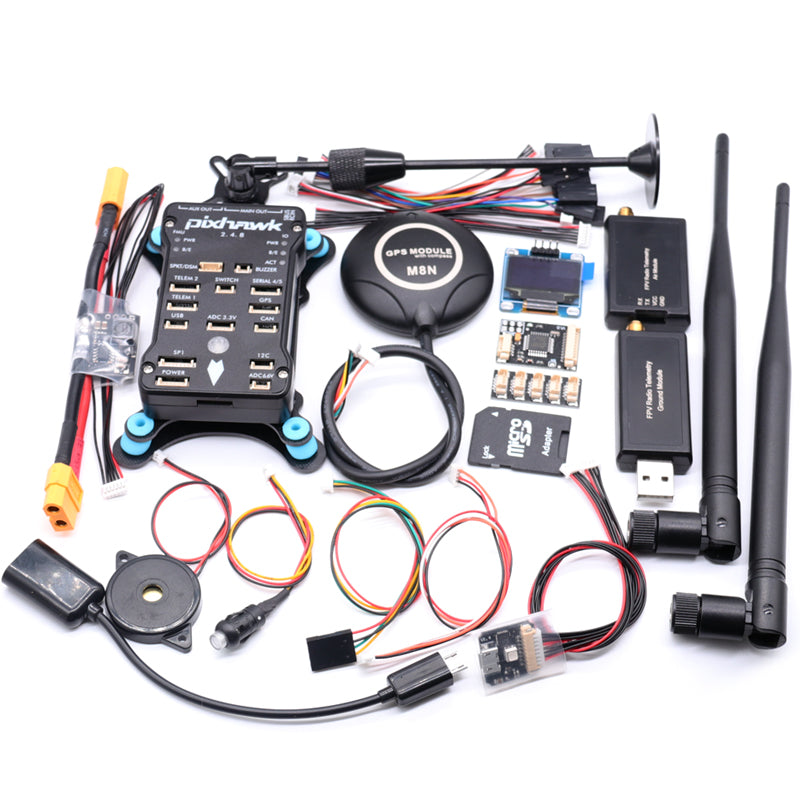

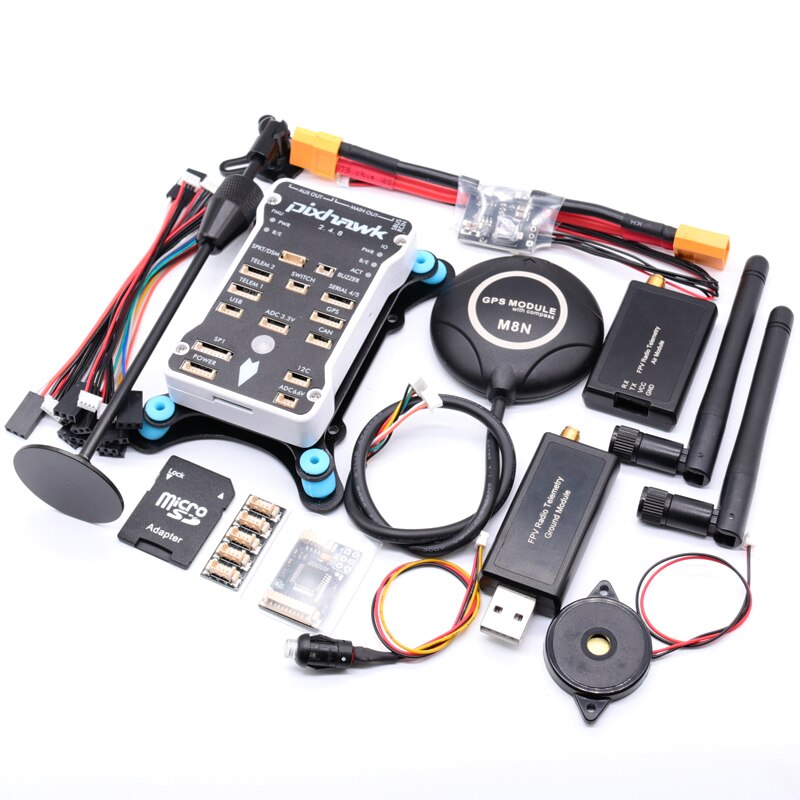

Package C:PIXHAWK 2.4.8(white or black shell)
+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber + 100MW 3DR Radio Telemetry 433MHZ(By default we will send 433MHZ, if you need 915MHZ, please leave a message)

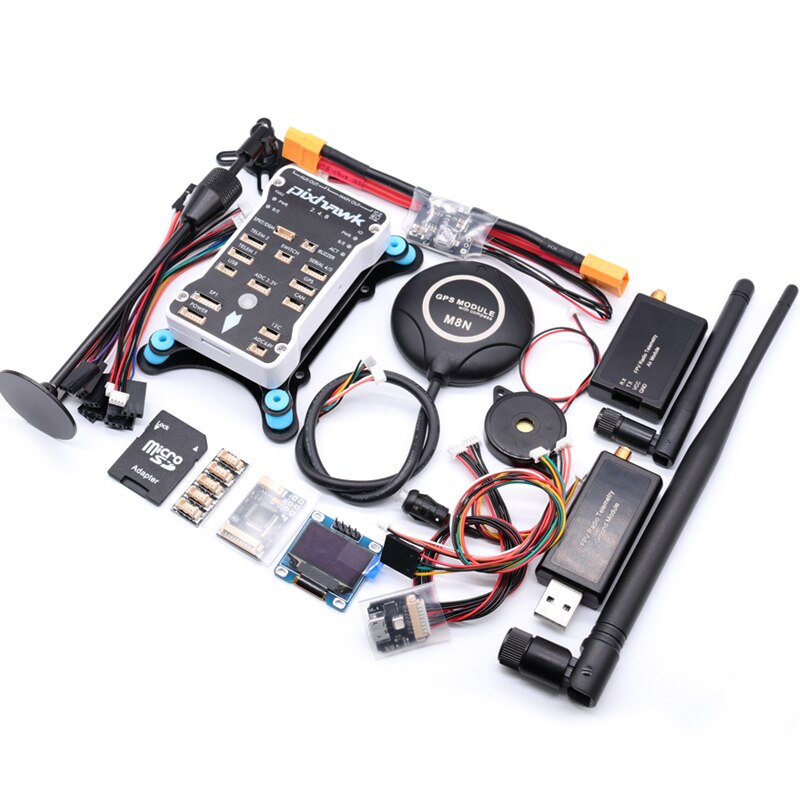

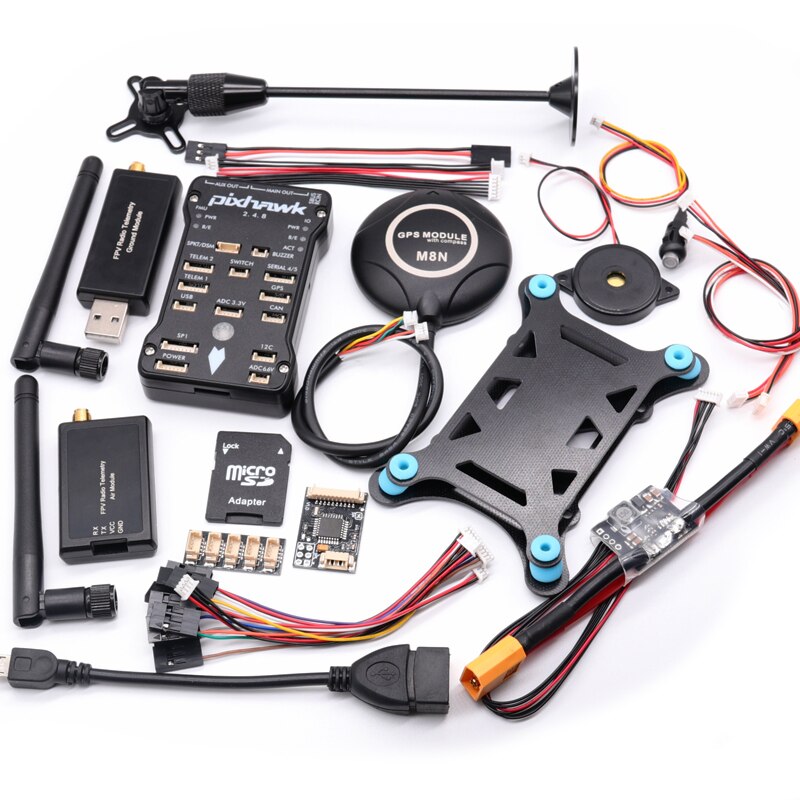

Package D:PIXHAWK 2.4.8(white or black shell)
+ 4G TF Card + Safety Button + Buzzer + PPM Encoder + I2C Expansion Board+ 3 Line(4Pin 1.25 ,6Pin 1.25 ,3Pin 2.5.4) + M8N GPS+ GPS Holder+ 3DR Power Module+ Shock Absorber + 500MW 3DR Radio Telemetry 433MHZ(By default we will send 433MHZ, if you need 915MHZ, please leave a message)
