Regular price
$1,359.99
$3,171.99
Sale
Features
Full 3K Carbon Fiber airframe featuring 4mm removable arms
Custom aluminum hardware to enable one tool, quick swapping of arms in race pit settings
Black Oxide steel screws
Easy grip anodized spacers
Multiple motor mounting holes to fit a variety of motors (M3 and M2 screw mounting patterns).
"Bumpers" on the end of the arms to protect the motor during a crash, just like the QAV250.
Easy Lipo Access (suggested Lipo is a 1300mah 3 or 4s)
Support for 32mm board cams as well as 26mm cams.
Support to carry HD camera (such as the GoPro 4, Mobius, or GoPro Session) with optional camera vibration mount (not included)
Wheelbase: 220MM
brushless motor:1806~2206 (KV2000~2300)
brushless esc:10~15a
flight controller:mini CC3D/ NAZA32/ F3
battery cells:3S 1500~2200mah
Propellers:5045,5030 (5 inch)
Image transmission:5.8G 200~600wm 32CH
Antenna:5.8G

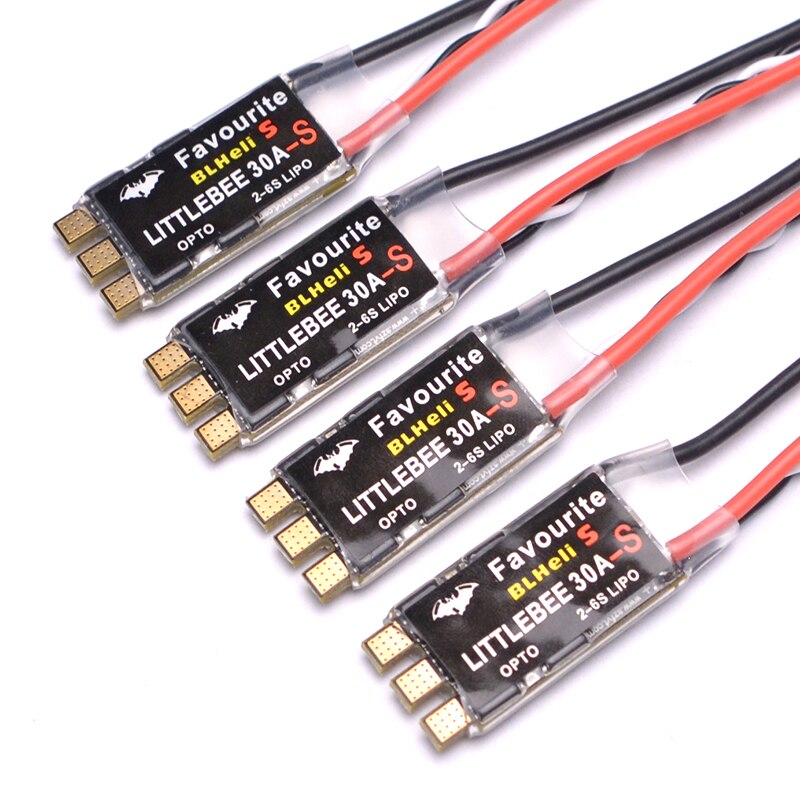

LittleBee 30A-S OPTO ESC BLHeli_S 2-6S
Description:
Item name: FVT LittleBee 30A-S ESC
Input Voltage: 2-6S Lipo
BEC Output: No
Continue Current: 30A, Burst Current: 35A up to 10S
Size: 35*17mm
Weight: 9g(include Power and signal wire)
Support Damped mode, Oneshot125, Oneshot42 and Multshot
Main IC: SILABS EFM8BB21F16, MCU run 48MHz
MOS: Both low and high side fets are Nfets
Switching speed is very fast, it has dedicated driver chip
BLHeli_S Bootloader & Firmware

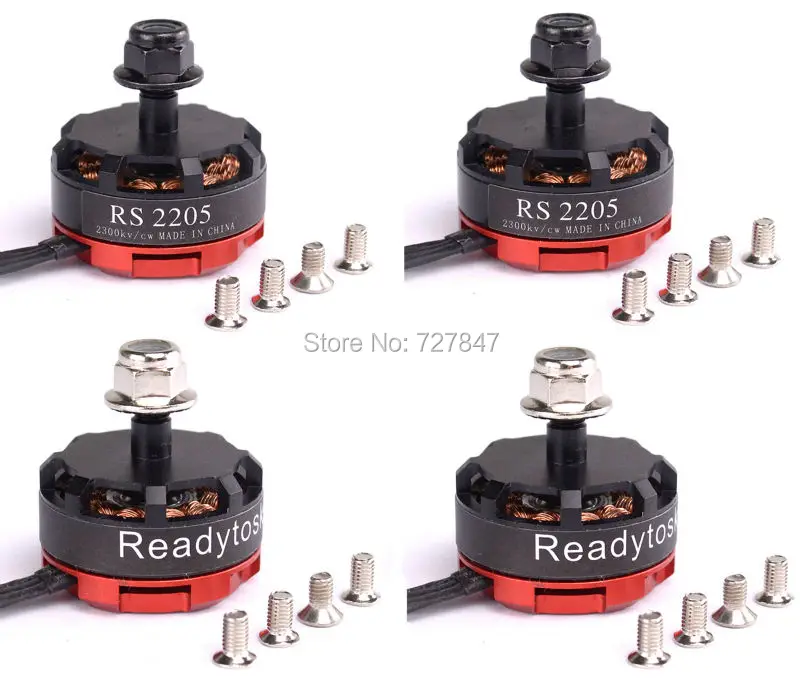

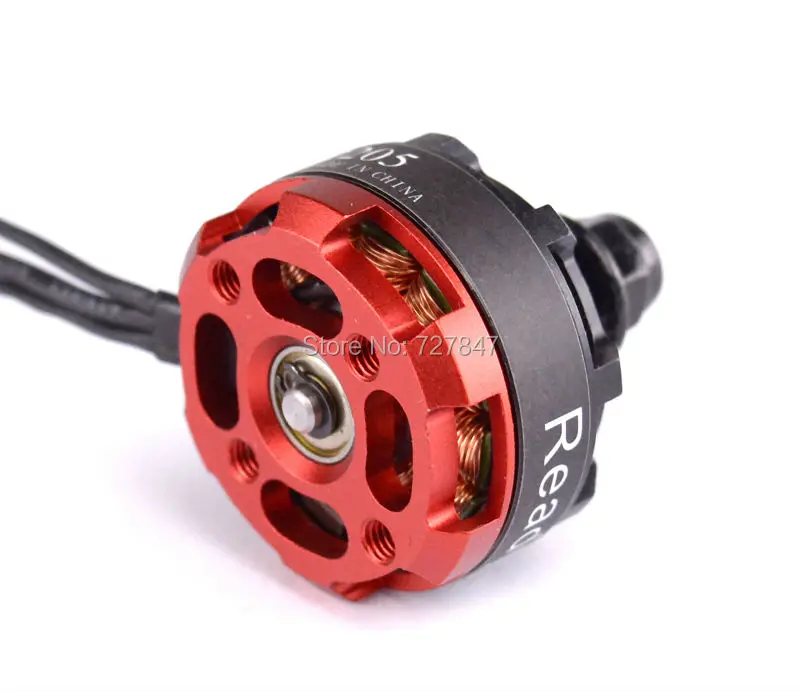

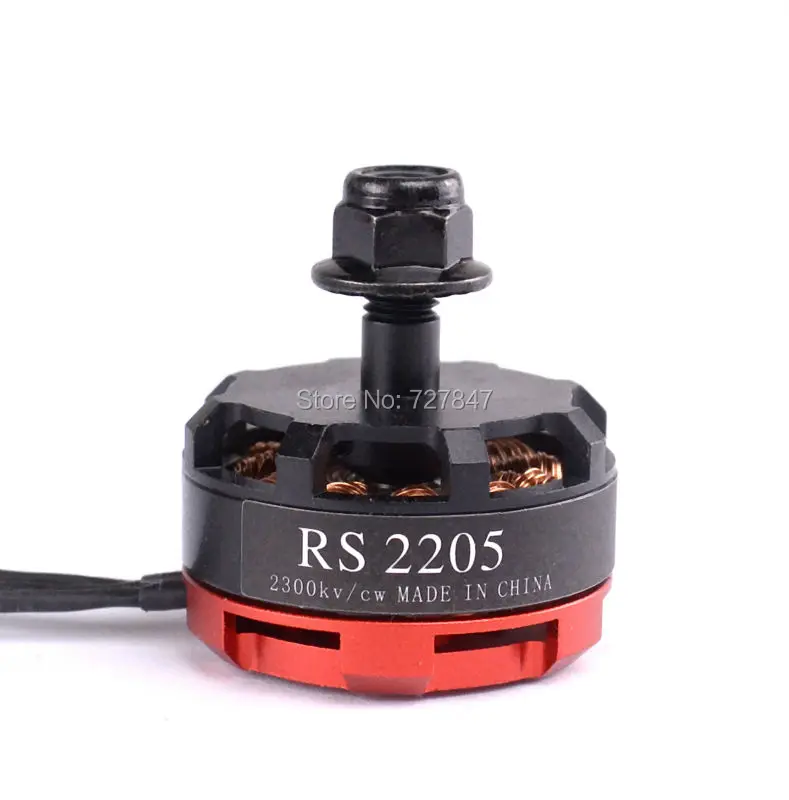

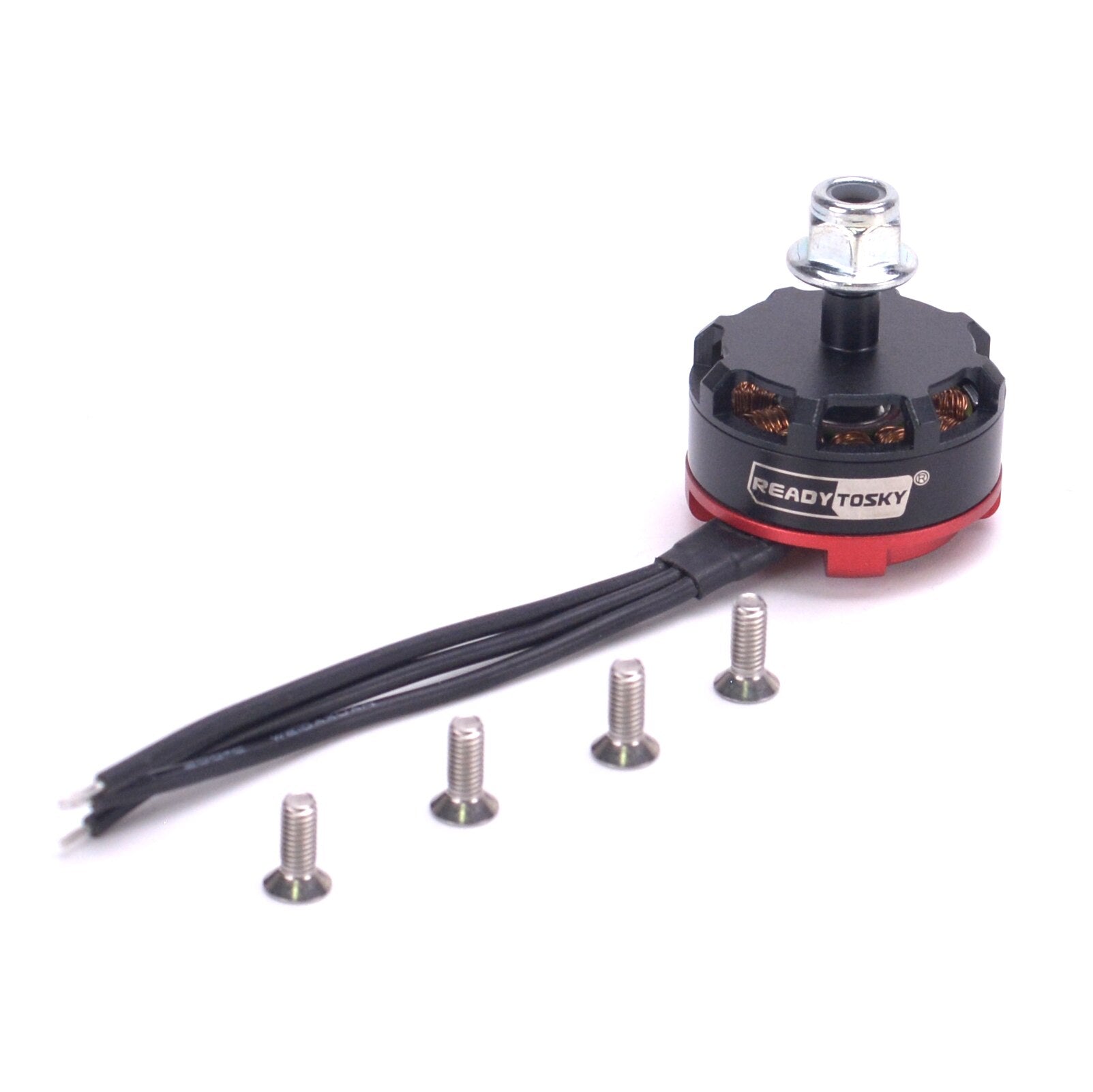

Brands:Ready to sky
Model: RS2205-2300
Framework: 12N14P
No. of Cells: 3 - 4S
Color: Red
Length: 31.7mm
Shaft: M5
KV: 2300
Max Thrust: 1024g
Diameter: 27.9mm
Propeller Suggested: HQ 5045 BN
Weight: 30g
Features:
1. Race Spec Performances
2. High Strength N52 Neodyum Magnets
3. Active Cooling Fins Greatly Reduce Motor Temeratures
4. Low CG, Light Weight Design
5. Japanese Bearing For Performances
6. Enchance Anti Off U Ring For Safety & Stablility
7. Dual Lock CW / CCW Locknuts
Deluxe version (10 DOF) is the version with compass and brano
ACRO (6 DOF) is the version without compass and brano

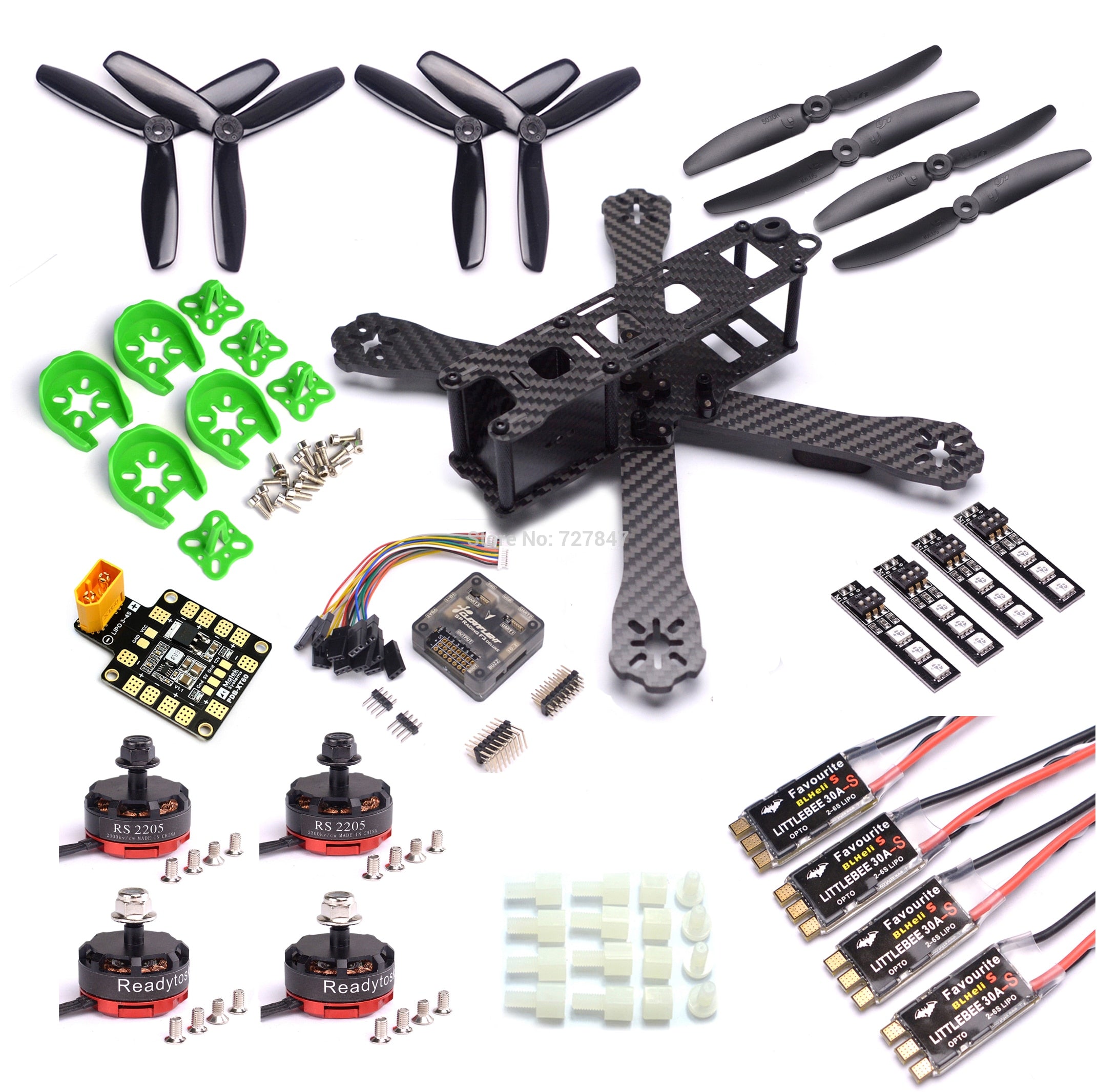

Package Included:
- 1pcs QAV-R 220mm 4-Axis Carbon Fiber Quadcopter Frame Kit (not assembeled, just a frame kit)

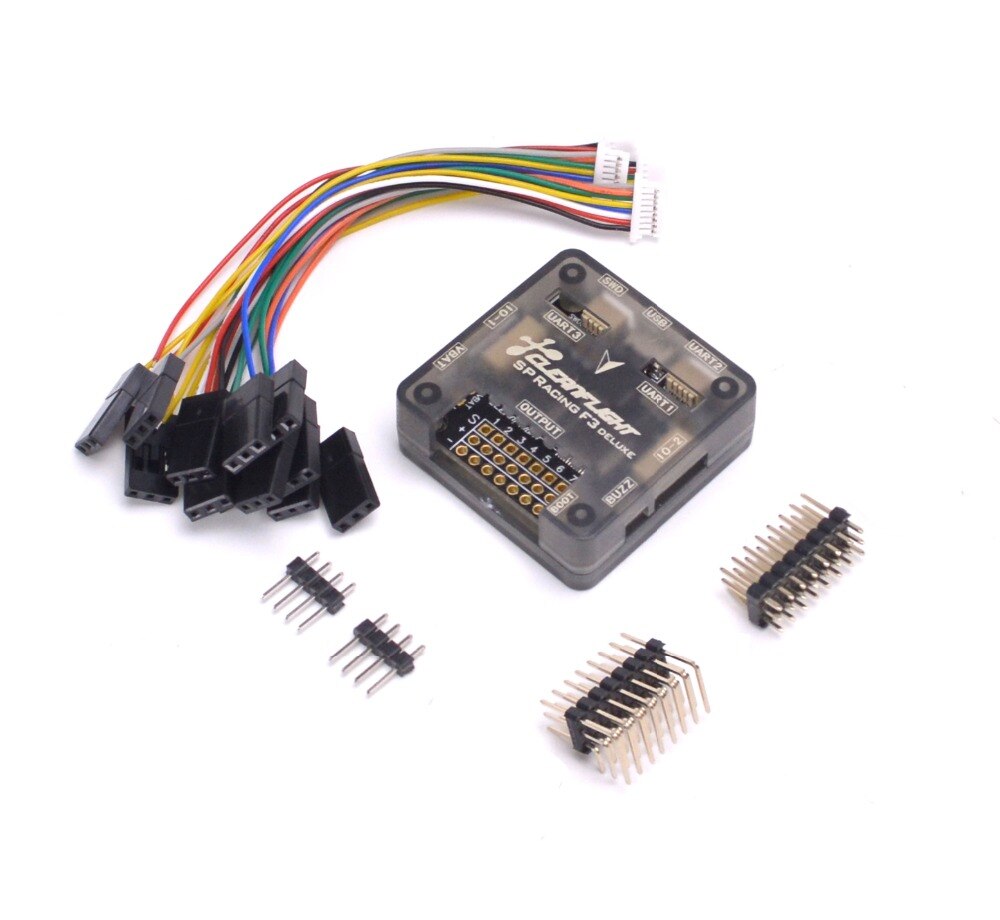

- 1pcs F3 Flight Control Board (send by your optional)
- 4pcs Littlebee 30A-S BLHeli_S PRO esc
- 4 pcs RS2205 2300kv (2CCW, 2 CW)
- 1pcs 5V / 12V PDB-XT60 distribution board
- 4pcs motor cover

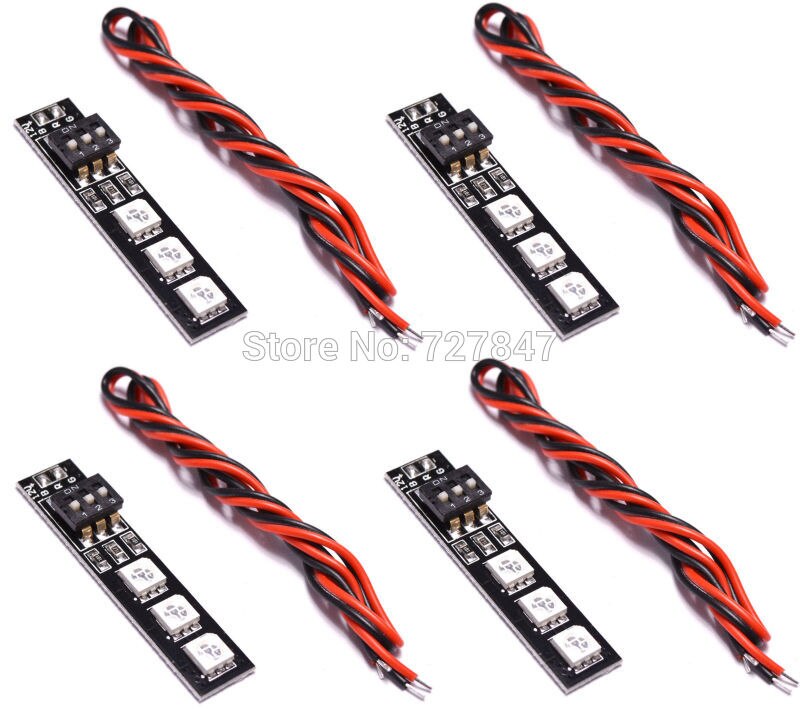

- 4pcs LED
- 1set nlyon screws

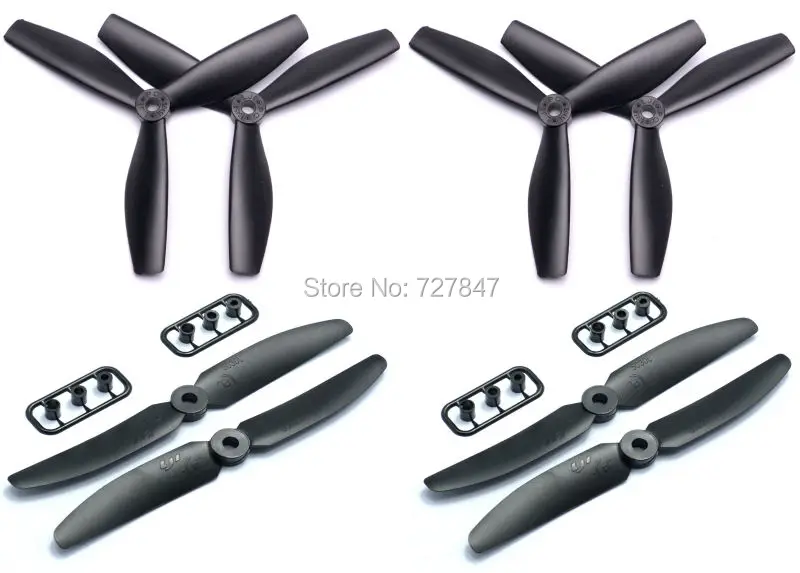

- 2 pairs 5045 3 blade propellers
- 2 pairs 5030 2 blade propellers

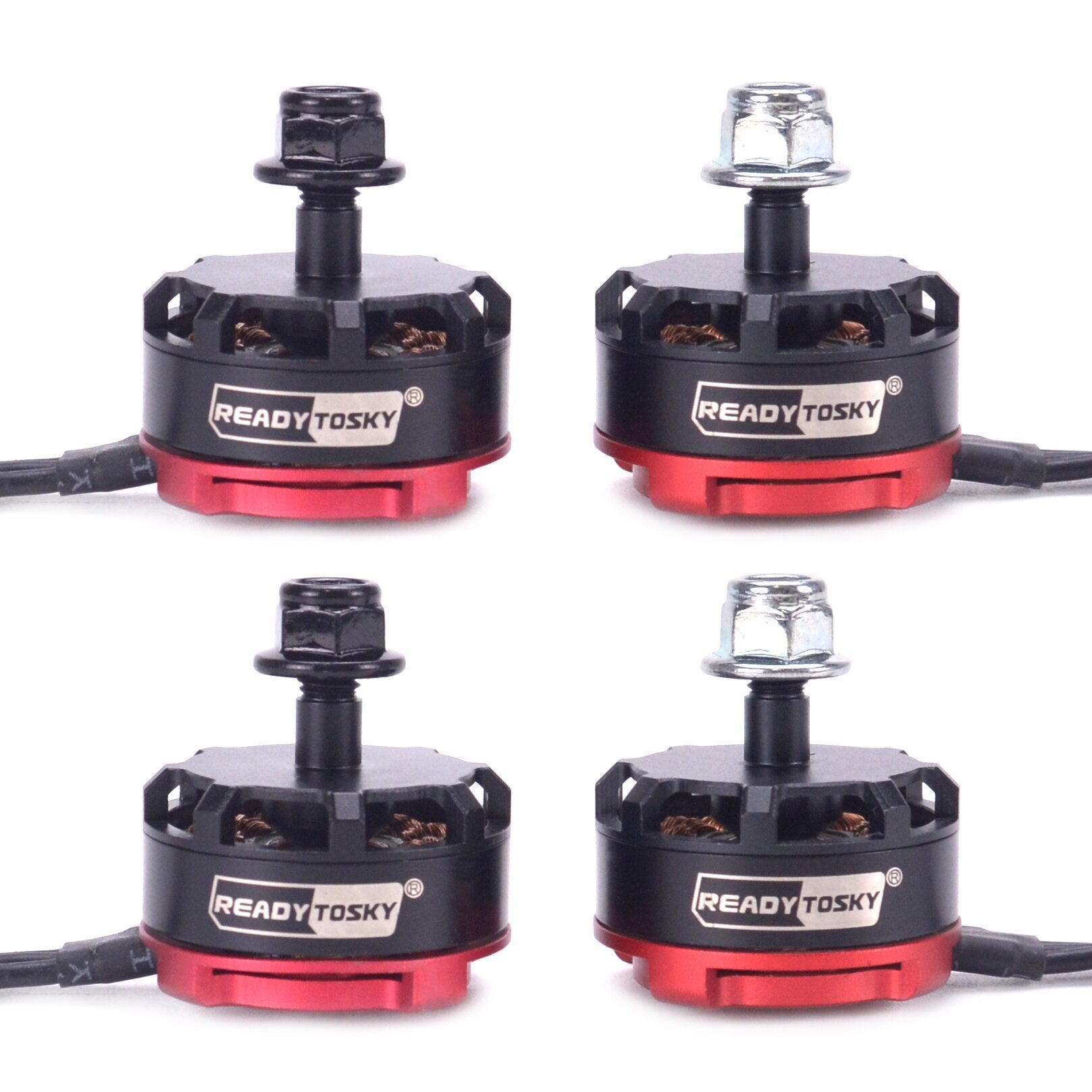

Note : Due to different production batch, the 2 kind design of motor send at random.
