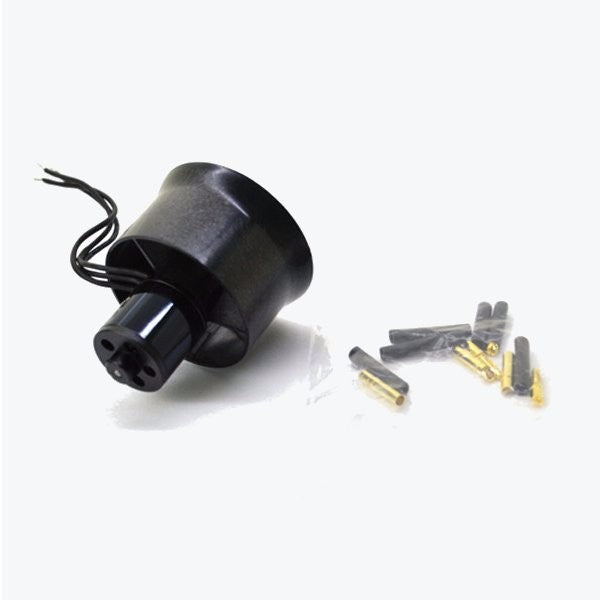

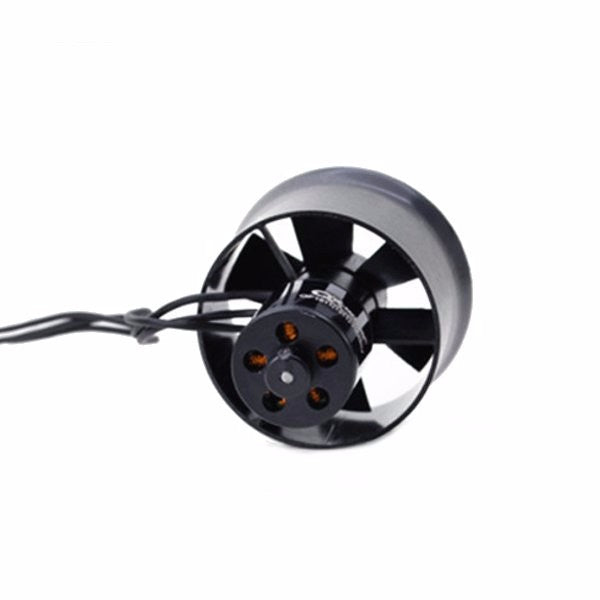

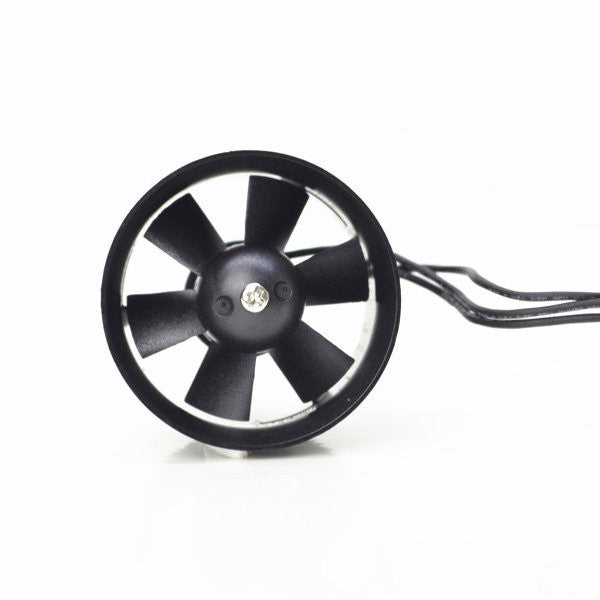

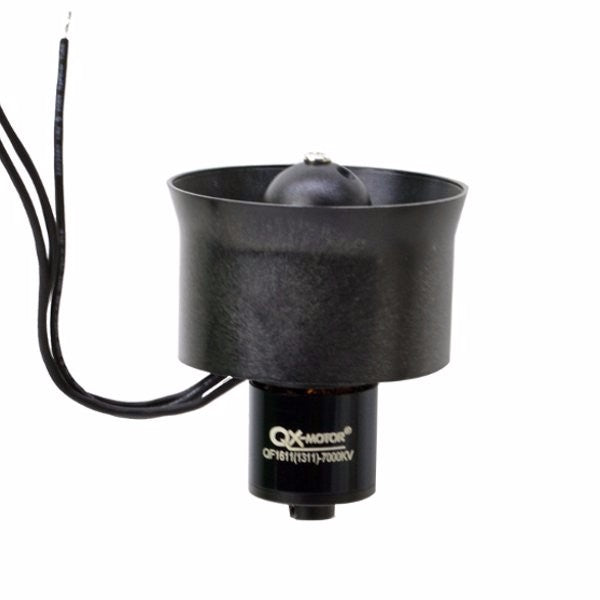

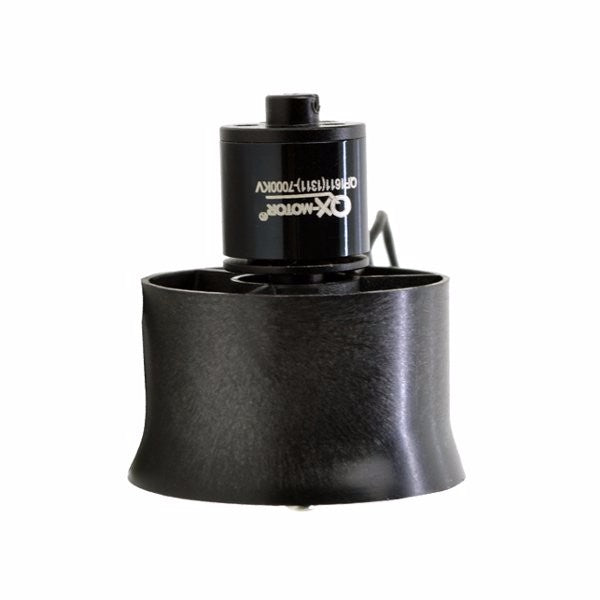

QX-Motor 30mm 6 Blades EDF Unit With QF1611 7000KV Brushless Motor
DroneSpark
Regular price
$34.99
$27.99
Sale
QX-Motor 30mm 6 Blades EDF Unit With QF1611 7000KV Brushless Motor
Description:
Brand Name: QX-Motor
Item Name: EDF unit with brushless motor set
EDF Unit: 30mm 6 blades
Brushless Motor: QF1611-7000KV
Specifications of Motor:
Testing Data:
Package Included:
1x QX-Motor 30MM 6 Blades EDF Unit With QF1611-7000KV Brushless Motor
Description:
Brand Name: QX-Motor
Item Name: EDF unit with brushless motor set
EDF Unit: 30mm 6 blades
Brushless Motor: QF1611-7000KV
Specifications of Motor:
| KV | 7000 | Idle Current @10.0V | 0.5A |
| Configuration | 9N6P | No.of Cells(Lipo) | 2S |
| Stator Diameter | 13mm | Max Continuons Current(A)/60s | 12A |
| Stator Length | 11mm | Max Continuous Power(W)/60s | 120W |
| Motor Dimension | 16x25mm | Weight | 19.5g |
Testing Data:
| Prop | Volts(V) | Amps(A) | Watts(W) | Thrust(g) | Thrust(oz) | Efficiency(g/w) | Efficiency(oz/w) | Throttle |
| 30FAN | 11.1 | 1.7 | 18.87 | 44 | 1.55 | 2.33 | 0.08 | 50% |
| 30FAN | 11.1 | 2.5 | 27.75 | 57 | 2.01 | 2.05 | 0.07 | 60% |
| 30FAN | 11.1 | 3.3 | 36.63 | 74 | 2.61 | 2.02 | 0.07 | 70% |
| 30FAN | 11.1 | 4.8 | 53.28 | 104 | 3.67 | 1.95 | 0.07 | 80% |
| 30FAN | 11.1 | 11.2 | 124.32 | 220 | 7.76 | 1.77 | 0.06 | 100% |
Package Included:
1x QX-Motor 30MM 6 Blades EDF Unit With QF1611-7000KV Brushless Motor
