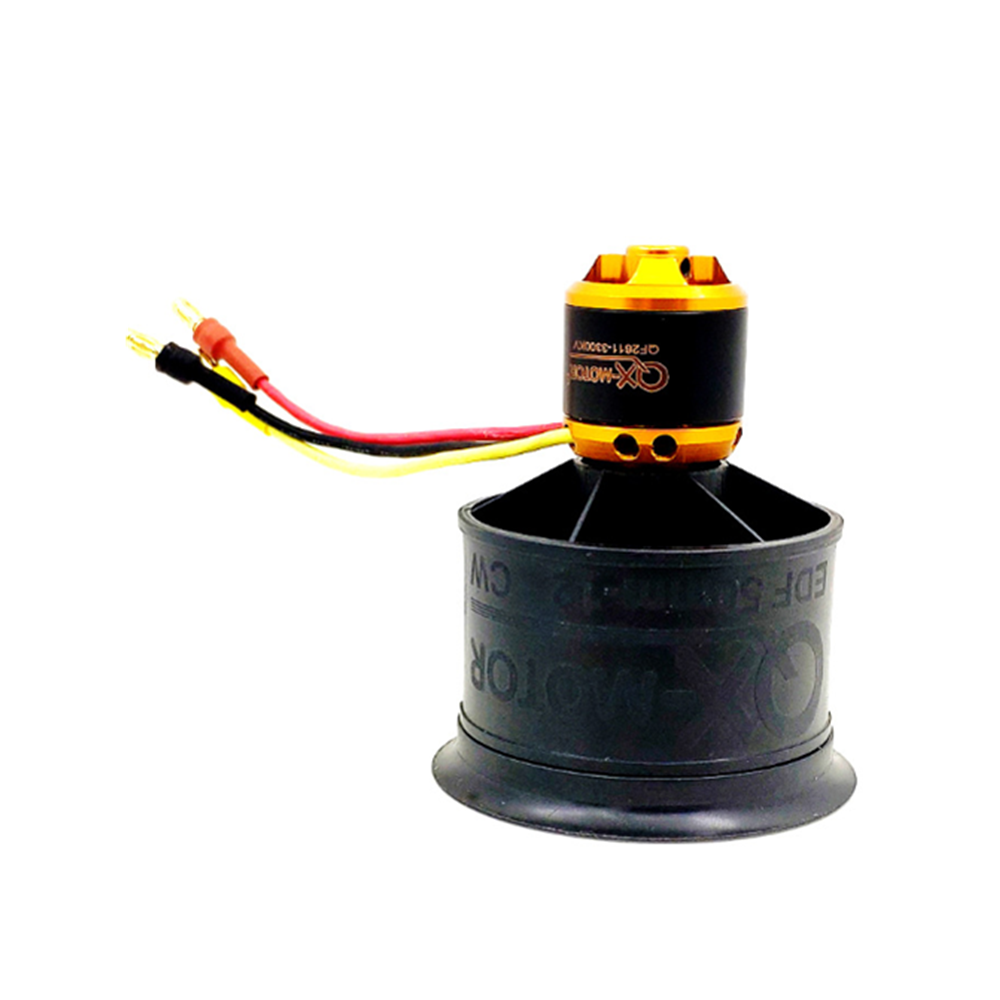

QX-MOTOR 50mm 12 Blades Ducted Fan EDF CW CCW with QF2611 3S 4S Brushless Motor
DroneSpark
Regular price
$41.99
$32.99
Sale
The QX-MOTOR ducting set series focuses on the high-tech and research and development of the ducted power system
to produce more efficient and reliable innovative products.
to produce more efficient and reliable innovative products.

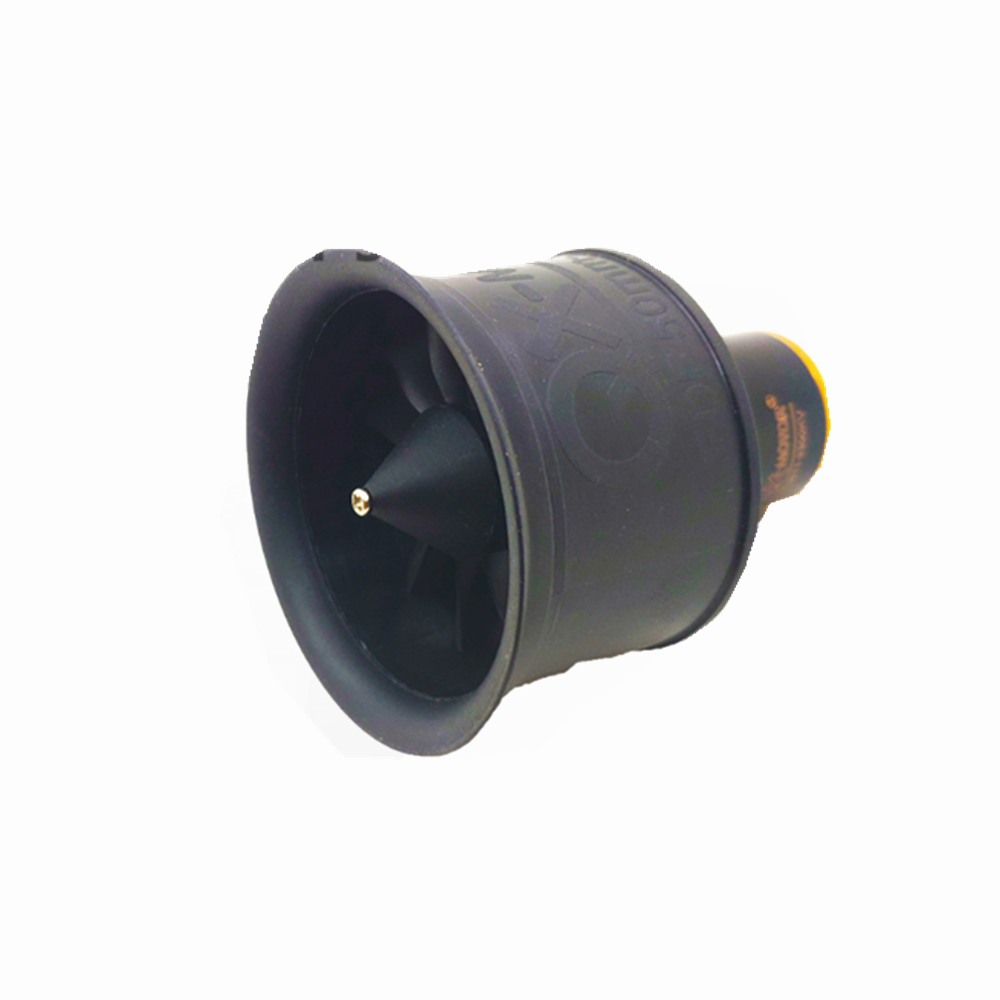

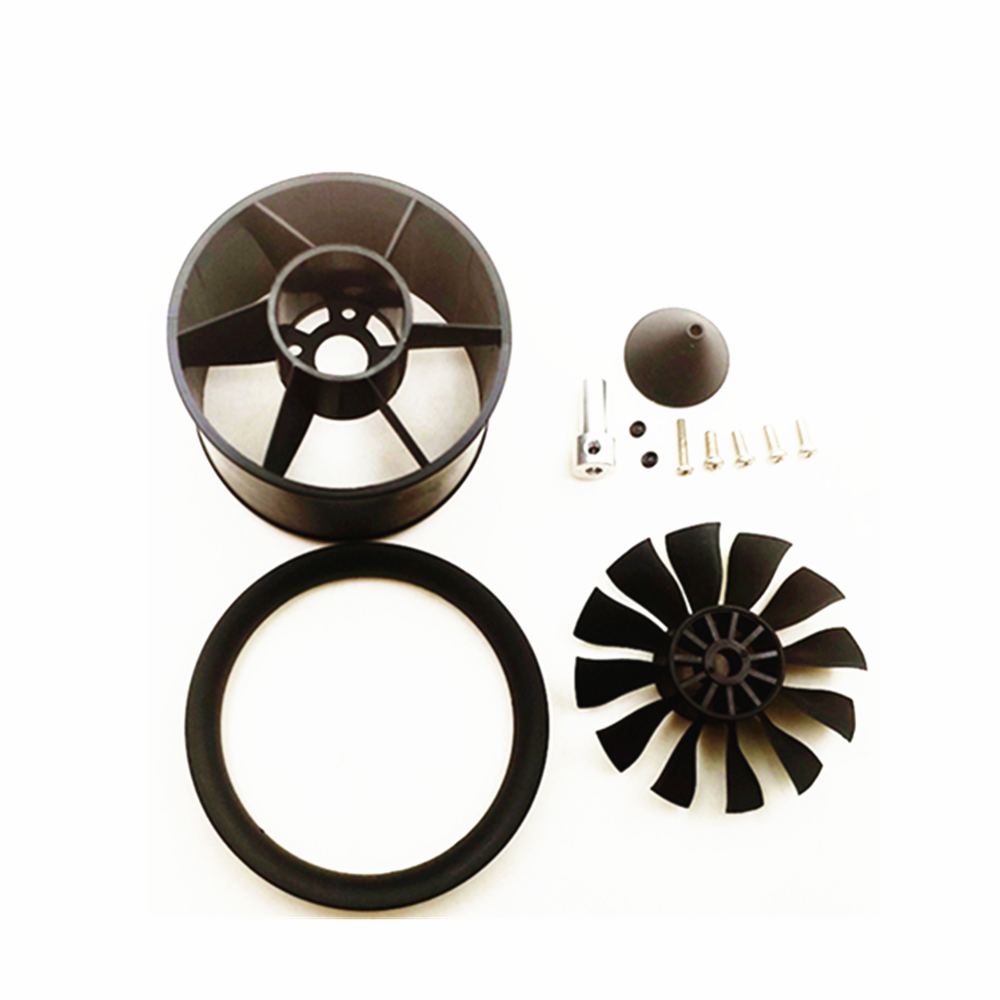

This upgraded 50MM EDF 12 leaf design has CW and CCW. With the QF2611 high-performance brushless motor,
it is powerful. Efficient. Low temperature. Suitable for modification of ducted machines around 800G.
It is the innovative choice of the majority of model friends.
it is powerful. Efficient. Low temperature. Suitable for modification of ducted machines around 800G.
It is the innovative choice of the majority of model friends.
Specification:
Model: QF2611
KV(rpm): 3300KV/4000KV/4600KV
Configu-ration: 9N6P
Shaft diameter: 3.0mm
Motor diameter: 25.8mm
Weight: 76g
No.f cells: 3-4s Lipo
Max continuous power: 550w
Max continuous current: 45A
Package included:
1 x QX-MOTOR 50mm 12 Blades Ducted Fan EDF CW CCW with QF2611 3S 4S Brushless Motor
| Prop | Volts(V) | Amps(A) | Watts(W) | Thrust(g) | Thrust(oz) | Efficiency(g/W) | Efficiency(oz/W) | Motor model | ESC |
| 50mm EDF | 12.6 | 32 | 403.2 | 780 | 27.51 | 1.93 | 0.07 | QF2611 4600KV | 40A |
| 16.2 | 22 | 356.4 | 750 | 26.46 | 2.10 | 0.07 | QF2611 3300KV | 40A | |
| 16.2 | 34 | 550.8 | 950 | 33.51 | 1.72 | 0.06 | QF2611 4000KV | 40A |
Package included:
1 x QX-MOTOR 50mm 12 Blades Ducted Fan EDF CW CCW with QF2611 3S 4S Brushless Motor
