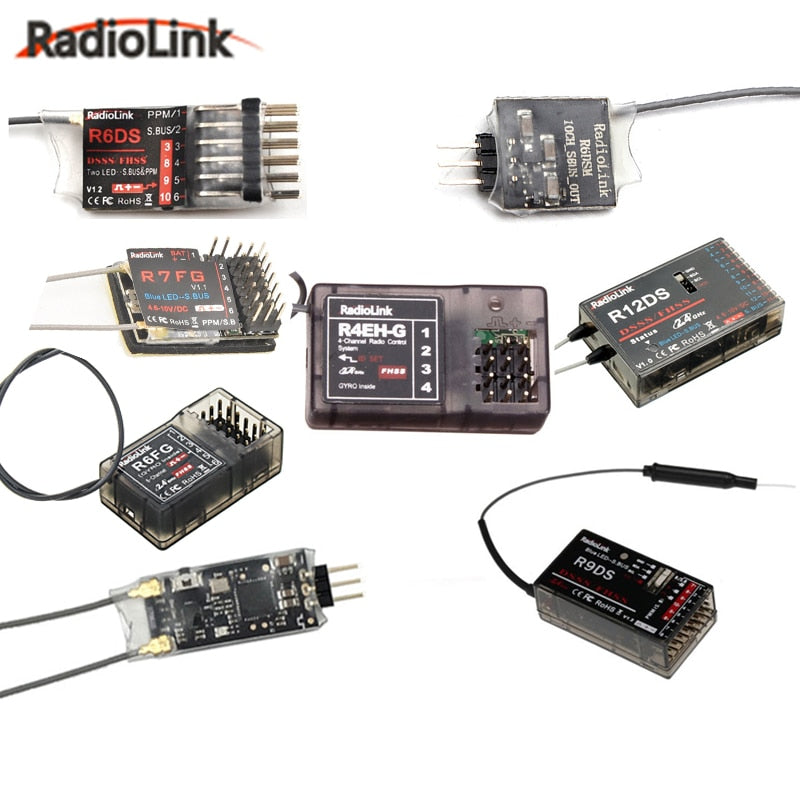

Radiolink 2.4G R9DS R7FG R6FG R6DS R12DS R12DSM R6DSM R4EH RC Receiver for AT9 AT9S AT10 AT10II Transmitter RC Transmitter

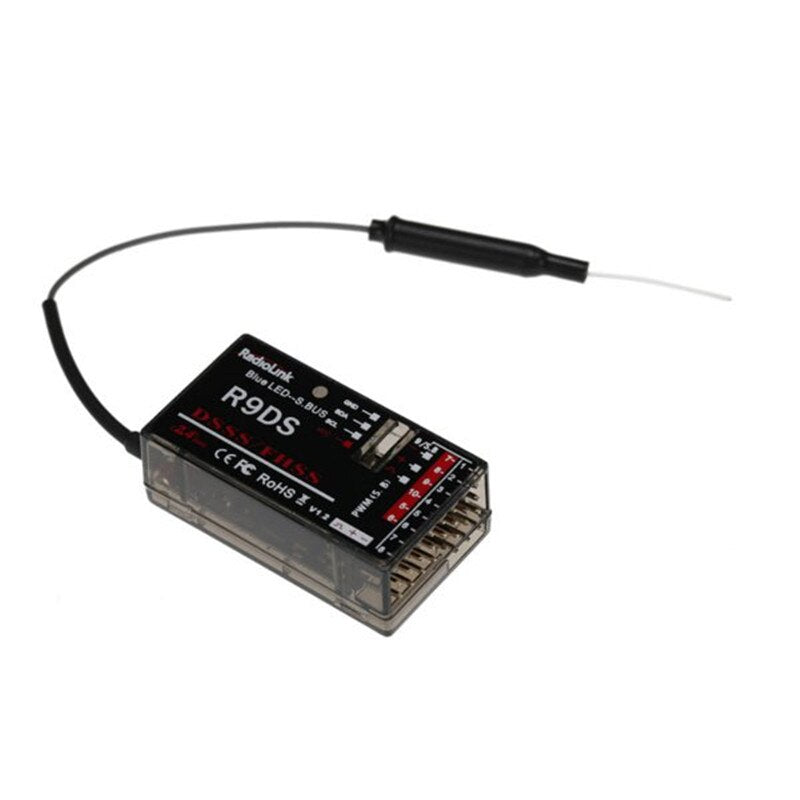

R9DS Receiver

Frequency: 2.4GHz
Channel: 9CH
Color: Black
Usage: Used for RadioLink AT9 AT10 remote controller

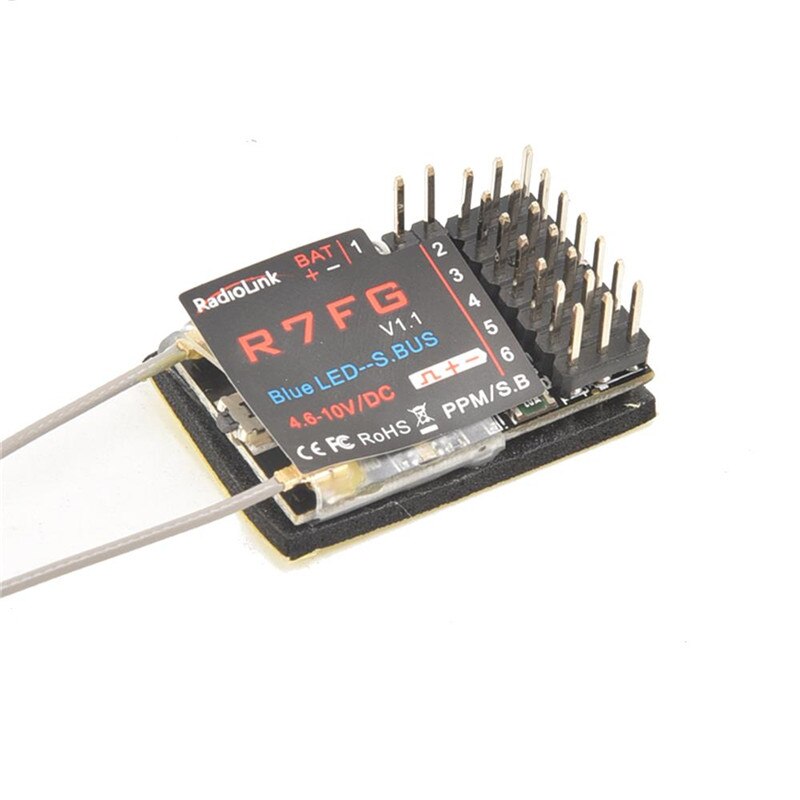

R7FG Receiver
Material:ABS and electronic components
Color:Black
Product Size:30*18,5*11.5mm
Antenna Length:200mm
Product Weight:About 6g
Packaging Weigt:Approx 8g

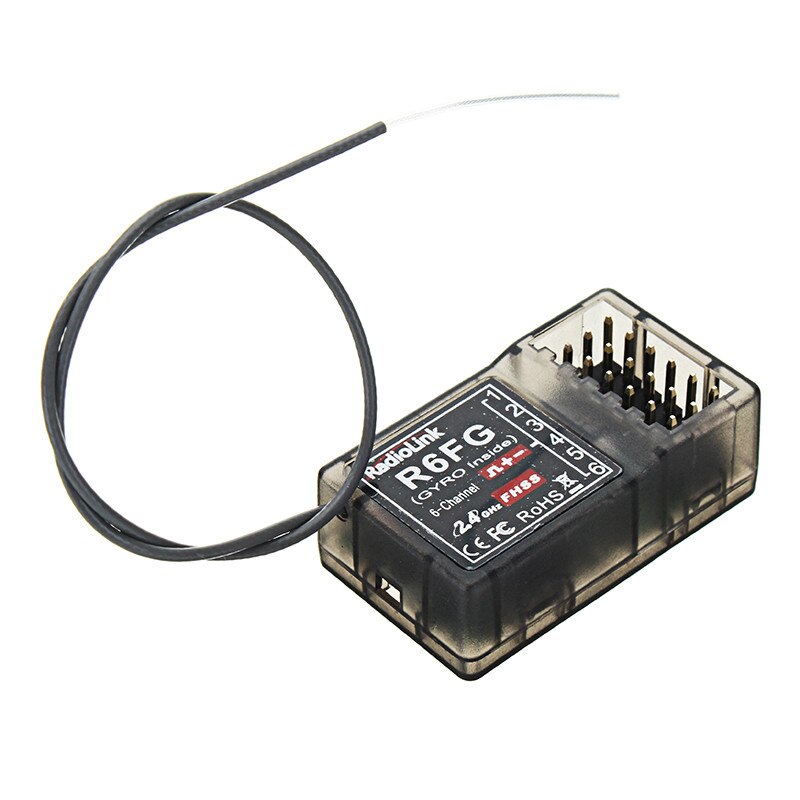

R6FG Receiver

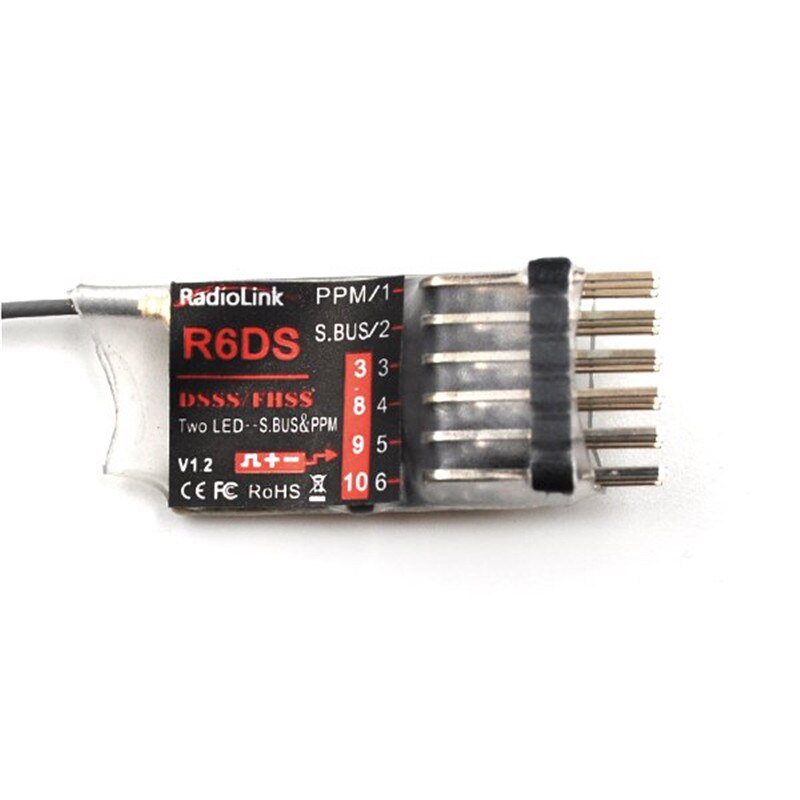

R6DS Receiver
Band: 2.4G
Channel: 6 (Red LED indicator is for PWM mode. Blue LED for PPM, can be extended to 10channels)
Pow&er Input: MAX 6V
Control Distance: 600m in air
Current Consumption: 38-45mA (Input voltage:5V)
Dimension: 25×16×11mm
Weight: 3.9g
Preci&sion: 4096

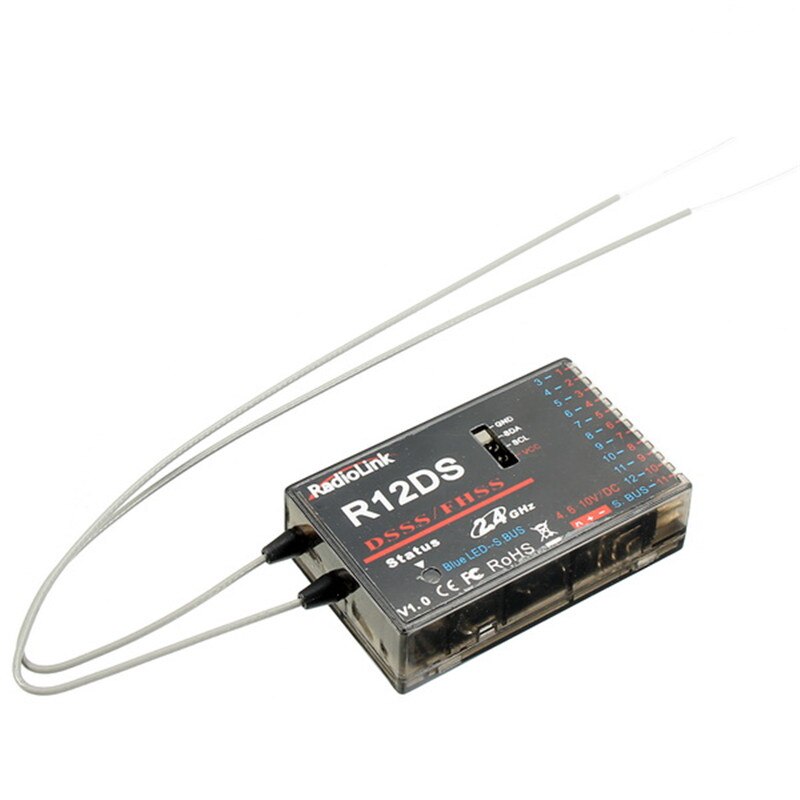

R12DS Receiver
Channels: 12 channels,output 12 channels signal, support S-BUS and PWM signal output synchronously.
Working voltage: 4.8-10V
Working current: 38-45mA(input voltage: 5V)
Size: 50*31.5*14.5 MM
Weight: 14g
Receiver integrate telemetry sensor including signal strength and voltage. Support extended engine voltage telemetry module PRM-01 and module PRM-02 can feedback GPS info, Speed, voltage etc. on AT9/AT9S/AT10/AT10II display when work with flight controller APM or PIX.
Resolution: 4096 section preci&sion, 0.25us per section, servo anti-shake rudder.
Control distance: about 4 kilometers air(Maximum ran&ge tested in unobstructed areas free of interference and may vary depending on local regulations).

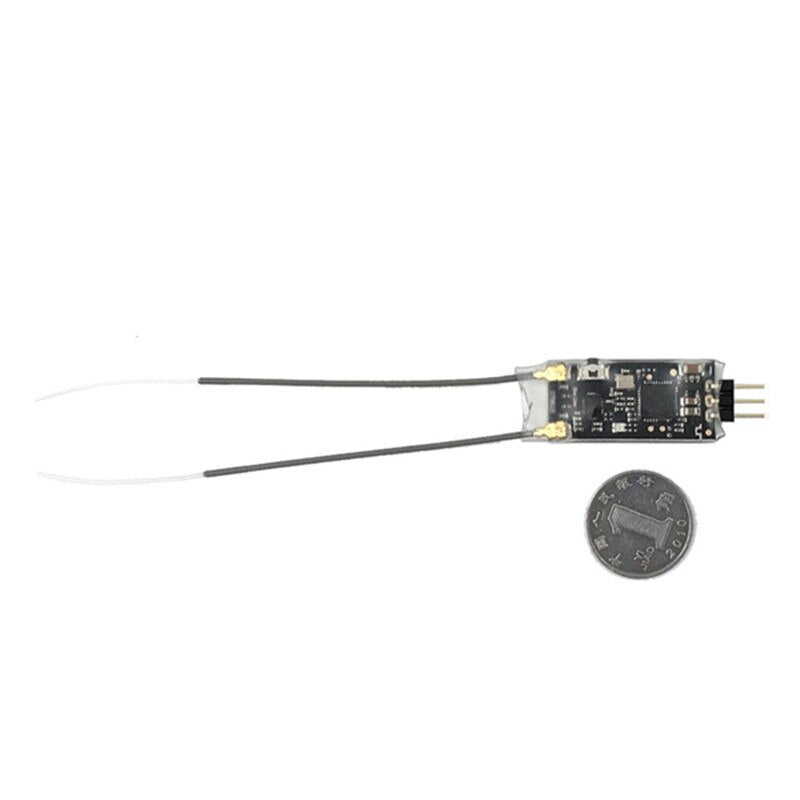

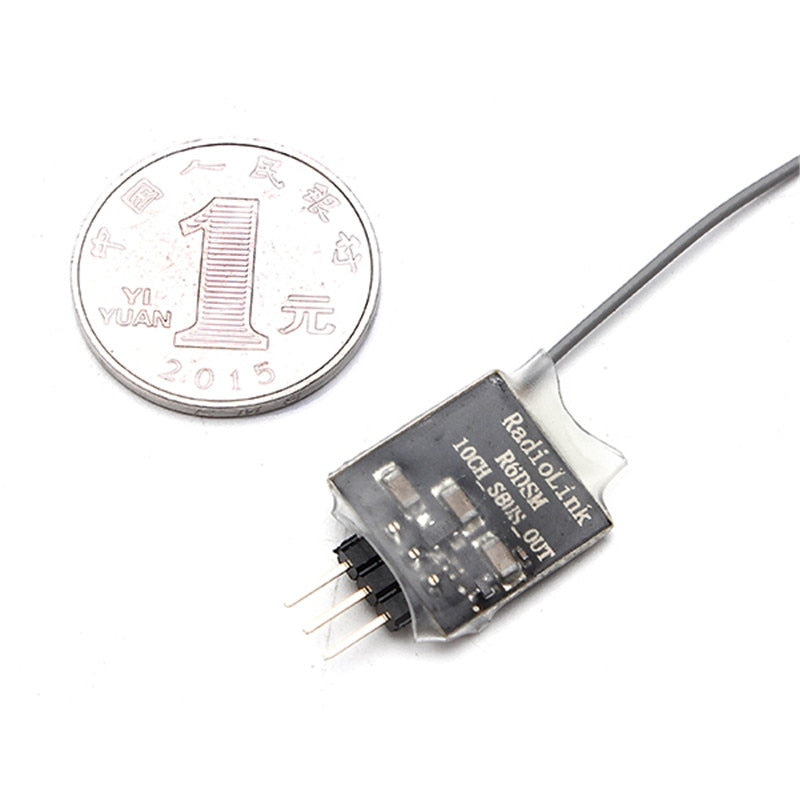

R6DSM 2.4G 10CH Receiver
Channels: 10 channels
Output signal: PPM/SBUS

Working voltage: 4.8-6V

Working current: 38-45mA(input voltage:5V)

Size: 15*13MM

Weight: 1g

Detachable antenna

4096 section preci&sion, 0.25us per section, servo anti-shake rudder.

Control distance: about 600 meters, actually control distance depends on the environment.

Two signal working mode: Blue/purple LED, SBUS signal , 10 channels totally.

Red LED always, PPM signal, 10 channels totally.

R12DSM Receiver

Channels: 12 channels

Working voltage: 4.8-6V

Working current: 40-180mA (input voltage: 5V)

Size: 30*15 MM

Weight: 2.5g
4096 section preci&sion, 0.5us per section, servo anti-shake rudder.
Control distance: about 1100 meters ground and 4000 meters air, actually control distance depends on the environment.

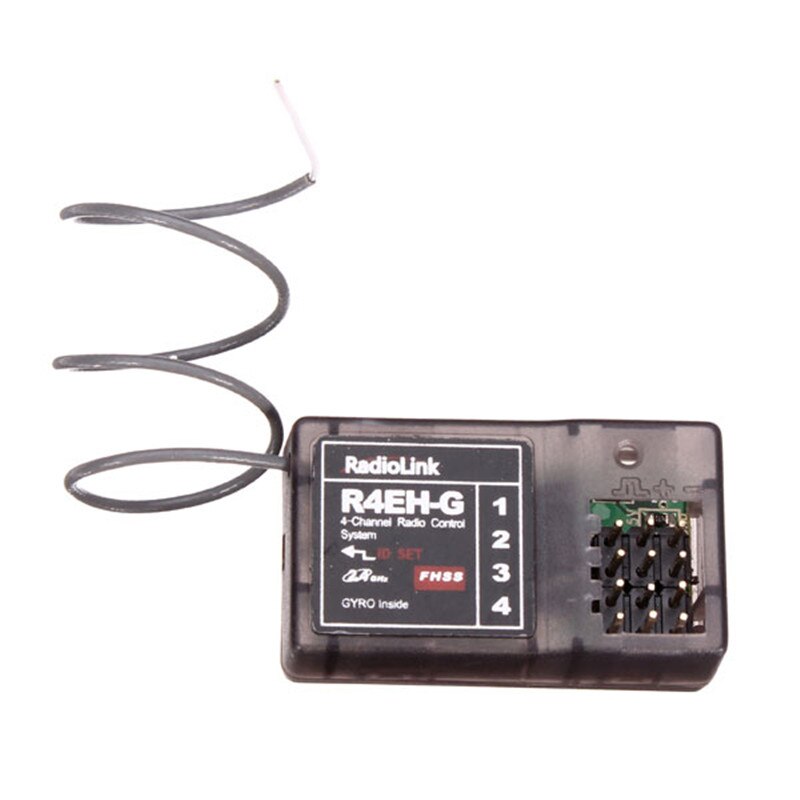

R4EH-G Receiver
Size:51.5*24*15mm
Channel:4 CH
Pow&er standard:4.6V-10V
Frequency:2.4GHz
Weight:5g

Package included:
1X Receiver
