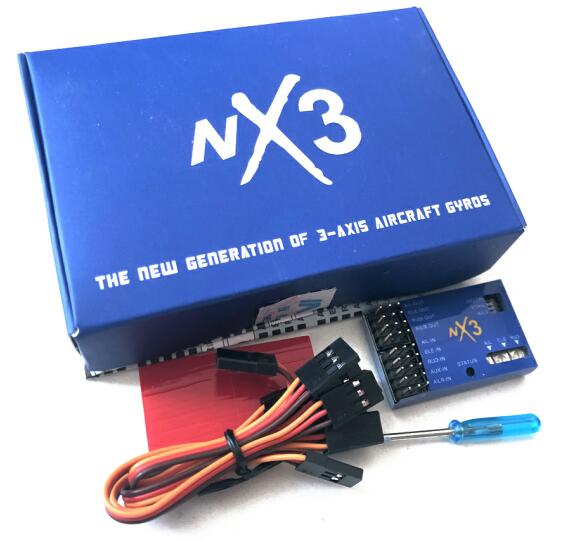

RC Flight Controller.NX3/NX3 EVO Flight Controller Board Fixed-wing flight gyro balancer For 2D/3D Fixed-wing Aircraft

NX3/NX3 EVO Flight Controller Board

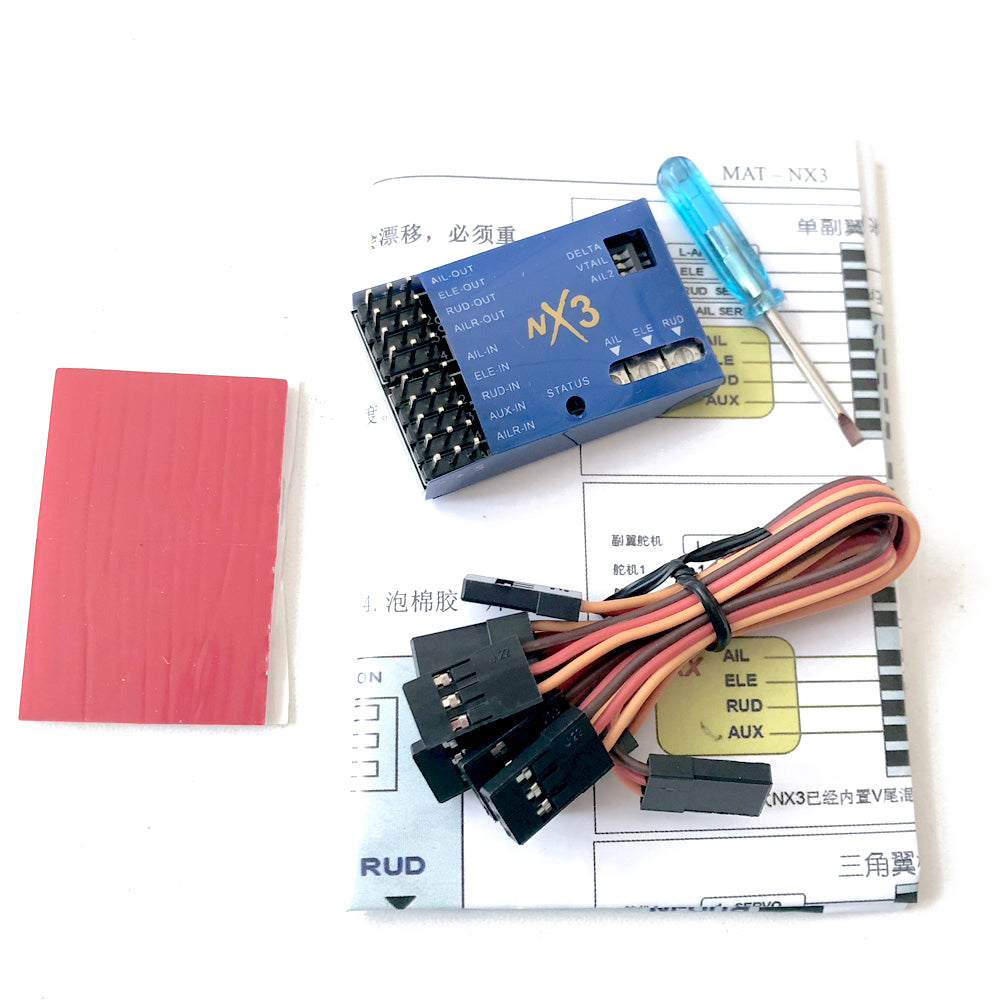

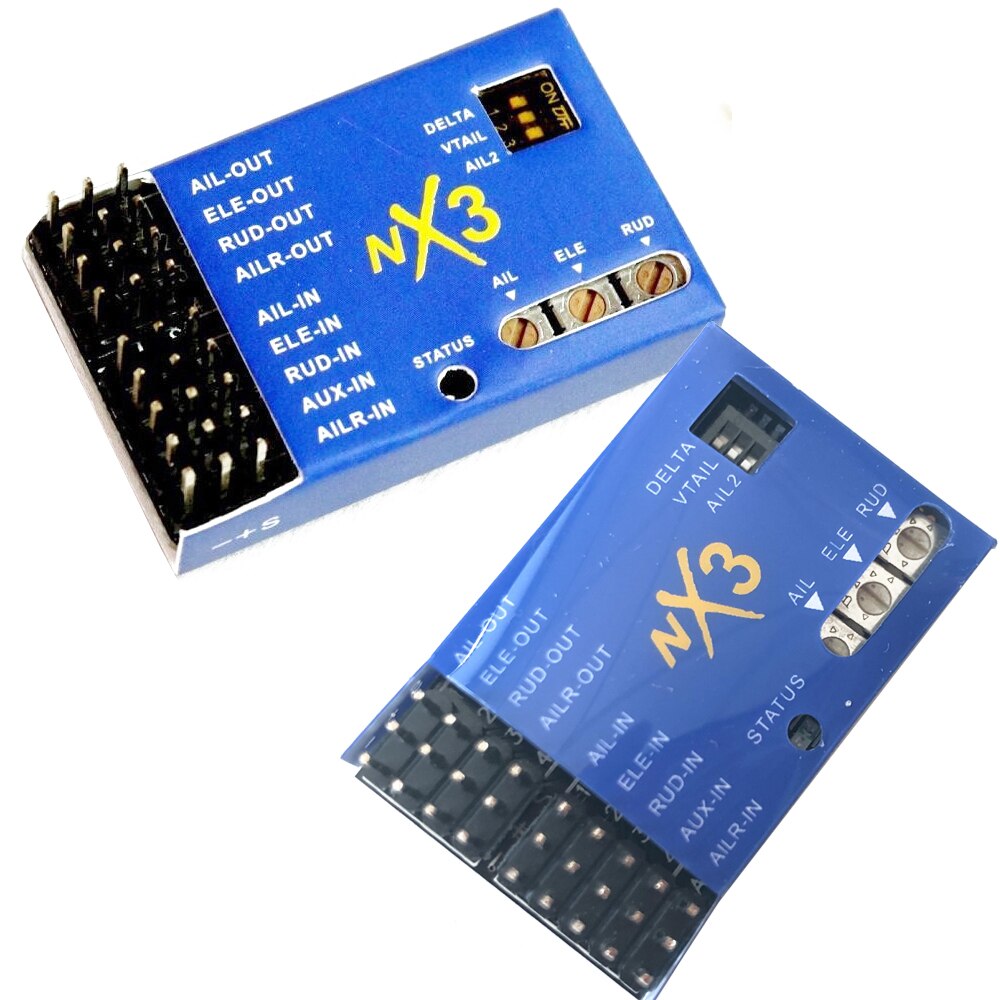

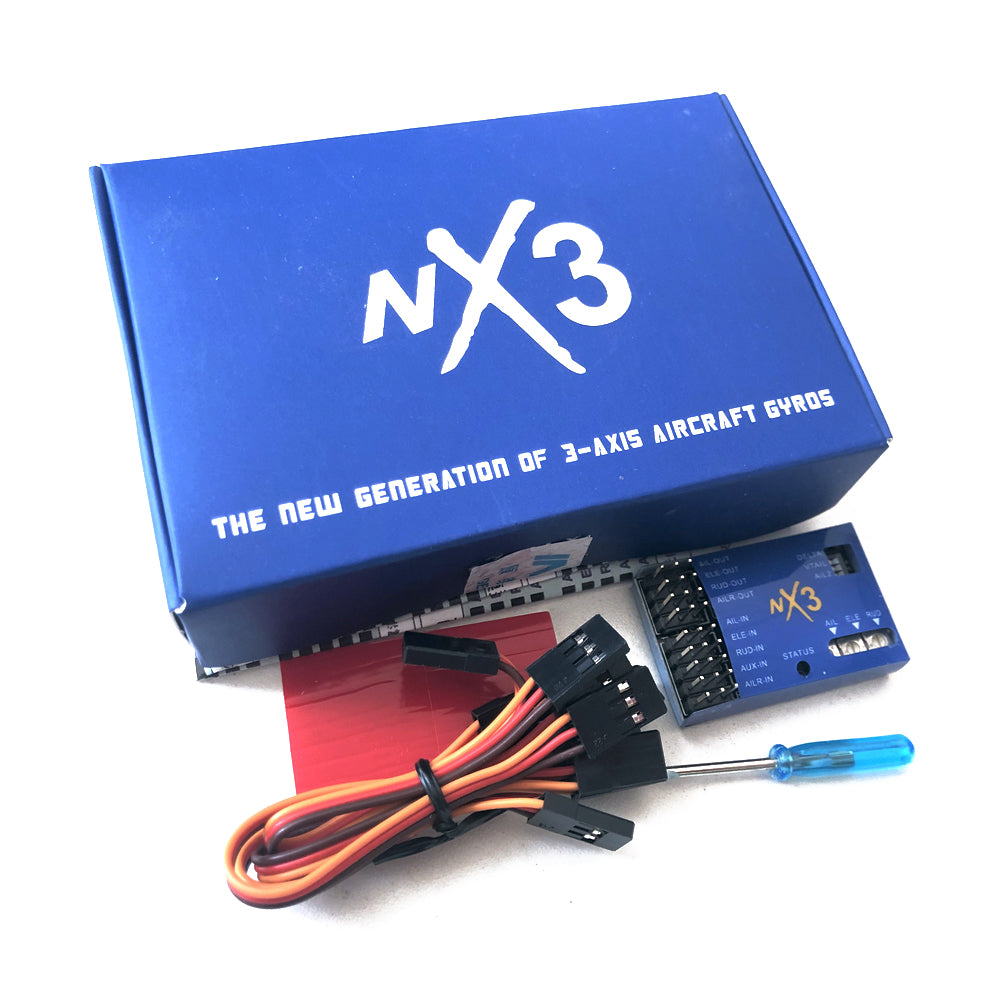

NX3：

100% brand new
Input voltage: DC5 - 6V, directly connected to the ESC's BEC power supply can be use.
Operating Current: 18mA
Working temperature: -20 Celsius  to 85 Celsius
Dimensions: 25 × 40mm
Net Weight: 6.5g

Humanized design, independent potentiometer adjust for different axis sensitivity
Optional - Three-mode switched from controller,

1 - normal stability mode,
2- gyro off mode,
3- calibration.

Micro design, small size, supports single aileron model, V-tail model, delta wing model and dual aileron
(flaperons) aircraft - Can also be used for 2 - axis on jets using 2 servos for ailerons and a servo on the
elevator or if the jet uses 2 servos only, one serving the left aileron and elevator, and the other
servo serving the right aileron and elevator,  it can be set to a delta wing.

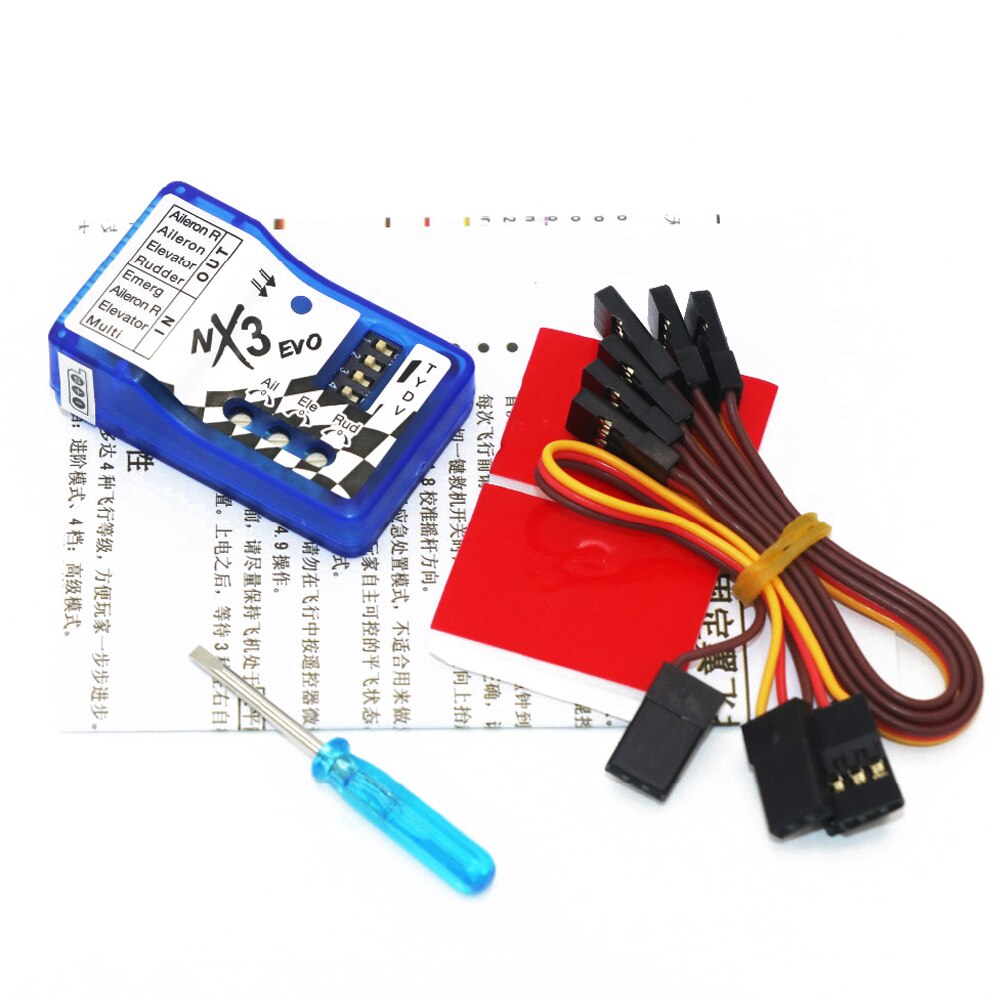

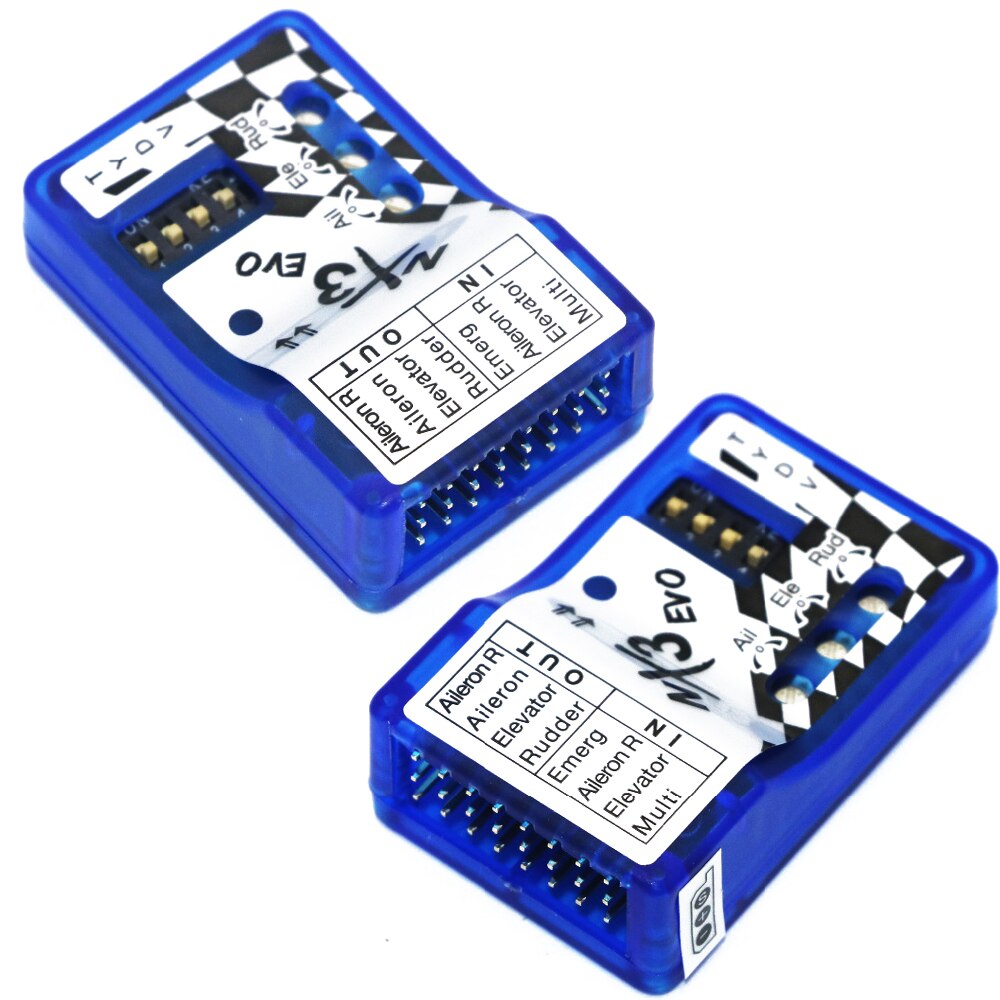

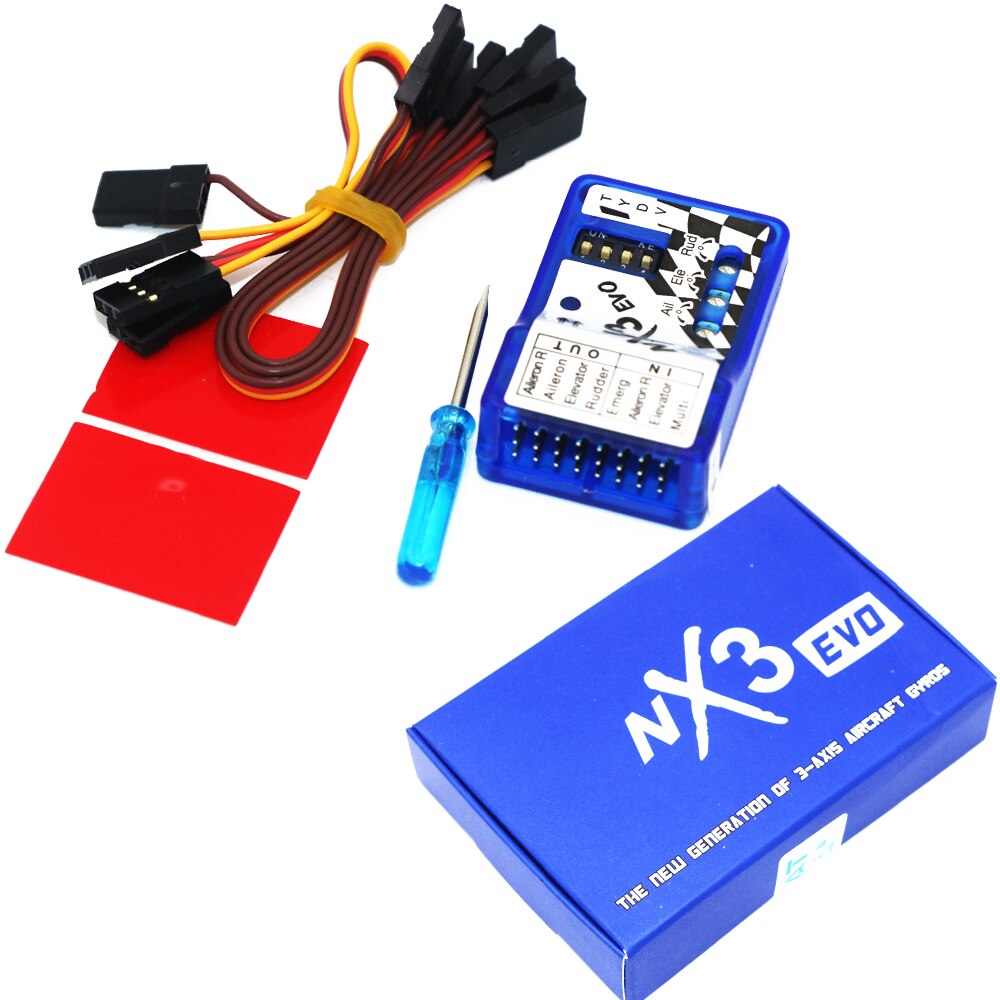

NX3 Evo:

NX3 evo provides four levels of flight modes: 1st, Beginner; 2nd.Practice;   3rd.Promotion; 4th.Expert.
Four wing types: Single (Dual ailerons)/Delta wing/V-tail.
Separate gain adjustment for each axis
Single/Separate Dual ailerons recognition capability.
Remote master gain adjustment during flight.
Including emergency mode, One-key auto safety.
Automatic stick centering
Automatic level offset, self-balance.
3D AVCS flight, Attitude locking.
Provide Y-wiring for aileron.
Wide available airplanes, offer refinning operation feel
Support normal fixed-wing copter, V-tail, triangle-wing
Smart level callibration
Independant potentiometer adjust axis sensitivity
Auto distinguish normal single flybar and dual flybar mode
Auto balance flight
One button save function
Attitude locking mode
Voltage range: DC 4.5 - 6V
Response Frequency: 100Hz
Operating Temperature: 0-50°C
Dimension: 43x28x15mm
Weight: 11g
