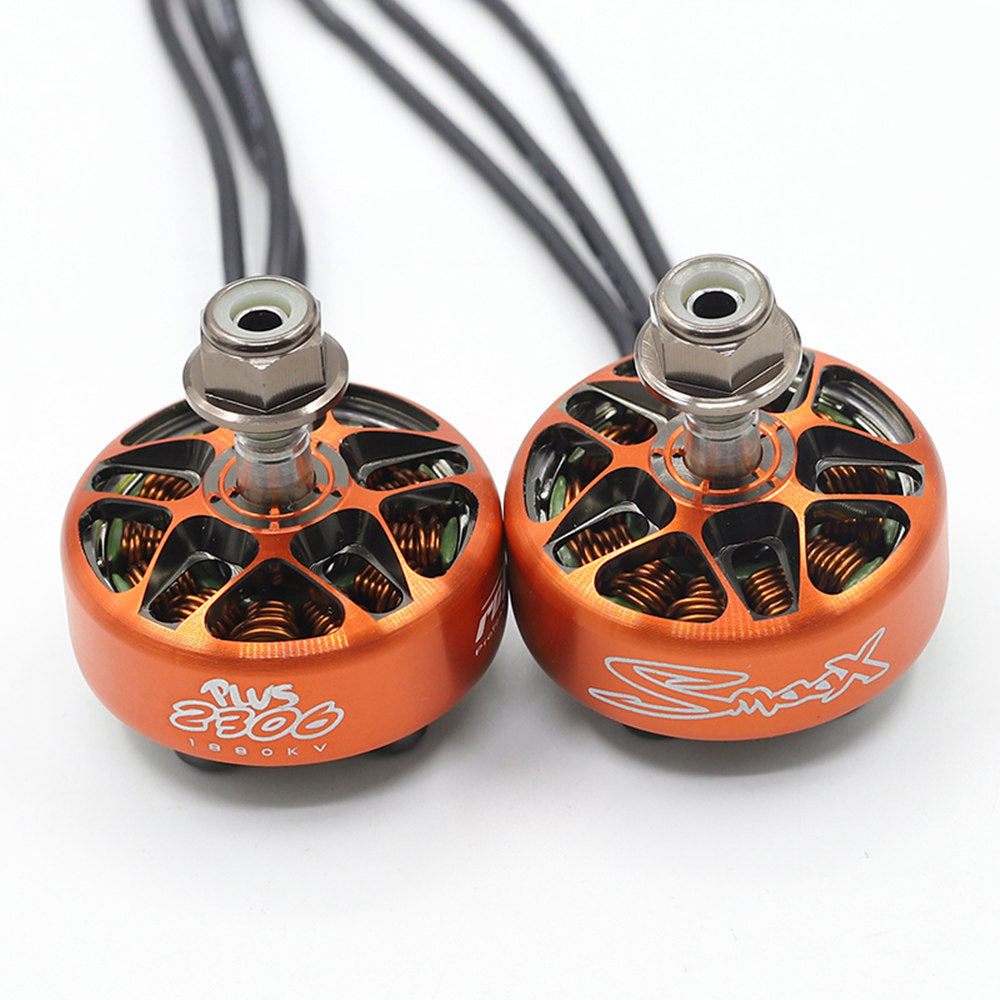

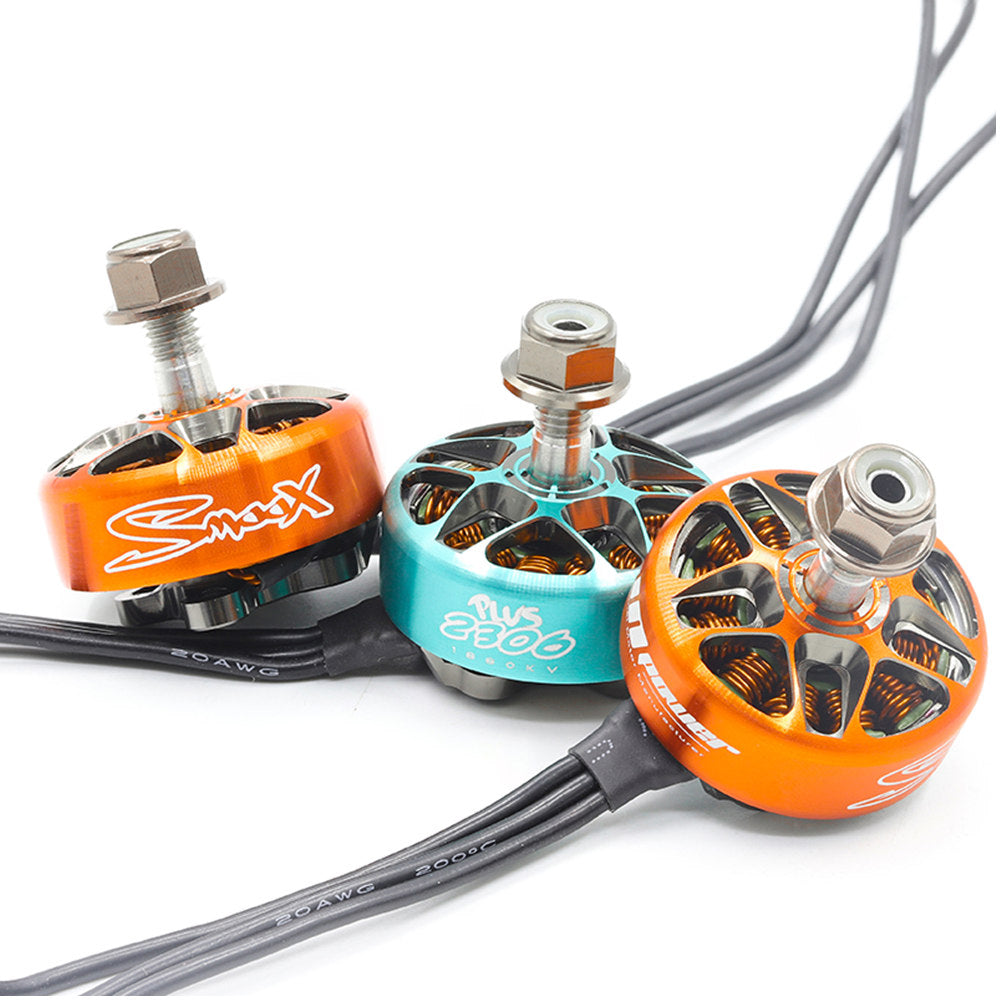

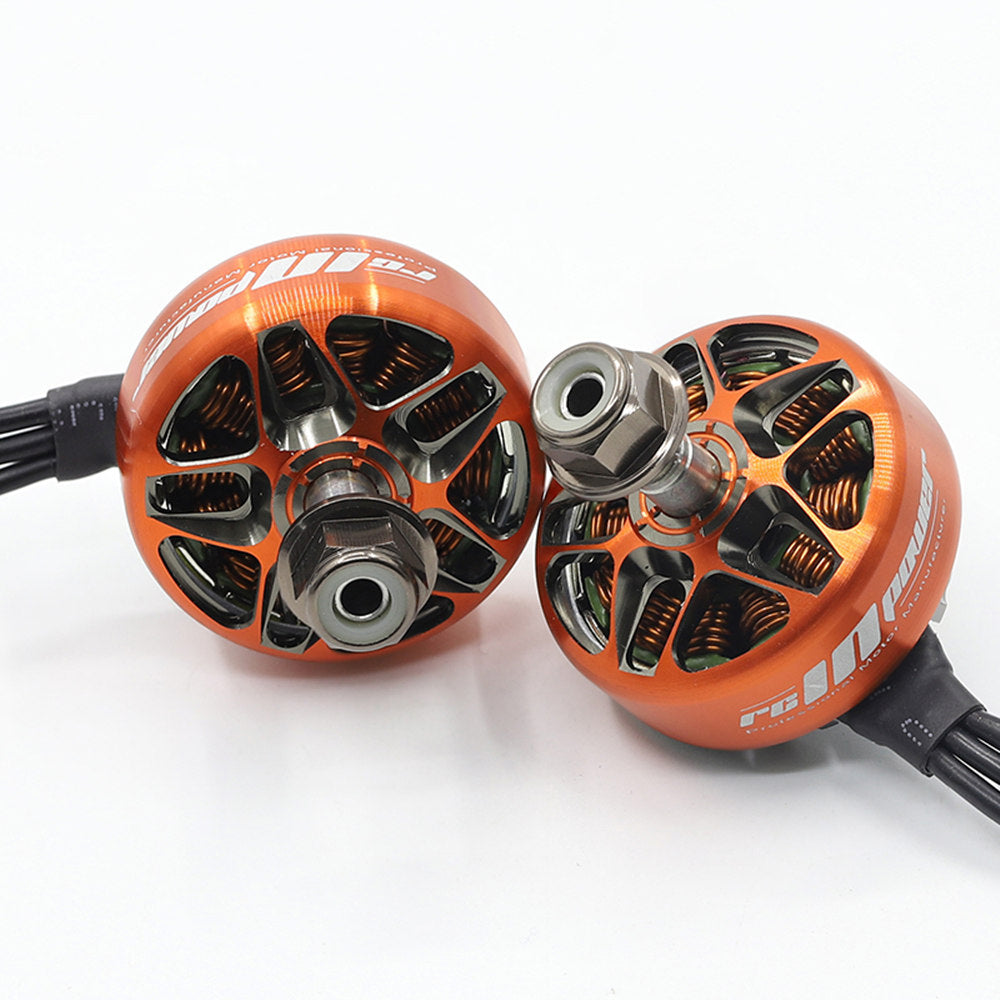

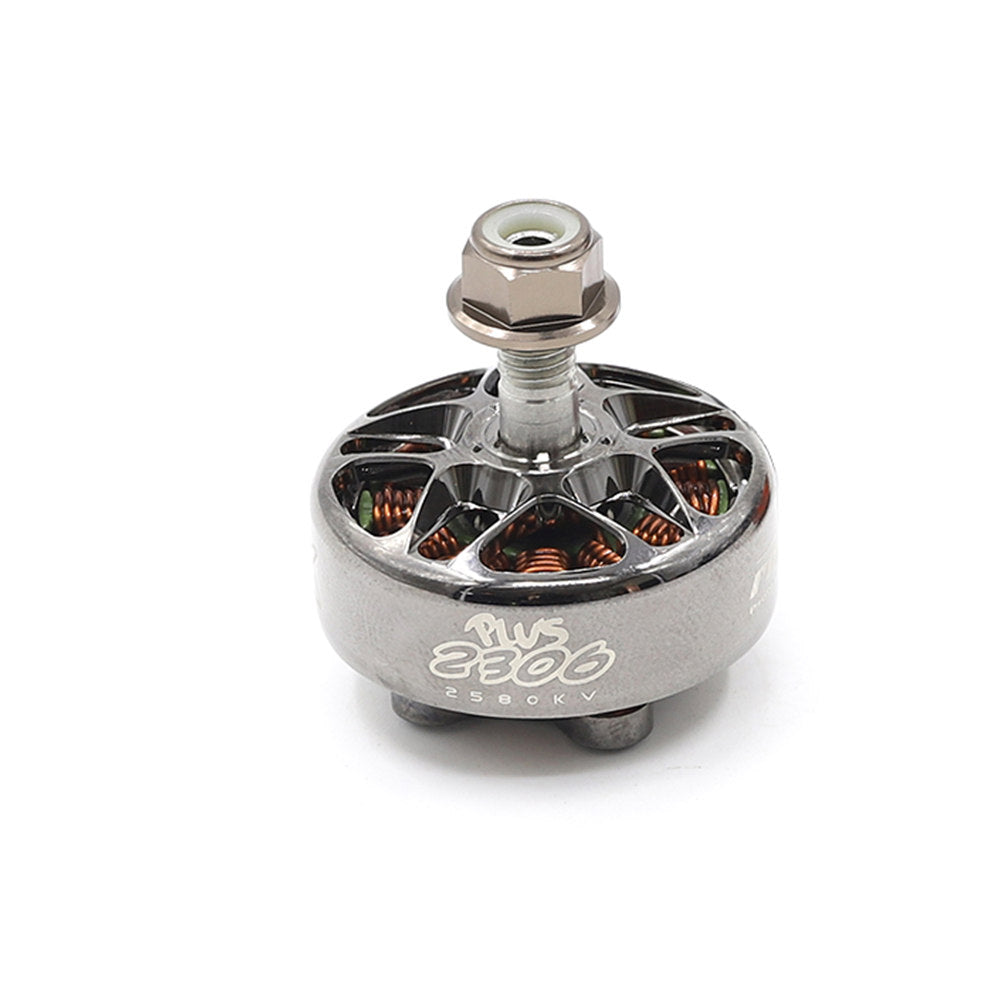

RCINPOWER SmooX 2306 Plus 1880KV 5-6S / 2280KV 2580KV 4-5S Brushless Motor for RC Drone FPV Racing
DroneSpark
Regular price
$37.99
$29.99
Sale
RCINPOWER SmooX 2306 Plus 1880KV 5-6S / 2280KV 2580KV 4-5S Brushless Motor for RC Drone
Specification:
Brand Name: RCINPOWER
Model: SmooX 2306 Plus
Item Name: 2306 1880KV 5-6S / 2280KV 2580KV 4-5S Motor
Specification:
Brand Name: RCINPOWER
Model: SmooX 2306 Plus
Item Name: 2306 1880KV 5-6S / 2280KV 2580KV 4-5S Motor
KV: 1880KV / 2280KV / 2580KV ( Optional)
Color: Blue / Orange/ Black ( Optional)
No. of Cells (Lipo): 5-6S @ 1880KV;
4-5S @ 2280KV & 2580KV
Version: CW Screw Thread
Quantity: One PC
Color: Blue / Orange/ Black ( Optional)
No. of Cells (Lipo): 5-6S @ 1880KV;
4-5S @ 2280KV & 2580KV
Version: CW Screw Thread
Quantity: One PC
Configuration: 12N14P
Stator Diameter: 23mm
Stator Length: 6.6mm
Shaft Diameter: 4mm ( Hollow)
Idle Current(10V): 1.35A @ 1880KV ; 1.95A @ 2280KV ; 2.3A@2580KV
Max. Con. Power (5S): 900W @ 1880KV; 850W @ 2280KV ; 1100W@2580KV
Internal Resistance: 49mΩ@ 1880KV ; 40mΩ @ 2280KV ; 30mΩ @2580KV
Max. Current(5s): 36A @ 1880KV ; 40A @2280KV ; 55A @ 2580KV
Cable Length: 15cm
Motor Dimension(Dia*Len):29x30.5mm
Weight: 33g ( 3cm wire)
Package Included:
1x SmooX 2306 Plus Motor
1x Motor Nut
Cable Length: 15cm
Motor Dimension(Dia*Len):29x30.5mm
Weight: 33g ( 3cm wire)
Package Included:
1x SmooX 2306 Plus Motor
1x Motor Nut
