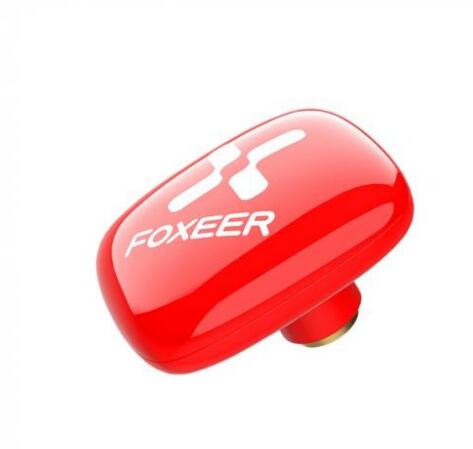

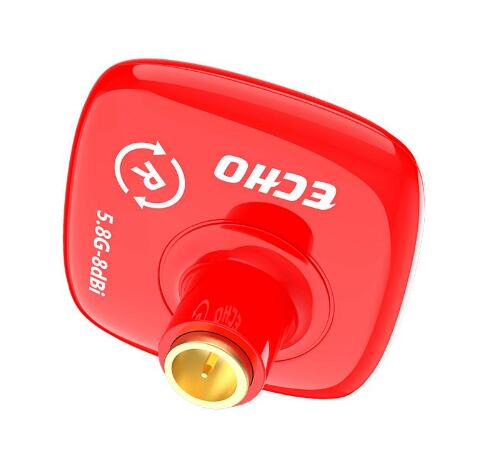

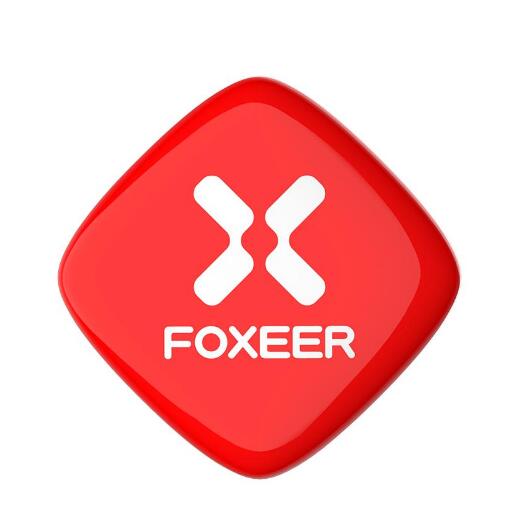

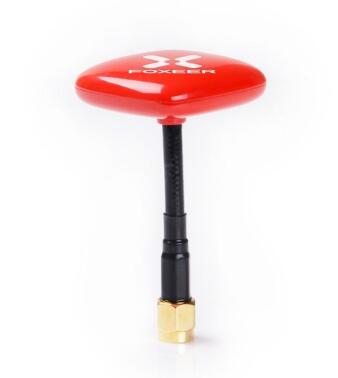

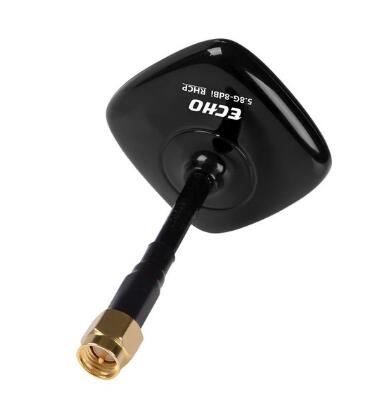

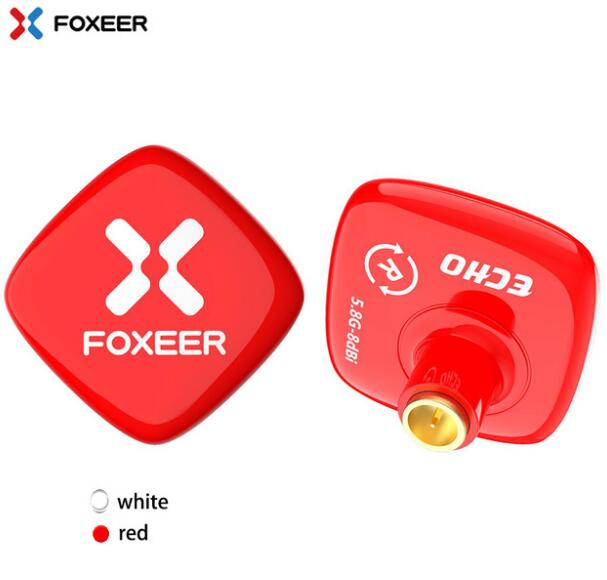

Ready in stock 21.7mm Foxeer Echo Patch Antenna 8DBi 5.8GHz RHCP LHCP SMA Mini FPV Antenna for Racing Drone

Ready in stock 21.7mm Foxeer Echo Patch Antenna 8DBi 5.8GHz RHCP LHCP SMA Mini FPV Antenna for Racing Drone

order 1pcs 21.7mm Foxeer Echo Patch Antenna 8DBi 5.8GHz RHCP LHCP SMA Mini FPV Antenna for Racing Drone

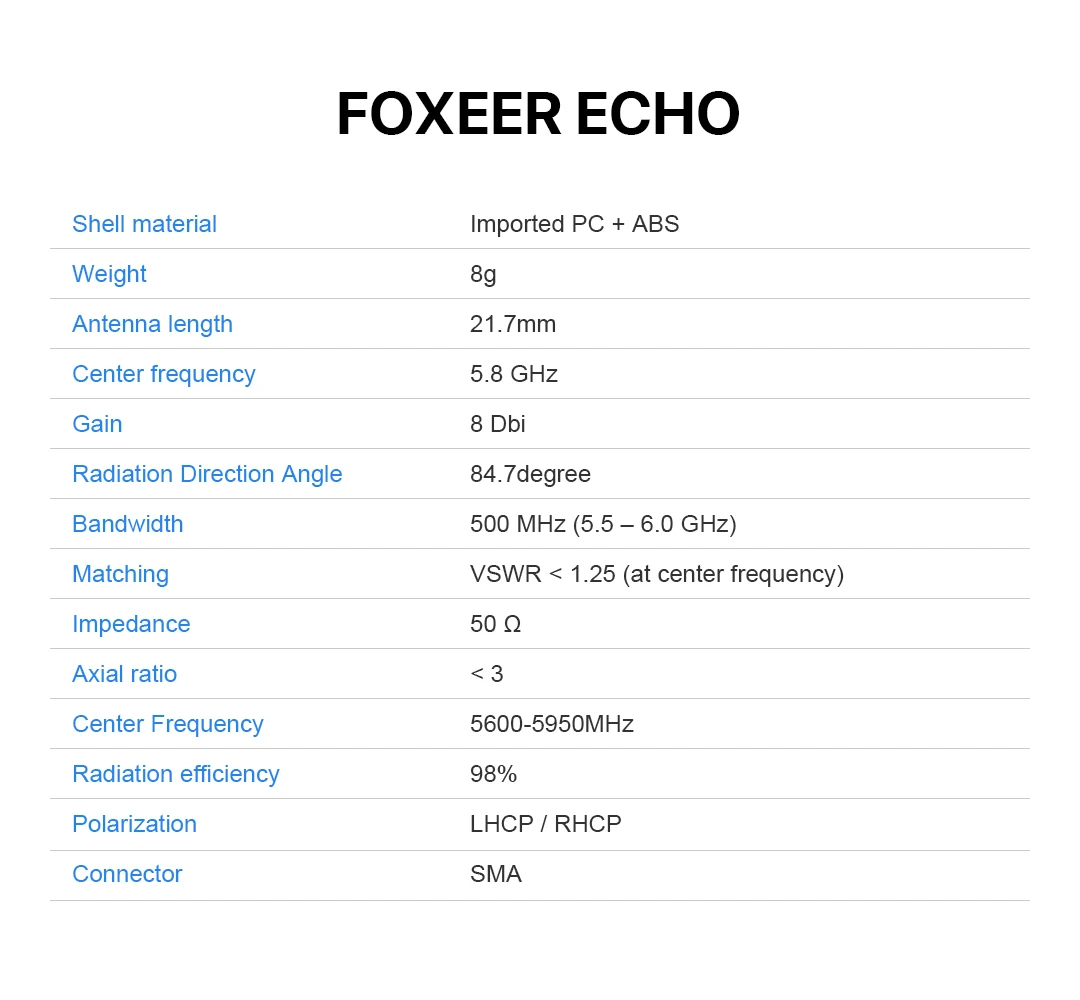

Description:
Brand name: Foxeer
Item number: Echo Patch

Shell material: Imported PC + ABS

Weight: 8g

Antenna length: 21.7mm

Center frequency: 5.8 GHz

Gain: 8 Dbi

Bandwidth: 500 MHz (5.5-6.0 GHz)

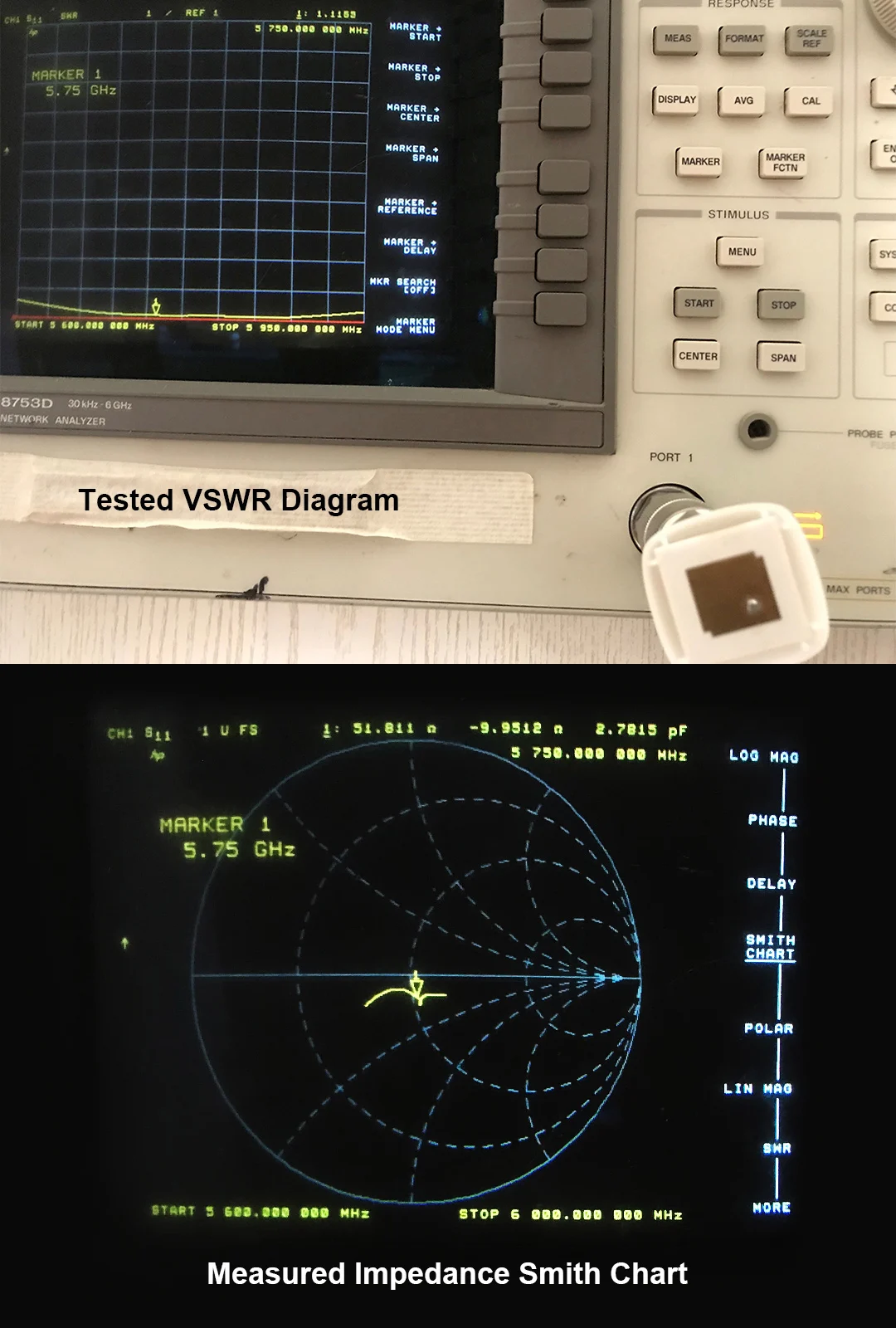

Matching: VSWR < 1.25 (at center frequency)

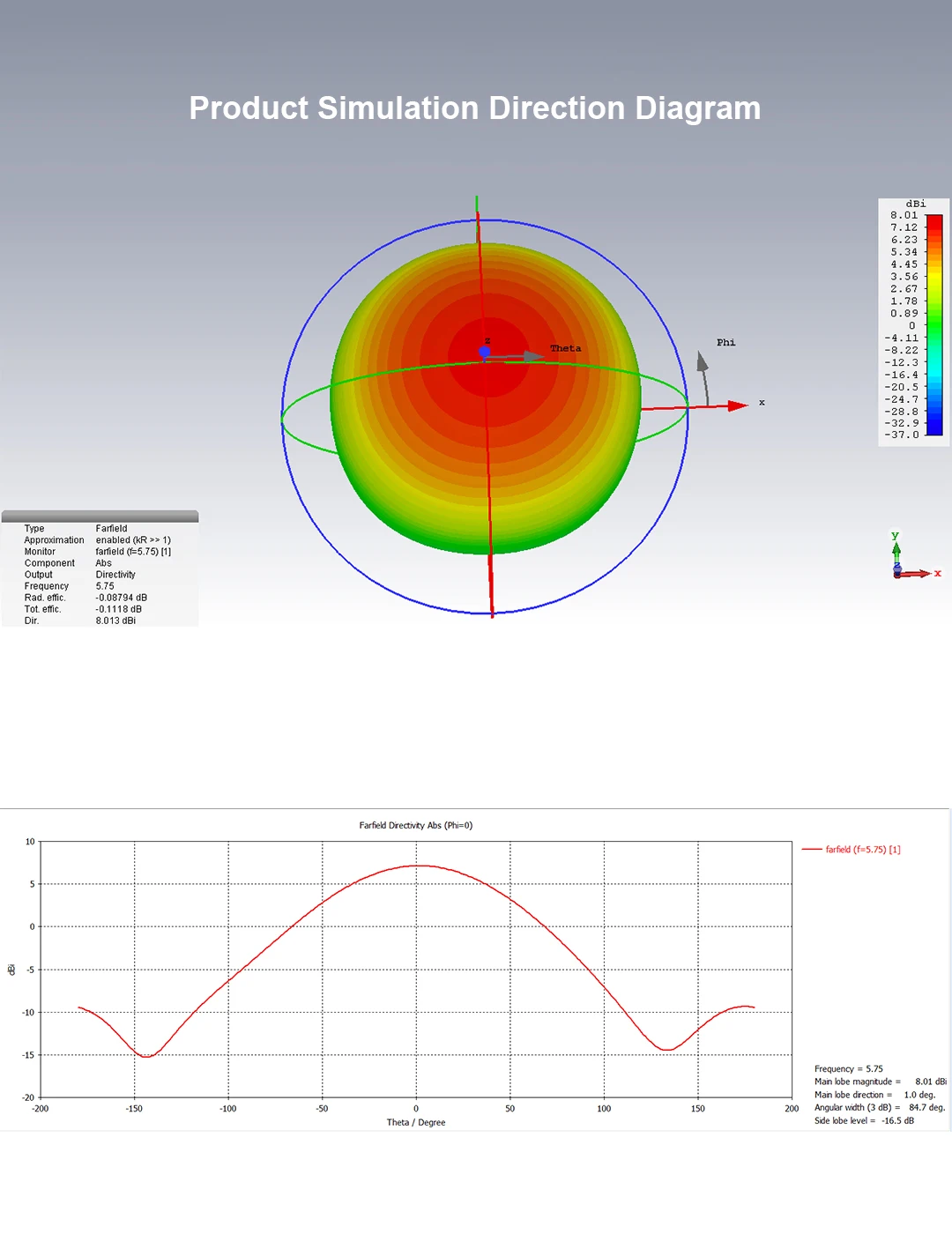

Radiation Direction Angle: 84.7 degree

Axial ratio: <3

Center Frequency: 5600~5950MHz

Radiation efficiency: 98%

Polarization: LHCP/ RHCP (Optional)

Connector: SMA

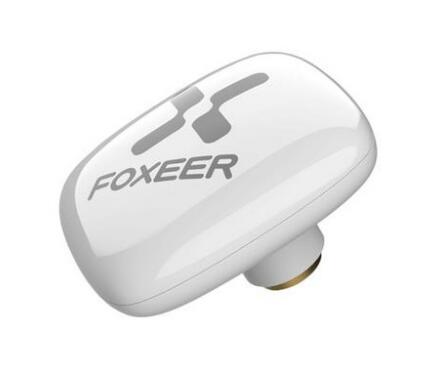

Color: White, Red (Optional)


Features:

* Body adopt imported PC+ABS material, can withstand high strength impact.

* Radiation direction angle 84.7 degree

* RHCP/ LHCP Polarization available.

Package Included:
1x Foxeer Echo Patch Antenna
