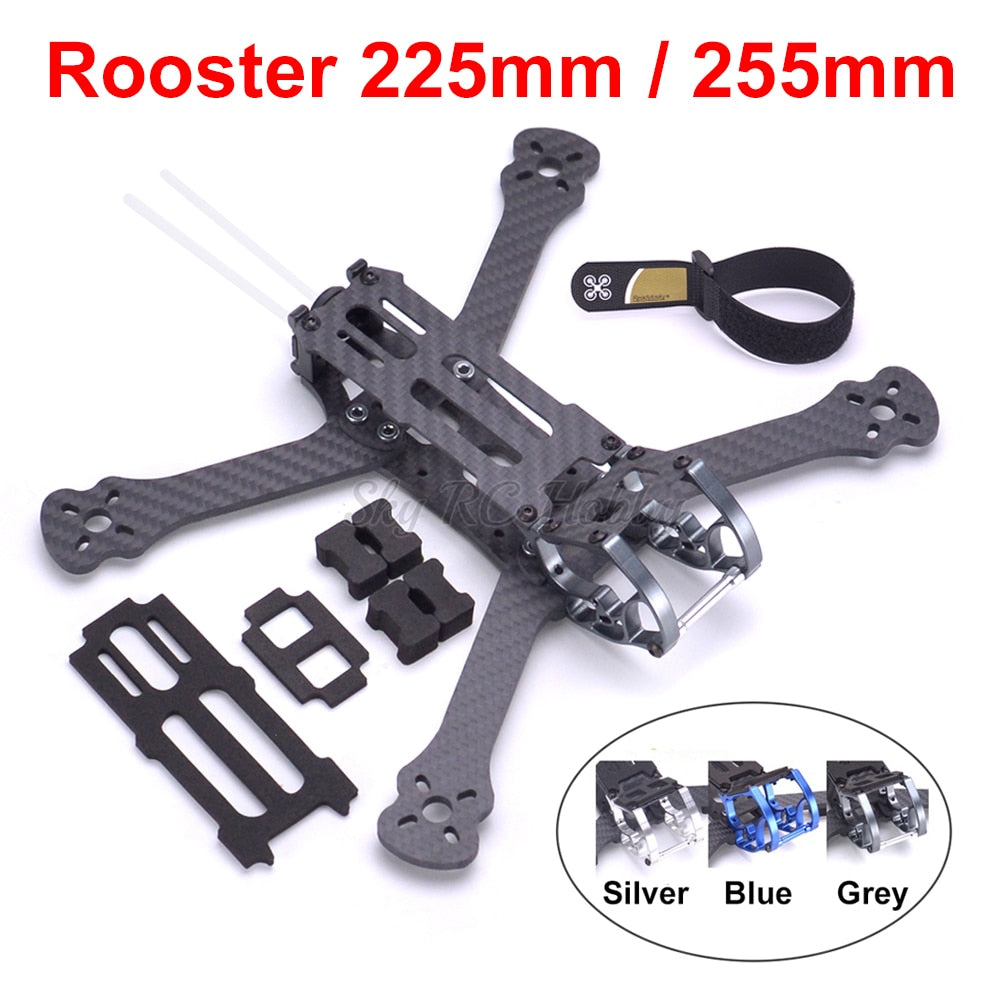

Rooster 5 inch 230 225mm / 6 inch 255mm FPV Racing Drone Quadcopter Frame FPV Freestyle Frame For Chameleon QAV-R
Drone Spark
Regular price
$353.99
$825.99
Rooster 5inch 225mm Description:
Description:
Frame Weight approx 117-118 grams(5inch)
Motor to Motor (wheelbase) :225mm (5inch)
Frame Shape: Compressed X
Main Plate Thickness: 4mm
Arm Thickness: 4mm
Hardware:
Stainless Steel Bolts

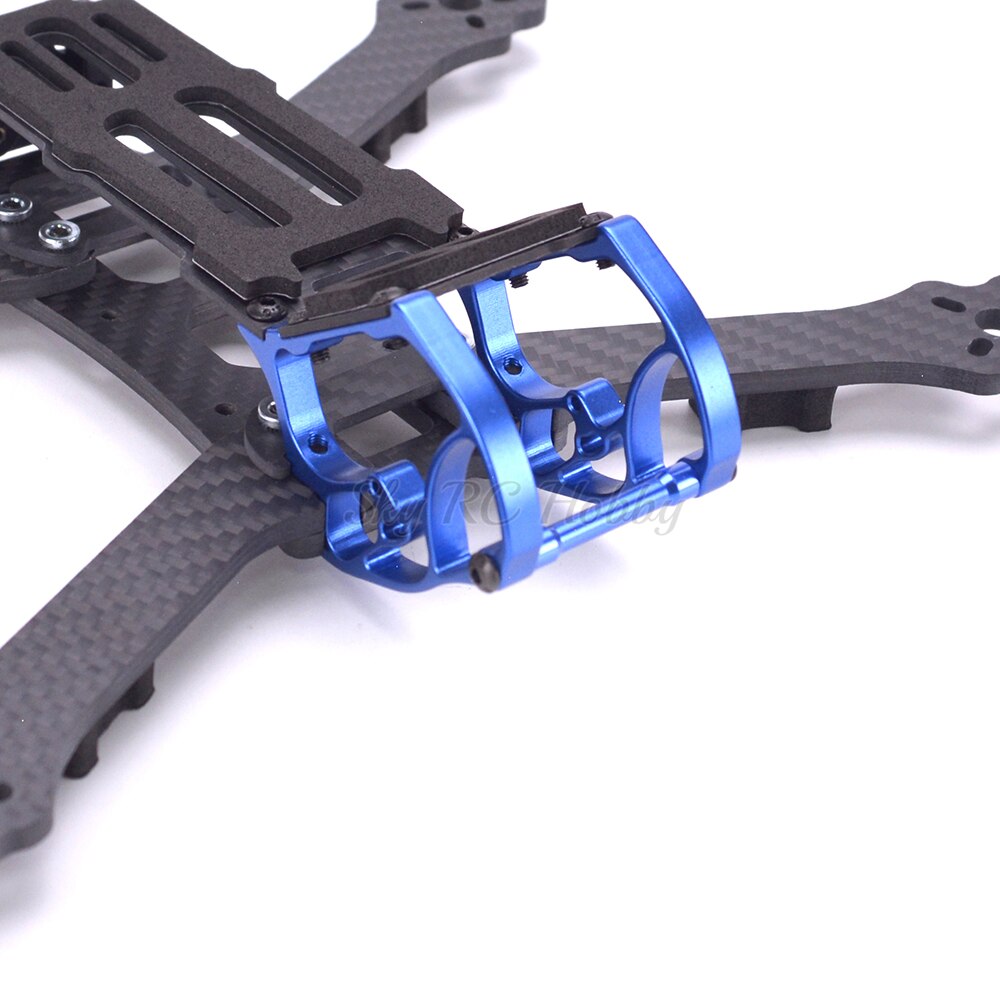

Aluminum Cage(Grey/Silver/Blue as your choice)
Aluminum Standoffs
Center Stack Mount: 30.5mm
FPV Camera Mount: 28.5mm (Swift v2, Arrow v3, etc)
Recommend Parts:( not included)
Flight Controller: F3 /Naze32/ CC3D
Motor: 2204/2205/2306
ESC: 20A-30A
Propeller: 5 inch
Battery: 3S 1300mAh ~ 4S 1300mAh
Rooster 6inch 255mm Description:
Frame Weight approx 129grams
Motor to Motor (wheelbase) :255mm （6inch）
Frame Shape: Compressed X
Main Plate Thickness: 4mm
Arm Thickness: 4mm
Hardware:
Stainless Steel Bolts
Aluminum Cage(Grey/Silver/Blue as your choice)
Aluminum Standoffs
Center Stack Mount: 30.5mm
FPV Camera Mount: 28.5mm (Swift v2, Arrow v3, etc)
Recommend Parts:( not included）
Brushless motor:1806~2206 (KV2000~2300)
Brushless esc:30-35A
Flight controller: CC3D/ NAZA32/ F3
Battery cells:3S 1500~2200mah
Propellers:6045,6030 (6 inch)
Image transmission:5.8G 200~600wm 32CH
Antenna:5.8G
Package Included

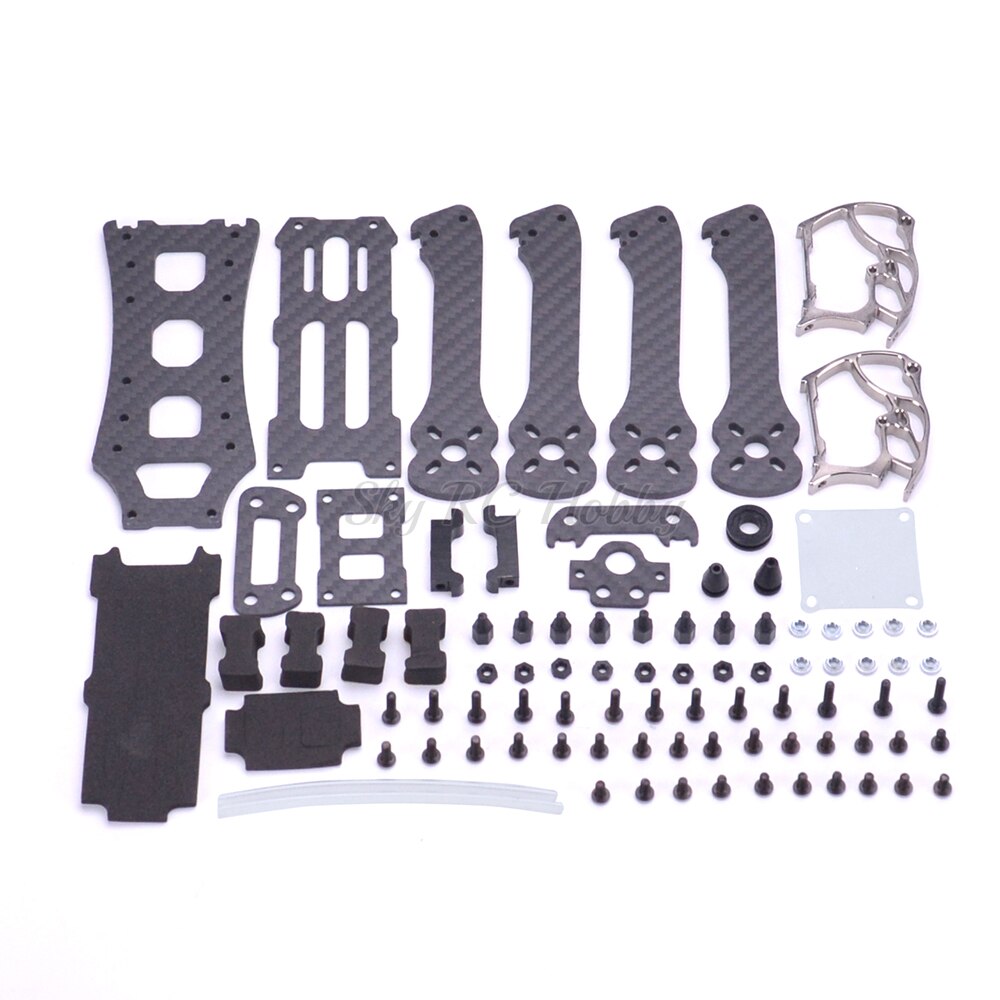

1 x Rooster 5inch 225mm / 6inch 255mm FPV Frame kit
1 x Battery belt
