Drone Spark

Regular price $107.99 $250.99 Sale

2

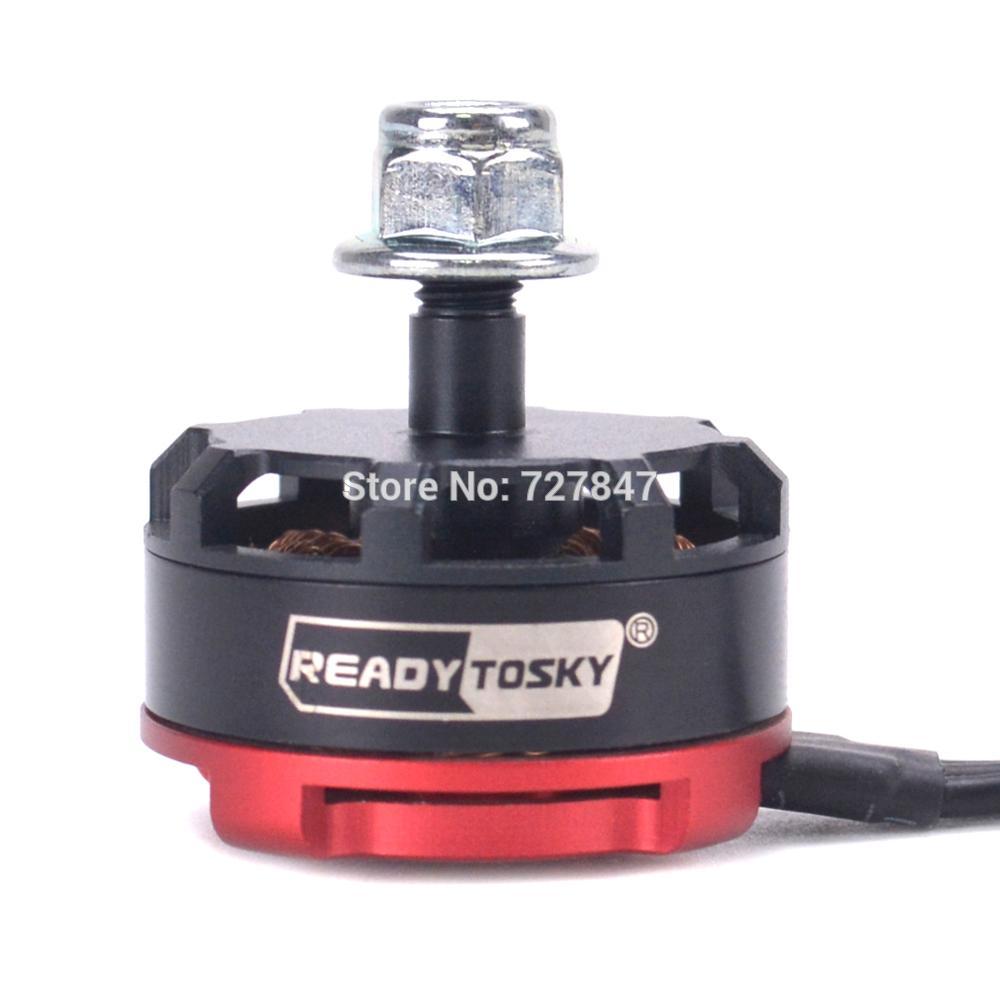

Model: RS2205-2300KV Motor
Framework: 12N14P
No. of Cells: 3 - 4S
Color: Red
Length: 31.7mm
Shaft: M5
KV: 2300
Max Thrust: 1024g
Diameter: 27.9mm
Propeller Suggested: HQ 5045 BN
Weight: 30g

Features:
1. Race Spec Performances
2. High Strength N52 Neodyum Magnets
3. Active Cooling Fins Greatly Reduce Motor Temeratures
4. Low CG, Light Weight Design
5. Japanese Bearing For Performances
6. Enchance Anti Off U Ring For Safety & Stablility

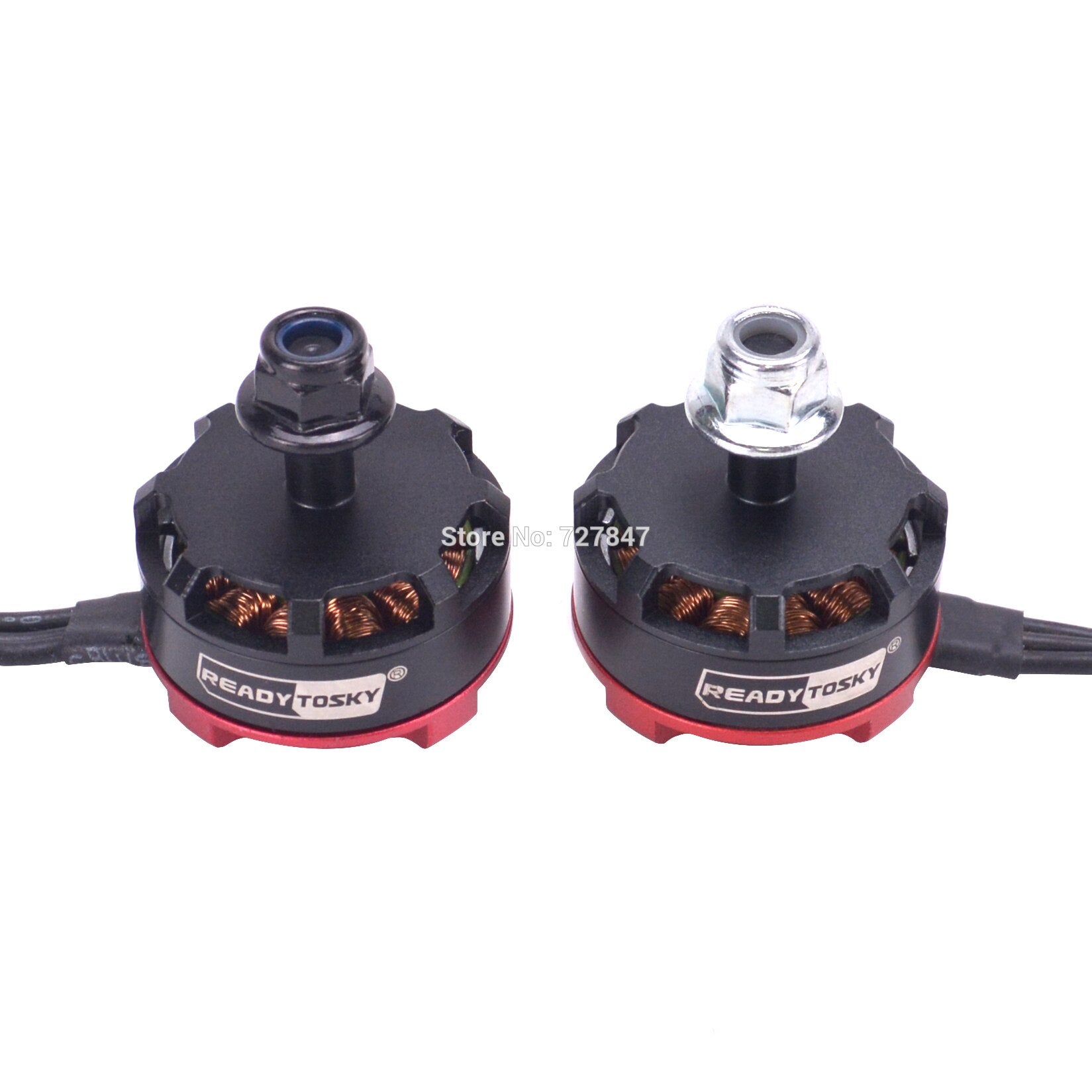

7. Dual Lock CW / CCW Locknuts

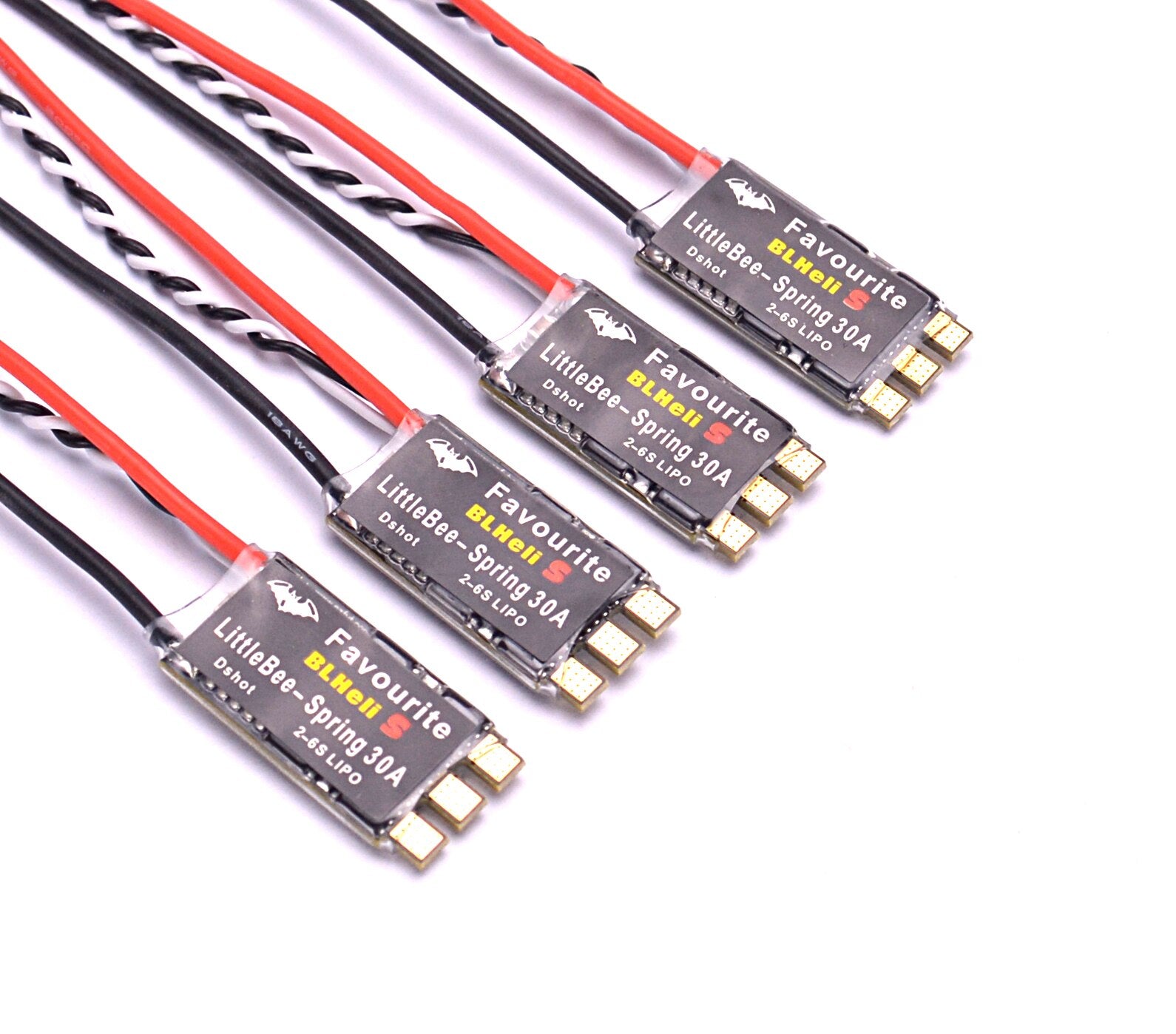

 FVT Littlebee 30A BLHeli-s SPRING ESC


1:input Voltage:2-6S Lipo
2: NO BEC
3:Continue Current:30A,Burst Current:35A up to 10S
4:Size: 35*17mm.
5:Weight:9g(include Power and signal wire)
6:Support Damped mode,Oneshot125,Oneshot42 and Multshot and DSHOT
7:Main IC:SILABS EFM8BB21F16 ,MCU run 48MHz
8:MOS:Both low and high side fets are Nfets
9:Switching speed is very fast,it has dedicated driver chip
10:BLHeli S Bootloader & Firmware

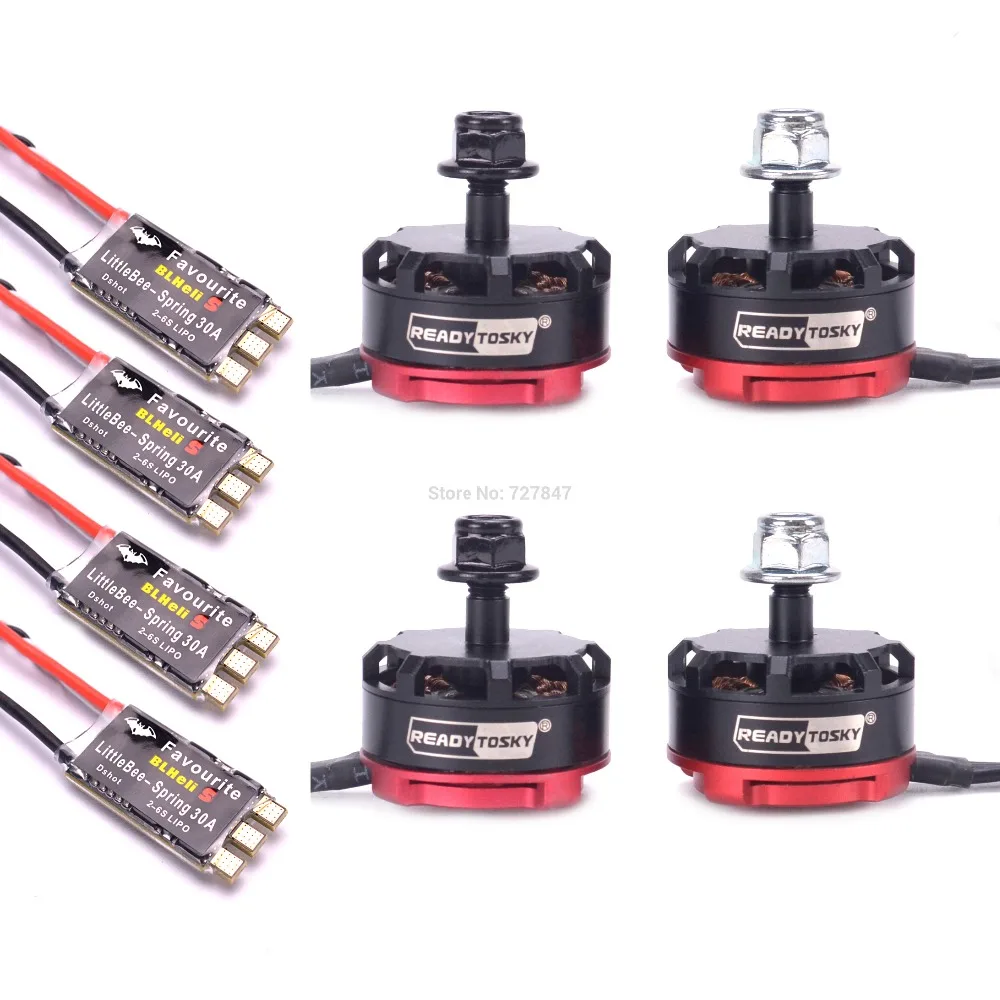

cg1(2)
