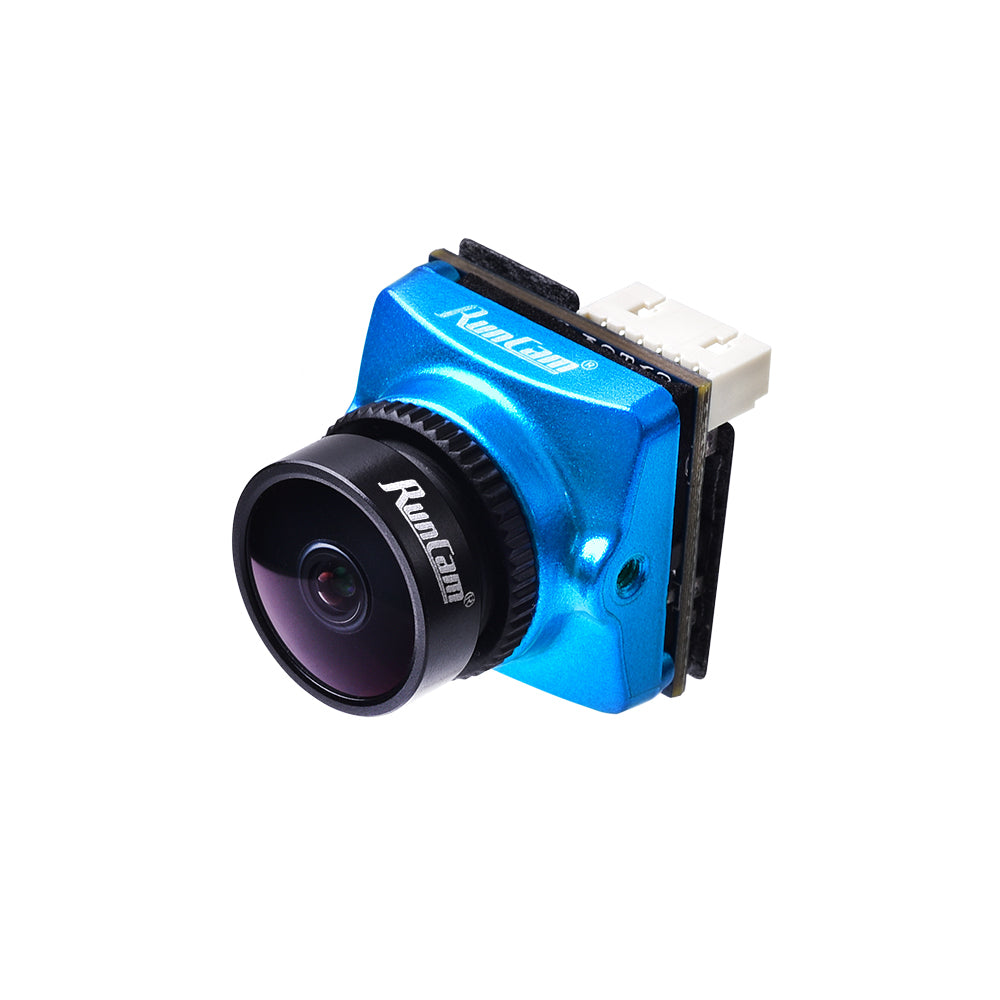

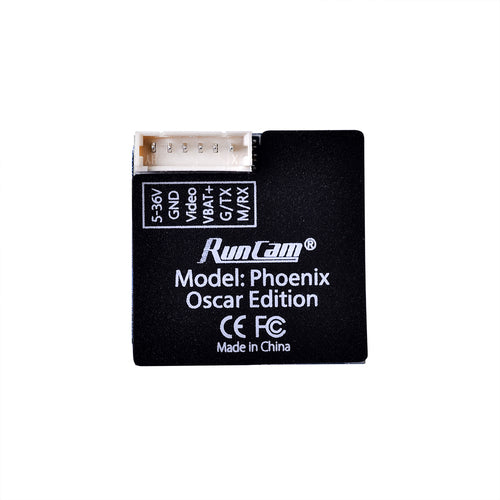

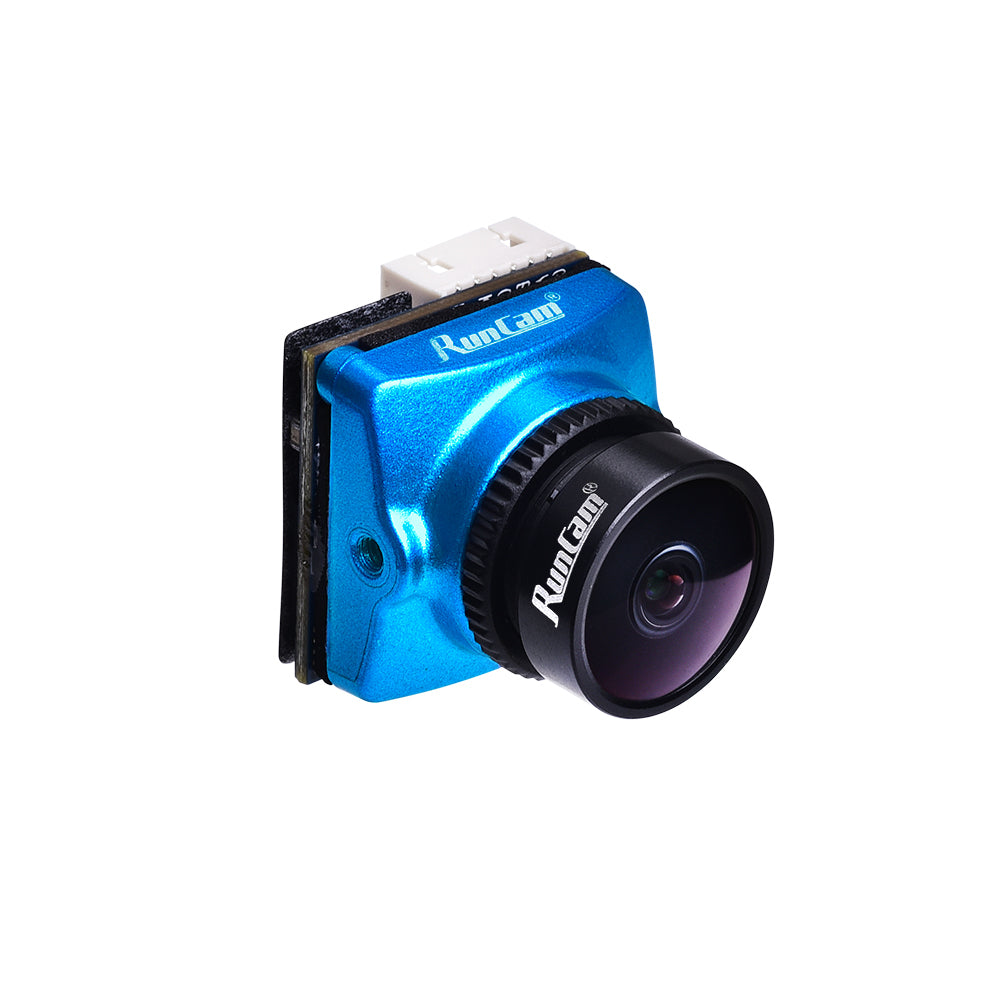

RunCam Phoenix Oscar Edition 1000tvl 1/3 Super 120dB WDR Mini FPV Camera Support OSD FC Control for RC Racing Drone
DroneSpark
Regular price
$58.99
$46.99
Sale
RunCam Phoenix Oscar Edition 1000tvl 1/3 Super 120dB WDR FPV Camera Support OSD FC Control for RC Racing Drone
Parameters
| Model | RunCam Phoenix Oscar Edition | ||
| Image Sensor | 1/3" 120dB WDR Sensor | ||
| Horizontal Resolution | 1000TVL | ||
| Lens | 2.5mm (M12) FOV140° (4:3) | ||
| Signal System | 4:3 / 16:9 switchable | ||
| Mirror/Flip | Available | ||
| Signal System | PAL / NTSC Switchable | ||
| Integrated OSD | Yes | ||
| S/N Ratio | >50dB (AGC OFF) | ||
| Electronic Shutter Speed | Auto | ||
| Auto Gain Control (AGC) | Auto | ||
| Min. Illumination | 0.01Lux@1.2F | ||
| WDR | D-WDR | ||
| Day/Night | Color/Auto/B&W | ||
| Menu Control | Cable Control / Remote Control Switchable | ||
| Power | DC 5-36V | ||
| Current |
|
||
| Housing Material | ABS | ||
| Net Weight | 9g | ||
| Dimensions | 19mm*19mm*20mm |
User Manual : Click Here
