RW.RC Brushless ESC 30A/50A/70a/125a /200a with reversing For RC car RC boat
ESC has no brakes, please take note
Two-way non-inductive brushless ESC instructions (30A/50A/70A/125A/200A)

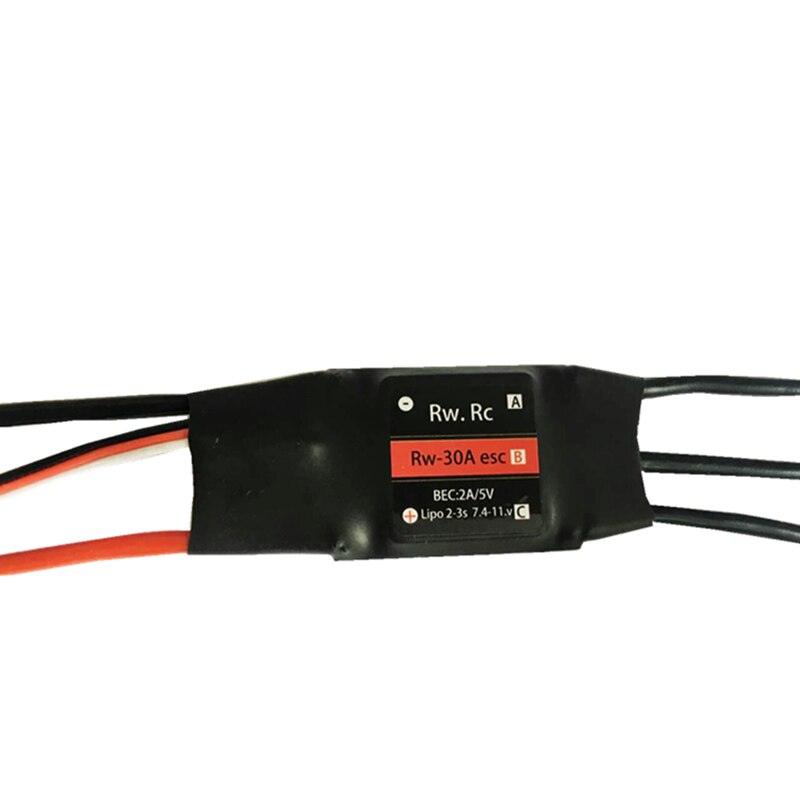

Bidirectional 30A ESC / RW
1: Voltage range 7.4V - 11.1V (4---12NIMH 2-3LIPO)
2: Internal resistance 0.003 MR
3: Featured high performance FET
4: Single-section LIPO protection voltage 3.0V
5: continuous working current 30A instantaneous 50A (10 seconds)
6: PWM frequency 8K/16K/32K
7: Size: 40 X 24 X 7 (mm)
8: Weight: 12 grams (excluding line) 22 grams (including line)
9: Supports most models with brushless sensorless motors, 14-pole motor speed can reach 30,000 RPM.
10: BEC 5V 2A Instant 3A Supports High Torque Hollow Cup Digital Servo

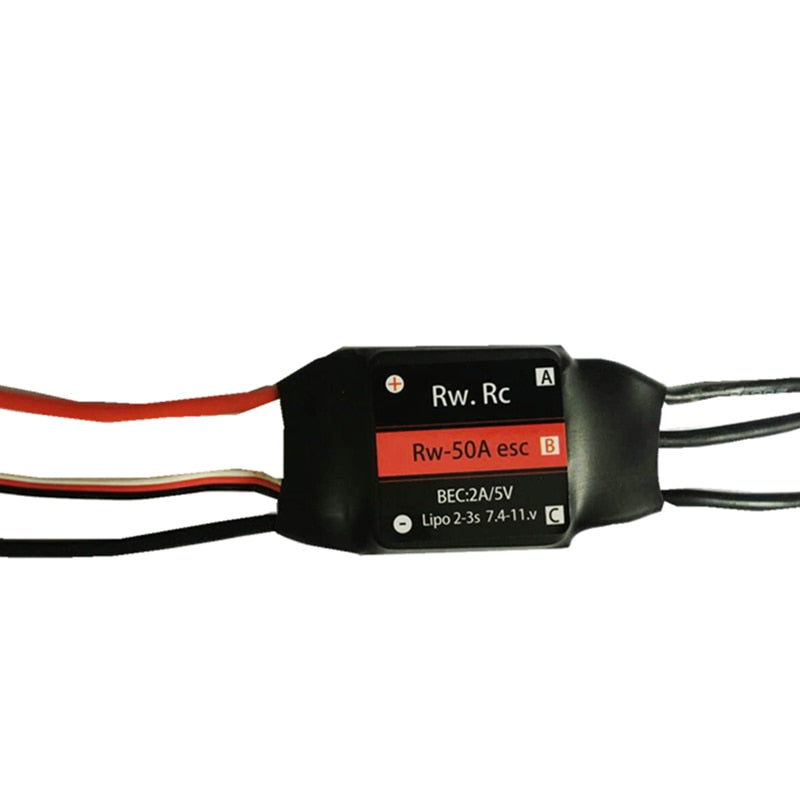

Bidirectional 50A ESC / RW
1:7.4V—11.1V (4---12NIMH 2-3LIPO)
2: Size: 46x 35 x 8 mm
3: Weight: 60 grams
4:: Featured high performance FET
5: internal resistance 0.002MR
6: Single section LIPO protection voltage 3.0V
7: Continuous working current 50A instantaneous 430A (10 seconds)
8: PWM frequency 8K/16K/32K
9: Supports most models with brushless sensorless motors, 14-pole motor speed can reach 30,000 RPM
10: BEC 5V 2A Instant 3A Supports High Torque Hollow Cup Digital Servo

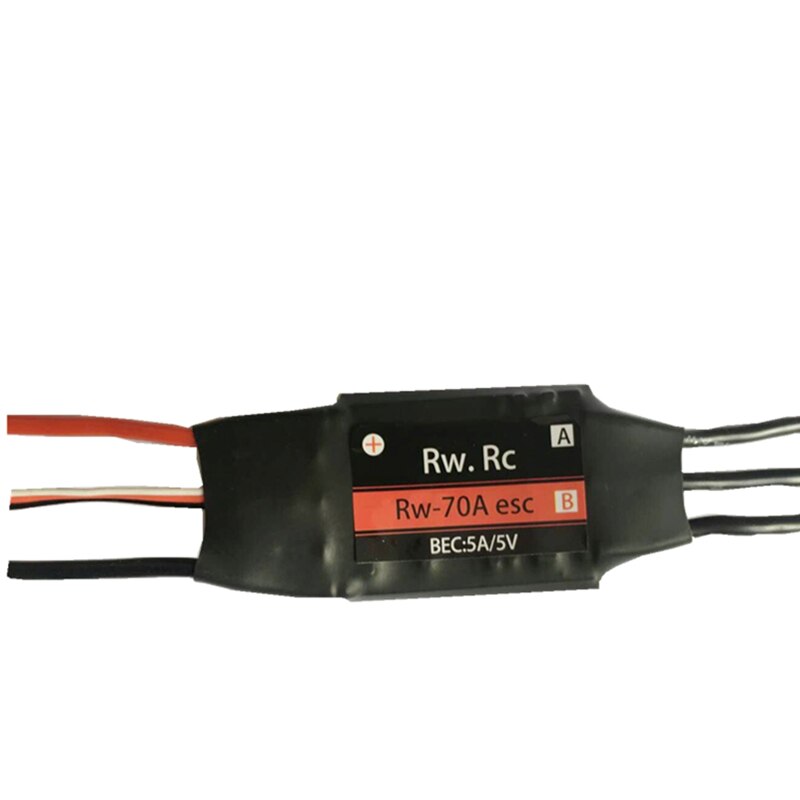

Bidirectional 70A ESC / RW
1: Voltage range 7.4V - 14.8V
2: Size: 68 x 35 x <?xml:namespace prefix = "st1" />8 mm
3: Weight: 60 grams
4: Voltage range: voltage range 4.8V—15V (4---12NIMH 2-3LIPO)
5: internal resistance 0.002MR
6: Single section LIPO protection voltage 3.0V
7: Continuous working current 70A instantaneous 430A (10 seconds)
8: PWM frequency 8K/16K/32K
9: Supports most models with brushless sensorless motors, 14-pole motor speed can reach 30,000 RPM.
10: BEC 5V/5A Instant 3A Supports High Torque Hollow Cup Digital Servo

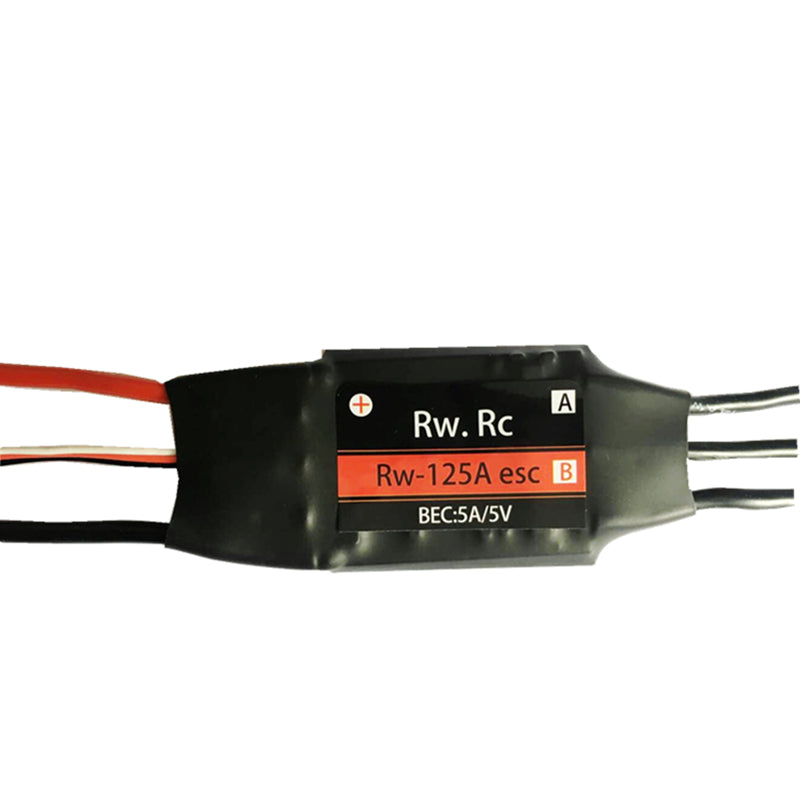

Bidirectional 125A ESC / RW
1: Size: 68 x 35 x 12 mm
2: Weight: 90 grams
3: Voltage range: voltage range 7.4V - 14.8V
3: Internal resistance 0.001M
4: Single-section LIPO protection voltage 3.0V
5: continuous working current 100A instantaneous 520A (10 seconds)
6: PWM frequency 8K/16K/32K
7: Supports most models with brushless sensorless motors, 14-pole motor speed can reach 30,000 RPM.
10: BEC 5V/5A Instant 3A Supports High Torque Hollow Cup Digital Servo

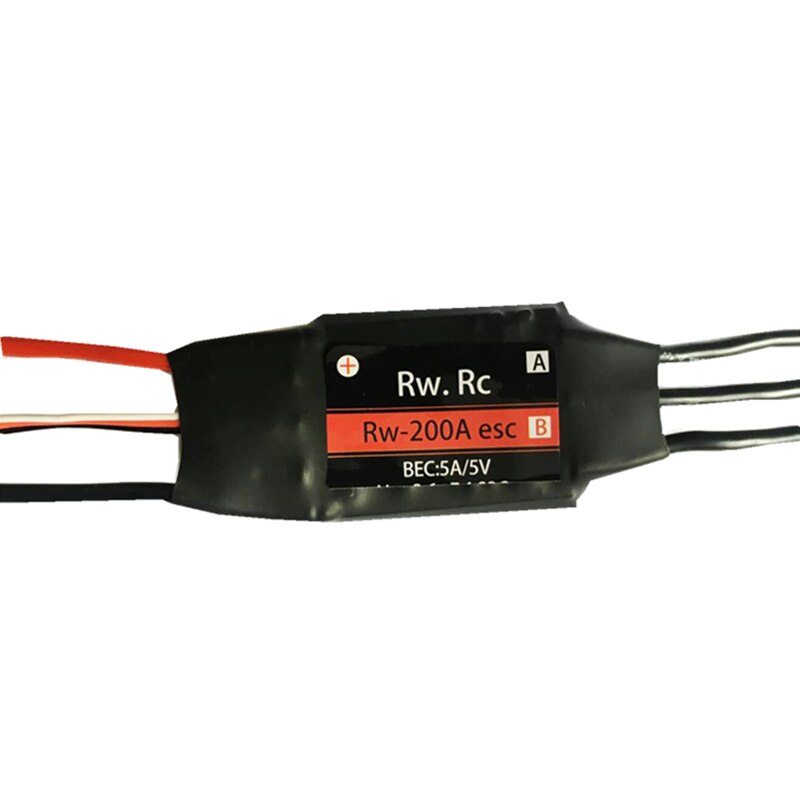

Bidirectional 200A ESC / RW
1: Size: 68 x 40 x 12 mm
2: Weight: 90 grams
3: Voltage range: voltage range 7.4V - 14.8V
3: internal resistance 0.001MR
4: Single-section LIPO protection voltage 3.0V
5: continuous working current 200A instantaneous 756A (10 seconds)
6: PWM frequency 8K/16K/32K
7: Support most models with brushless sensorless motor, 14-pole motor speed can reach 30,000 RPM
Additional features:
- Support reversing function
- Support half-slope start
- Throttle position error prohibits starting
- Automatically learn the throttle stroke
- Error signal off power
- The receiver has no signal alarm and turns off the output.
- Multi-function adjustment motor characteristics
Precautions for use:
1. This device is designed for battery energy. Other types of power supply cannot be used. If other power sources are used, it may damage the device or power supply.
2. This device is a remote control model product and cannot be used on the manned system to prevent it.
3, This equipment is a high-power electronic product, which will generate a lot of heat during work. Please pay attention to maintain forced air cooling conditions.
4. This device has a power supply voltage detection system inside. When connecting to the battery, please use the shortest connection cable and ensure the battery with sufficient current. In order to avoid the wrong action of the voltage system, affecting the use.
5. This device is not allowed to drive 2 or more motors at the same time to avoid malfunction.
