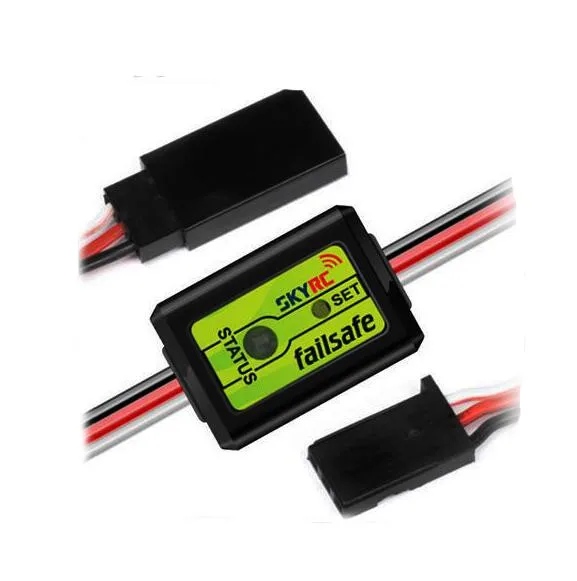

SKYRC remote control aircraft / remote control car Failsafe protector when out of control
Drone Spark
Regular price
$188.99
$440.99
Failsafe action:
When the transmitter is subject to interference or signal failure, the receiver can not give servo normal signal, sends a signal to the steering rudder angle by a runaway protection, making the servo to rotate to predefined rudder angle position. This predetermined angular position of the rudder is usually set in the engine is idling and the brake locking position. In other words: Failsafe throttle signal must be connected between the output channels and the throttle, brake servo receiver.
When set, the first correctly connect Failsafe and steering gear, and then the right way to turn the power transmitter and receiver.
SKYRC Failsafe usage: one end of the connector to the receiver on the other end of the interface connected to the rudder machine when open remote control, rear through the power transmitter issued a directive, then the Failsafe will automatically start working.
Setting method:
1. The Failsafe access to protected channel, and then turn on the transmitter power, receiver power on, then the red light on the long light protection
2. The protected channel transmitter lever is in position you need, then the motor will rotate to the steering gear or when you need to or out of control servo motor that rotated position
3. Press the red button on the protection of the red light goes out
4. Loosen the transmitter joystick button release protector
5. set up
6. Set the test: Turn off the transmitter, steering or the motor will go to the location you just set
Weight (with cable): 7 g
Size: 21 × 14.8X7.3 mm
Suitable voltage: (4.5-6V)
