Sunnysky E-R2204 2204 2300KV 3-4S Brushless Motor for RC Drone FPV Racing CW Screw Thread

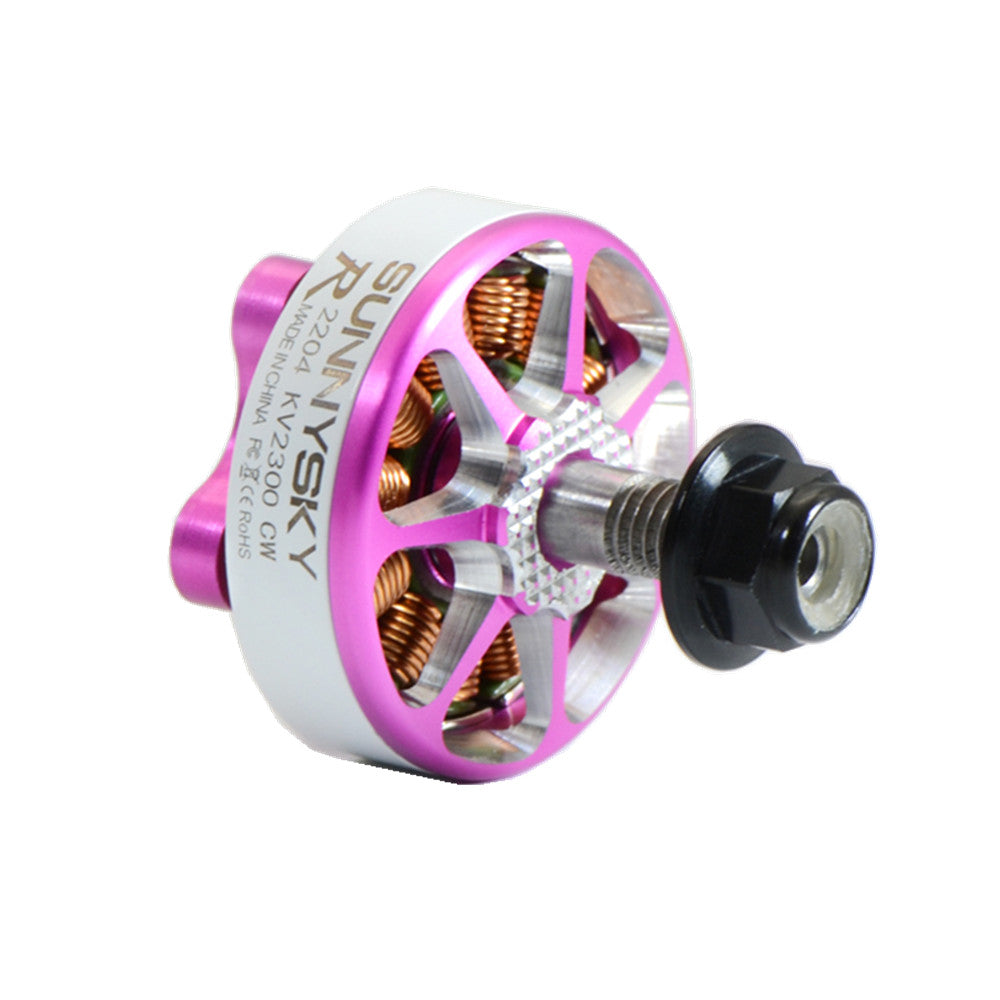

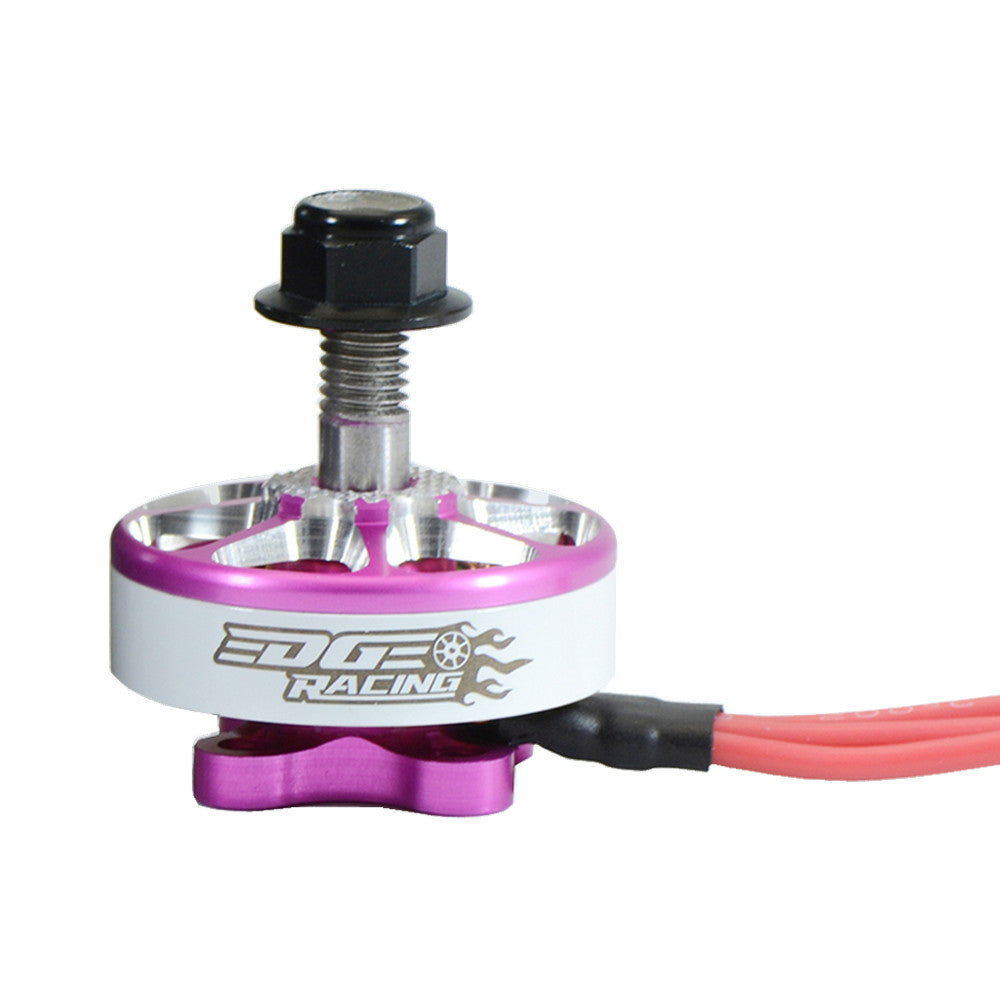

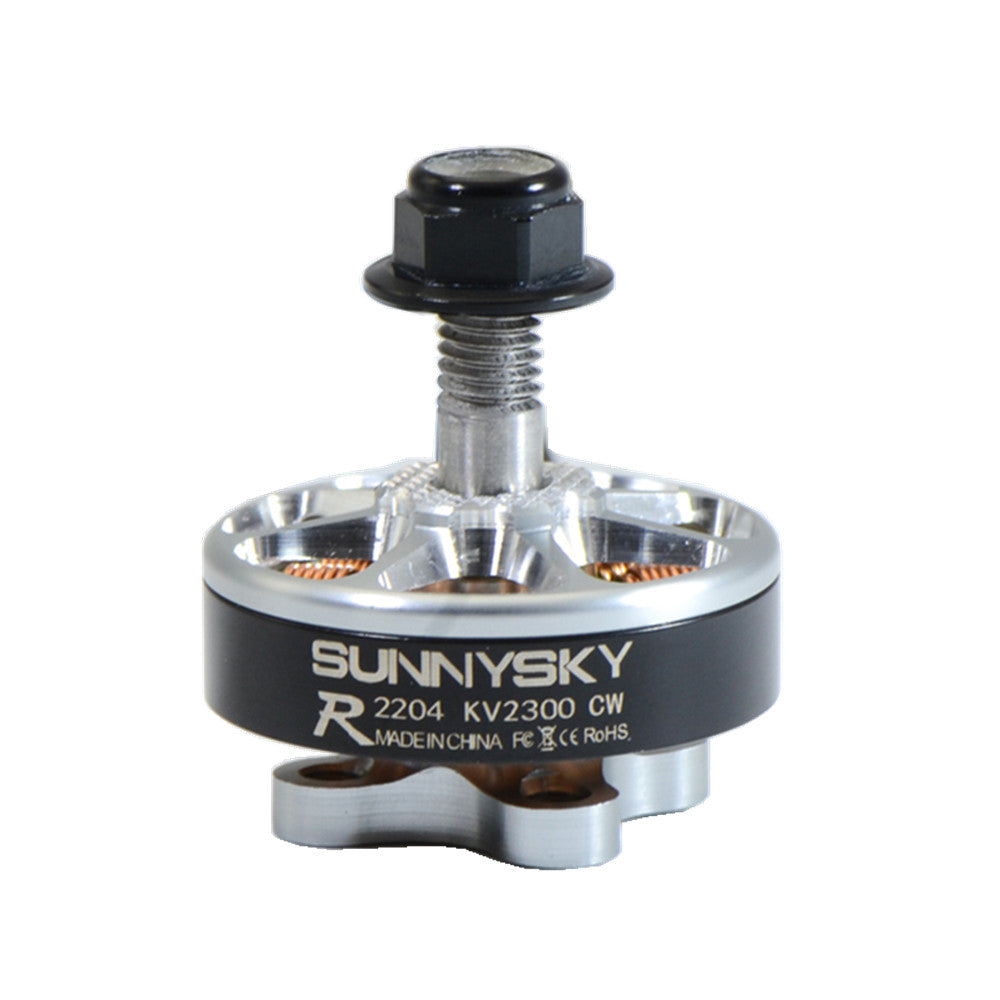

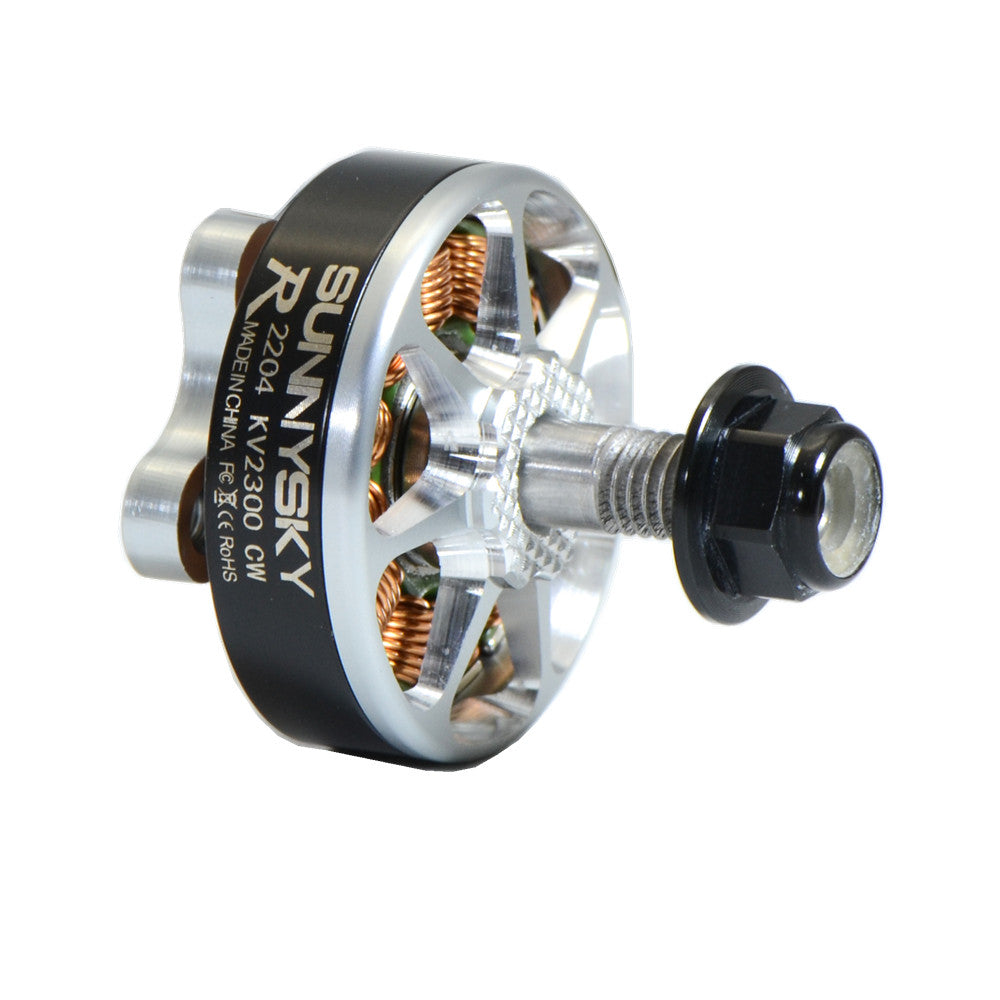

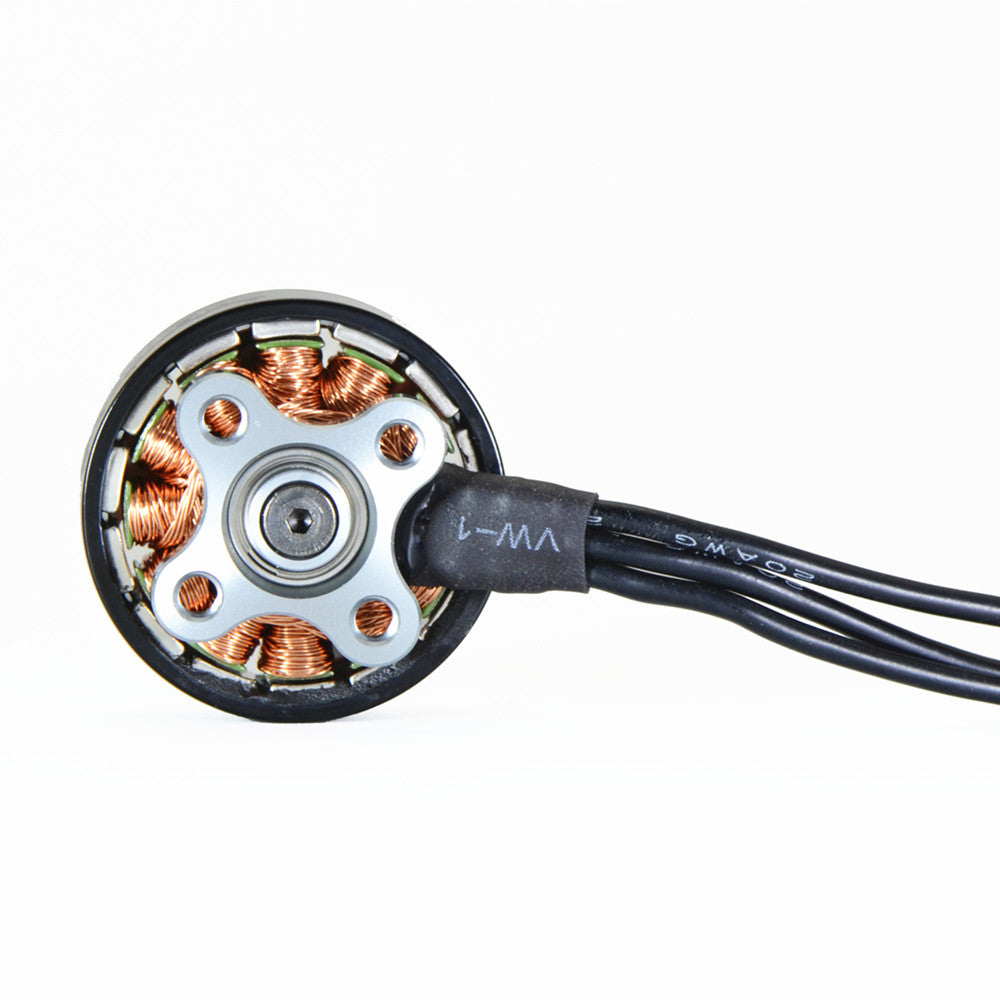

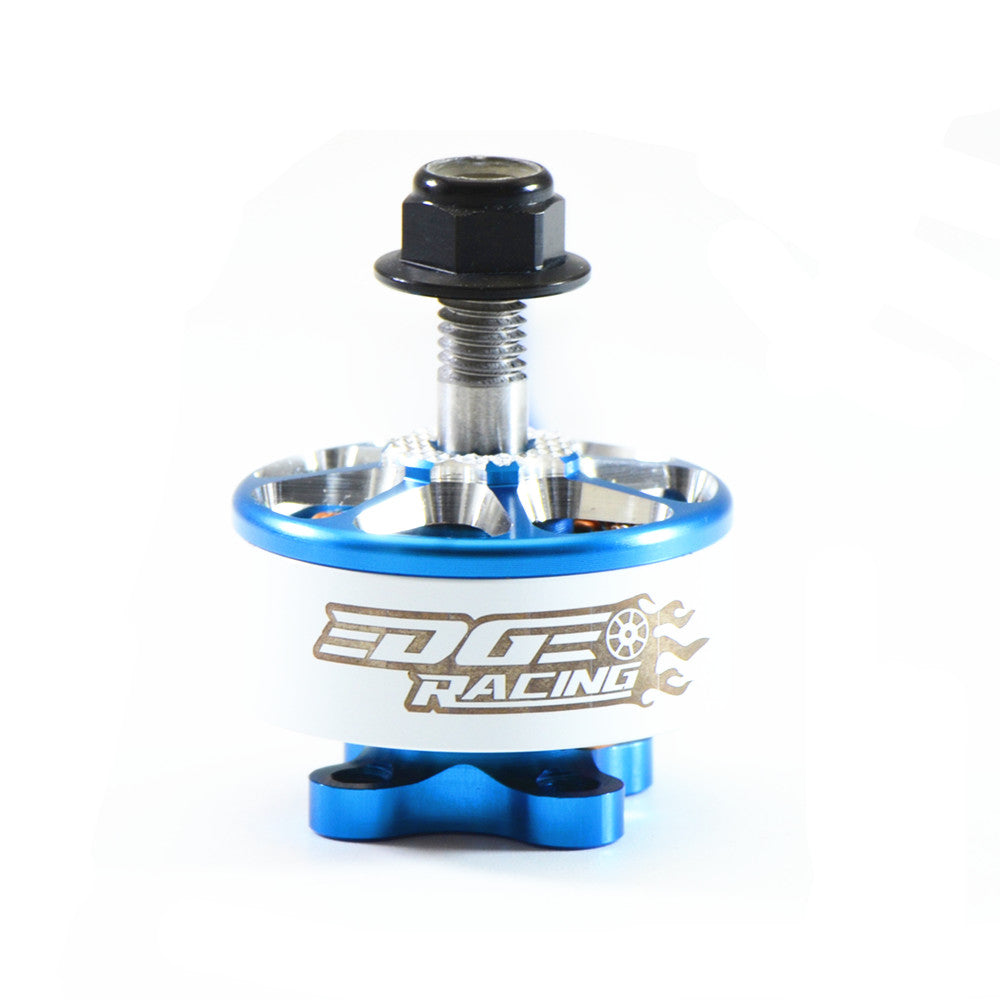

Sunnysky E-R2204 2204 2300KV 3-4S Brushless Motor for RC Drone FPV Racing

Notice: All motors you get are CW Screw Thread (Sliver Nut)  .
              The word " CCW" on the motor points at the Motor Rotation.

Specification:
Brand Name: Sunnysky
Model: E-R2204
Item Name: 2204 2300KV 3-4S Brushless Motor
KV: 2300KV
Version: CW Screw Thead
                CCW Rotation (Sliver Nut)
Stator Diameter: 22mm
Stator Thickness: 4mm
No. of Stator Arms: 12
No. of Rotor Poles: 14
Rotor Diameter: 27.4mm
Body Length: 16.5mm
Max. Lipo Cell: 3-4S
No-Load Current: 1A@10V
Motor Resistance: 73mΩ
Max. Con. Current: 25A/20s
Max. Con. Power: 420W
Weight: 27g
Recommend ESC: 25-30A
Recommend Propeller: 5040 /5045 3-Blade Prop

Testing Table: ( More Testing Data )

Propeller	Voltage (V)	Current (A)	Thrust (g)	Power (W)	Efficiency (g/W)	RPM	Temp. 100% Throttle
5040 3-Blade	14.8	1	100	15	6.76	8594	63℃  10S. HOT
		2.6	200	38	5.20	12195
		4.6	300	68	4.41	14909
		7	400	104	3.86	17350
		9.8	500	145	3.45	19520
		12.8	600	189	3.17	21421
		15.9	700	235	2.97	23140
		19.8	800	293	2.73	24780
		23.6	908	349	2.60	26181

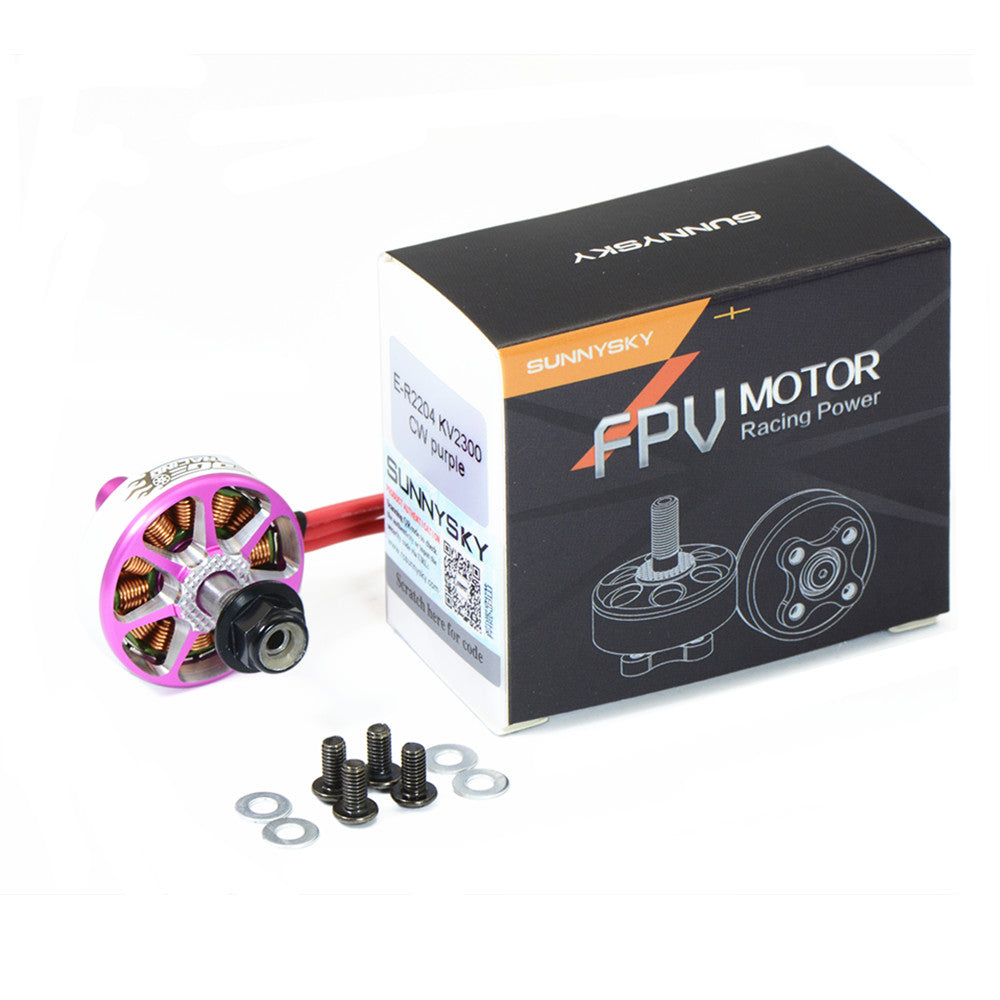

Package Included:
1x Sunnysky E-R2204 2300KV Motor
1x Motor Nut
