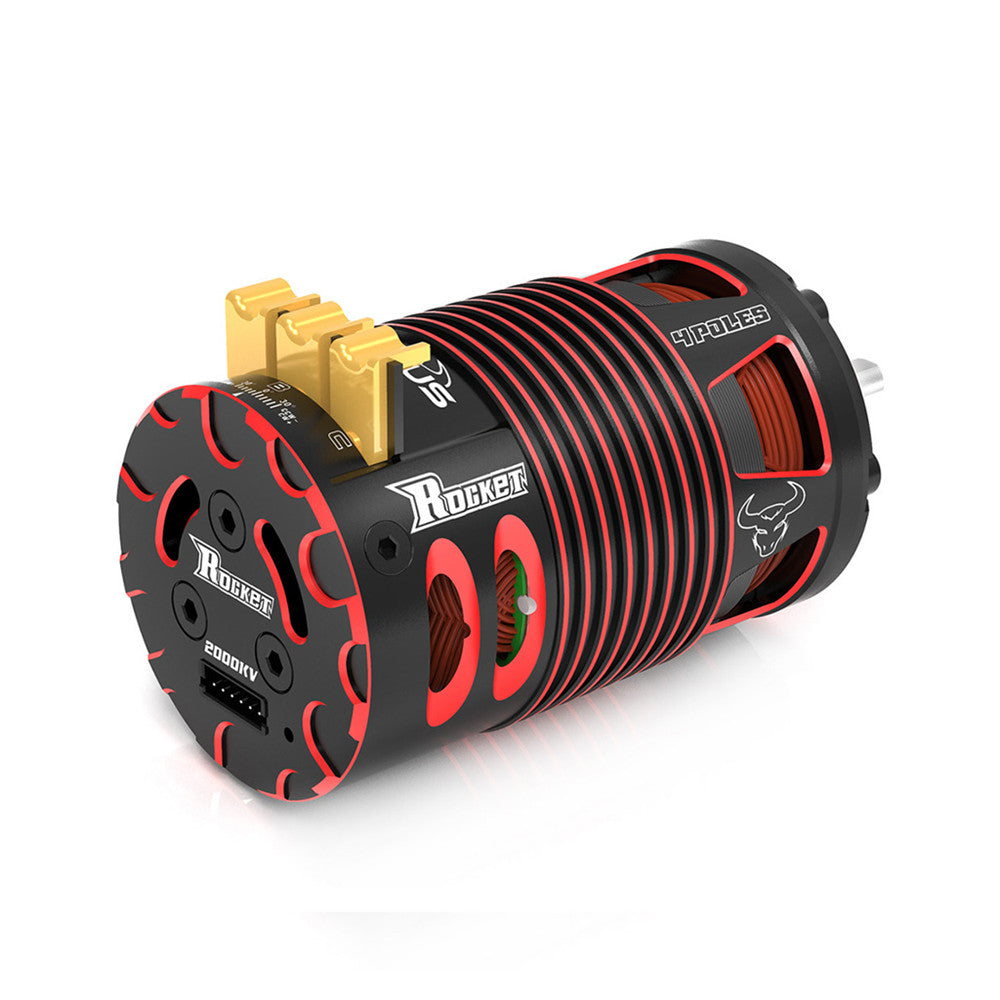

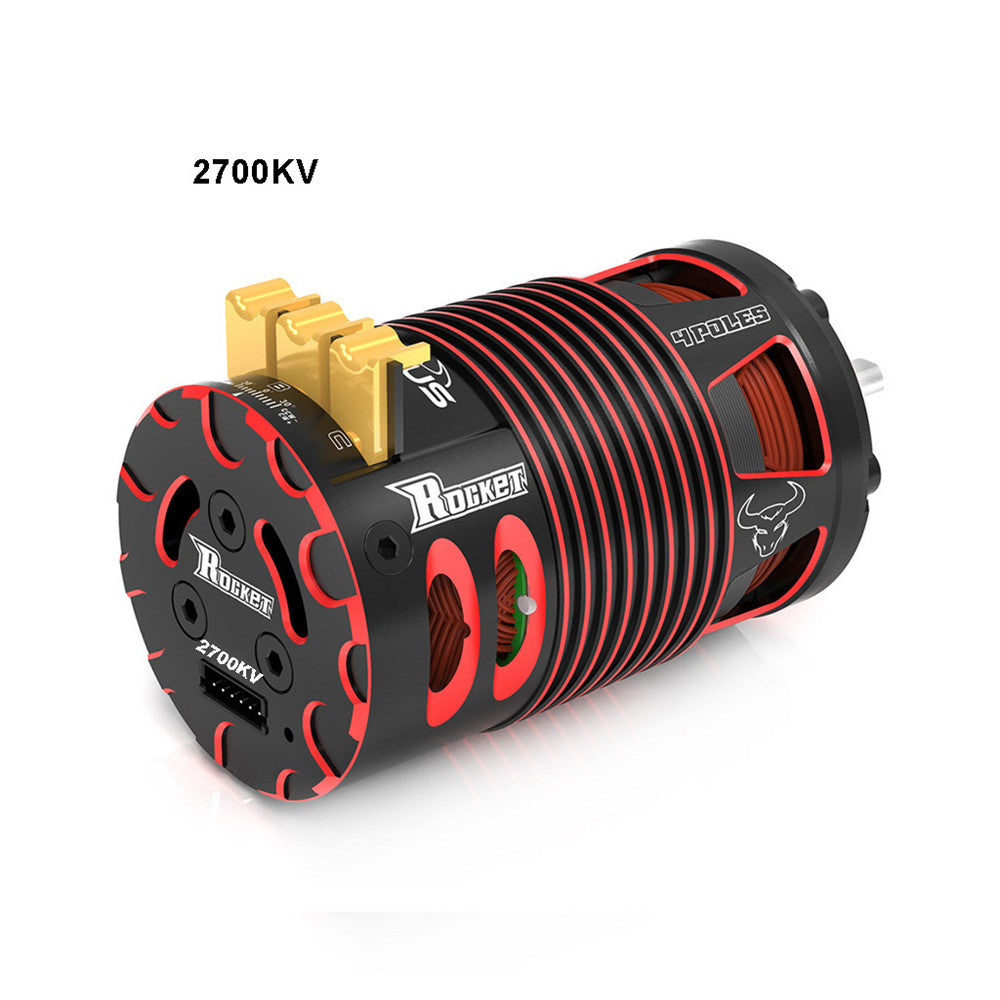

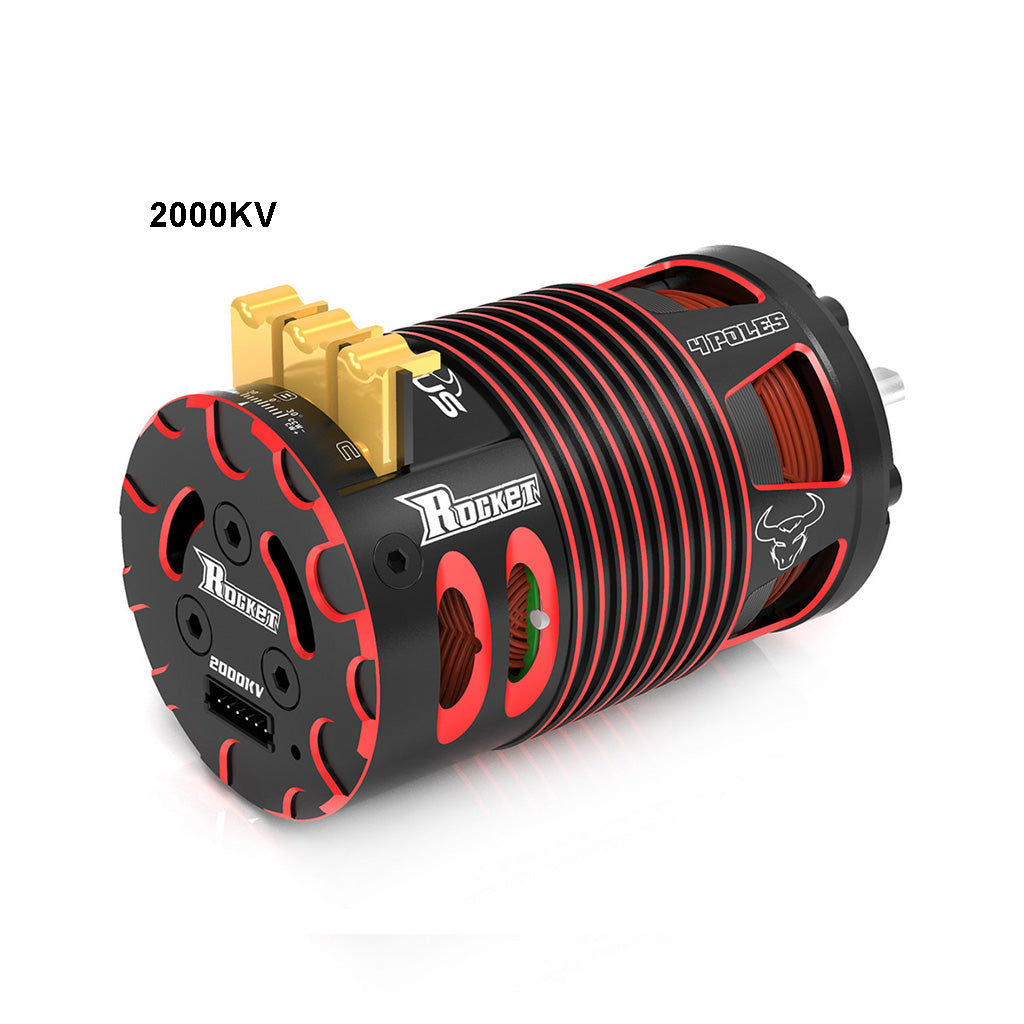

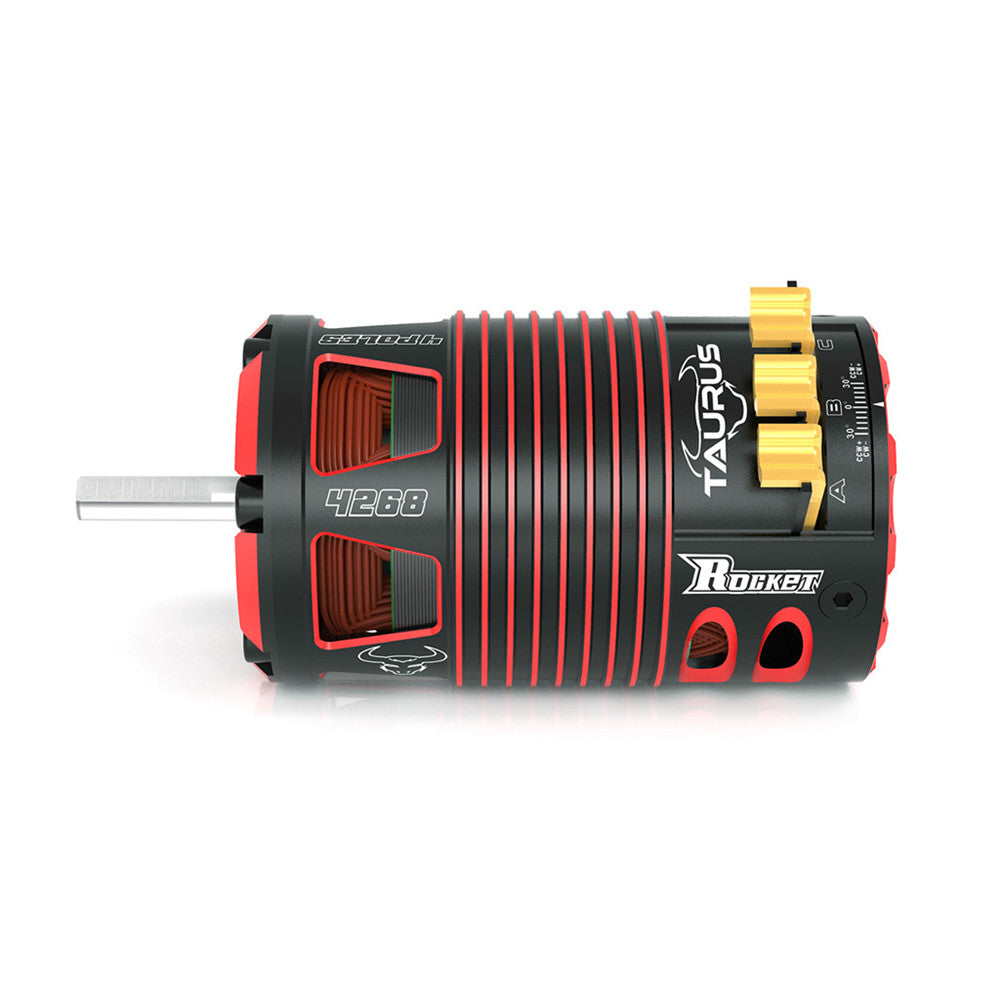

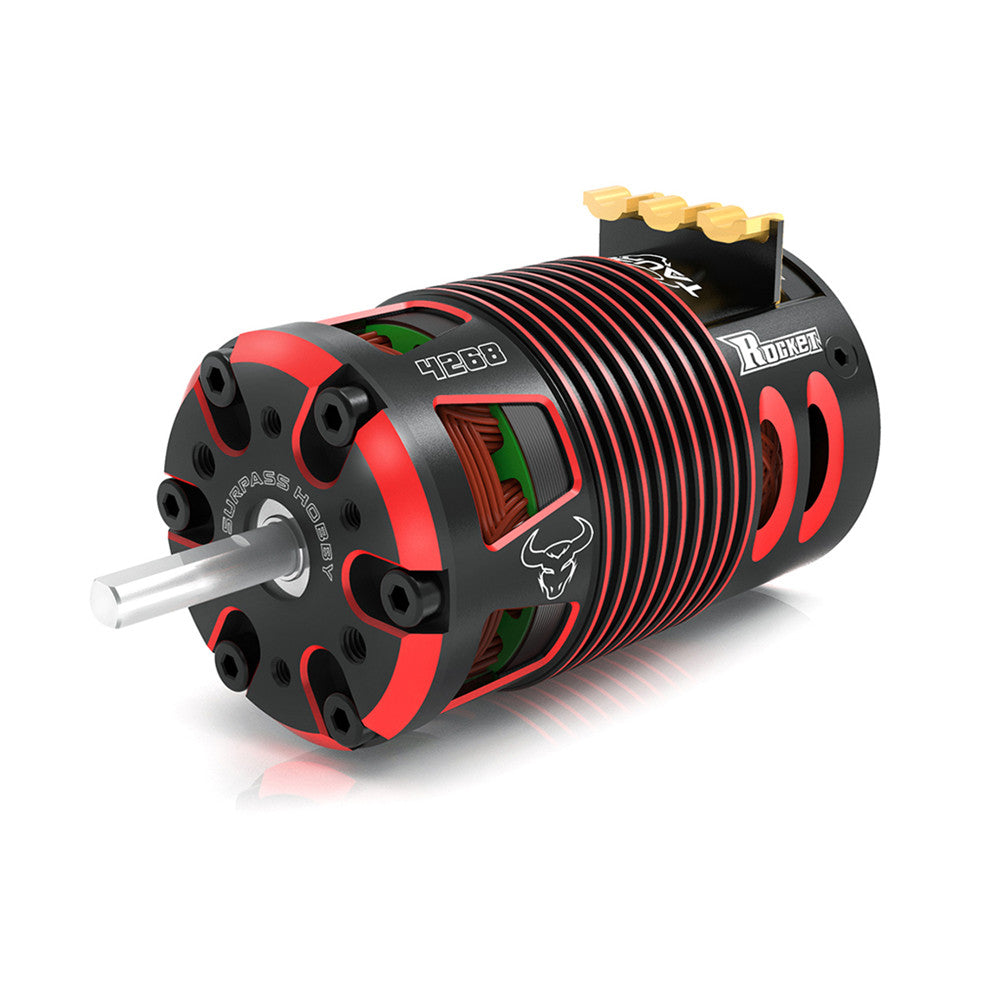

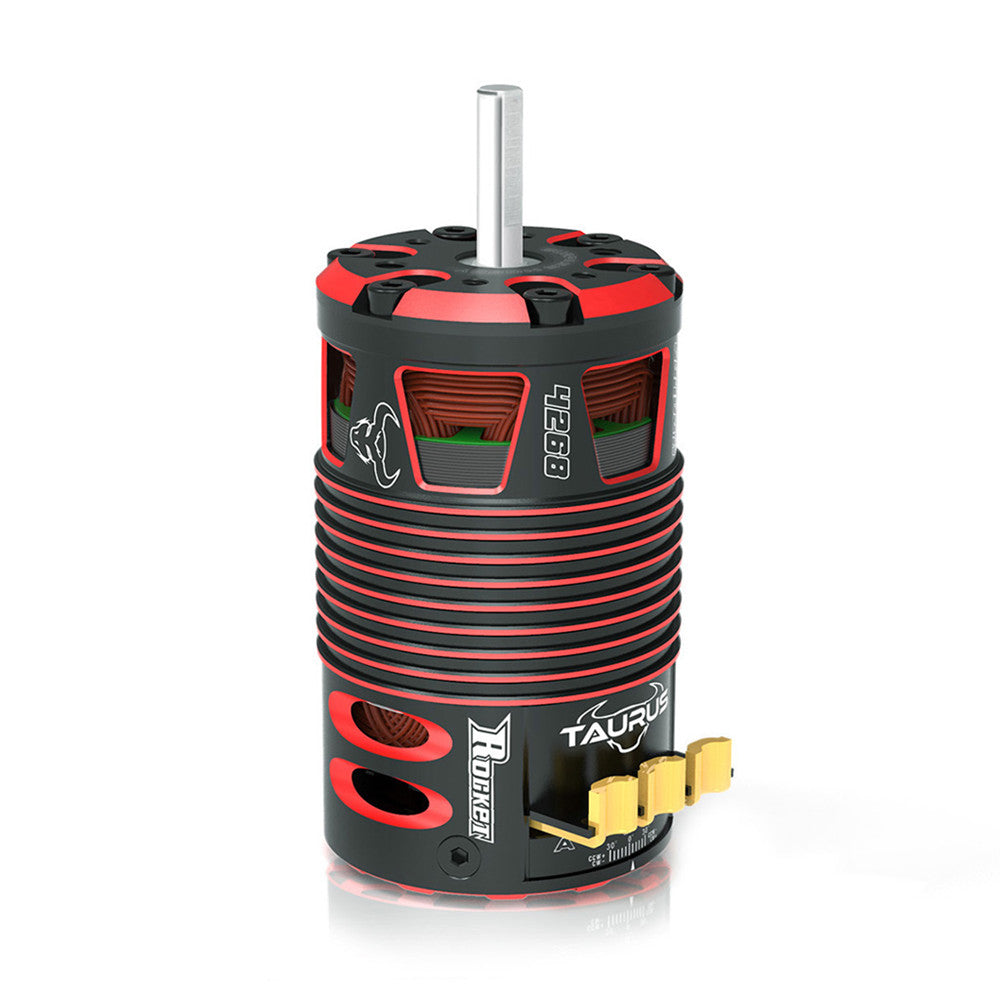

Surpass Hobby 4268 Sensor RC Car Motor For 1/8 Scale Brushless On Road Car
DroneSpark
Regular price
$99.99
$79.99
Sale
FEATURES:
Sensor motor for 1/8 scale brushless on road car. 4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can High Purity Copper Windings Maximizes Efficiency High RPM ABEC5 Oversized Bearings
Universal fit, fits 1/8 brushless on road car-multi-mounting system for M3 or M4 screws
Precision balanced rotor, smoothness for best reliability and maximum RPM

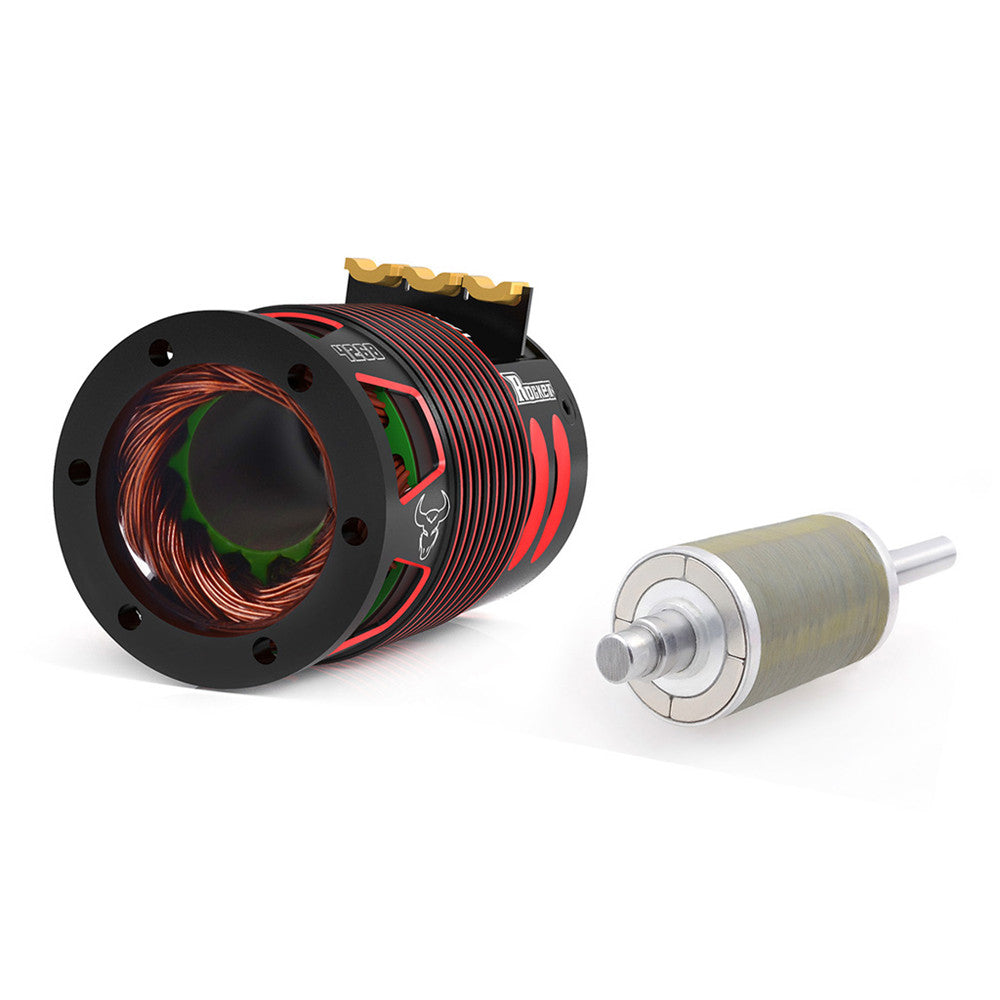

Stator - Super Thin (0.2mm) Laminations Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion
| Product | Watts | Max voltage | Max Amps | Rotor Poles | IO | Resistance | Kv (RPM/Volt) | Max RPM | Length (mm) | Diameters (mm) | Weight (g) | Shaft (mm) | Length of extend shaft |
| 4268/2Y | 2400W | <18V | 130A | 4 | 3.2A | 0.0053 | 2700 | 50000 | 68 | Ø41/Ø42 with fans | 320 | Ø5 | 18mm |
| 4268/4D | 2400W | <22V | 110A | 4 | 3.0A | 0.0080 | 2350 | 50000 | 68 | Ø41/Ø42 with fans | 320 | Ø5 | 18mm |
| 4268/5D | 2400W | <25V | 95A | 4 | 2.5A | 0.0090 | 2000 | 50000 | 68 | Ø41/Ø42 with fans | 320 | Ø5 | 18mm |
| 4268/3Y | 2400W | <27V | 82A | 4 | 2.2A | 0.0130 | 1850 | 50000 | 68 | Ø41/Ø42 with fans | 320 | Ø5 | 18mm |
| 4268/6D | 2400W | <32V | 75A | 4 | 1.8A | 0.0160 | 1550 | 50000 | 68 | Ø41/Ø42 with fans | 320 | Ø5 | 18mm |
Package included:
1x motor
