SURPASS Hobby C2822 1200KV/1400KV Outrunner Brushless Motor for RC Airplane Fixed-wing EDF Ducted Fan Unit
DroneSpark
Regular price
$18.99
$14.99
Sale
Description:
Brand Name: SURPASS Hobby
Item Name: C2822 Motor
KV: 1200KV, 1400KV (optional)
Color: Black
Connector: 3.5mm
Application: Suitable for RC Airplane Fixed-wing EDF Ducted Fan UnitSpecifications:
| Model | KV | Max Watts(W) | Voltage Range(V) | Max Current(A) |
Rotor Poles |
No load Current(A) | Resistance(Ω) | Motor Size(mm) | Stator Size(mm) | Weight(g) | Prop(Inch) |
| C2822-25 | 1400 | 160 | 7~15 | 13 | 14 | 0.4 | 0.307 | ￠28x22 | ￠22x04 | 30 | 7.5*3.5/8*4/9*5 |
| C2822-27 | 1200 | 140 | 7~15 | 11 | 14 | 0.3 | 0.368 | ￠28x22 | ￠22x04 | 30 | 8*5/8*6/7*5 |
Features:
- 14Pole 12Slot Hi-torque Motor Design.
- CNC Machined 6061 T6 Billet Aluminum Heatsink Can.
- High Purity Copper Windings Maximizes Efficiency.
- High RPM ABEC5 Oversized Bearings.
- Precision balanced rotor, smoothness for best reliability and maximum RPM.
- Stator - Super Thin (0.2mm) Laminations.
- Precision Engineered for Maximum Energy Conversion.
- The outer rotor dynamic balance is controlled within 10mg, ensuring no abnormal noise, no jitter, and smooth running.
- The motor adopts waterproof design and related waterproof technology, which has a certain anti-corrosion function, and runs normally in the rain.
Package Included:
1x SURPASS Hobby C2822 Outrunner Brushless Motor

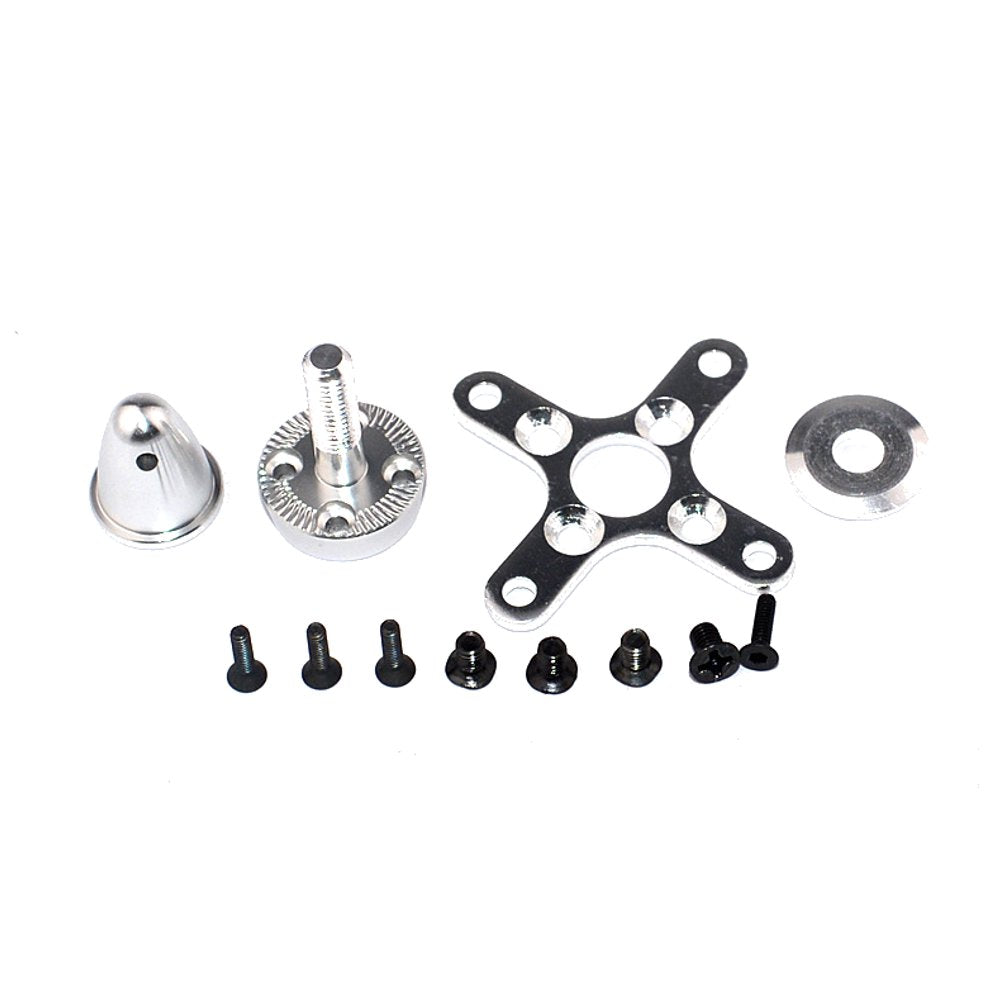

1x Accessories
