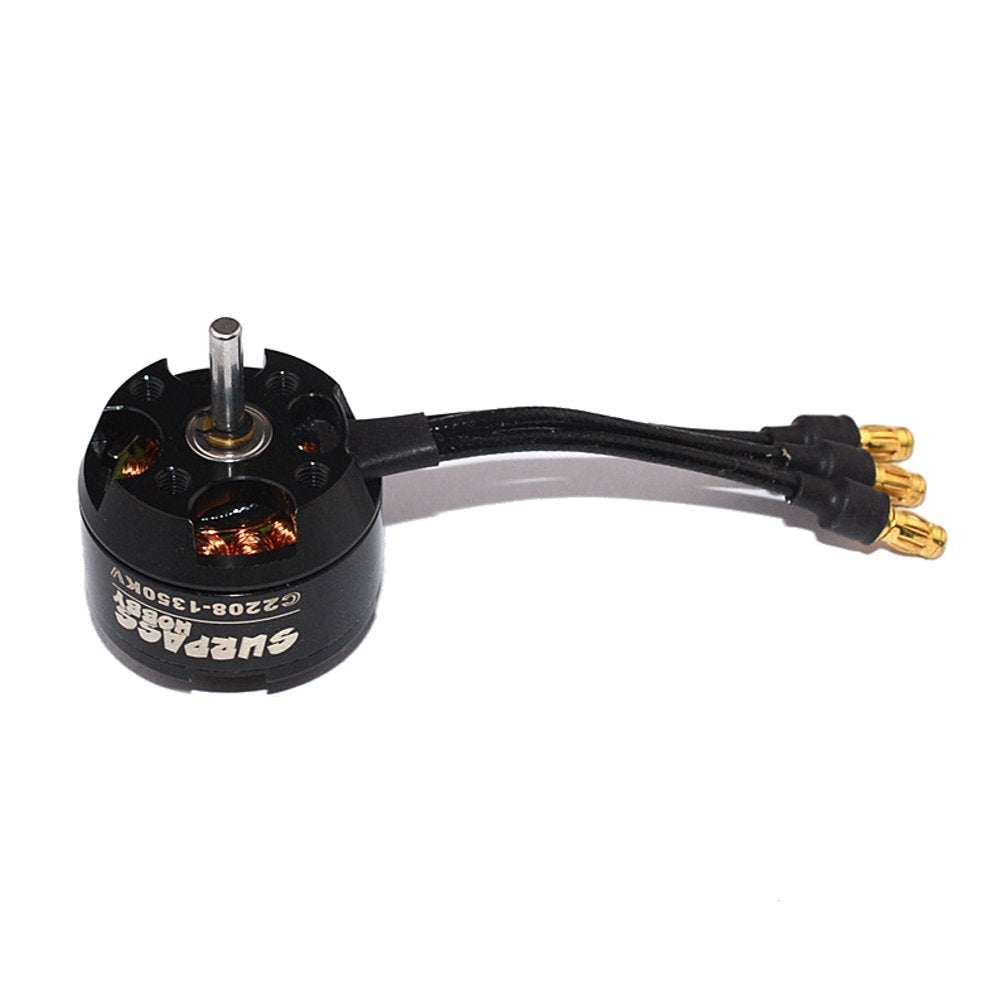

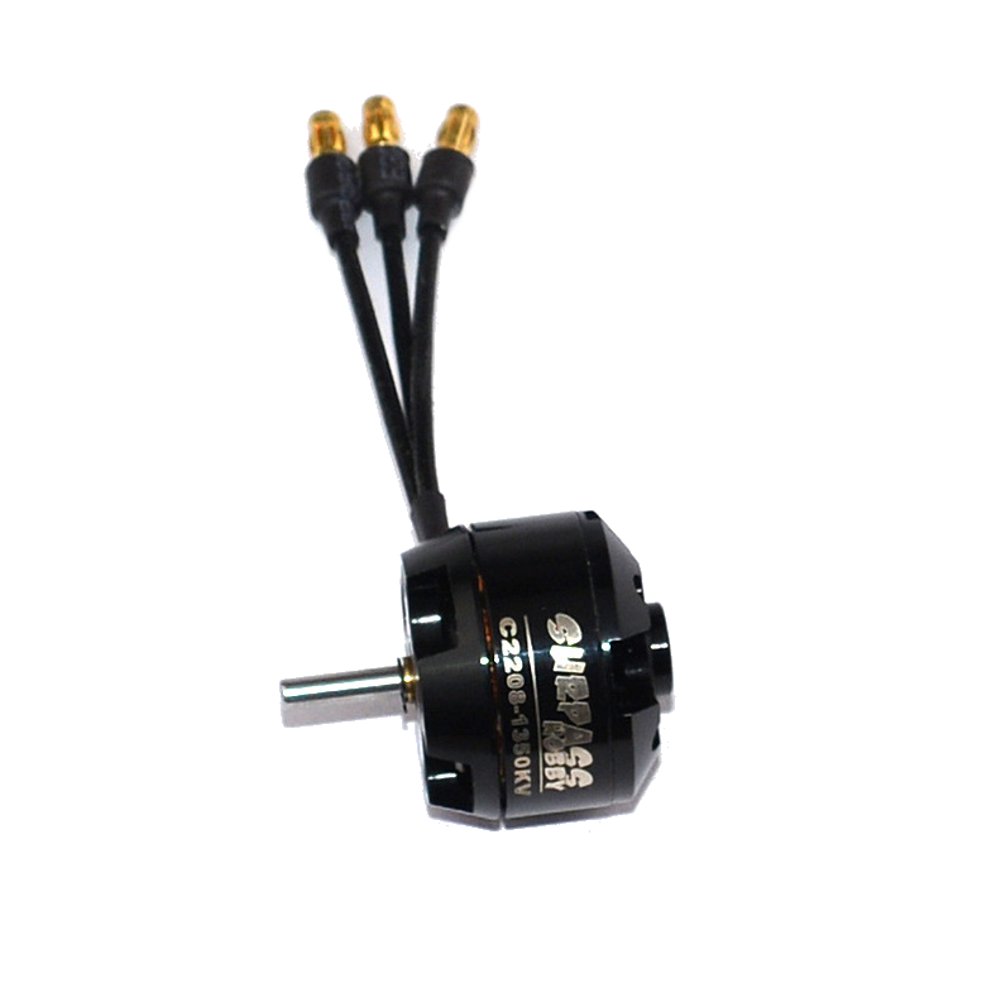

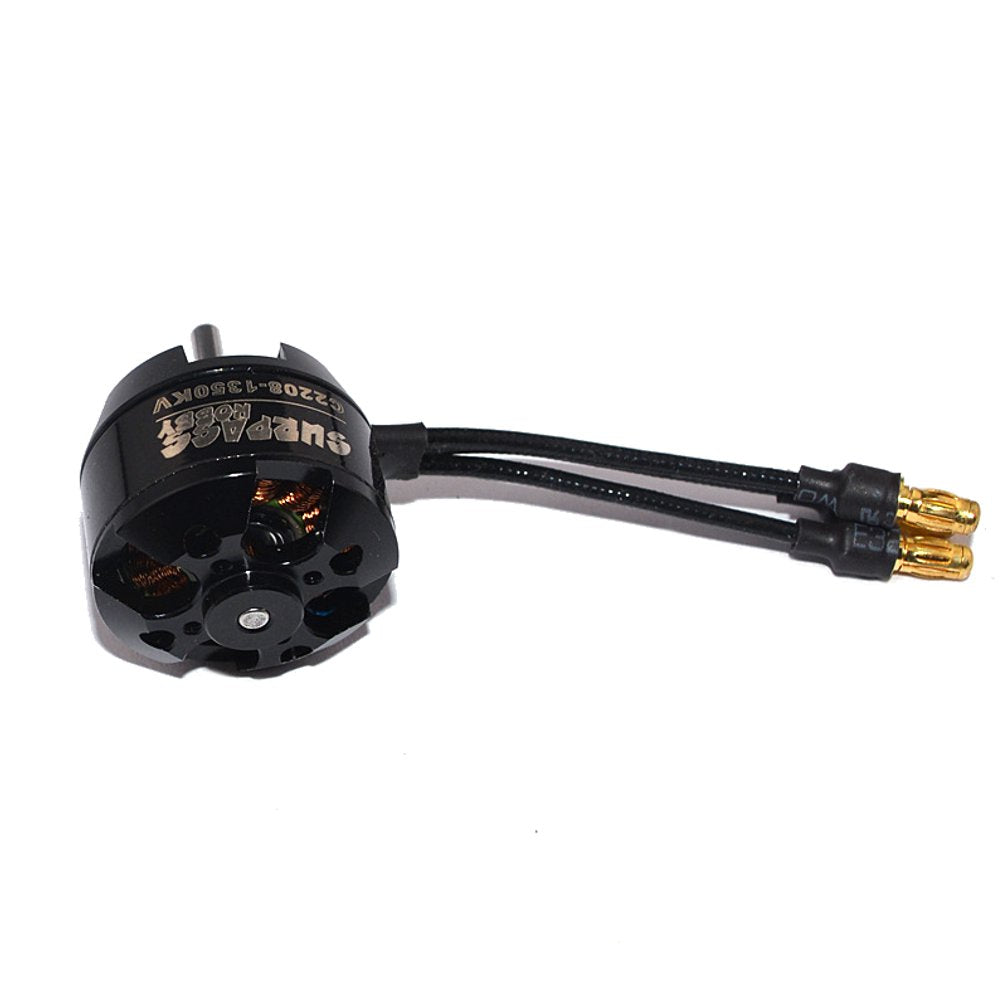

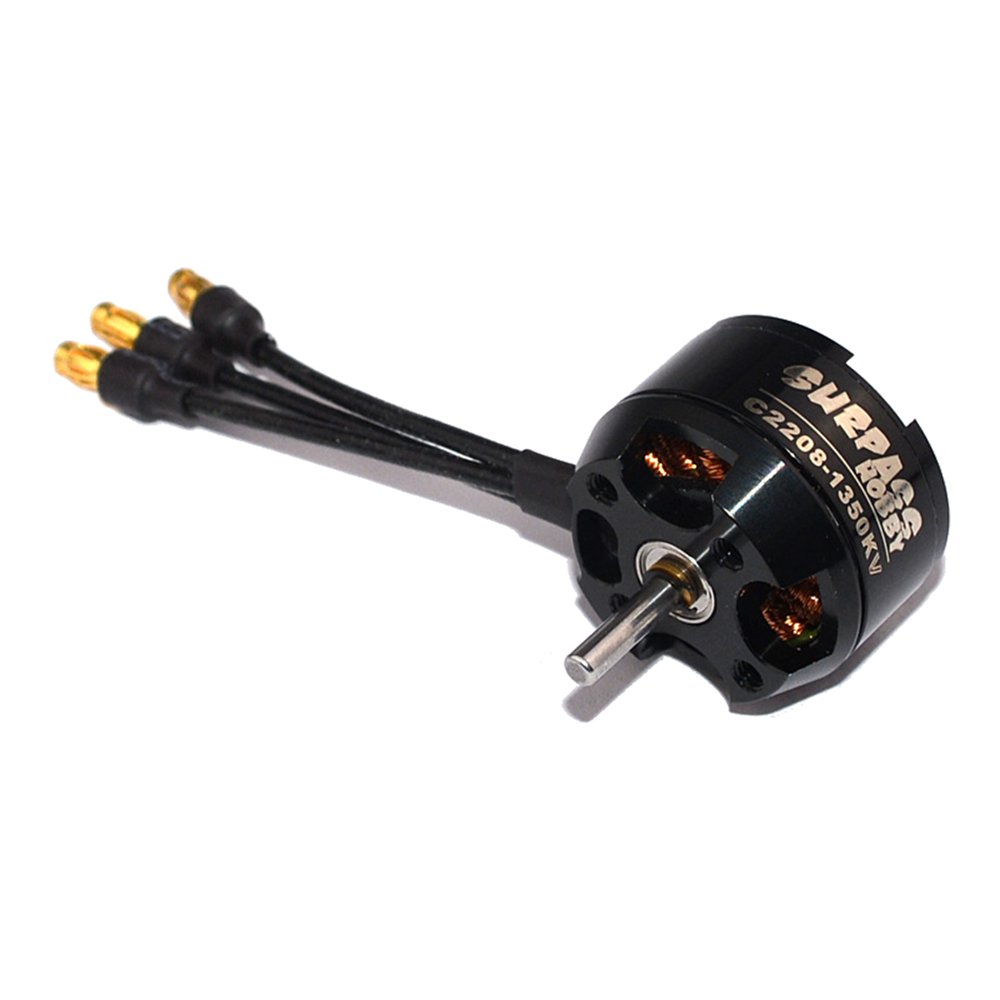

SURPASS Hobby C2826 1000KV/1350KV/1900KV Outrunner Brushless Motor for RC Airplane Fixed-wing EDF Ducted Fan Unit
DroneSpark
Regular price
$19.99
$15.99
Sale
Description:
Brand Name: SURPASS Hobby
Item Name: C2826 Motor
KV: 1000KV, 1350KV, 1900KV (optional)
Color: Black

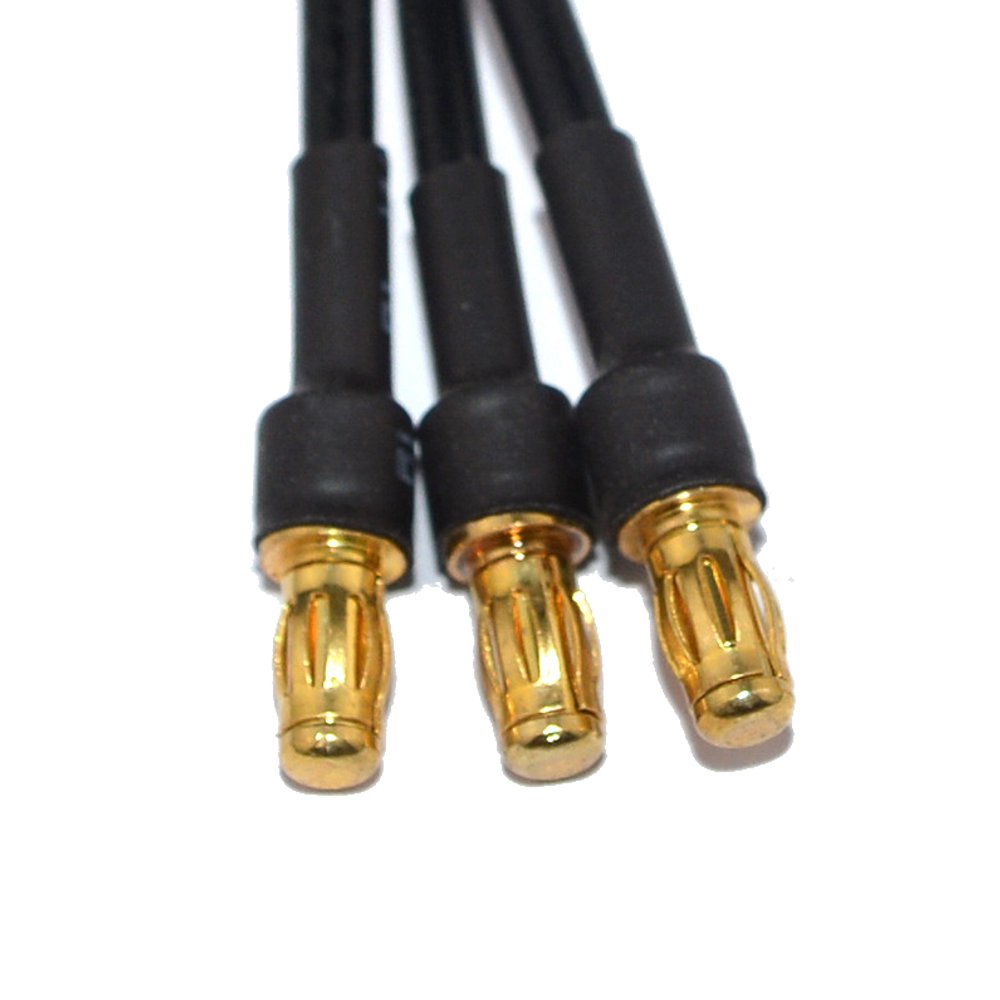

Connector: 3.5mm
Application: Suitable for RC Airplane Fixed-wing EDF Ducted Fan UnitSpecifications:
| Model | KV | Max Watts(W) | Voltage Range(V) | Max Current(A) |
Rotor Poles |
No load Current(A) | Resistance(Ω) | Motor Size(mm) | Stator Size(mm) | Weight(g) | Prop(Inch) |
| C2826-09 | 1900 | 250 | 7~12 | 27 | 14 | 1.2 | 0.063 | ￠28x26 | ￠22x08 | 45 | 8*3.8/8*4/7*5 |
| C2826-12 | 1350 | 240 | 7~12 | 24 | 14 | 0.8 | 0.097 | ￠28x26 | ￠22x08 | 45 | 8*3.8/7*4 |
| C2826-18 | 1000 | 220 | 7~12 | 20 | 14 | 0.7 | 0.256 | ￠28x26 | ￠22x08 | 45 | 8*5/8*7/9*4.7 |
Features:
- 14Pole 12Slot Hi-torque Motor Design.
- CNC Machined 6061 T6 Billet Aluminum Heatsink Can.
- High Purity Copper Windings Maximizes Efficiency.
- High RPM ABEC5 Oversized Bearings.
- Precision balanced rotor, smoothness for best reliability and maximum RPM.
- Stator - Super Thin (0.2mm) Laminations.
- Precision Engineered for Maximum Energy Conversion.
- The outer rotor dynamic balance is controlled within 10mg, ensuring no abnormal noise, no jitter, and smooth running.
- The motor adopts waterproof design and related waterproof technology, which has a certain anti-corrosion function, and runs normally in the rain.
Package Included:
1x SURPASS Hobby C2826 Outrunner Brushless Motor

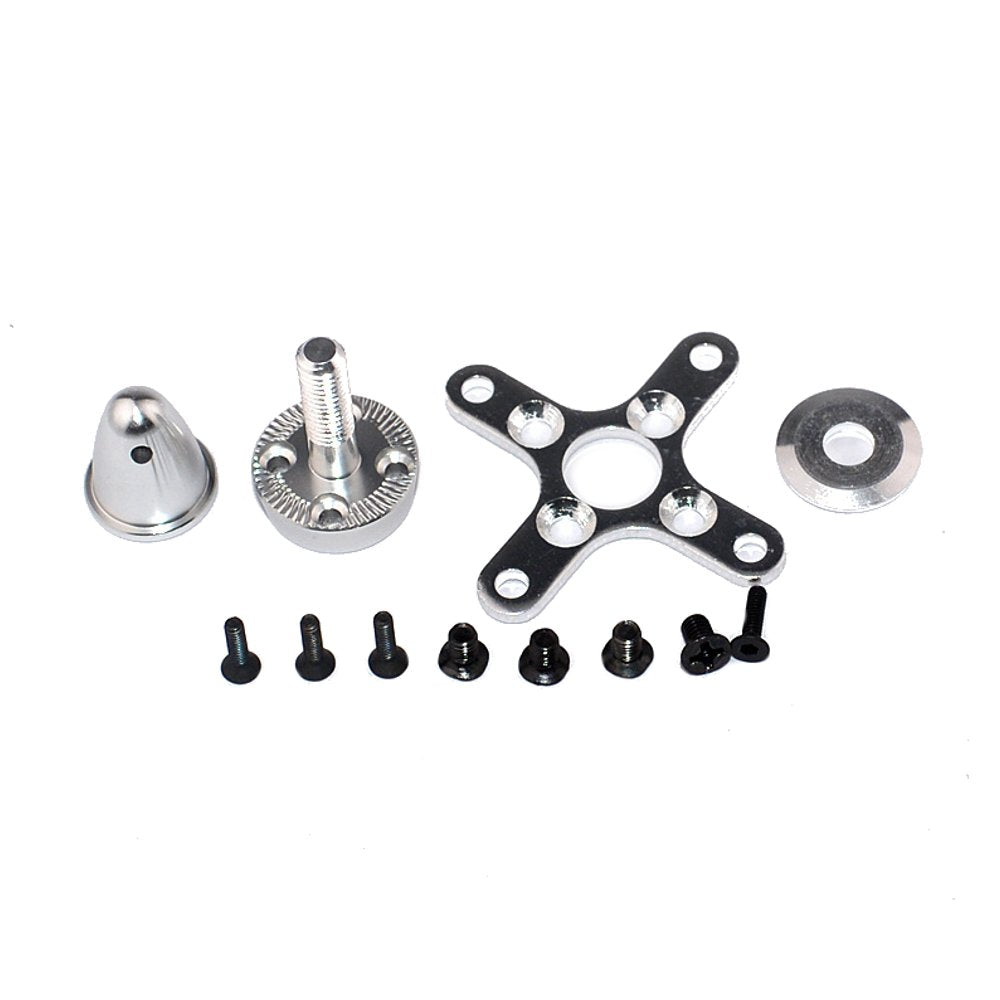

1x Accessories
