SURPASS Hobby C2830 750KV/850KV/1000KV/1300KV Outrunner Brushless Motor for RC Airplane Fixed-wing EDF Ducted Fan Unit
DroneSpark
Regular price
$19.99
$15.99
Sale
Description:
Brand Name: SURPASS Hobby
Item Name: C2830 Motor
KV: 750KV, 850KV, 1000KV, 1300KV (optional)
Color: Black

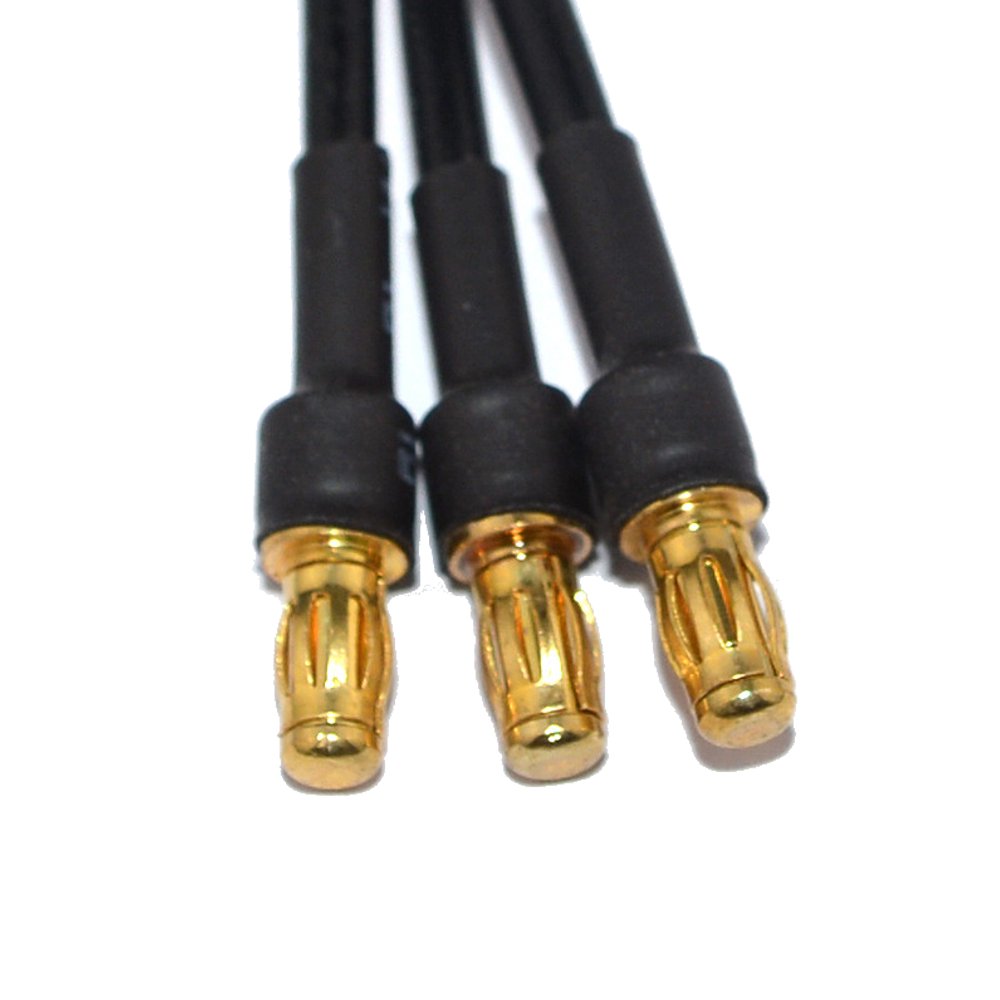

Connector: 3.5mm
Application: Suitable for RC Airplane Fixed-wing EDF Ducted Fan UnitSpecifications:
| Model | KV | Max Watts(W) | Voltage Range(V) | Max Current(A) |
Rotor Poles |
No load Current(A) | Resistance(Ω) | Motor Size(mm) | Stator Size(mm) | Weight(g) | Prop(Inch) |
| C2830-09 | 1300 | 300 | 7~12 | 25 | 14 | 1.2 | 0.085 | ￠28x30 | ￠22x12 | 57 | 9*6/10*5/10*6 |
| C2830-12 | 1000 | 260 | 7~15 | 21 | 14 | 0.9 | 0.152 | ￠28x30 | ￠22x12 | 57 | 9*4.5/10*6/10*5 |
| C2830-14 | 850 | 240 | 7~15 | 19 | 14 | 0.6 | 0.189 | ￠28x30 | ￠22x12 | 57 | 11*5.5/9*6/10*4 |
| C2830-15 | 750 | 230 | 7~15 | 18 | 14 | 0.6 | 0.221 | ￠28x30 | ￠22x12 | 57 | 11*5.5/10*7 |
Features:
- 14Pole 12Slot Hi-torque Motor Design.
- CNC Machined 6061 T6 Billet Aluminum Heatsink Can.
- High Purity Copper Windings Maximizes Efficiency.
- High RPM ABEC5 Oversized Bearings.
- Precision balanced rotor, smoothness for best reliability and maximum RPM.
- Stator - Super Thin (0.2mm) Laminations.
- Precision Engineered for Maximum Energy Conversion.
- The outer rotor dynamic balance is controlled within 10mg, ensuring no abnormal noise, no jitter, and smooth running.
- The motor adopts waterproof design and related waterproof technology, which has a certain anti-corrosion function, and runs normally in the rain.
Package Included:
1x SURPASS Hobby C2830 Outrunner Brushless Motor

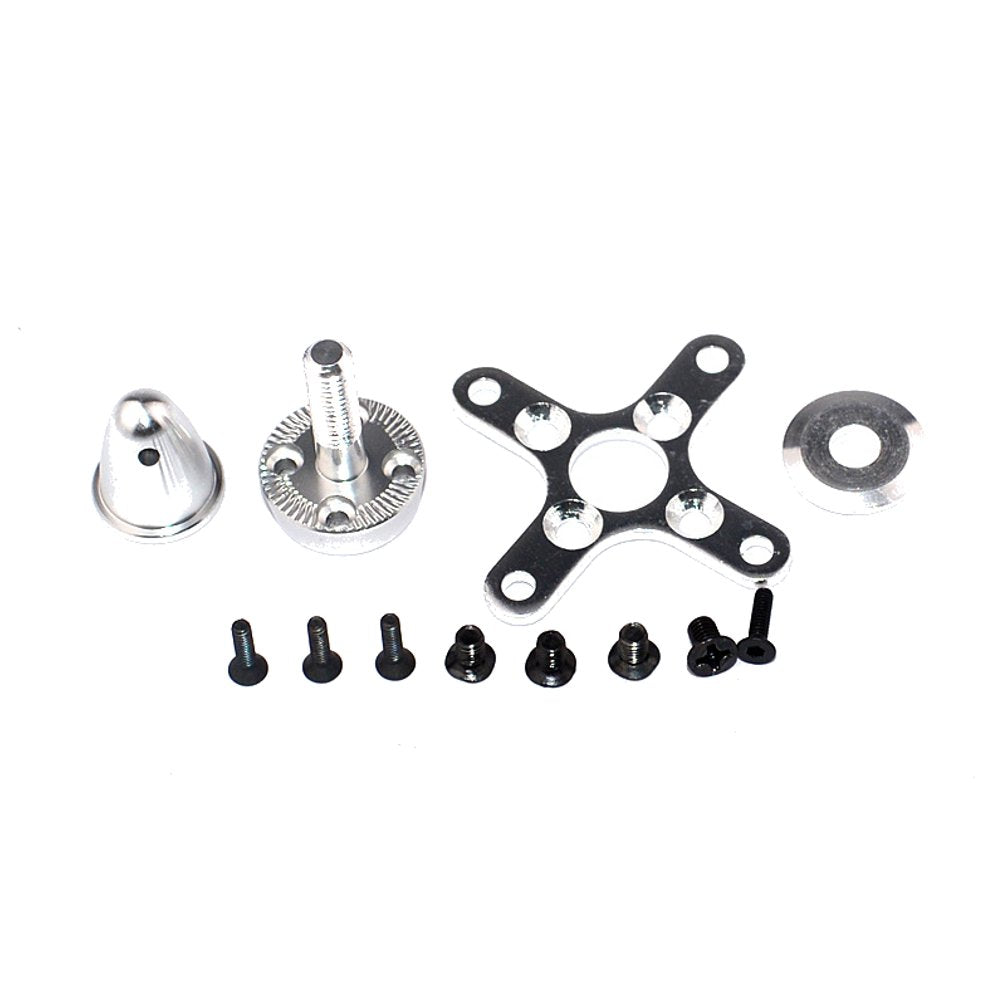

1x Accessories
