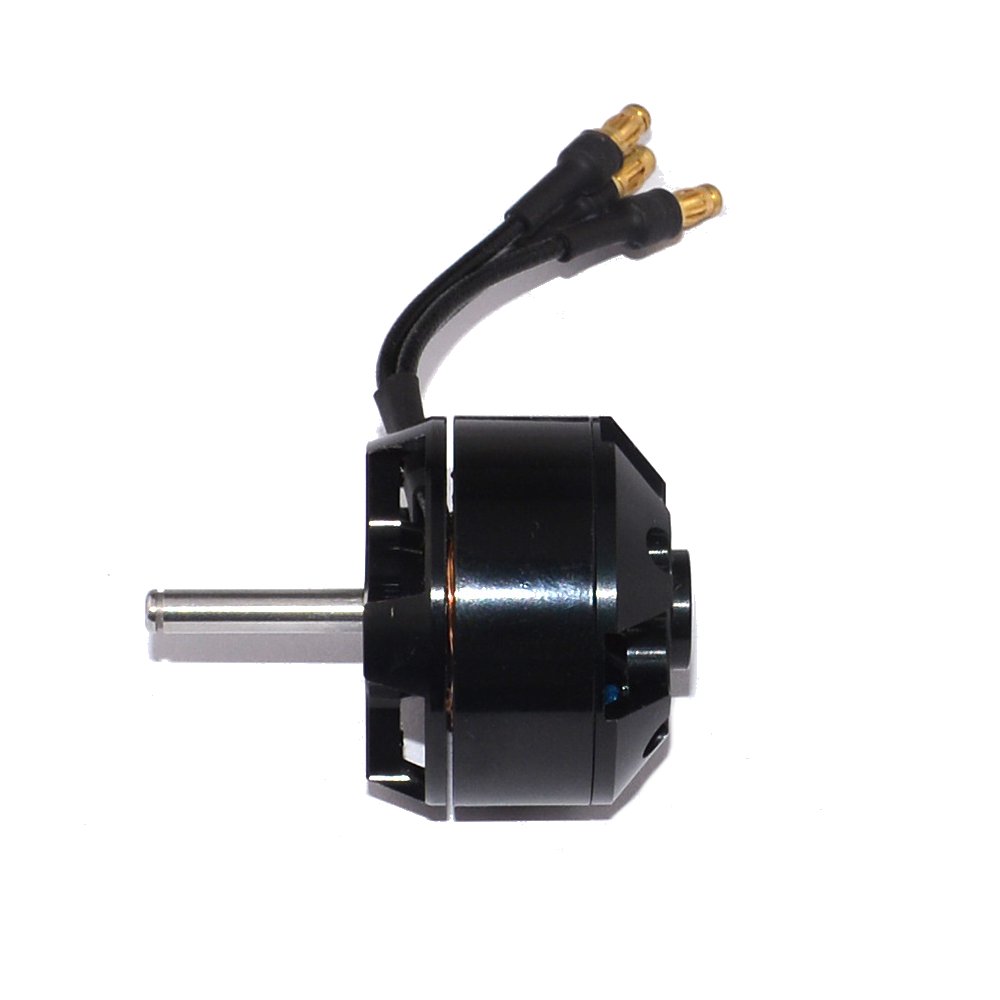

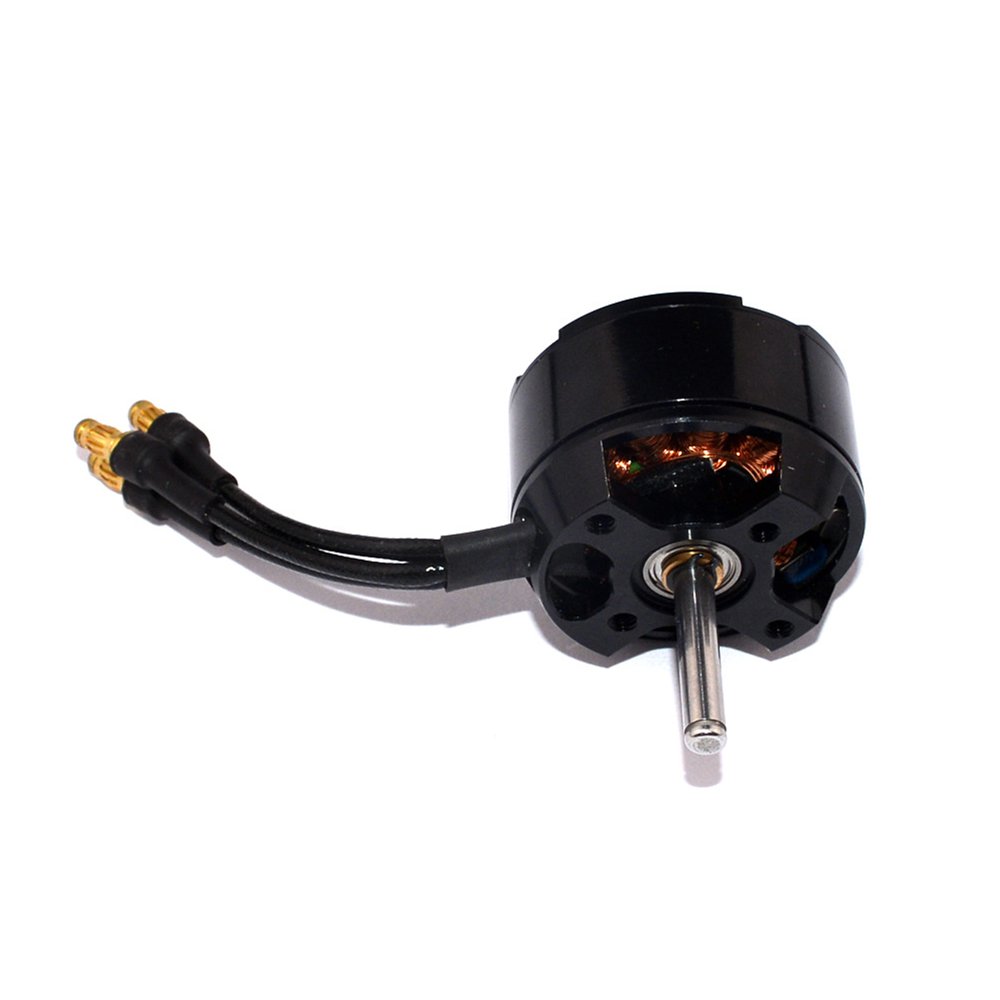

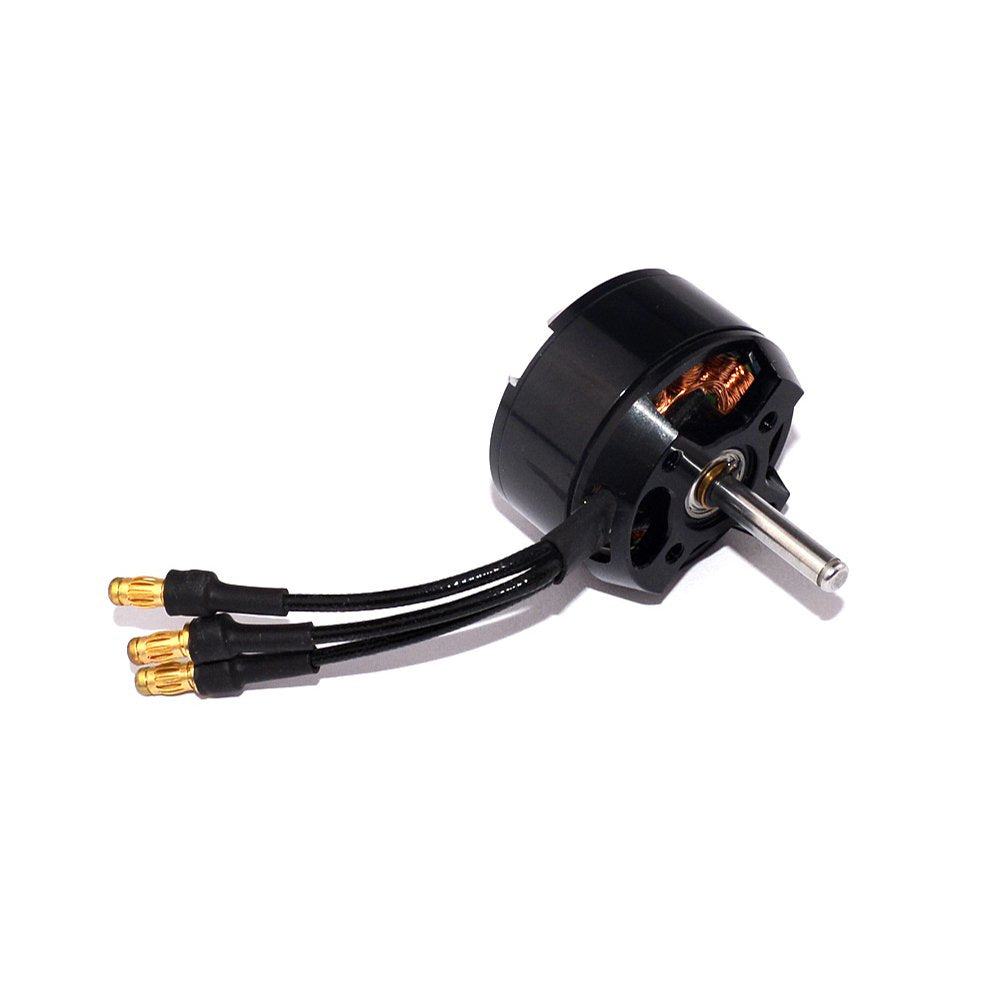

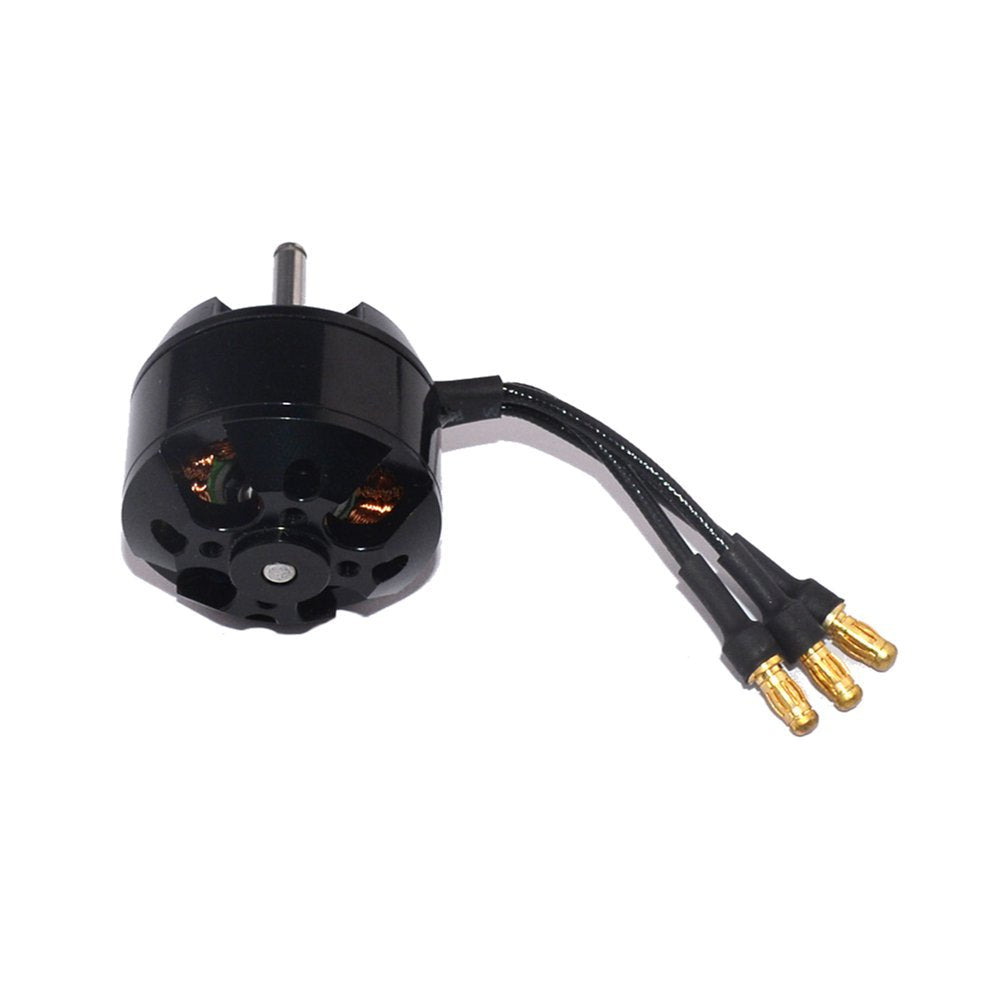

SURPASS Hobby C3530 1100KV/1400KV/1700KV Outrunner Brushless Motor for RC Airplane Fixed-wing EDF Ducted Fan Unit
DroneSpark
Regular price
$26.99
$20.99
Sale
Description:
Brand Name: SURPASS Hobby
Item Name: C3530(2808) Motor
Item NO.: SP-028080-01
KV: 1100KV, 1400KV, 1700KV (optional)
Color: Black
Application: Suitable for RC Airplane Fixed-wing EDF Ducted Fan Unit
Specifications:
| Model | KV |
Max Watt (W) |
Voltage Range (V) |
Max Current (A) |
Rotor Poles |
No Load Current (A) |
Resistance (Ω) |
Motor Size (mm) |
Stator Size (mm) |
Weight (g) |
Prop (inch) |
| C2808-08 | 1700 | 420 | 7-15 | 42 | 14 | 1.8 | 0.041 | 35x30 | 28x8 | 78 | 7*4/6*6 |
| C2808-10 | 1400 | 350 | 35 | 1.2 | 0.059 | 9*4.5/8*4/7*7 | |||||
| C2808-14 | 1100 | 310 | 30 | 0.7 | 0.113 | 9*5/10*4.7 |
Features:
- 14Pole 12Slot Hi-torque Motor Design.
- CNC Machined 6061 T6 Billet Aluminum Heatsink Can.
- High Purity Copper Windings Maximizes Efficiency.
- High RPM ABEC5 Oversized Bearings.
- Precision balanced rotor, smoothness for best reliability and maximum RPM.
- Stator, Super Thin (0.2mm) Laminations.
- Precision Engineered for Maximum Energy Conversion.
- The outer rotor dynamic balance is controlled within 10mg, ensuring no abnormal noise, no jitter, and smooth running.
- The motor adopts waterproof design and related waterproof technology, which has a certain anti-corrosion function, and runs normally in the rain.

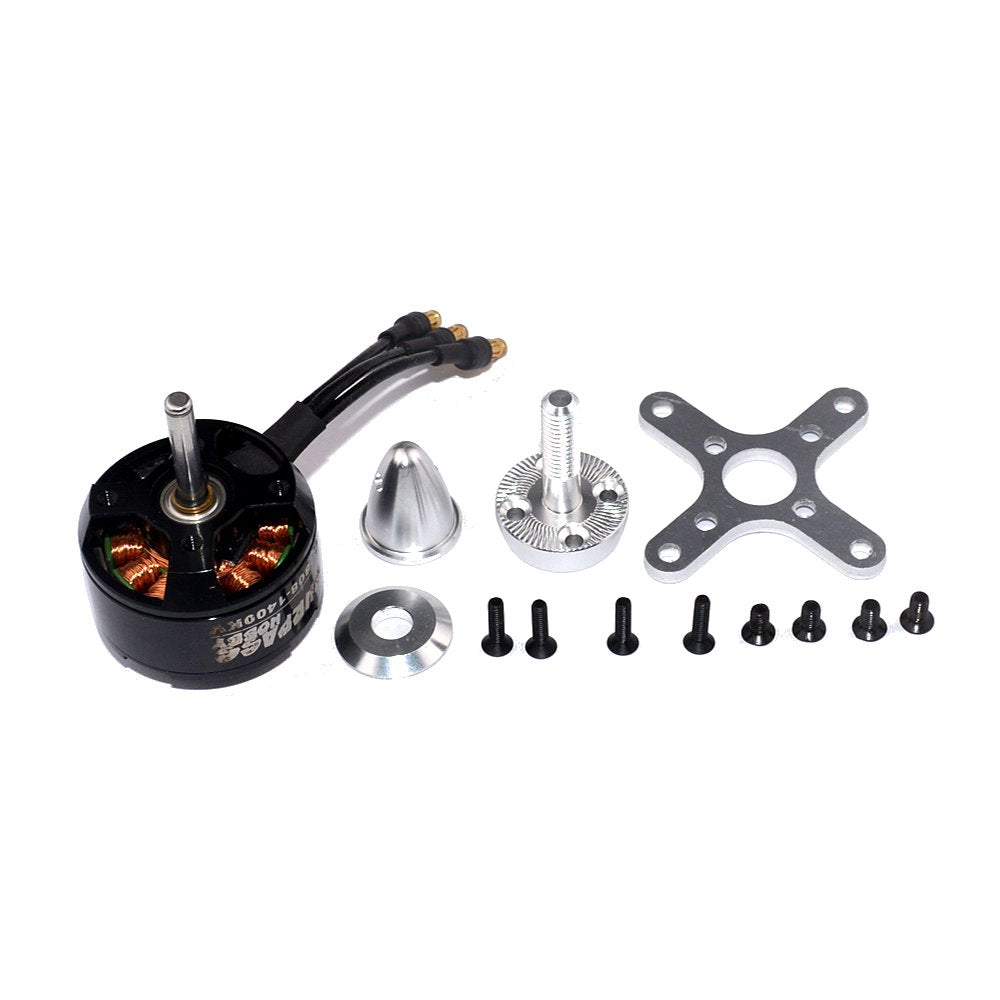

Package Included:
1x SURPASS Hobby C3530 Outrunner Brushless Motor

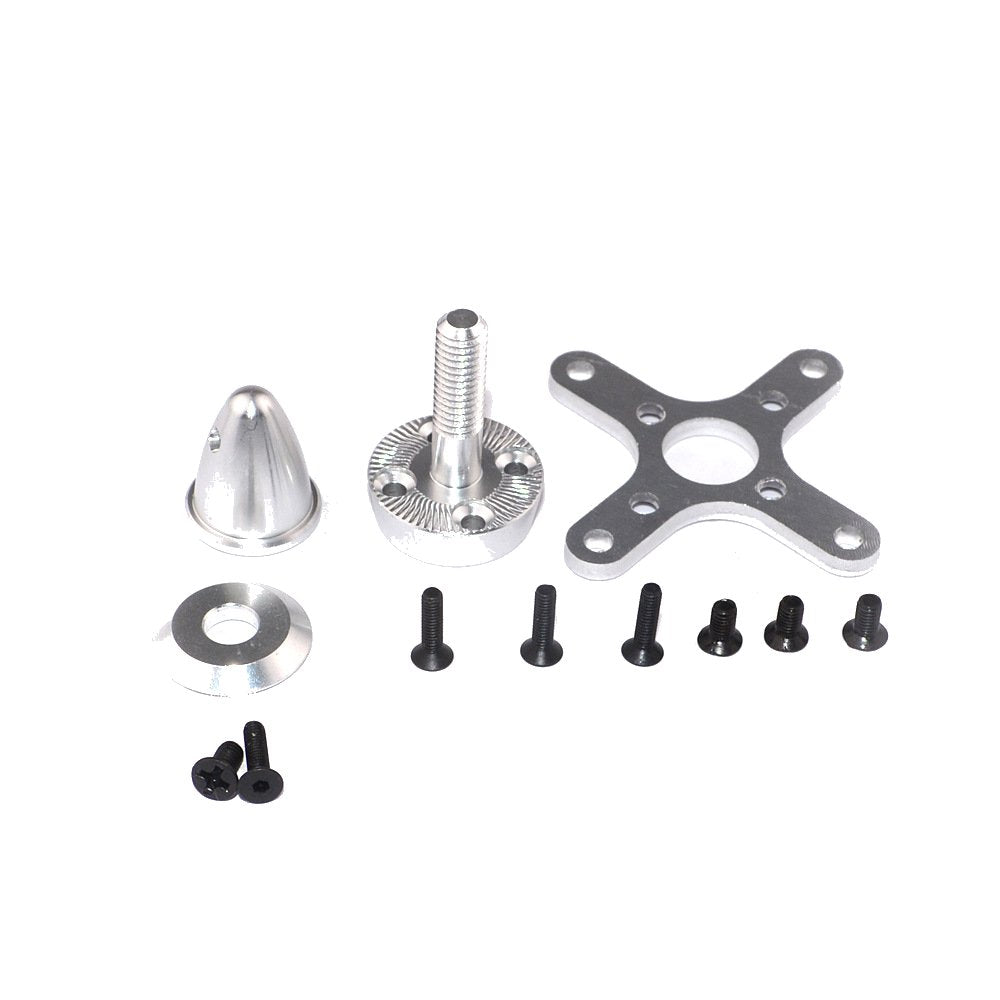

1x Accessories
