DroneSpark

$18.99 $14.99 Sale

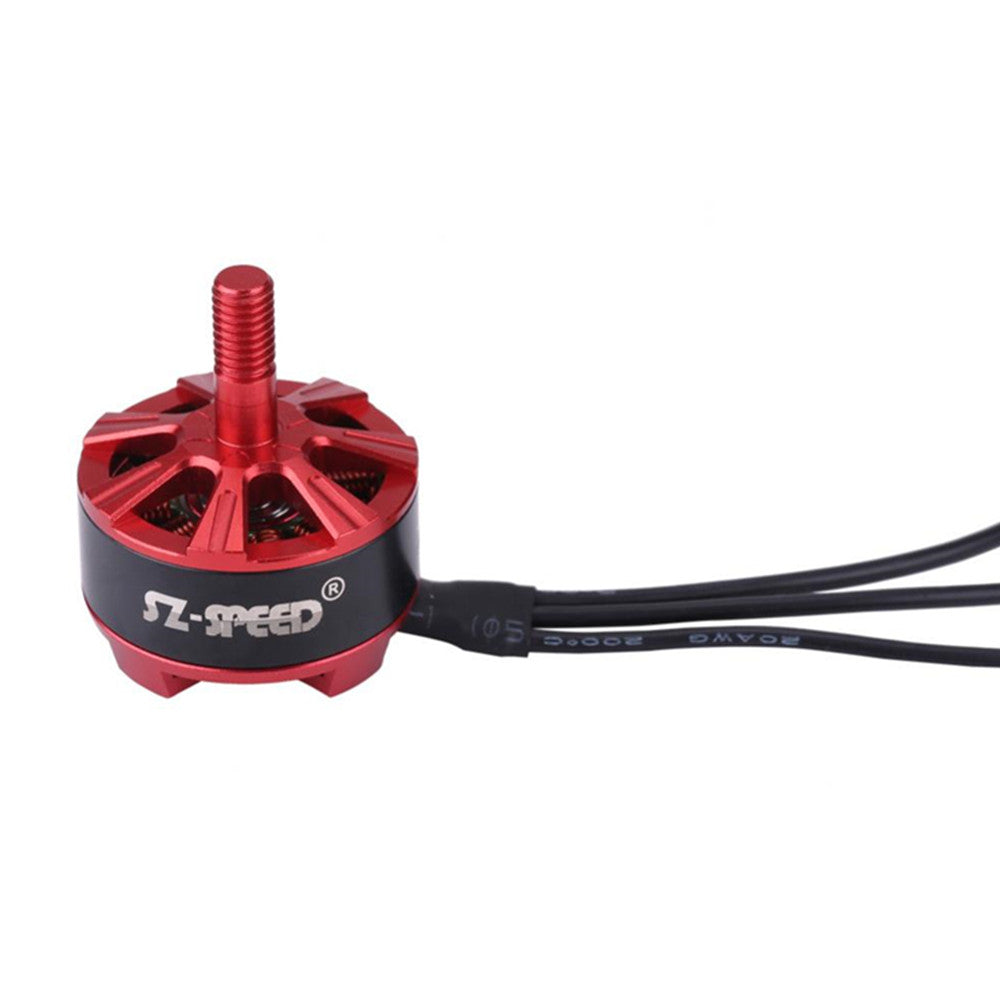

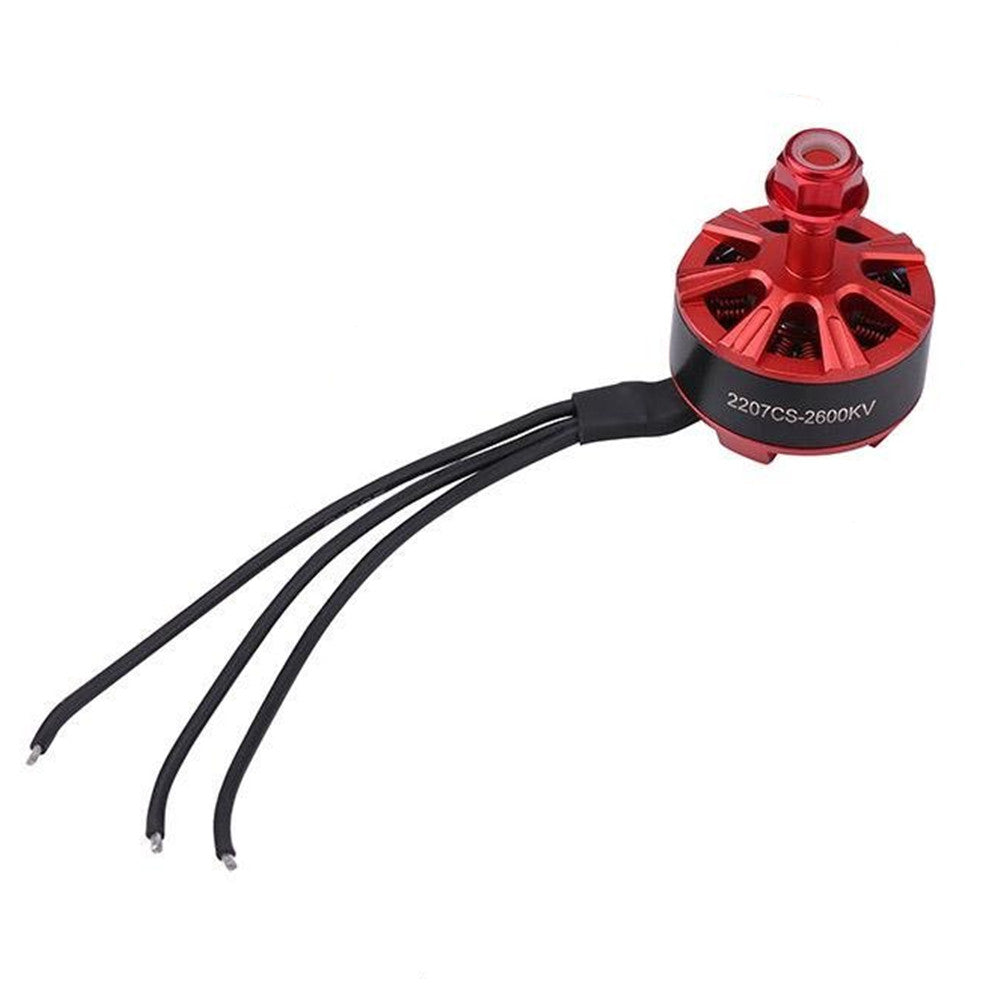

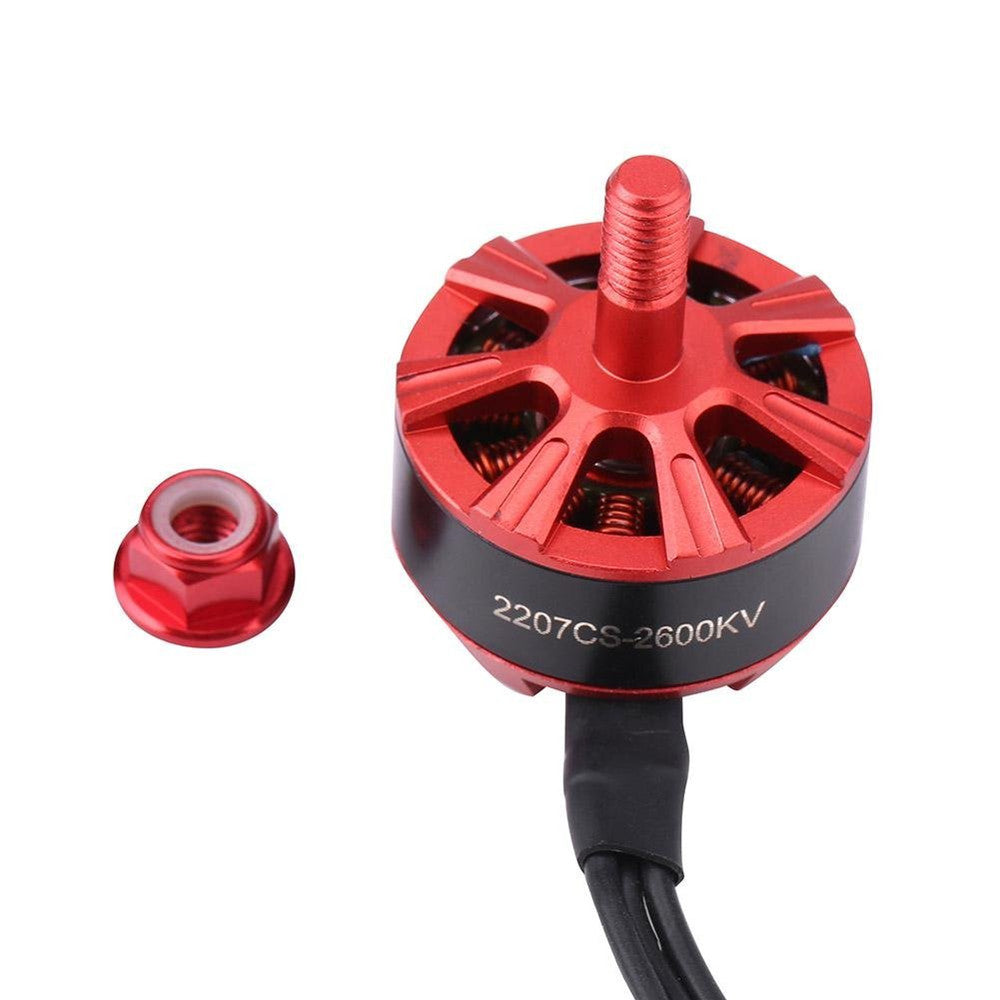

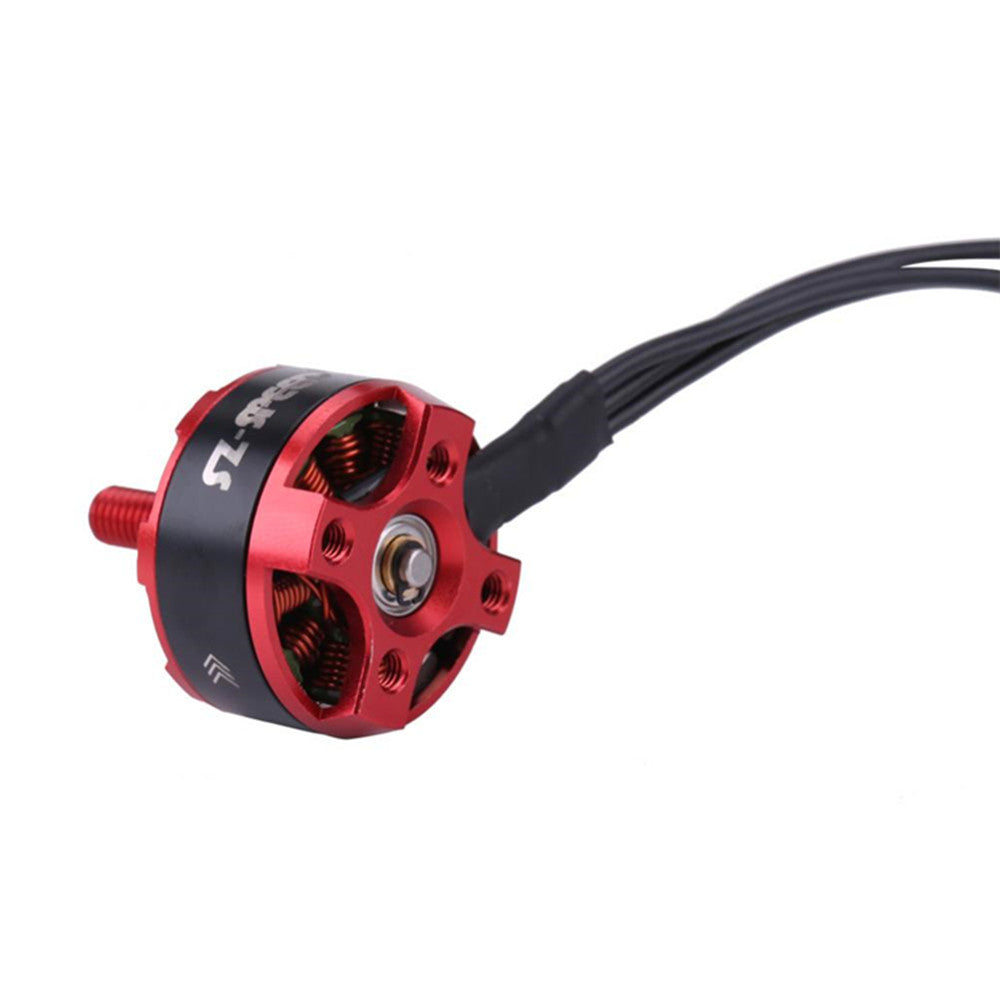

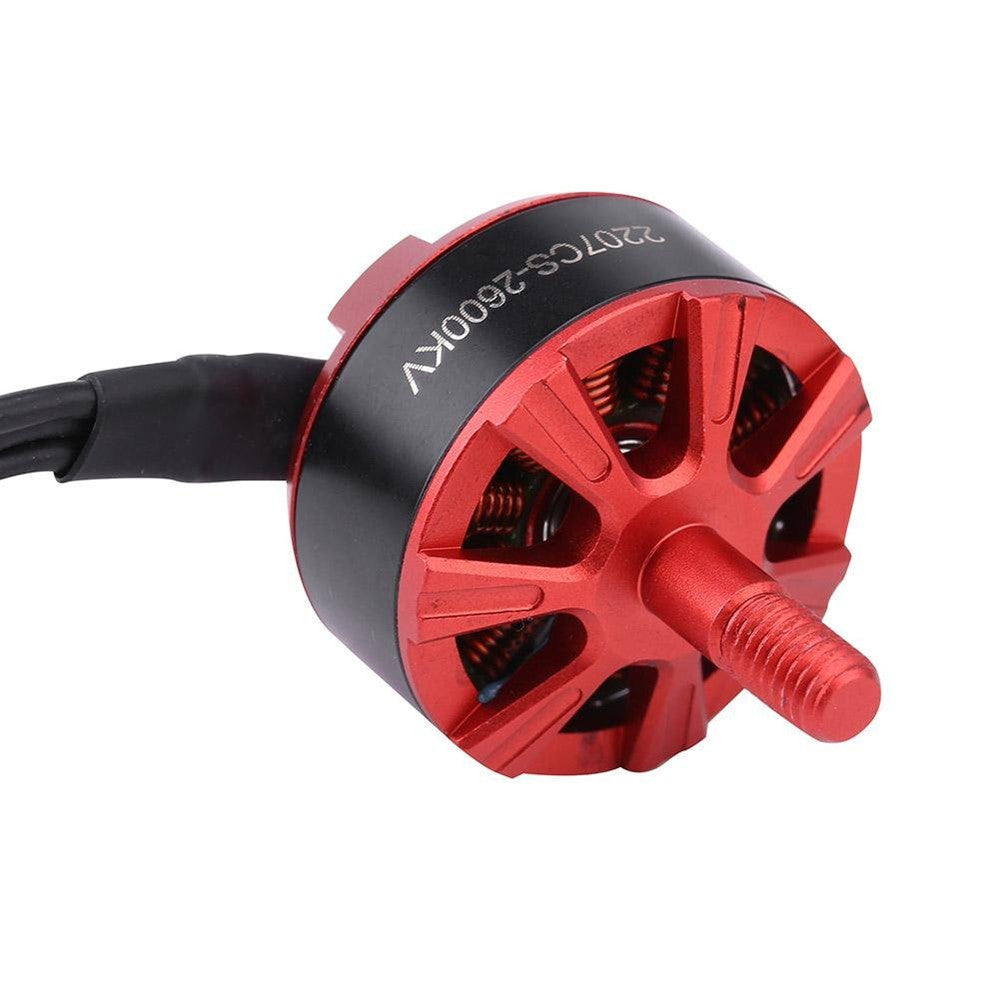

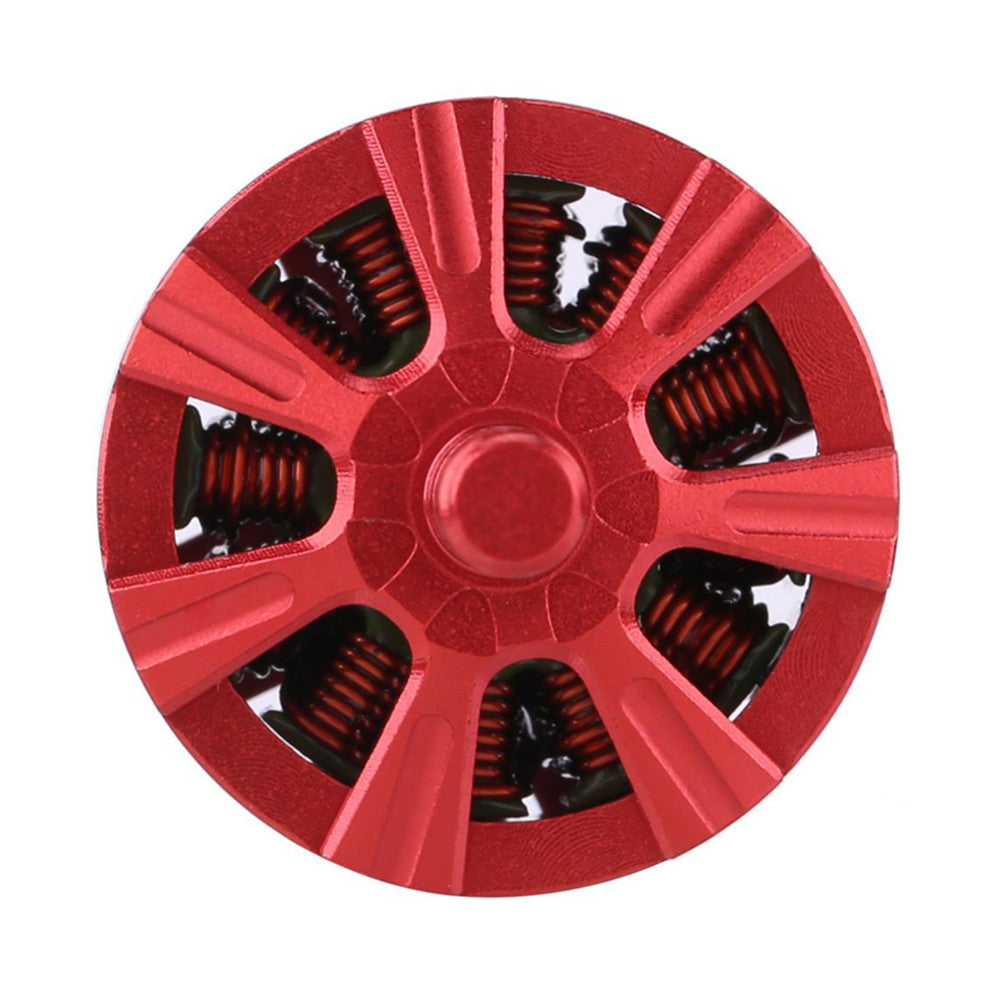

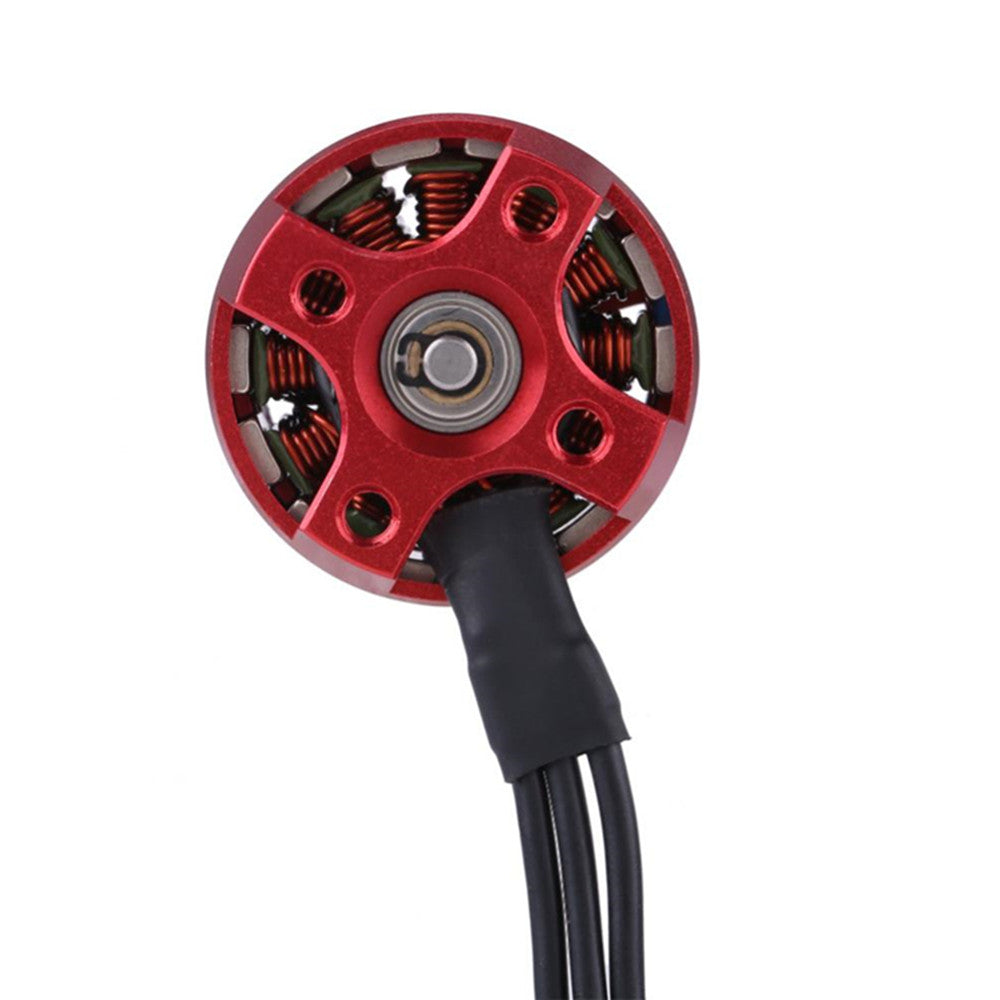

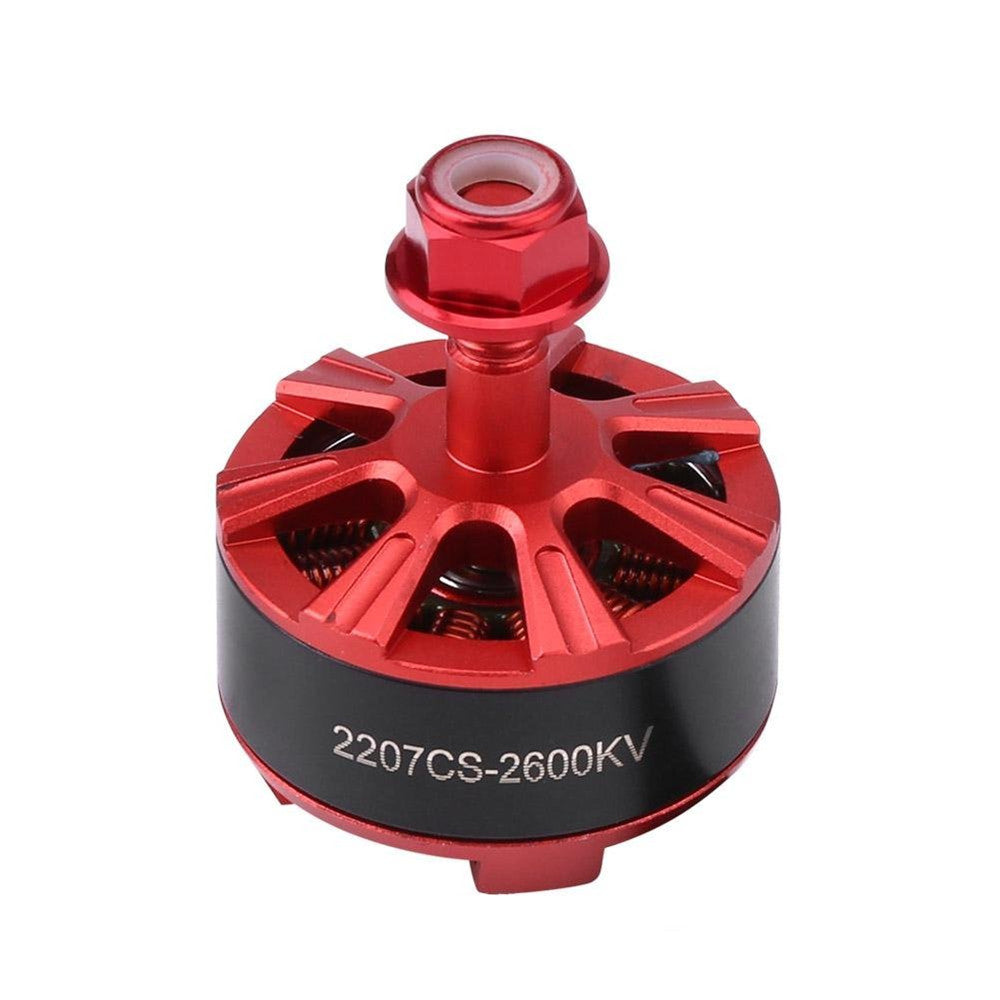

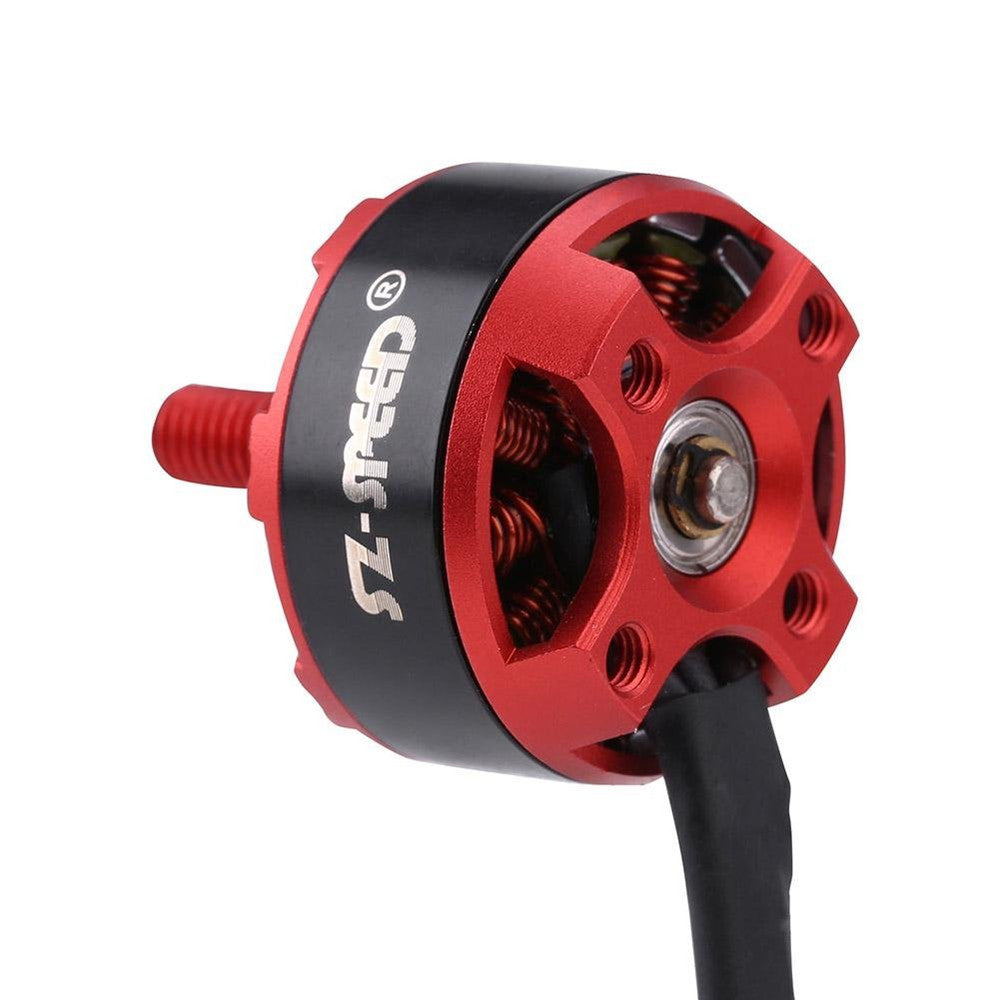

SZ-Speed 2207CS 2207 2600KV 3-4S Brushless Motor CW / CCW for RC Drone FPV Racing

Specification:
Brand Name: SZ-Speed
Model: 2207CS
Item Name: 2207 2600KV 3-4S Brushless Motor
Version: CW Screw Thread / CCW Screw Thread ( Optional)
Configuration: 12N14P
Input Voltage: 3-4S Lipo
KV: 2600KV
Motor Width: 27.2mm
Motor Height: 32.8mm
Shaft Diameter: M5
Propelelr Adapter Shaft Thrad: M3
Weight: 31g
Recommend Propeller: 5 Inch Prop
Max. Thrust: 850g

Testing Table:

Propeller Voltage (V) Current (A) Thrust (g) RPM Power (W) Efficiency (g/W)
5045 2-blade 12 1.1 65  6343  13.2  4.92
5045 2-blade 12 2 115  8370  26.4  4.36
5045 2-blade 12 3 150  9557  36  4.17
5045 2-blade 12 3.9 185 10629  46.8  3.95
5045 2-blade 12 4.9  215  11571  58.8  3.66
5045 2-blade 12 5.9 250  12429  70.8  3.53
5045 2-blade 12 7 280  13517  84  3.33
5045 2-blade 12 7.9 310  13800  94.8  3.27
5045 2-blade 12 8.9 340  14143  106.8  3.18
5045 2-blade 12 10  370  15000  120  3.08
5045 2-blade 12 12.2  430  16286  146.4  2.94
5045 2-blade 12 14.1  475  17126  169.20  2.81
5045 2-blade 12 16.3  540  18244  195.6  2.76
5045 2-blade 12 18.5  585  19016  222  2.64
5045 2-blade 12 21 640  19684  252 2.54
5045 2-blade 12  23.6  690  20546 283.2  2.44
5045 2-blade 12 29 790 22204 348  2.27

Package Included:
1x 2207 2600KV Motor
