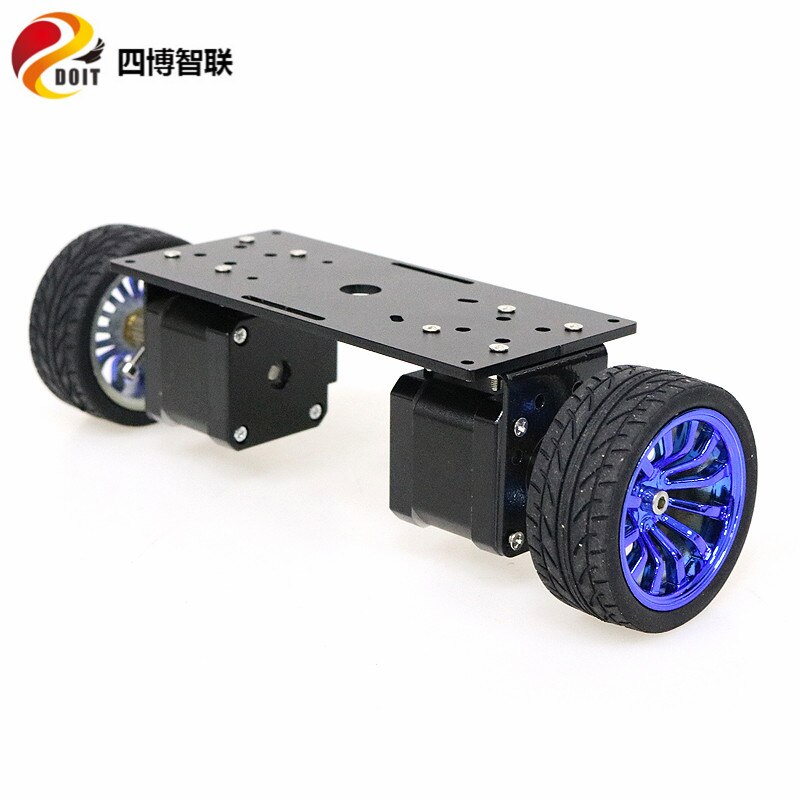

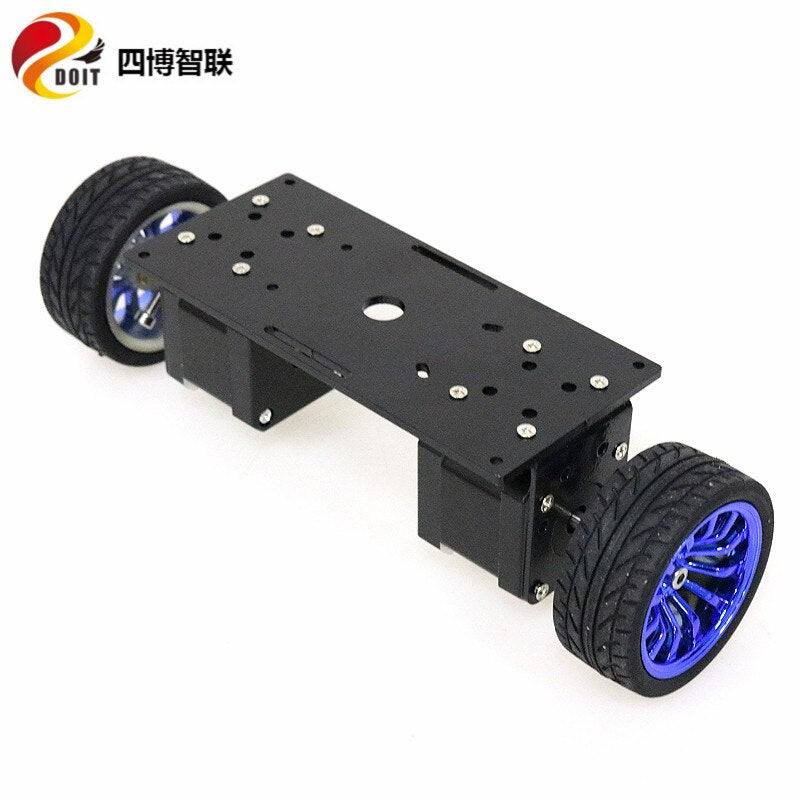

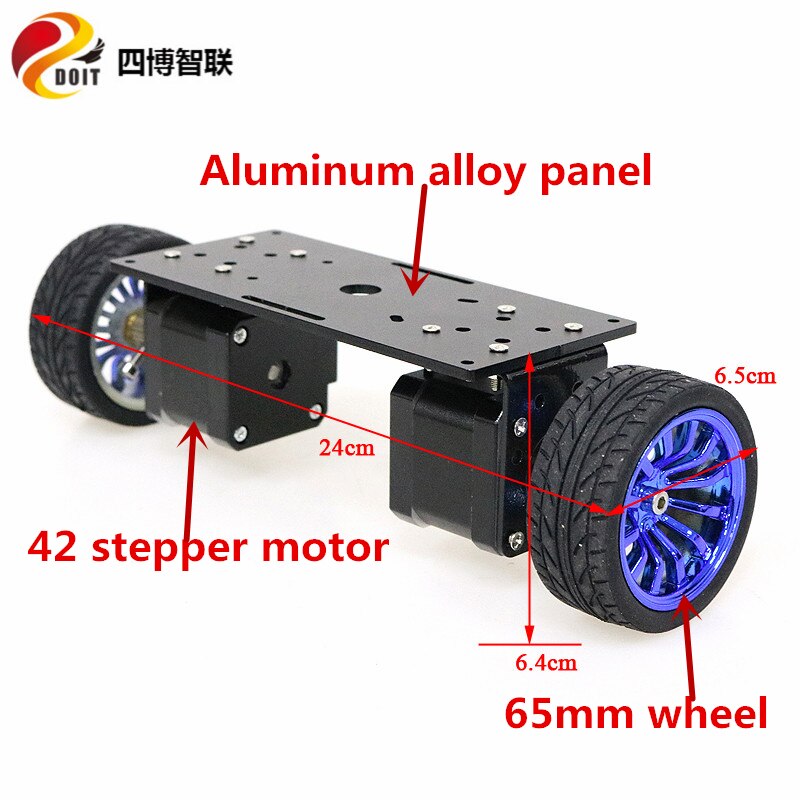

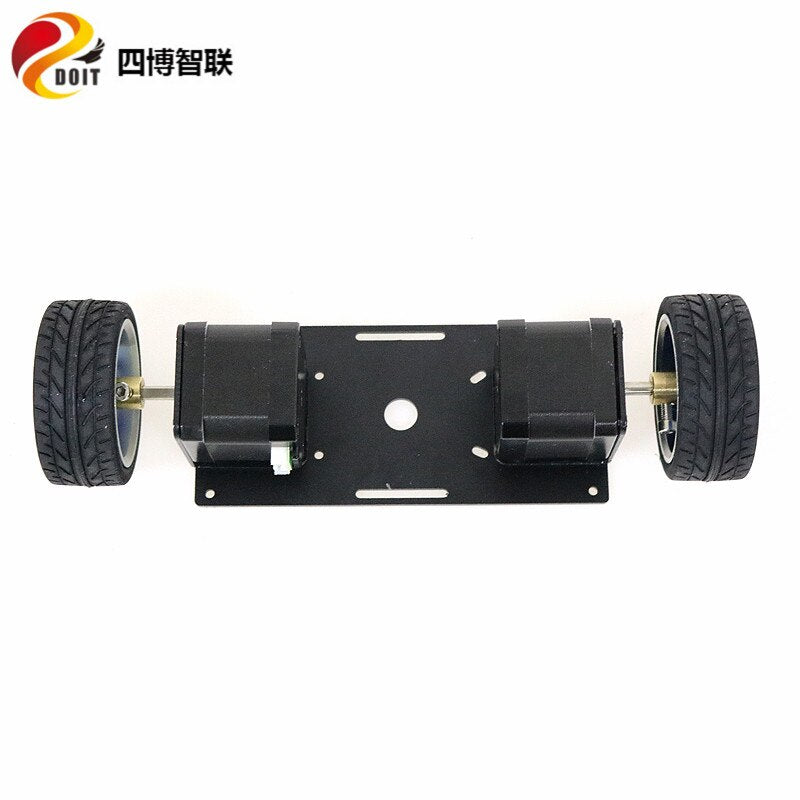

SZDOIT 2WD Metal Balance Smart Car Chassis 2-Wheel Aluminum Alloy Robot Frame 65mm/85mm/130mm Wheel 42 Stepper Motor DIY Toy

42 stepper motor:

• Model: 17HS-C4040
• Body: 40mm
• Shaft length: 23mm
• Shaft diameter: 5mm
• Torque: 0.45N.m
• Current: 1.7A
• Voltage: 12-24V
• Line sequence: ACBD
• Two-phase four-wire
• Line voltage: DC1.6V
• Current: DC1.0A/phase
• Electrical strength: AC600V/1mA/1S

Wheel parameters:

Shipping list:

• 1 × Car chassis
• 2 × motor
• 2 × 65/85/130mm wheel(optional)

Note:

• In order to facilitate transportation, the product is not assembled;
• More documents can be downloaded at wiki.doit.am.
