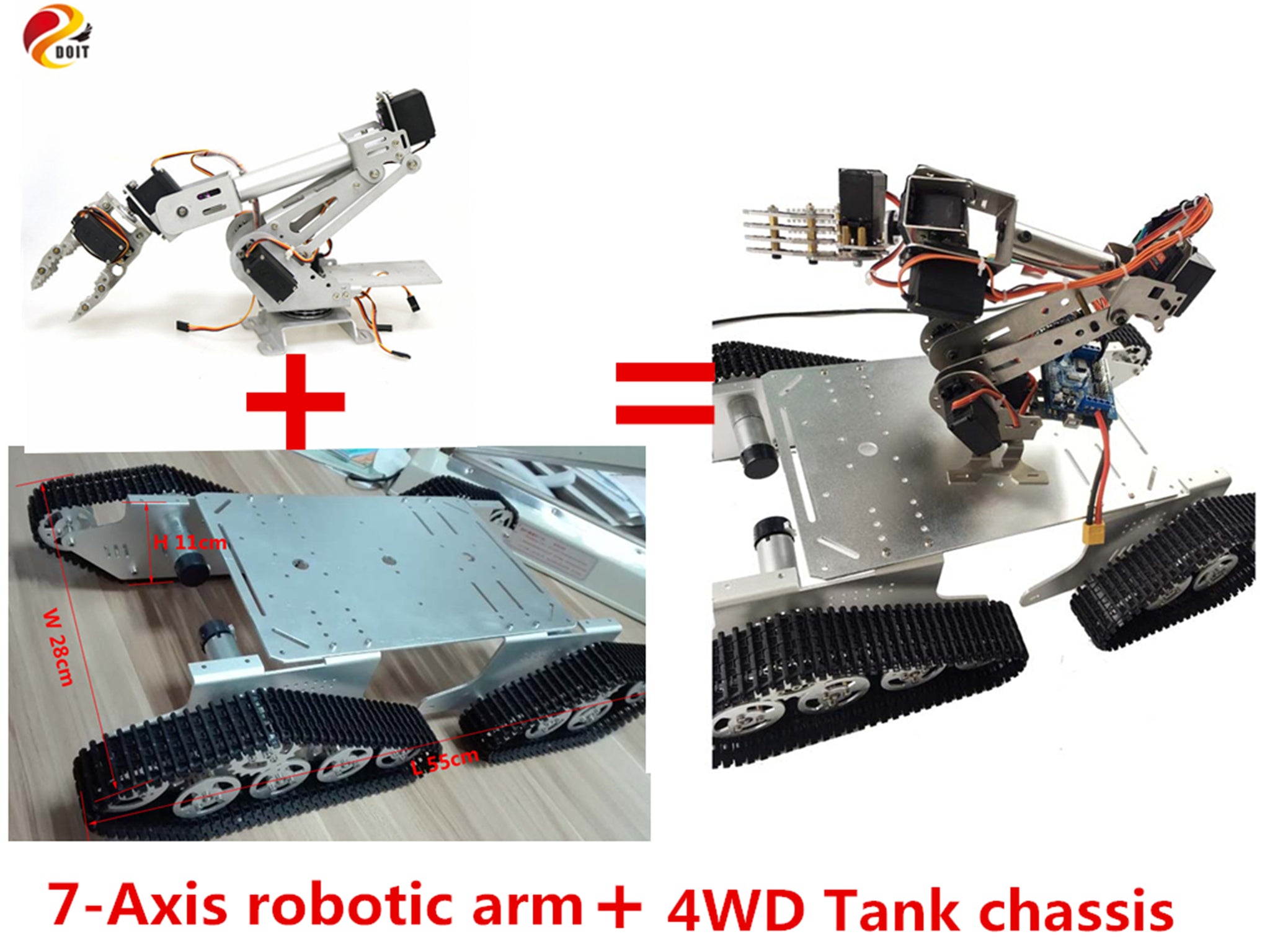

SZDOIT Full Metal 7DOF Vehicle Robot 7-Axis Robotic Arm with Gripper+ 4WD Tracked Tank Chassis Kit Servos Motors DIY for Arduino

Tank chassis parameters:

• Name: T900 intelligent tank chassis
• Material: aluminum alloy
• Surface treatment: sandblasting oxidation
• Color: silver
• Track: engineering plastics
• Size: about 550*280*110mm (length * width * height)
• Weight: 3.8kg

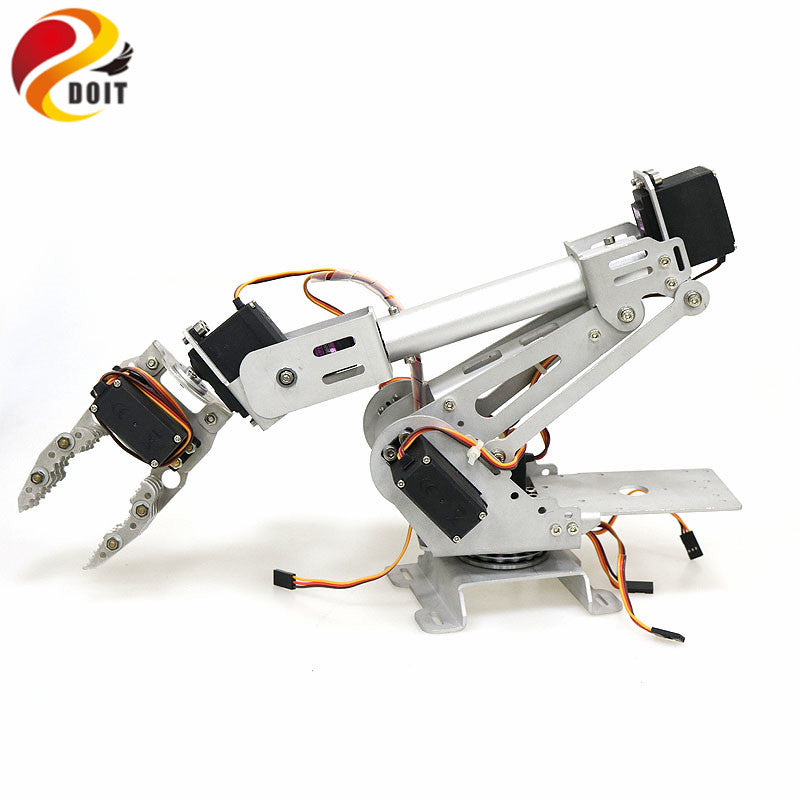

7-axis robotic arm parameters:

• Full metal robotic arm
• Servo: MG996R metal servo
• Shipment will send the latest version of the robot arm

G6 gripper parameters:

• Material: hard aluminum alloy
• Weight: about 40g
• Maximum angular separation: 86mm
• Overall length: 83mm (the overall longest length when the paw is closed)
• Overall width ①:150mm (maximum overall width when the paw is open)
• Overall width ②:55mm (maximum overall width when the paw is closed)
• Overall thickness: 54mm (maximum overall thickness with servo paws)

MG996R servo parameters:

• Name: MG996R
• Net weight: 55 g
• Size: 40.7*19.7*42.9 mm
• Pulling force: 9.4 kg/cm (4.8 V), 11 kg/cm (6 V)
• Reaction rate: 0.17 sec / 60 degree (4.8 V ), 0.14 sec / 60 degree (6 V)
• Working voltage: 4.8-7.2 V
• Working temperature: 0°C-55°C
• Gear form: metal gear
• Working dead zone: 5 us (microseconds)

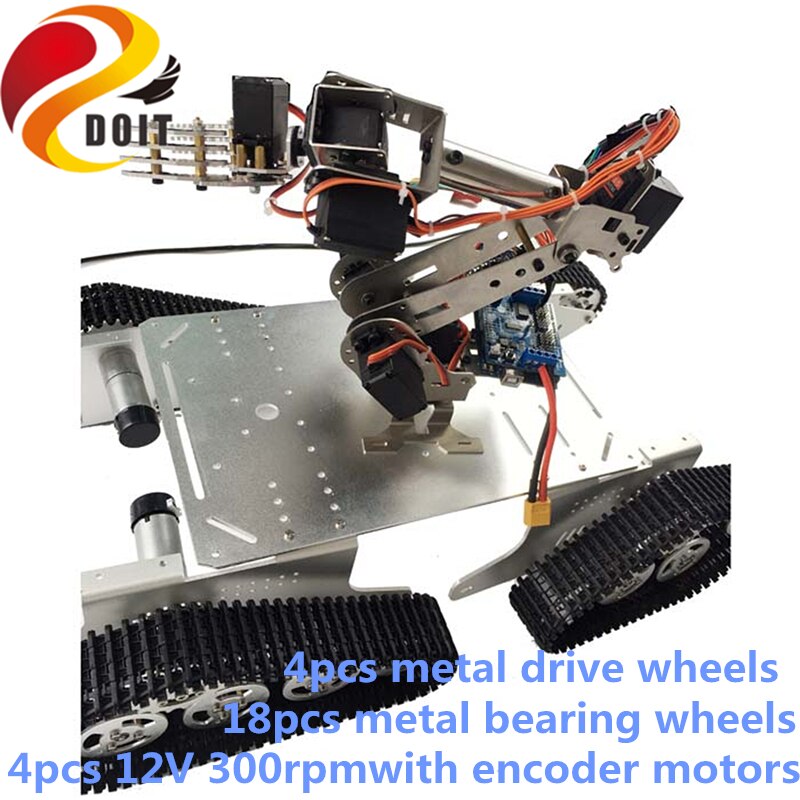

Shipping list:

• 1 × T900 tank chassis
• 4 × 12V 300rpm with encoder motor
• 18 × Metal bearing wheel
• 4 × Metal drive wheel
• 1 × 7-axis robotic arm bracket kit
• 1 × G6 gripper
• 7 × MG996R servo

Note:

• Product does not contain battery and control kit.
• In order to facilitate transportation, the product is not assembled. But it is very easy to install.
• More documents can be downloaded at wiki.doit.am.
