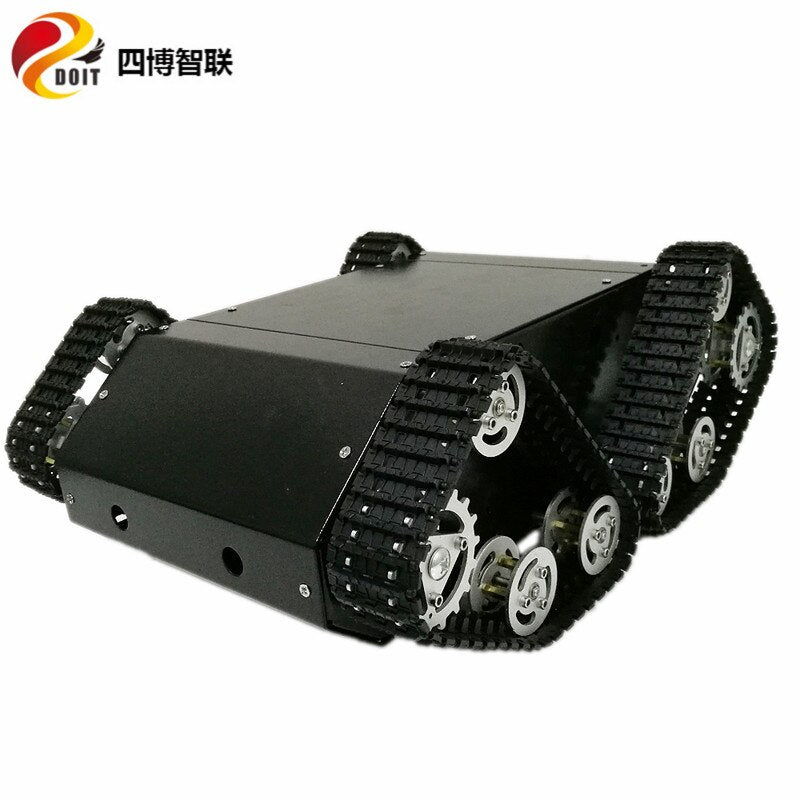

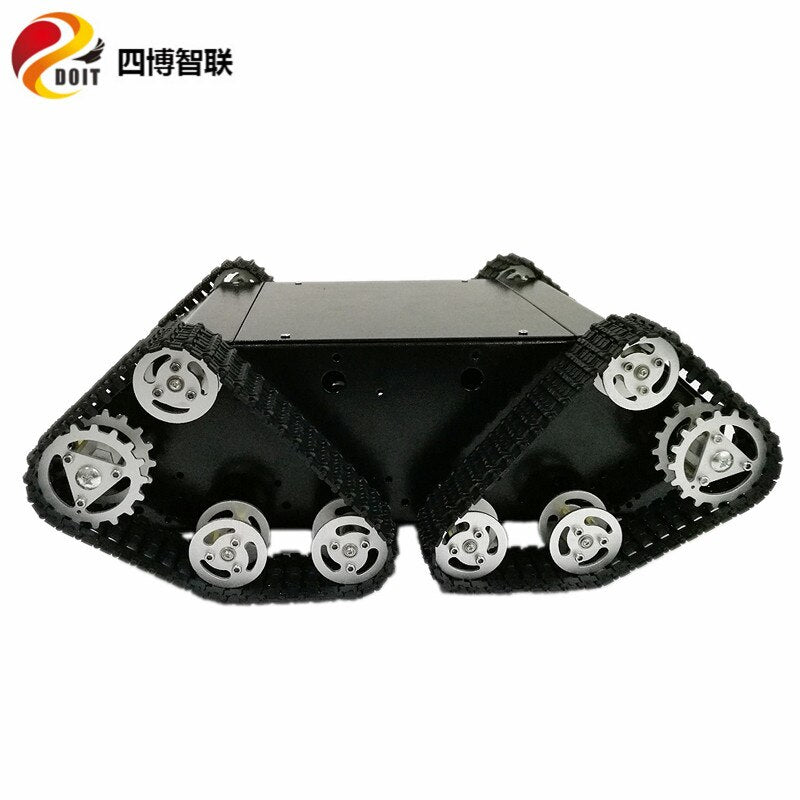

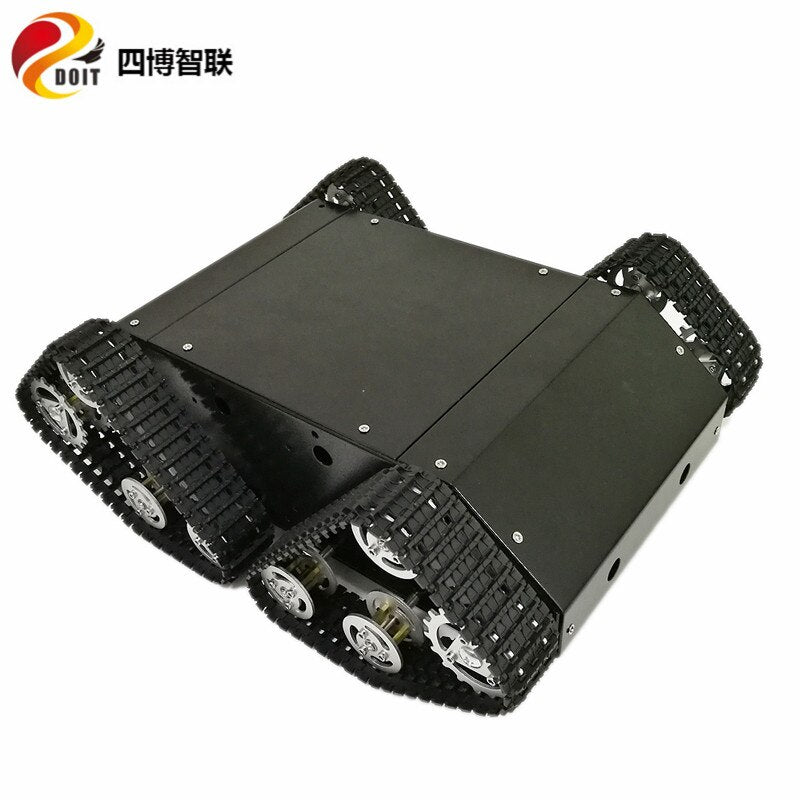

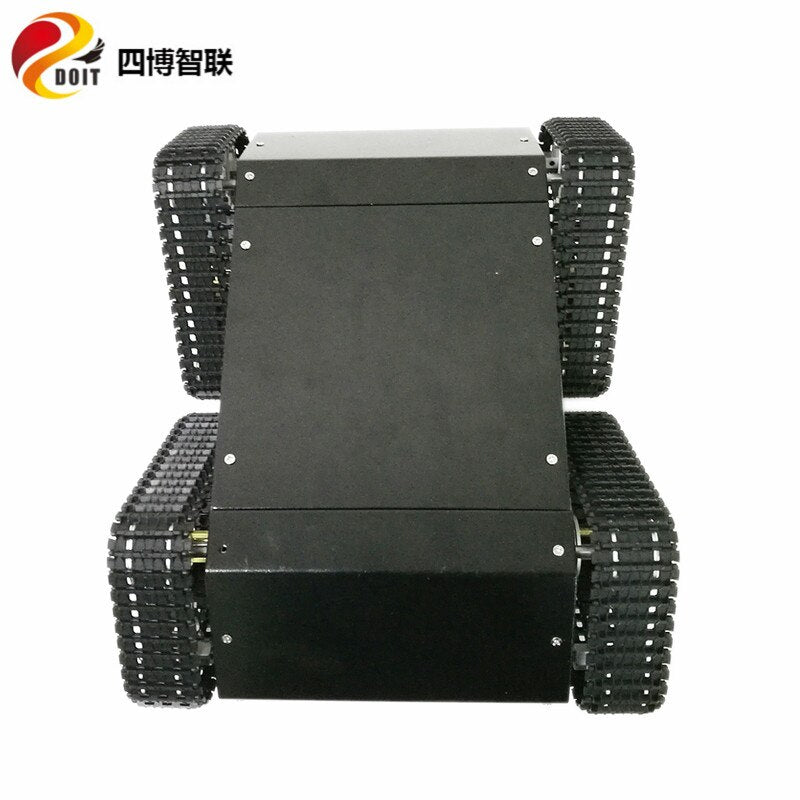

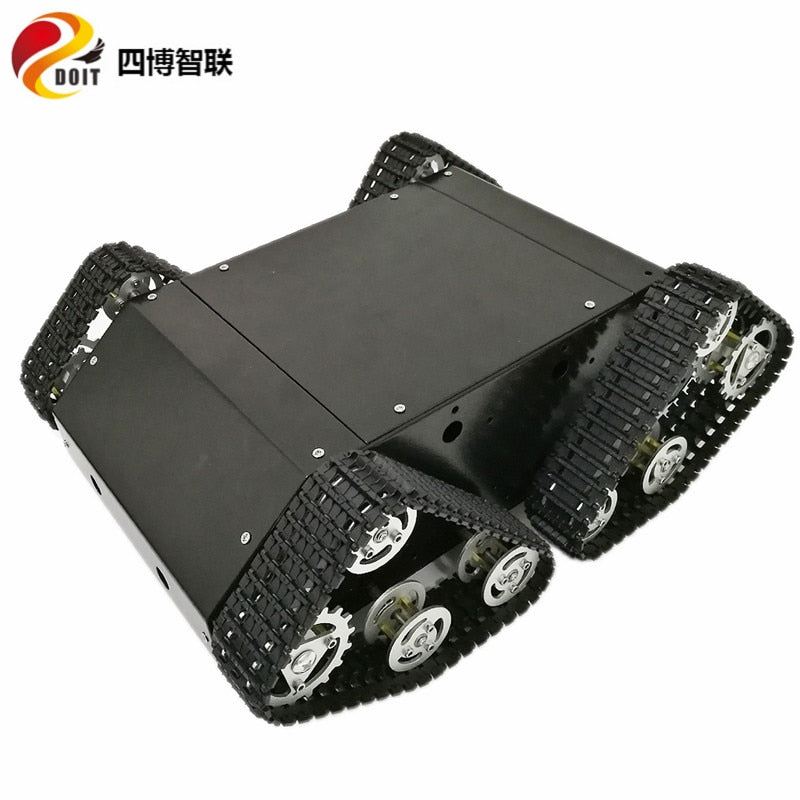

SZDOIT Heavy Load Metal 4WD Tracked Smart Robot Tank Car Chassis Kit Shock Absorbing Crawler Robotic Platform High Torque Motor

VT100 tank chassis parameters:

• Name: VT-100 intelligent tank chassis
• Weight: 3.93kg
• Size: 360 × 276 × 135mm (length × width × height)
• Chassis material: steel
• Wheel material: aluminum alloy
• Track material: shock absorption plastic

37mm motor parameters:

• Model: XD-37GB520
• Size: 37*58mm
• Voltage: DC12/24V
• Speed: 5-800rpm
• Current: 0.5A
• Power: 10W
• Motor size: 37*58mm
• Outer shaft size: 6*15mm
• Small size, large torque, slow speed
• Speed control, positive and negative

TC-03 shock absorbing track:

• Type: shock absorption series
• Material: engineering plastics
• Colour: Black
• Size: about 79cm * 4.5cm (length * width), about 100 knots
• Note: The track is detachable and requires a multimeter pen tip or other pointed tool.

Load-bearing wheel:

• Type: shock absorption series
• Material: aluminum alloy
• Color: gold / silver
• Size: about 21 (distance between 2 wheels) * 37 (diameter) * 42 (coupling) mm

Drive wheel:

• Type: shock absorption series
• Material: aluminum alloy
• Color: gold / silver
• Size: about 20 (distance between 2 wheels) * 43 (diameter) mm

Shipping list:

• 1 × VT100 tank chassis bracket kit (with 37mm motors)

Note:

• In order to facilitate transportation, the product is not assembled;
• More documents can be downloaded at wiki.doit.am.
