Features:

  • The body is made of aluminum alloy, which is durable and resistant to deformation;
  • Double frame, large space, large load;
  • Balanced and easy to drive on uneven roads;
  • Equipped with 2 pcs  motor, it has large horsepower, heavy load and fast driving speed.

尺寸单层尺寸

37mm motor with encoder:

  • Name: 37GB-520
  • Rated voltage: 12V
  • Rated power: 4.8W
  • Motor type: permanent magnet brush
  • Stall current: 2.8A
  • Blocking torque: 10kgf.cm
  • Rated current: 360mA
  • Rated torque: 1.0kgf.cm
  • Original speed: 11000rpm
  • Reduction ratio: 1:30
  • Number of pulses: 660
  • Single phase: 330
  • Type: AB phase incremental Hall encoder

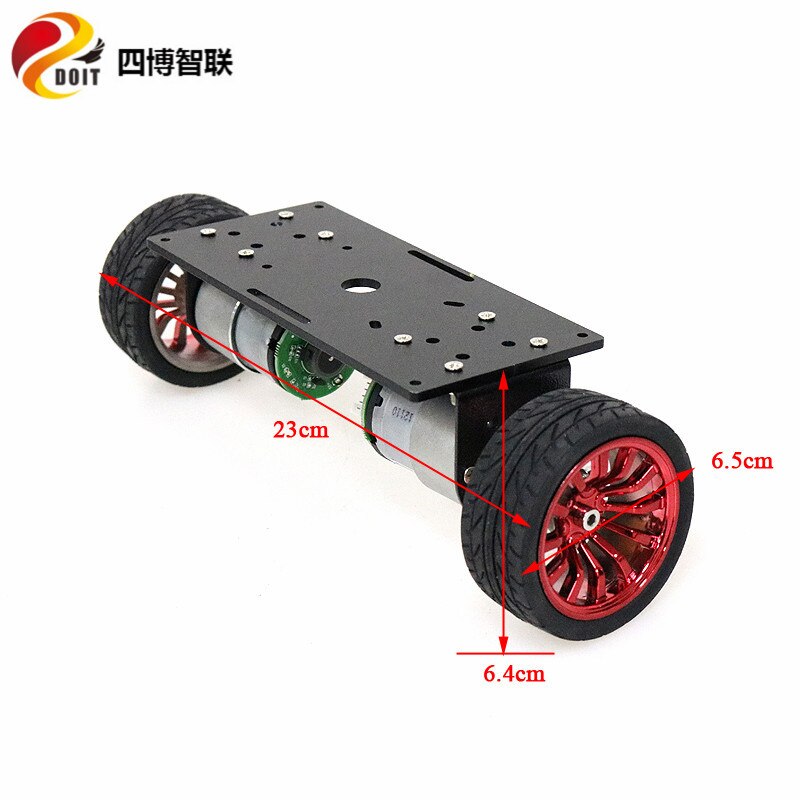

Wheel parameters:

65mm85mm130mm

Shipping List:

  • 1 × car chassis bracket kit
  • 2 × DC motor
  • 2 × wheel

Note:

  • In order to facilitate transportation, the product is not assembled;
  • More documents can be downloaded at wiki.doit.am.

A1A2A3
