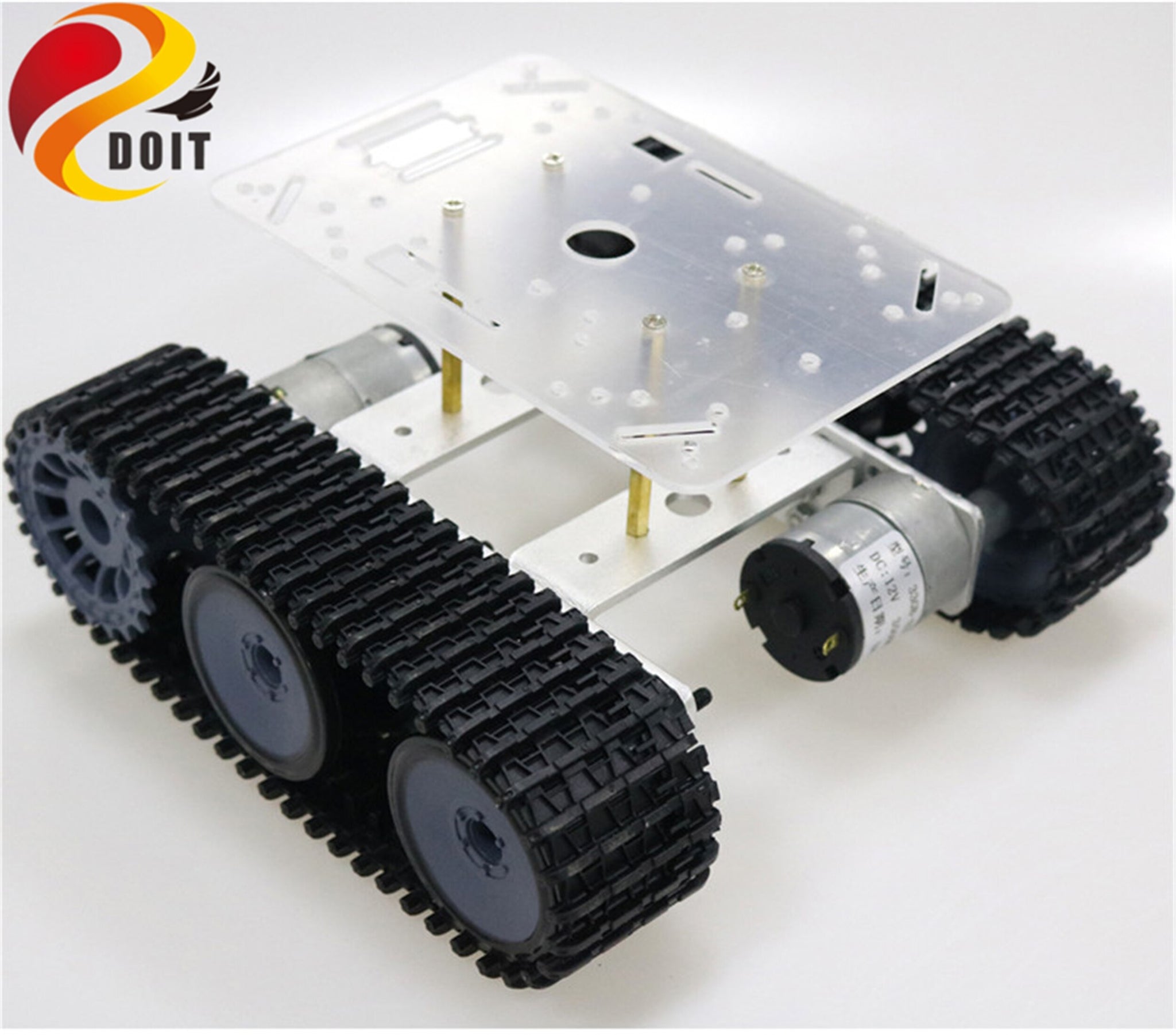

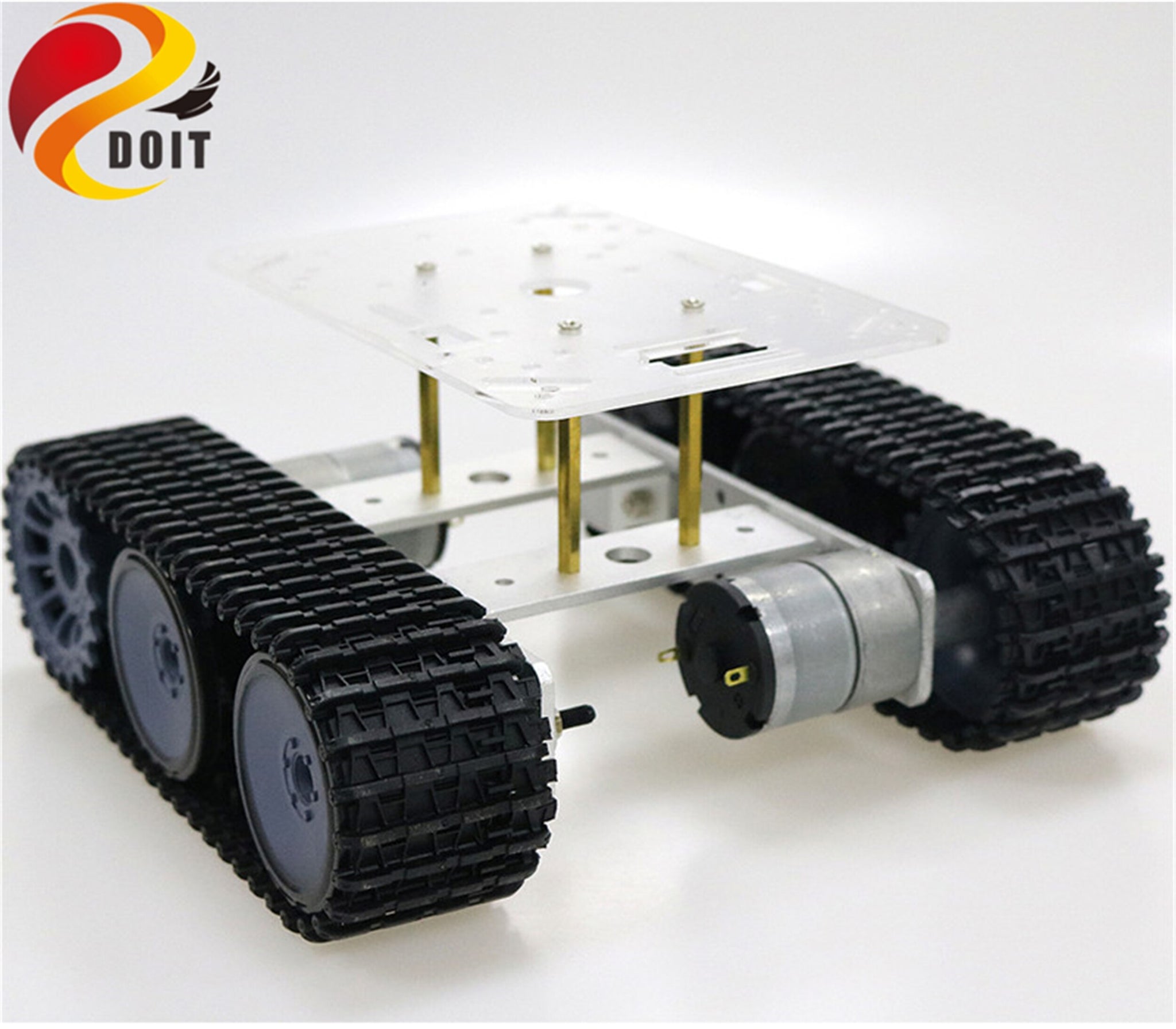

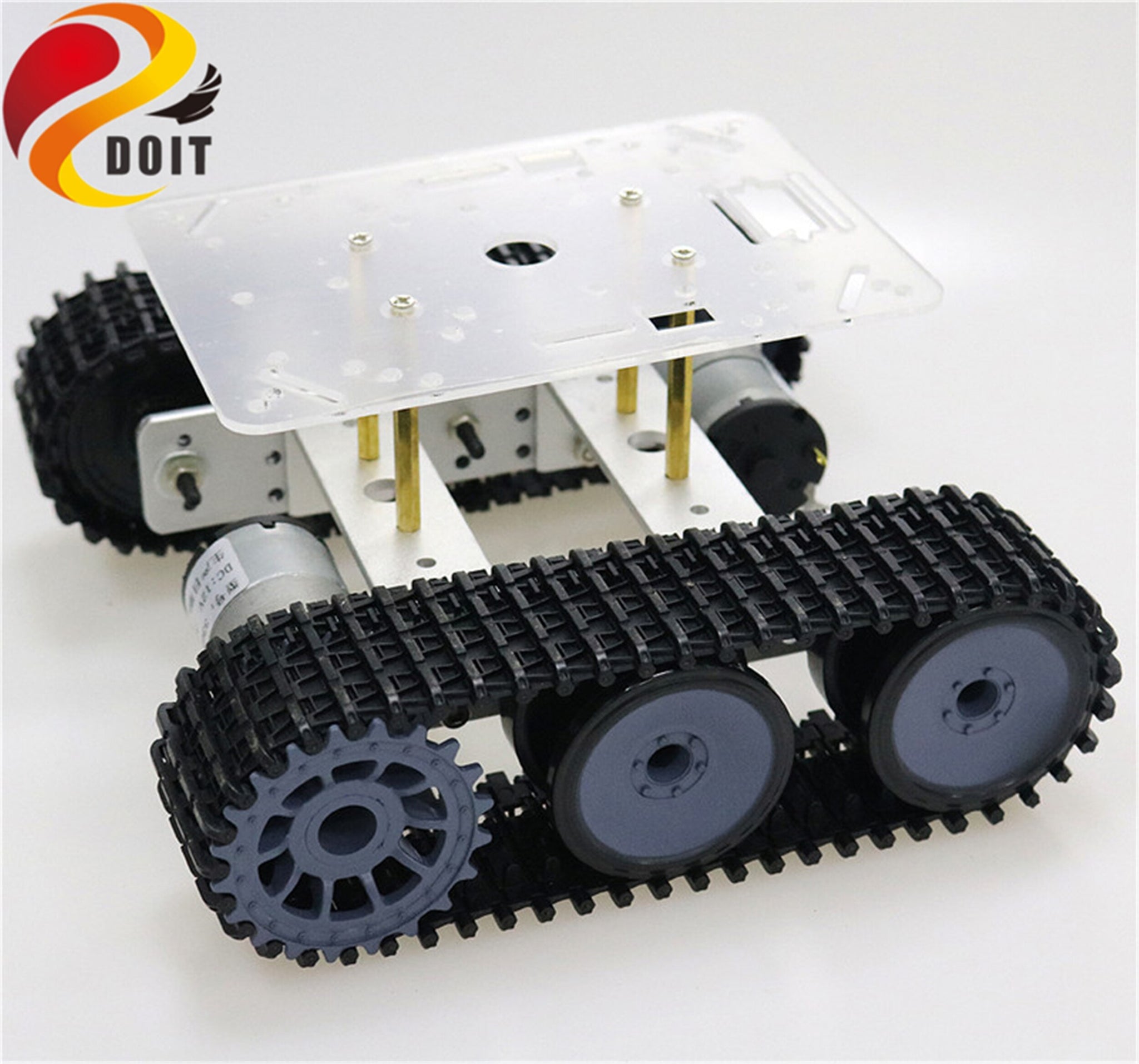

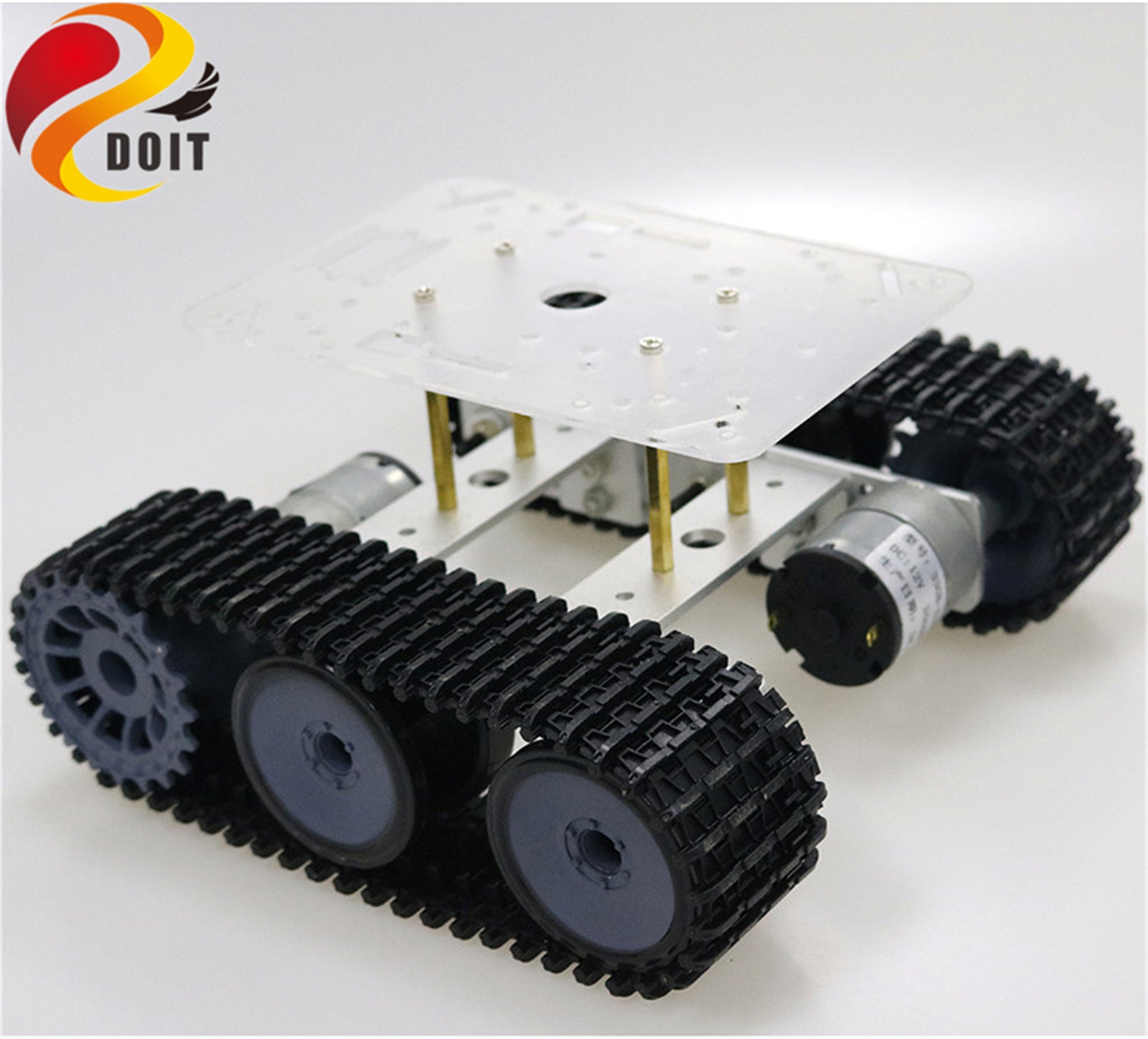

SZDOIT Metal Smart Mini TP100 Crawler Robot Tank Chassis Kit With 2pcs DC Motor DIY For Arduino Education Toy Free Acrylic Panel

Features:

• The tank chassis is made of aluminum alloy and is very durable;
• The acrylic panel is presented, and ample space is reserved for the sensor to install the control kit;
• Small size, large load, easy to install;
• Equipped with 2pcs high-torque DC motors, the chassis moves smoothly, forward, backward, left, and right.

Tank chassis parameters:

• Name: Mini TP100 Tracked Tank Chassis
• Material: aluminum alloy
• Surface: sandblasting oxidation
• Color: gold, silver, black (optional)
• Track: engineering plastics
• Wheel: plastic

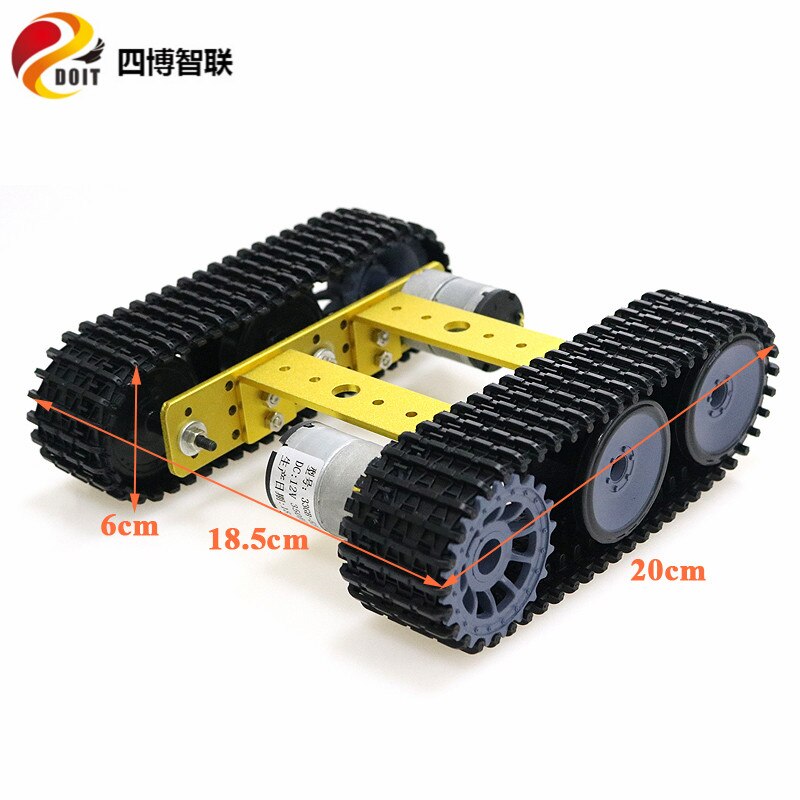

• Size: about 200*185*60mm (length * width * height)
• Weight: 0.65kg
• Design load: 5KG

Motor parameters:

33GB-520 motor:

• Rated voltage: DC12V
• No-load current: 100mA
• Suitable voltage: 6-12V
• No-load speed: 170-350rpm
• Weight: 100g

25GA-370  motor (9V 150rpm with encoder motor):

• Working voltage: 9V
• Output rate: 150±10% rpm
• Load current: 200mA (Max)
• Stall current: 4500 mA (max)
• Stalling torque: 9.5kg NaN
• Load speed: 100±10% rpm
• Load torque: 3000gNaN
• Load current: 1200mA (Max)
• Encode parameters: 2 pulses / circle
• Sensor operating voltage: 3-5V

25GA-310 motor (12V 300rpm with encoder motor):

• Model: 25GA-310
• Voltage: 12V
• Speed: 300rpm
• No-load current: 220mA
• Load torque:  0.6kg.cm current 500mA
• Power: 1.6W
• Blocking torque: 2kg.cm current 2A
• Shaft diameter: 4mm
• Number of pulses: 300
• Single phase: 150

Shipping list:

• 1 × Tank chassis
• 2 × DC motor

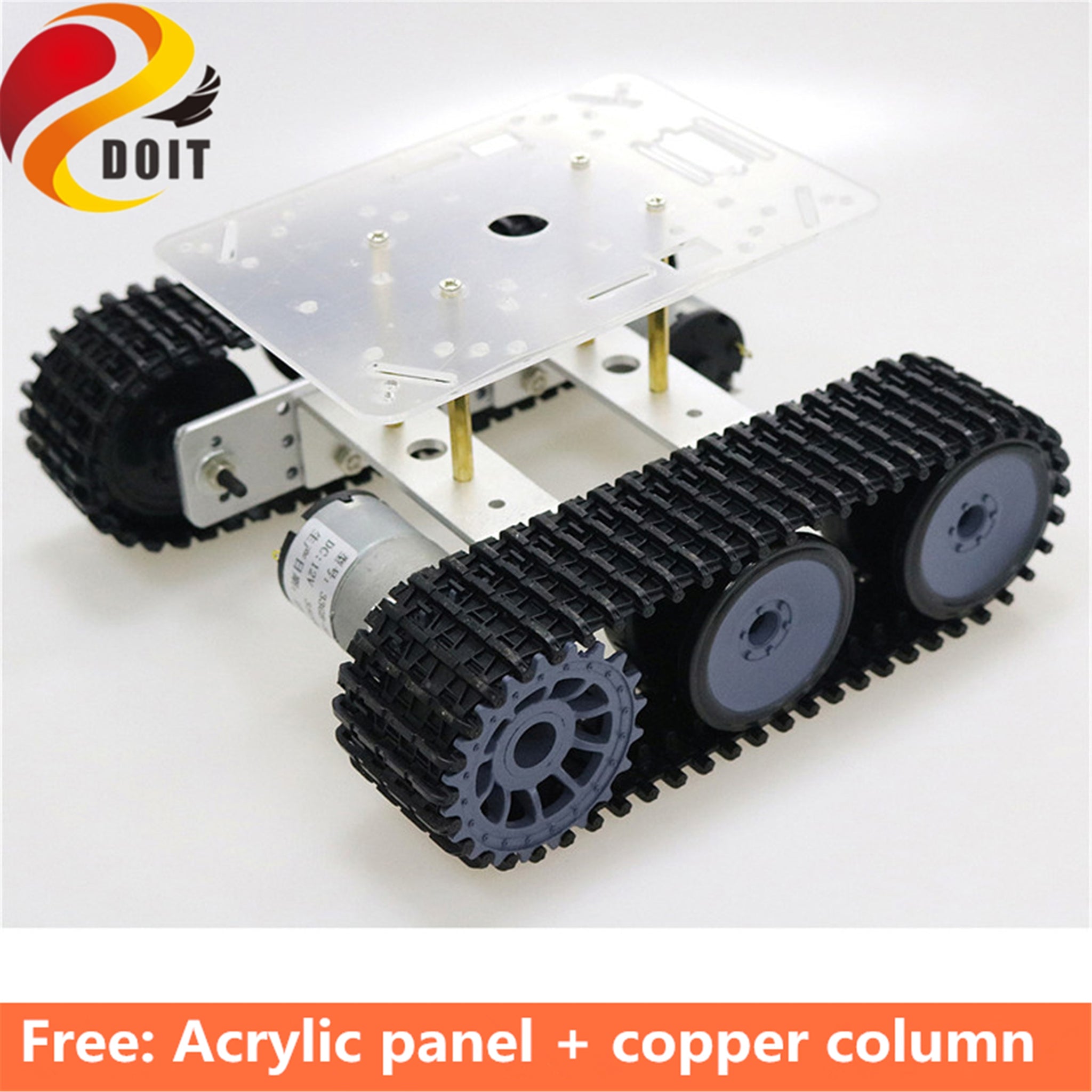

• Free: Acrylic panel + copper column

Note:

• In order to facilitate transportation, the product is not assembled;
• More documents can be downloaded at wiki.doit.am.
• The default silver tank chassis, if you need a black / gold chassis, please specify when placing the order.
