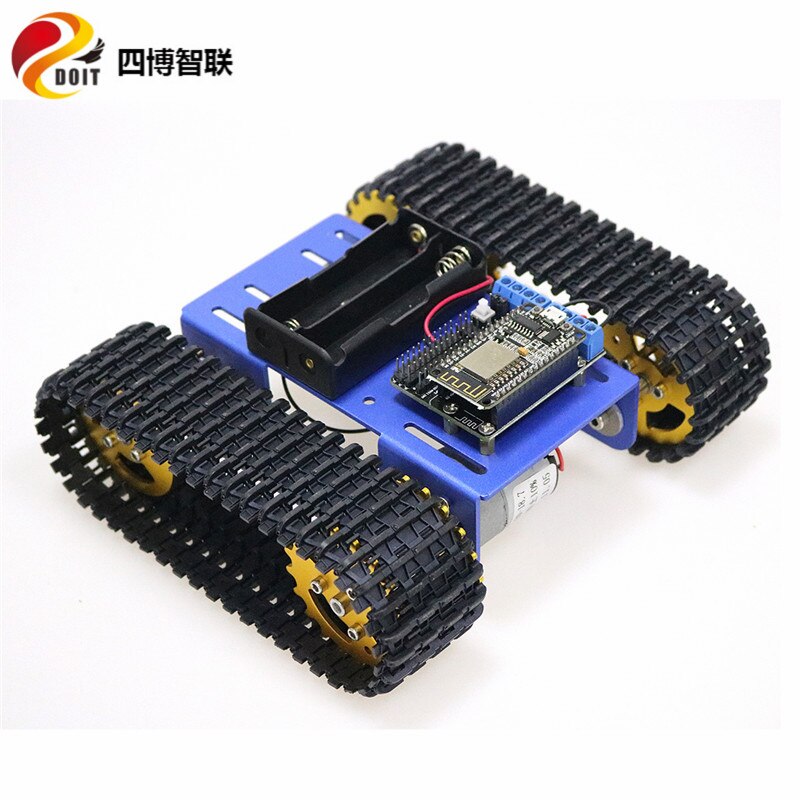

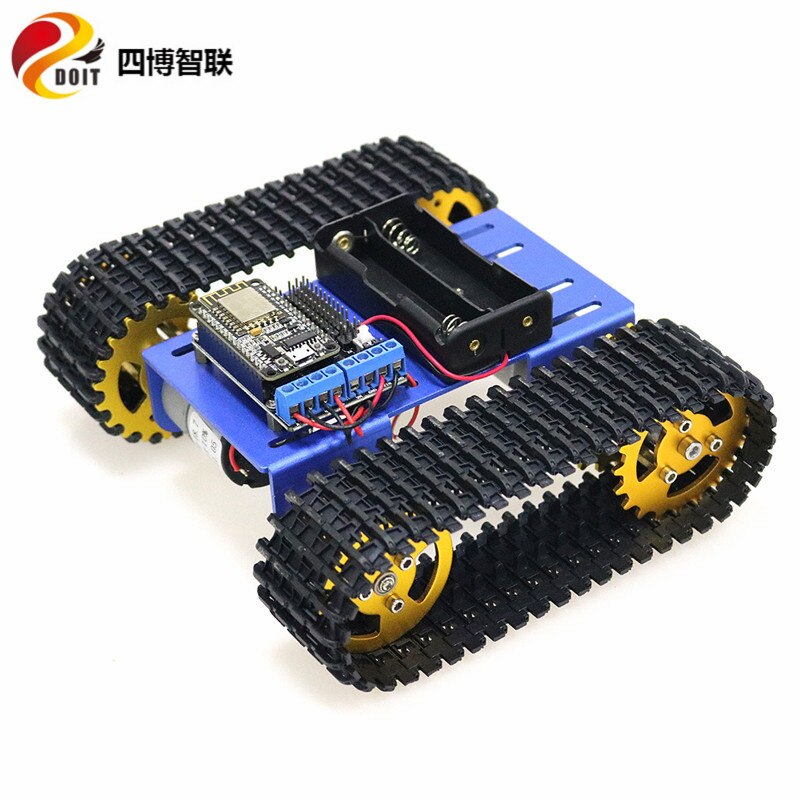

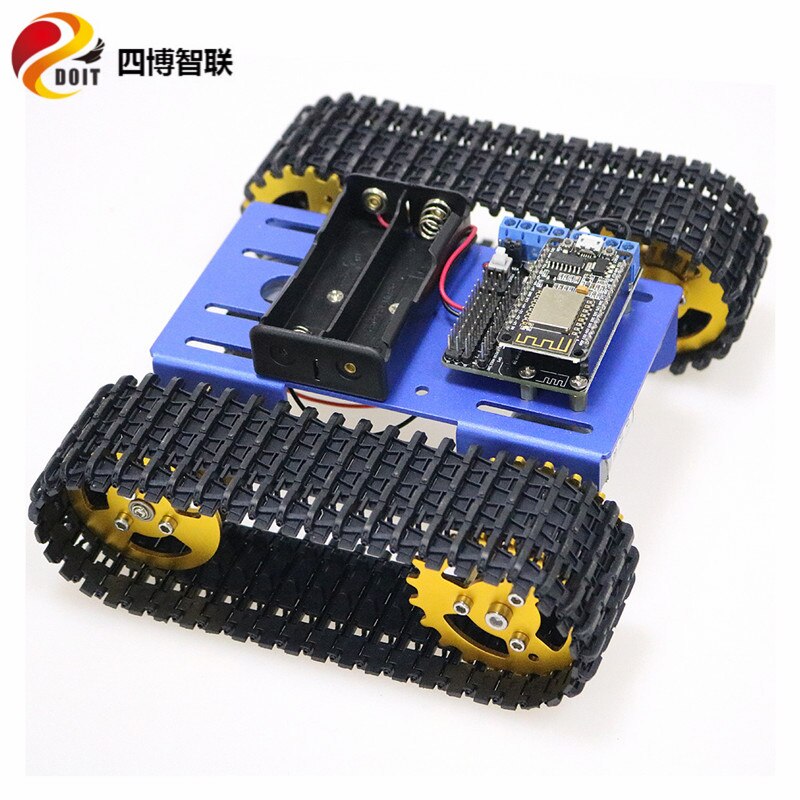

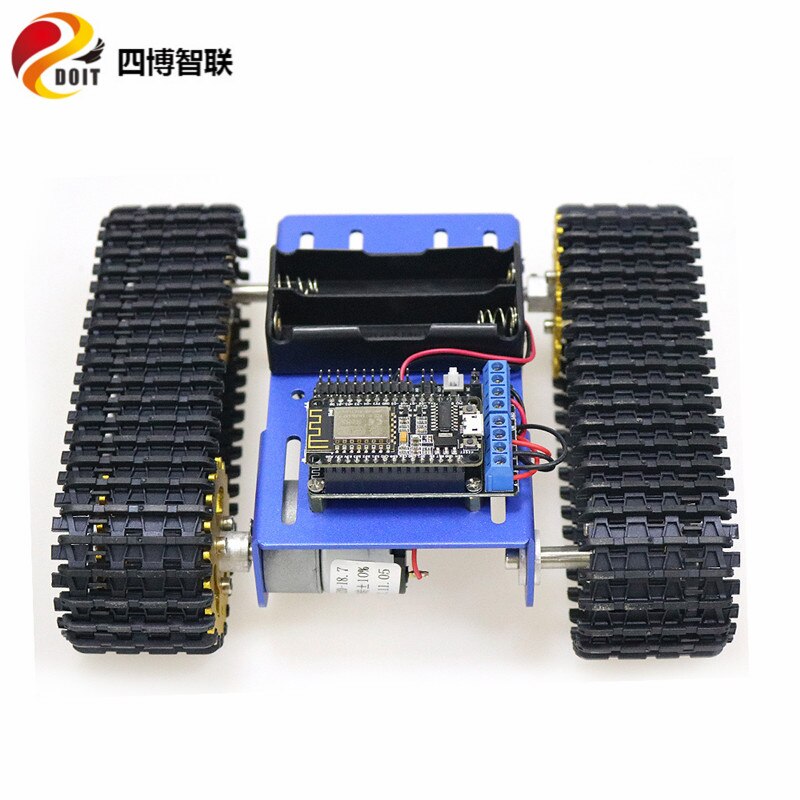

SZDOIT NodeMCU Control T101 Metal RC Robot Tank Chassis Kit WIFI Control Tracked Vehicle 12V High Torque Motors DIY for Android

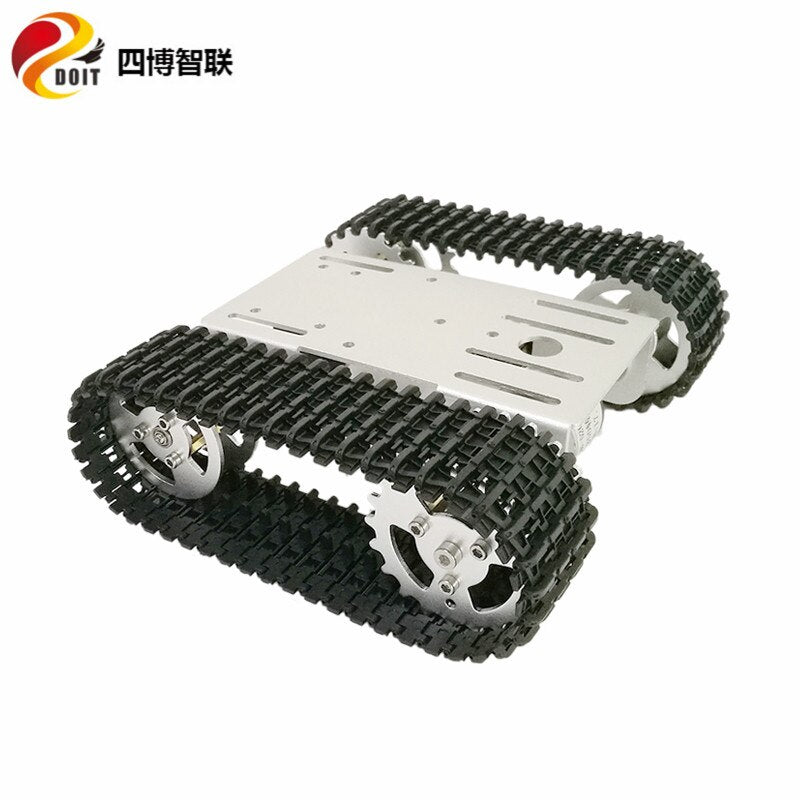

T101 tank chassis parameters:

• Model: T101 smart tank chassis
• Size: 19*16.5*5.7cm (length * width * height)
• Net weight: 0.53kg
• Panel material: 2mm aluminum alloy
• Surface treatment: sandblasting oxidation
• Track: engineering plastic
• Wheel: aluminum alloy

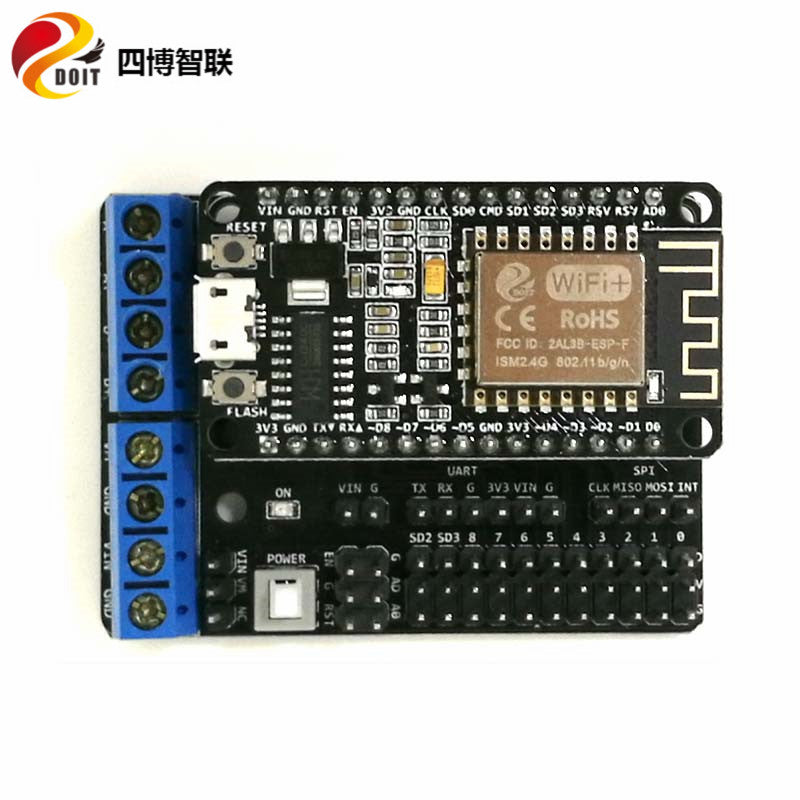

NodeMCU control kit:

• Based on the ESP8266 development kit, you can develop WiFi smart car quickly and easily;
• The NodeMCU control kit consists of a NodeMCU control board + ESP-12E expansion board;
• NodeMCU uses a new original CH341 chip, and a shipping board is rigorously tested to strictly control the quality;
• Leads all function pins of ESP12 DEV KIT: SPI, UART, GPIO, AI and 3.3V power interface;
• Expand two-way motor drive to directly drive two motors;
• With the shorting module, the control board and the motor can be powered simultaneously;
• When inserting an ESP-12E module, pay attention to the direction of the antenna and the direction of the expansion board.

12V 350rpm 33 motor:

• Model: 33GB520
• Voltage range: 6V-12V
• No-load speed: 170-350rpm
• Rated voltage: DC12V
• No-load current: 100mA
• Weight: 100g

Shipping list:

• 1 × T101 tank chassis
• 2 × 12V350rpm 33 motor
• 1 × NodeMCU control kit
• Free: 18650 battery box, hex wrench

Note:

• Tank chassis color: black / silver / blue, optional, please specify when placing an order;
• In order to facilitate transportation, the product is not assembled. But it is very easy to install;
• Product does not contain battery.
