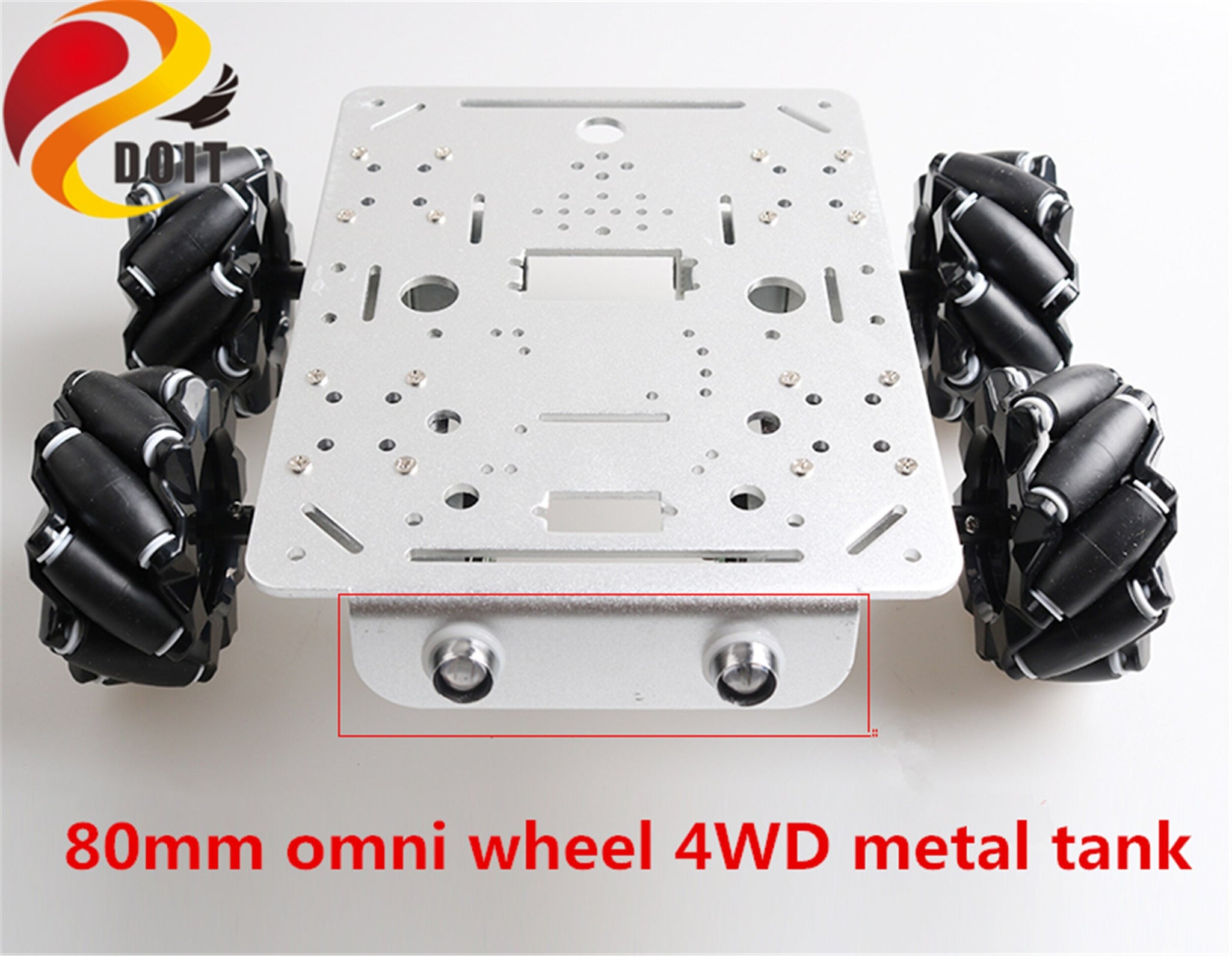

SZDOIT Omni Wheel 4WD Metal Robot Tank Chassis Kit 80mm McNarm Wheeled Chassis Chassis DC Motor With Encoder DIY For ROS/Drift

Festures:

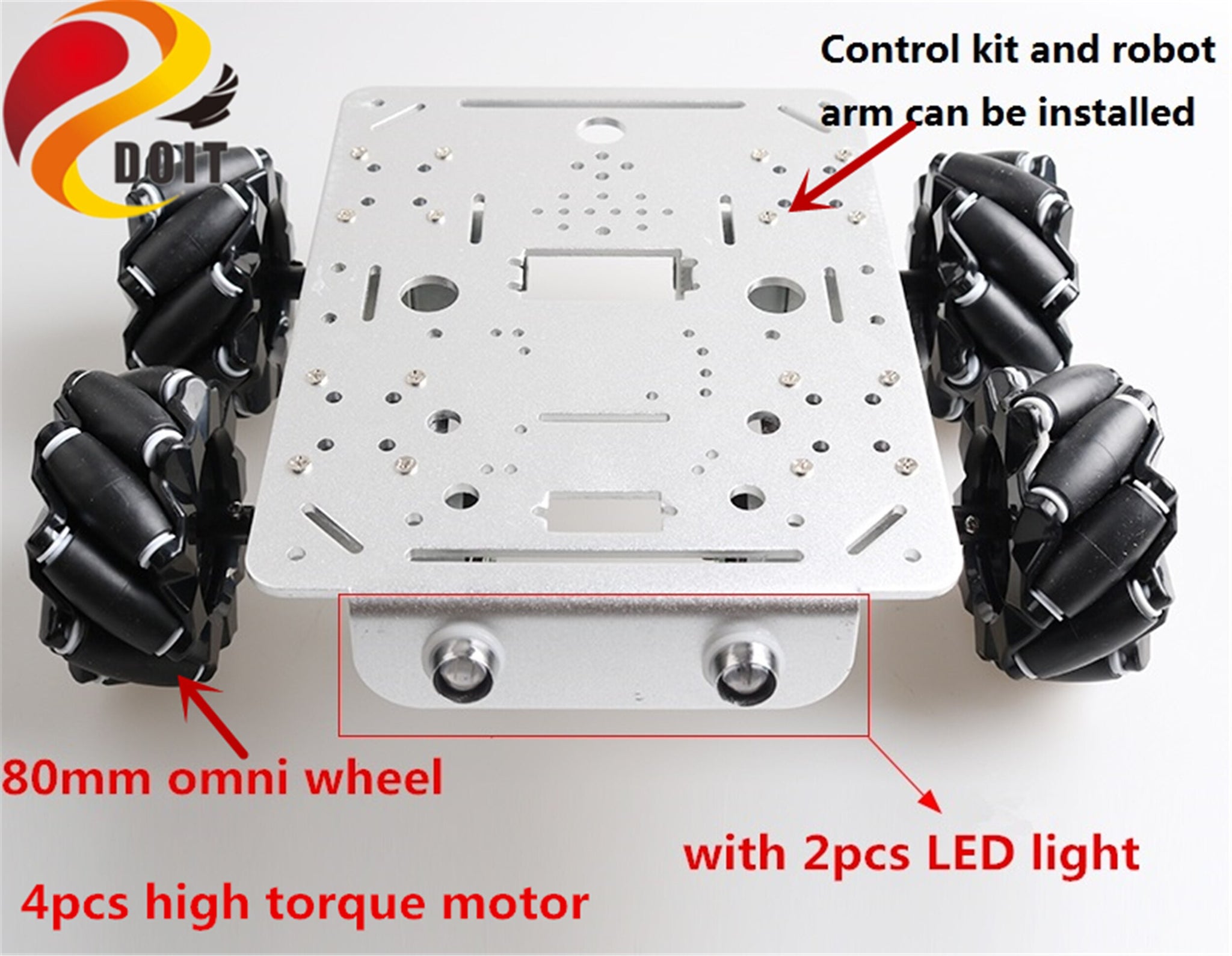

• The chassis is equipped with four 80mm Mecanum wheel omnidirectional wheels, which is the best choice for ROS, drift research;
• The tank chassis is equipped with 4 high-torque motors with speed feedback function;
• Equipped with 2 LED lights, beautiful, it can facilitate the chassis to drive in the dark;
• Ample space is reserved for the control kit and the robot arm, and the development space is large.

Tank chassis parameters:

• Metal panel: 3mm thickness aluminum alloy panel
• Size: 200mm * 160mm*60mm
• Color: silver
• Mecanum Wheel: 80mm (2 left 2 right)
• Total weight: 1.24kg

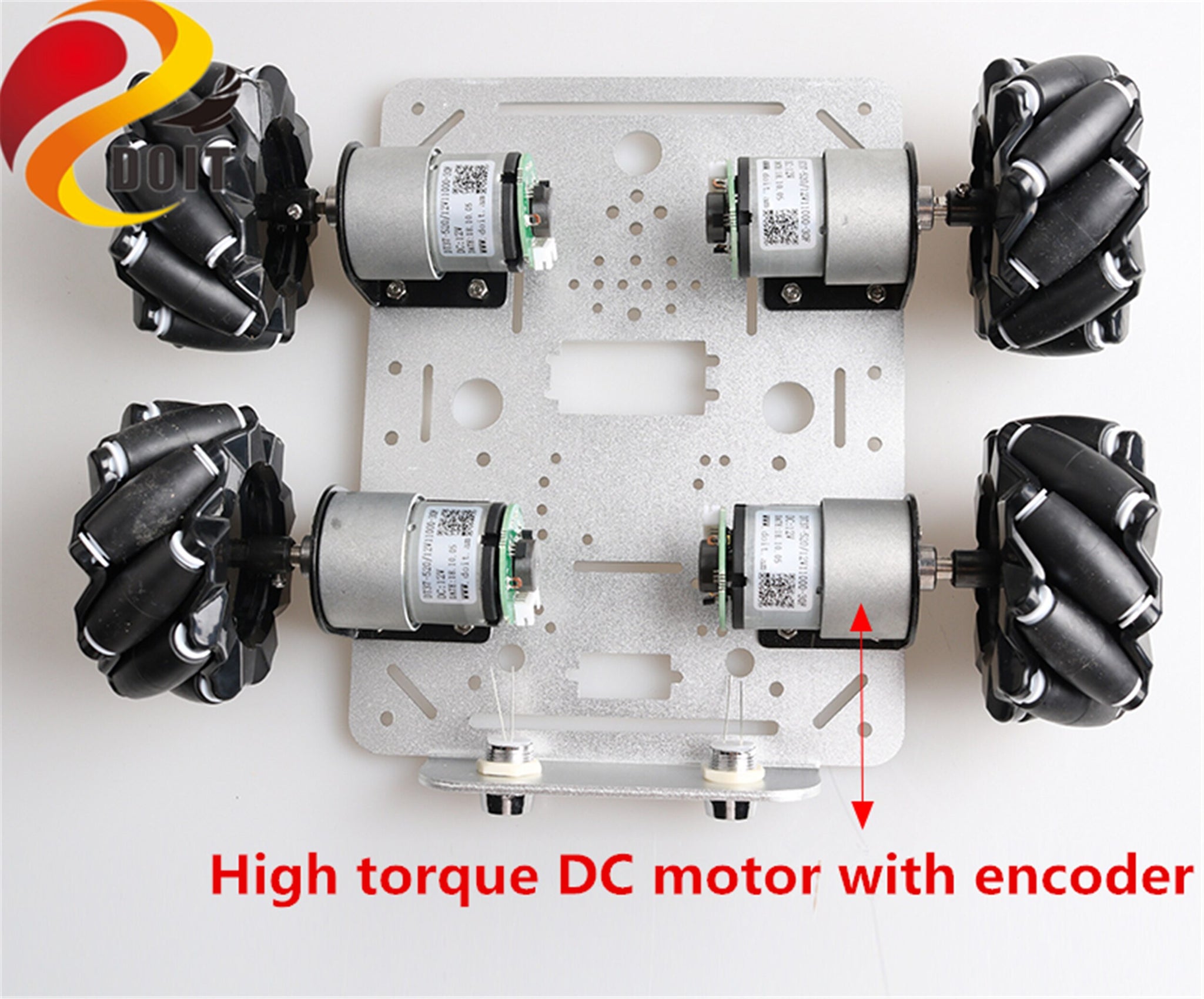

• Motor: 4 high torque motors with code wheel
• Loadable weight: about 2-5kg
• Is a good choice for ROS, drift research

Motor parameters:

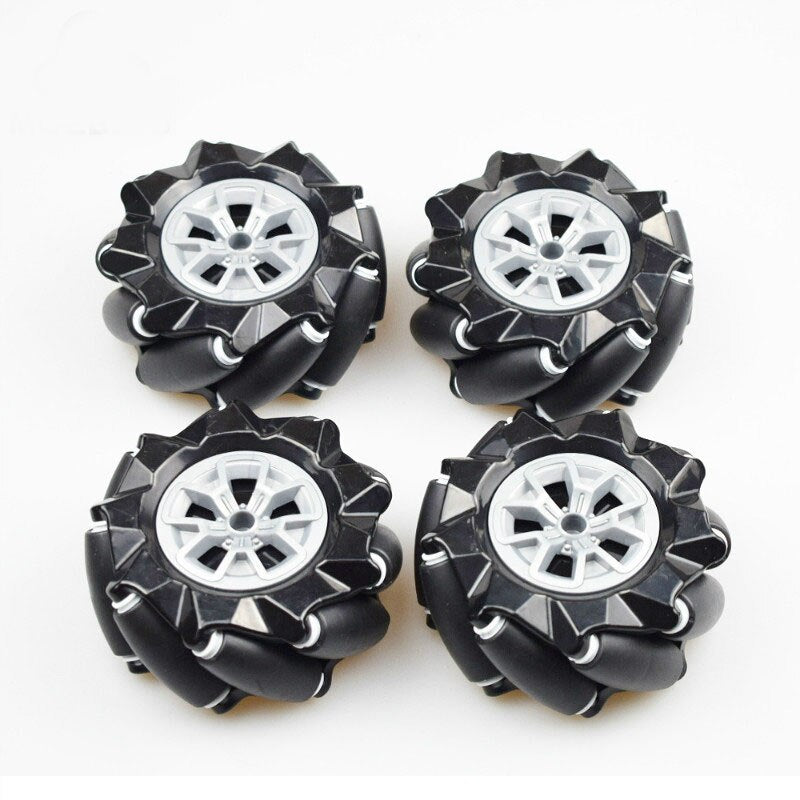

80mm Mecanum omni wheel:

• Name: McNamm Wheel
• Weight: 120 grams
• Inner diameter: 6.5mm
• Outer wheel diameter: 80mm
• Thickness: 37mm
• Number of sub-wheels: 9
• Bearing capacity: can bear 10k'g (4 functions)

Shipping list:

• 1pcs 3mm thickness panel
• 4pcs 80mm wheel
• 4pcs DC motor (free 4pcs motor lines)
• 4pcs motor bracket
• 4pcs coupling
• 2pcs LED light

Note:

• In order to facilitate transportation, the product is not assembled.
• More documents can be downloaded at wiki.doit.am.
• This product does not contain battery and control kit.
