SZDOIT PS2 Gamepad Handle Control Metal RC Crawler Robot Tank Chassis Kit 2pcs 12V DC Motor DIY For Arduino Shock Absorbing Toy
Drone Spark
Regular price
$1,558.99
$3,636.99
Tank chassis parameters:
- Name: New Y-100 Tank Chassis
- Main body: aluminum alloy
- Surface: sandblasting oxidation
- Track: engineering plastics
- Color: Gold / Silver / Black / Blue

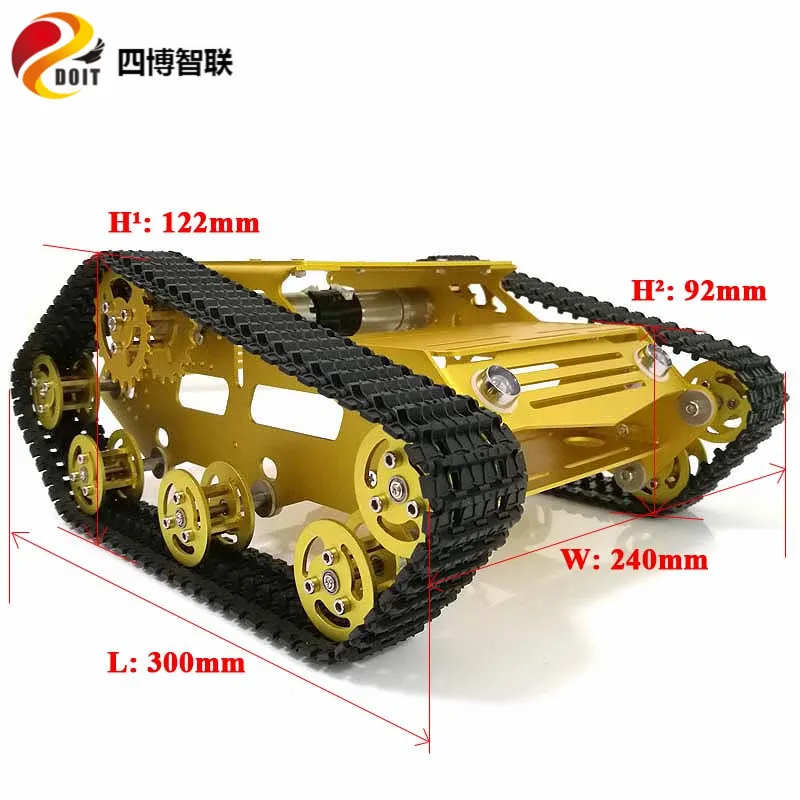

- Size: 300*240*122mm (length * width * height)
- Weight: 1.16kg
- Motor: 12V motor

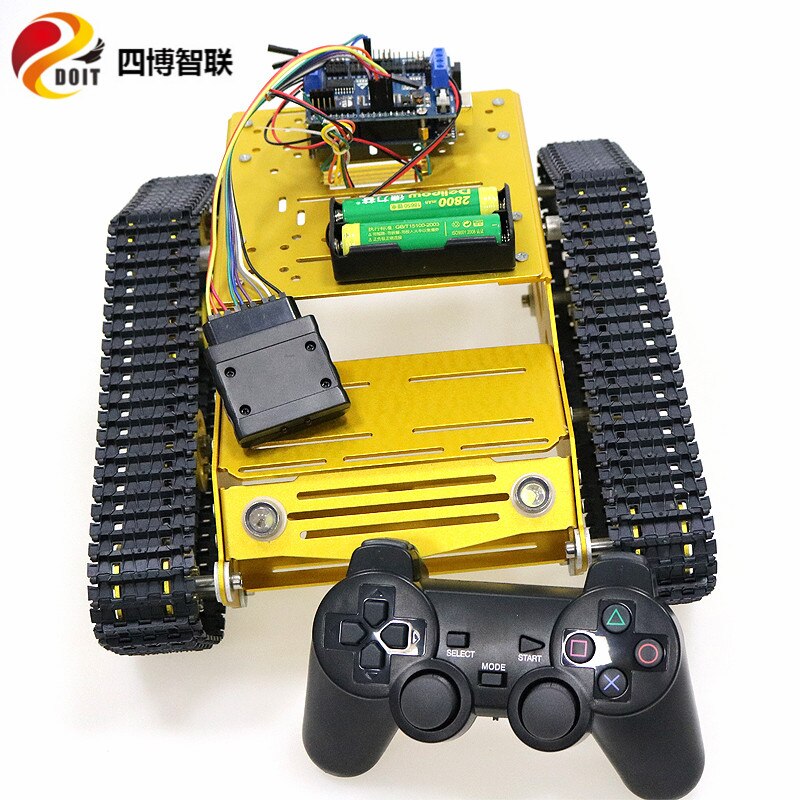

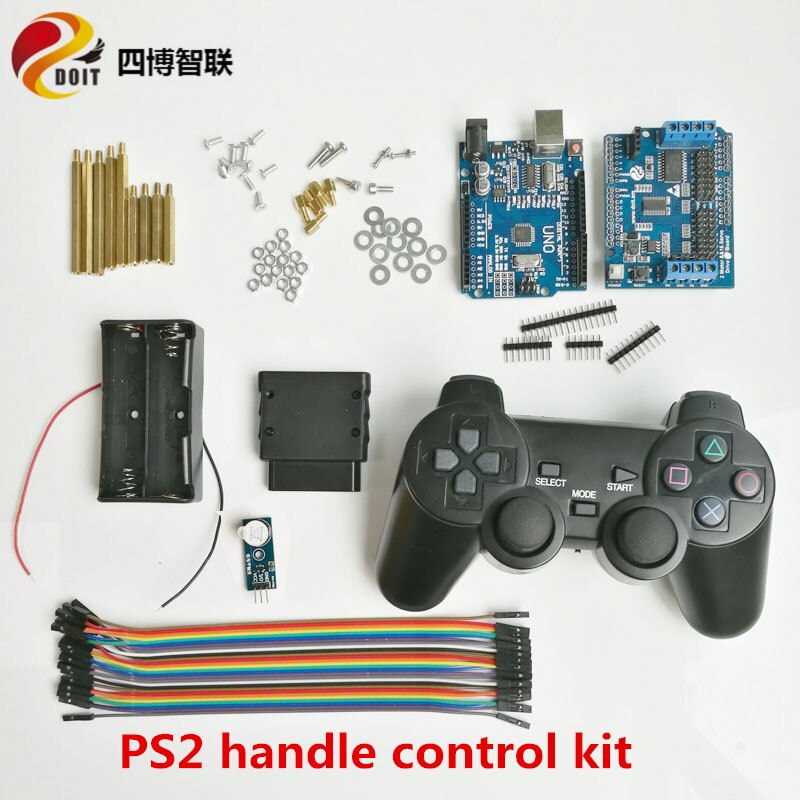

PS2 handle control kit:
- The kit is equipped with the UNO control board + driver board as the main control in the car chassis, plus the handle remote control kit. The active buzzer is installed in the central part of the car for the handle control alarm, and the movement of the trolley is controlled by the handle remote controller.
- Provide source code, APP and operating instructions.

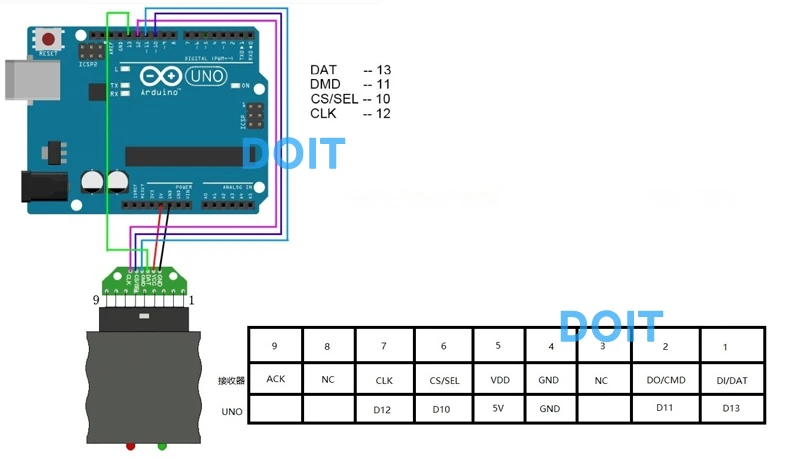

PS2 gamepad (receiver) and Arduino UNO wiring diagram:

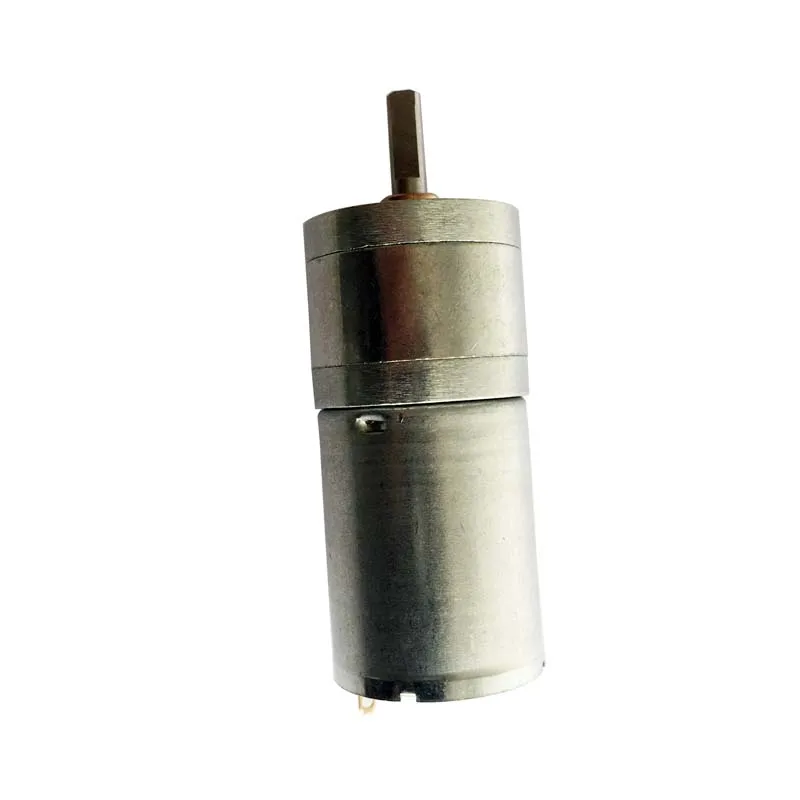

Motor parameters:
- Name: CGM-25-370
- Rated voltage: DC12V
- No-load speed parameter: 330rpm 0.24A
- Maximum efficiency point parameter: load 4.0kg.cm/235rpm/2.5W/0.58A
- Maximum power point parameters: load 7kg.cm/215rpm/3.1W/0.65A
- Maximum blocking parameter: 13kg.cm
- Reducer reduction ratio: 1:34

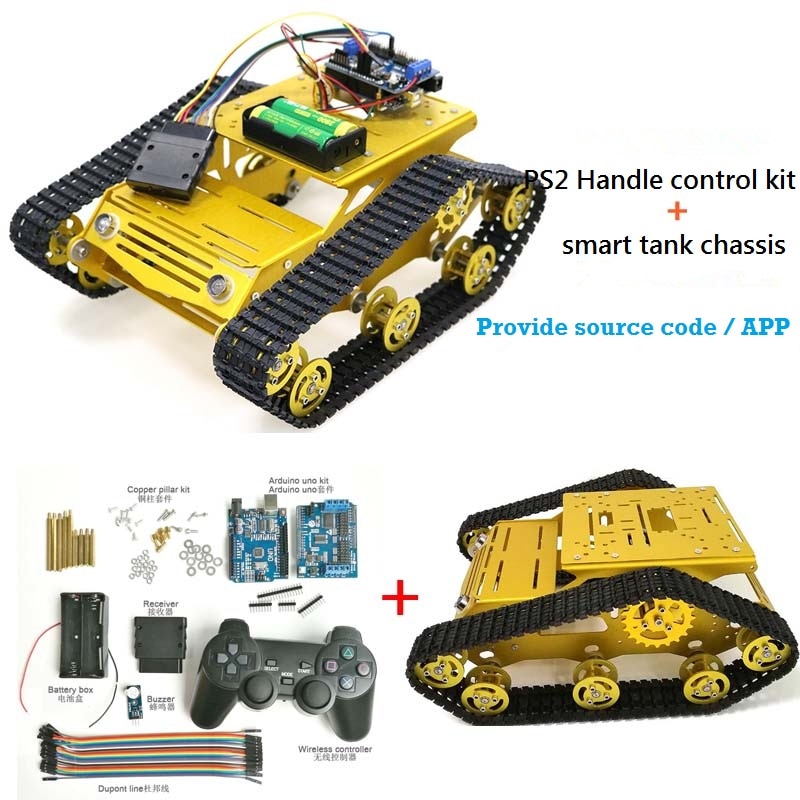

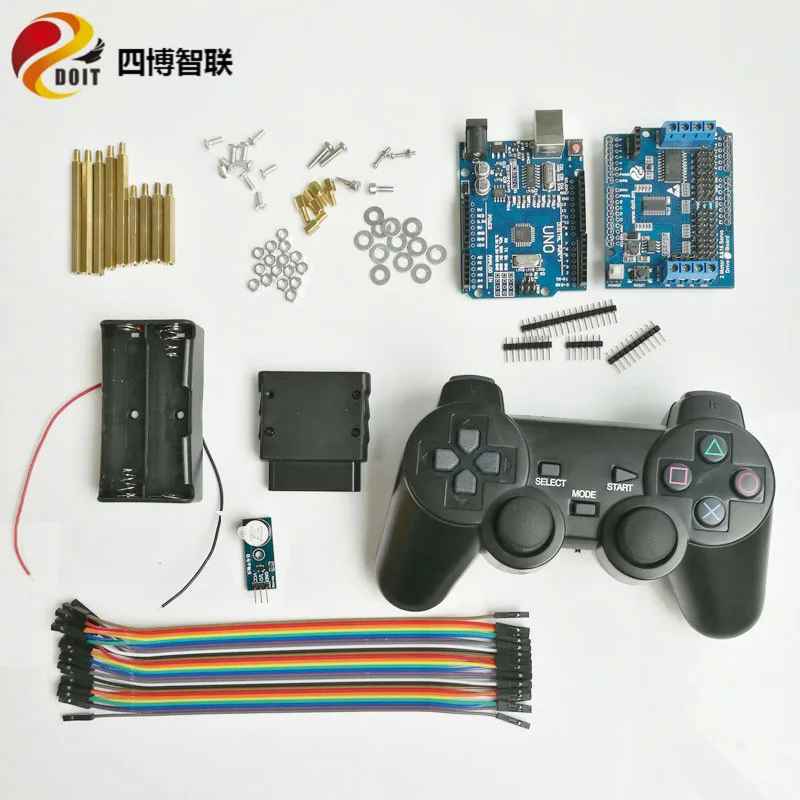

Shipping List:
- 1 × black/silver/blue/golden tank chassis
- 2 × DC motor+ 1 × PS2 handle control kit
- 1 × PS2 handle control kit
- Free: LED light, battery box, hex wrench
Note:
- More documents can be downloaded at wiki.doit.am.
- In order to facilitate transportation, some parts of the product are not assembled.
- This product does not contain battery.
