SZDOIT PS2 Gamepad Handle Control Metal TS100 Tracked Shock Absorbing Tank Chassis Kit Crawler RC Robot Motor DIY For Arduino

Product Introduction :

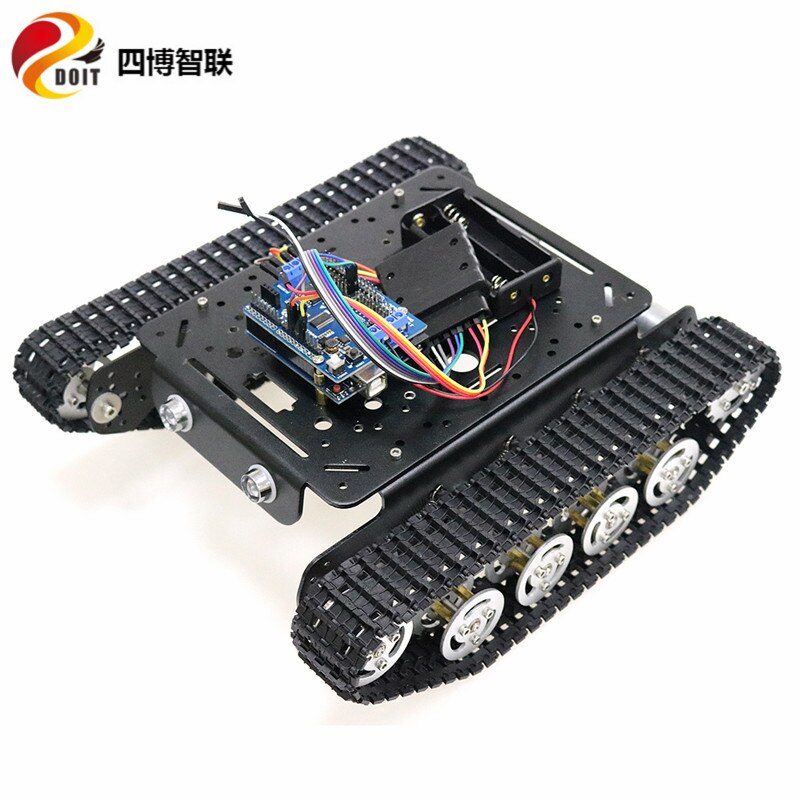

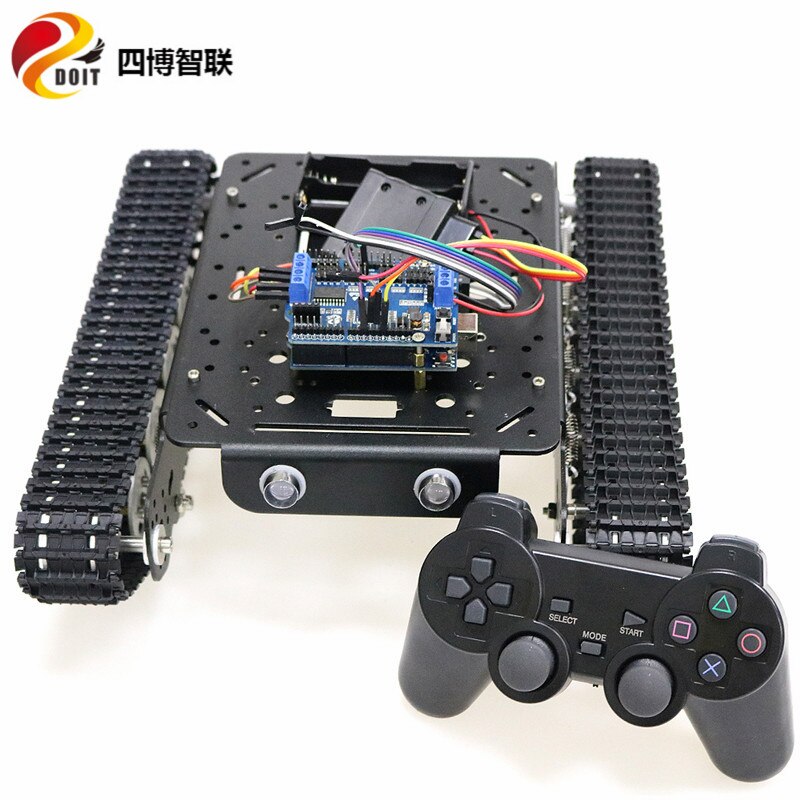

• The kit is equipped with a UNO control board + driver board as the main control in the car chassis, plus a handle remote control kit. An active buzzer is installed in the center of the car for the handle control alarm, and the movement of the trolley is controlled by the handle remote controller.
• Provide source code, APP and instruction manual.

Tank Chassis Parameters :

• Material: aluminum alloy
• Surface: sandblasting oxidation
• Track: engineering plastics
• Drive wheel: metal
• Load-bearing wheel: metal

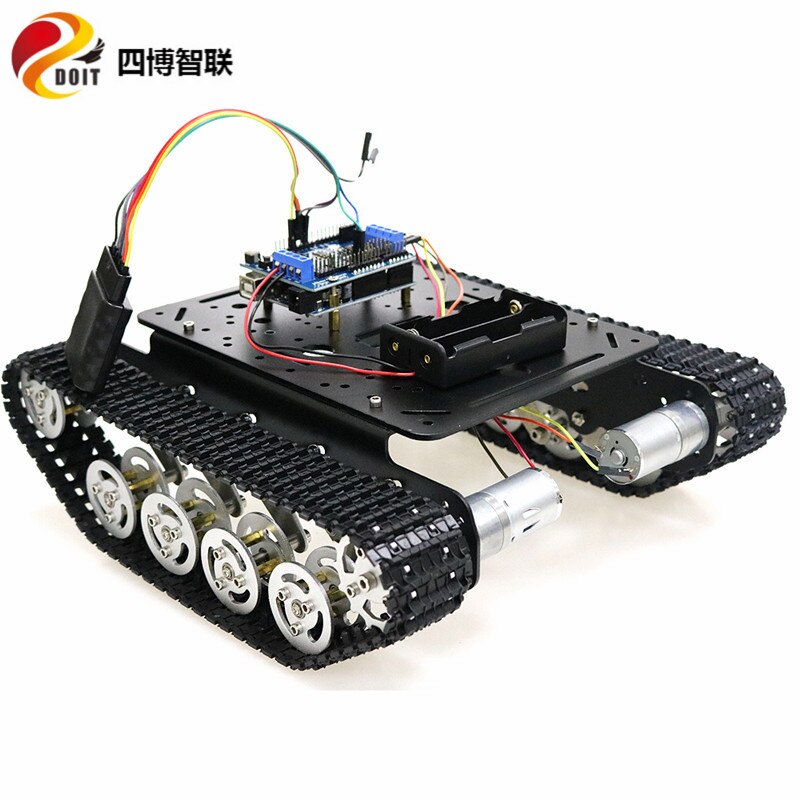

• Motor: 9V 150rpm with encoder motor(Feedback with measured speed)

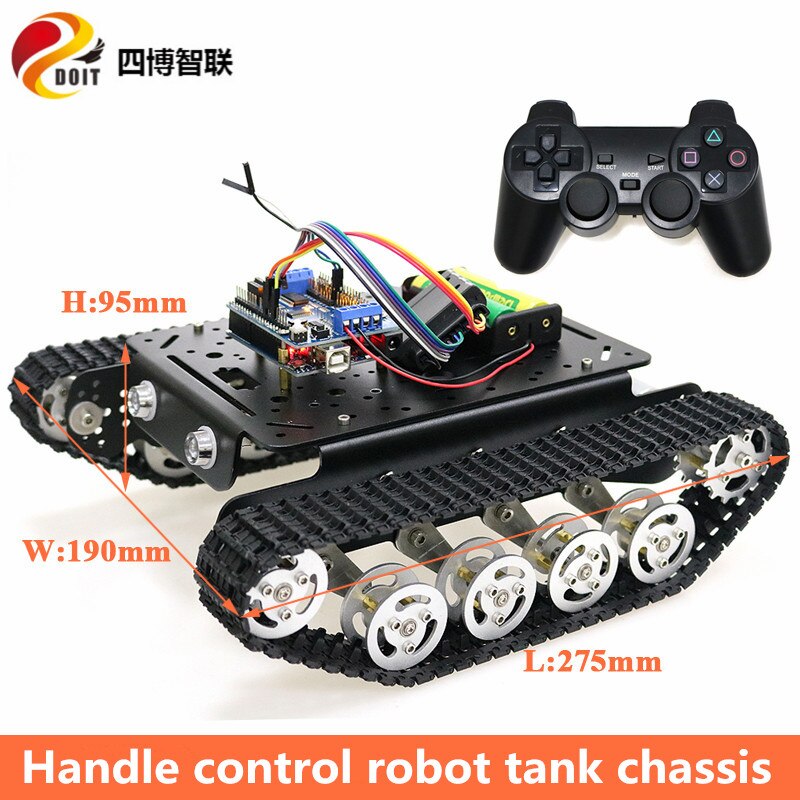

• Weight: 1.1kg
• Load: 5kg

Handle Control Kit :

Wiring diagram of PSX game controller (receiver) and Android UNO :

9V 150rpm with encoder motor :

• Working voltage: 9V
• Output rate: 150±10% rpm
• Load current: 200mA (Max)
• Stall current: 4500 mA (max)
• Stalling torque: 9.5kg NaN
• Load speed: 100±10% rpm
• Load torque: 3000gNaN
• Load current: 1200mA (Max)
• Encode parameters: 2 pulses / circle
• Sensor operating voltage: 3-5V

Shipping List :

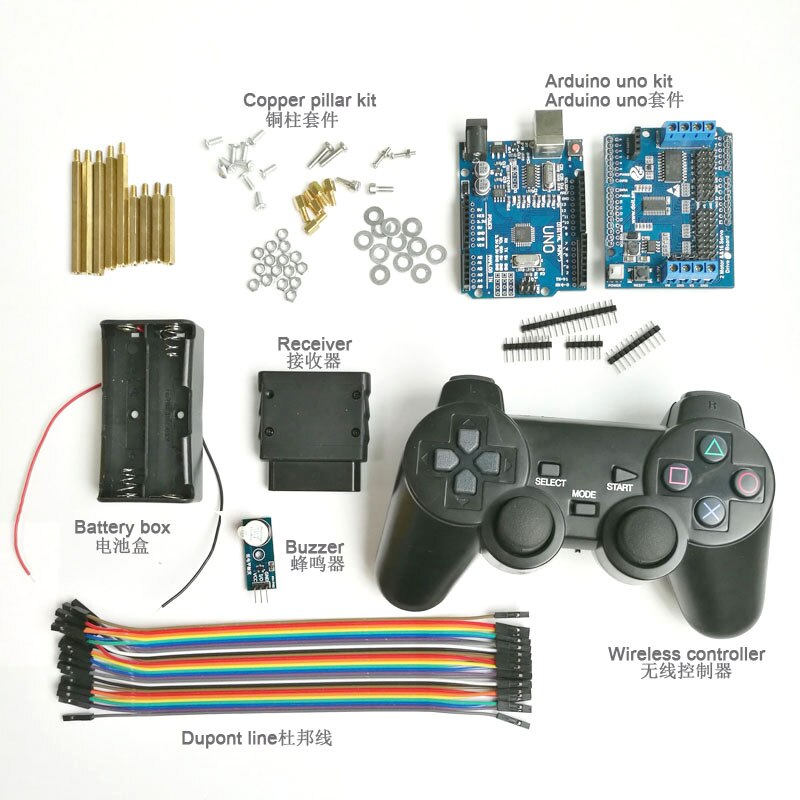

• 1 × black/silver/golden tank chassis
• 2 × 9V motor
• 1 × Arduino UNO R3 compatible version
• 1 × 2-way motor & 16-way servo expansion board
• 1 × USB cable
• 1 × PS2 handle
• 1 × Wireless receiver
• 1 × Active buzzer
• 1 × Copper column kit
• 1 × 18650 battery box
• 1 × Female to female DuPont line: 1 shot 40

NOTE :

• Product does not contain battery;
• In order to facilitate transportation, the product is not assembled;
• More documents can be downloaded at wiki.doit.am.
