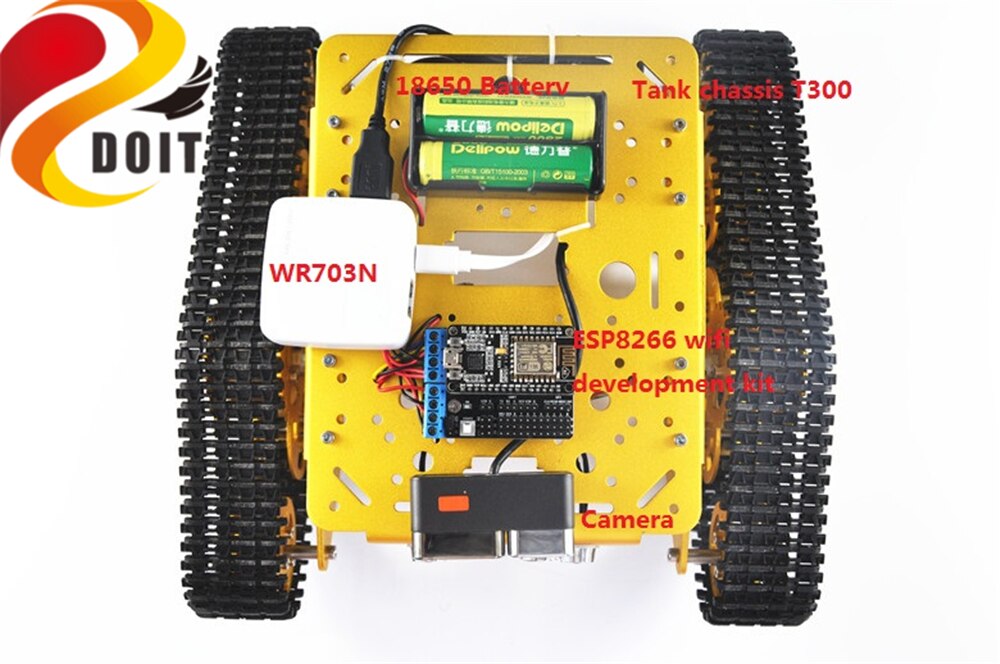

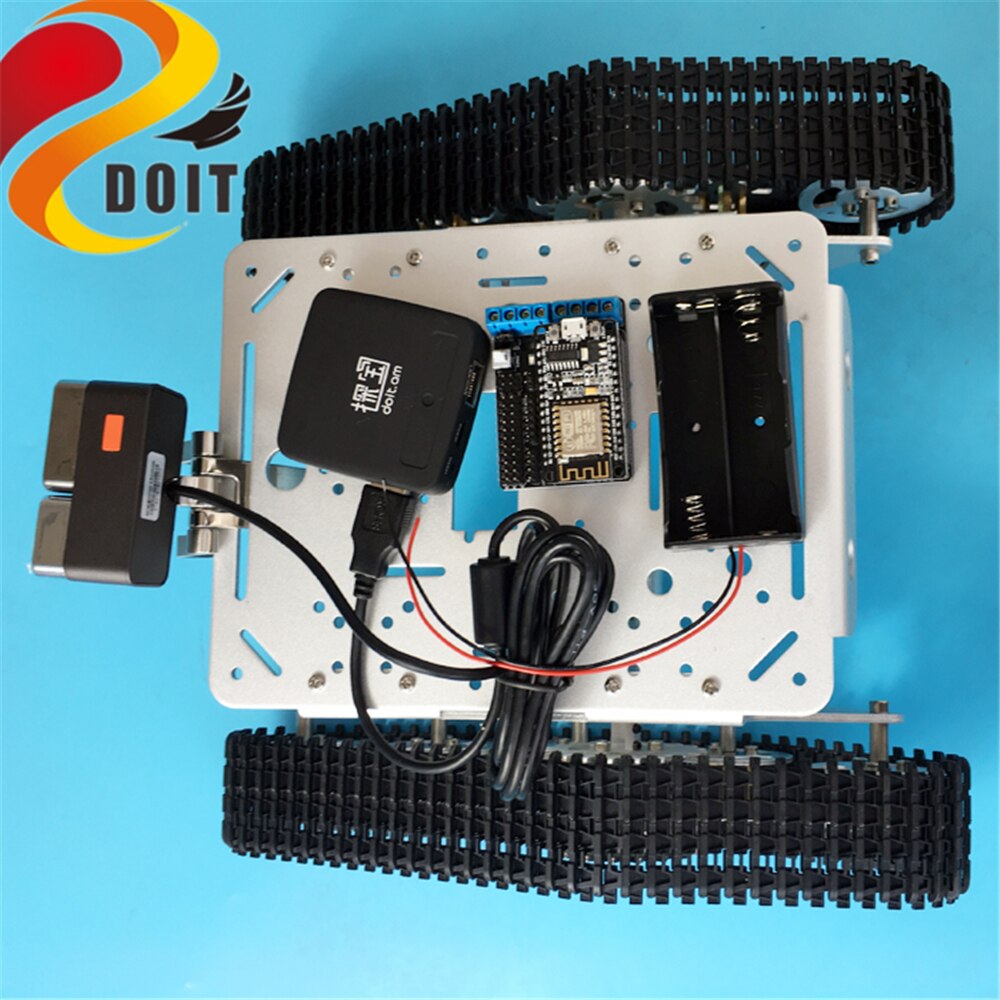

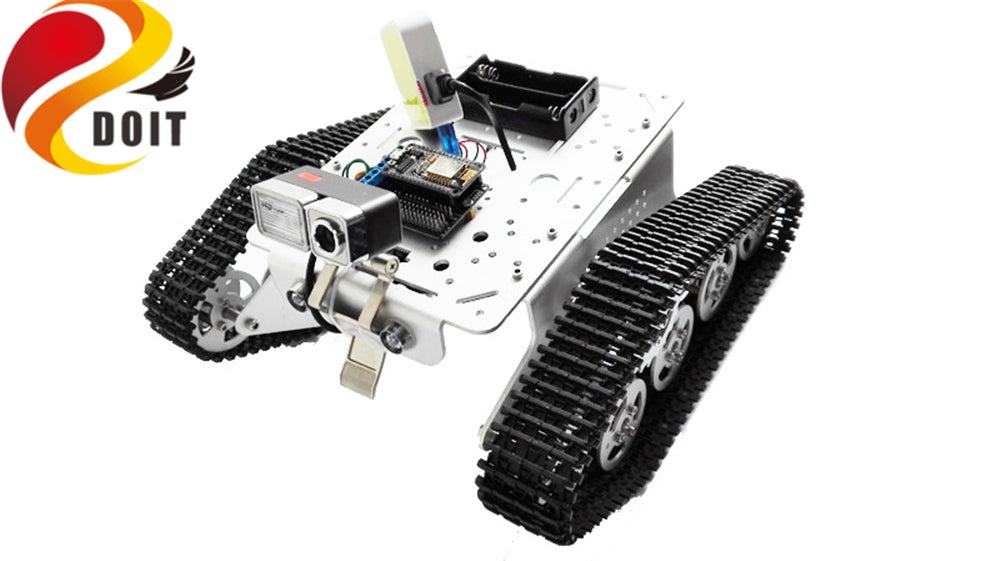

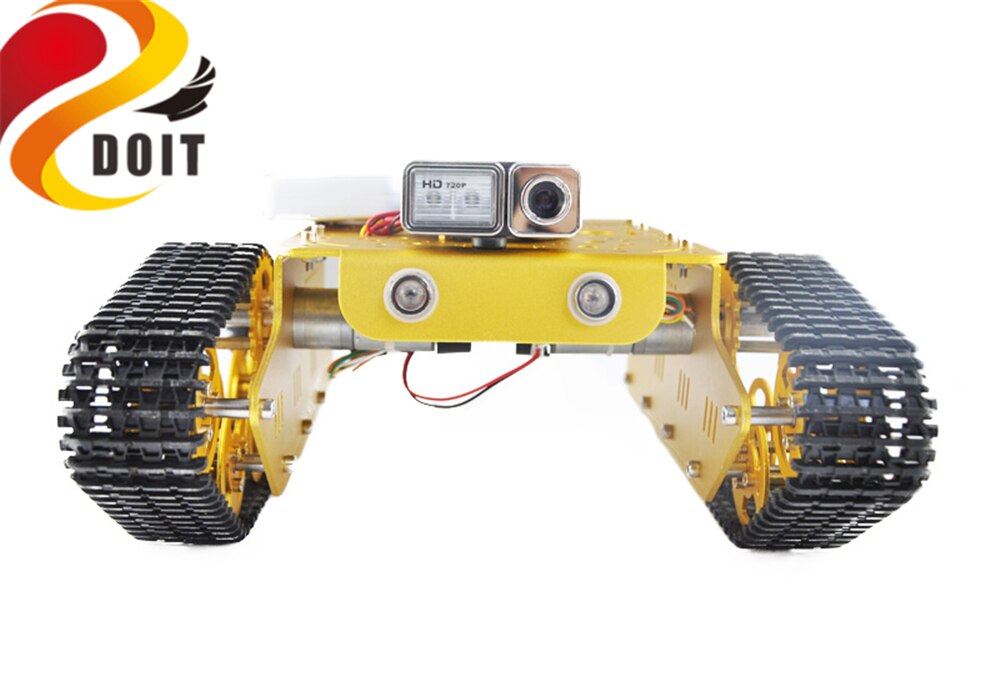

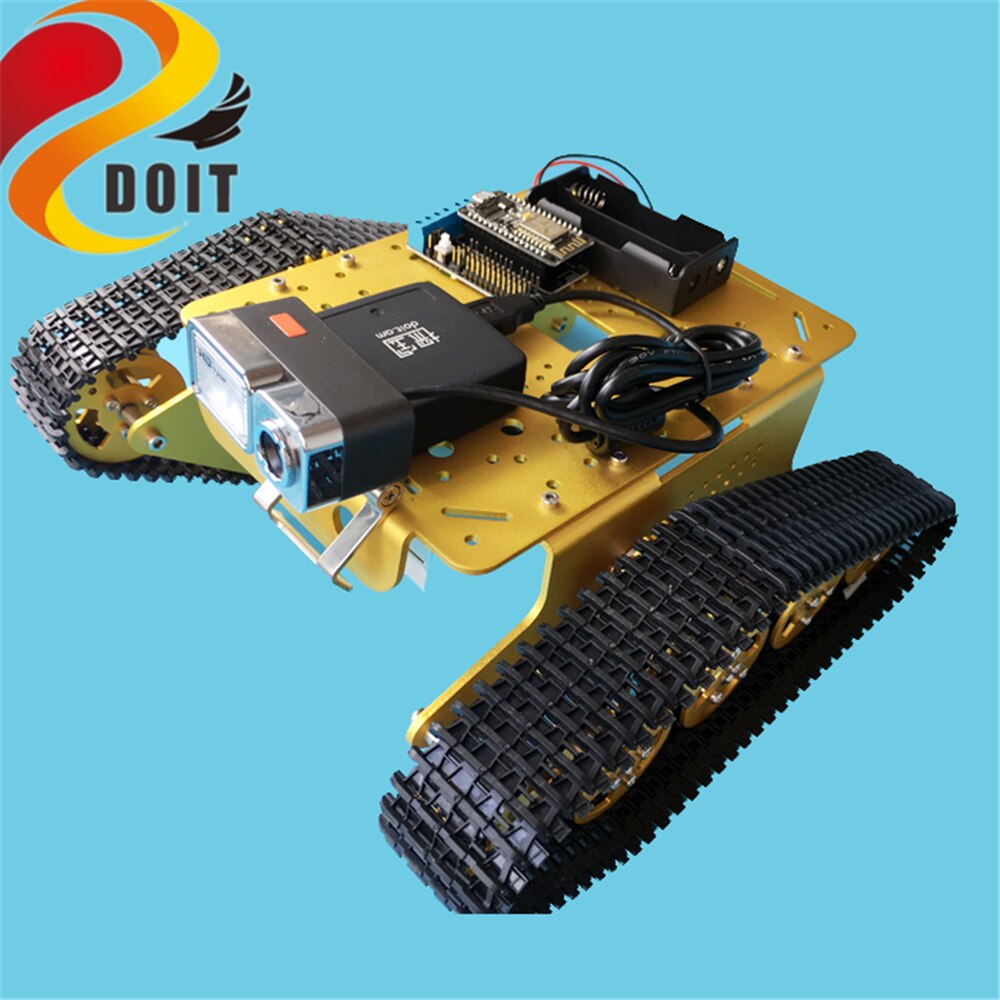

SZDOIT T300 WiFi Video Robot Metal Tank Chassis Video Camera RC Robot For Mobile Phone Control

Features :

• The body is made of aluminum alloy, which is exquisite, beautiful and durable;

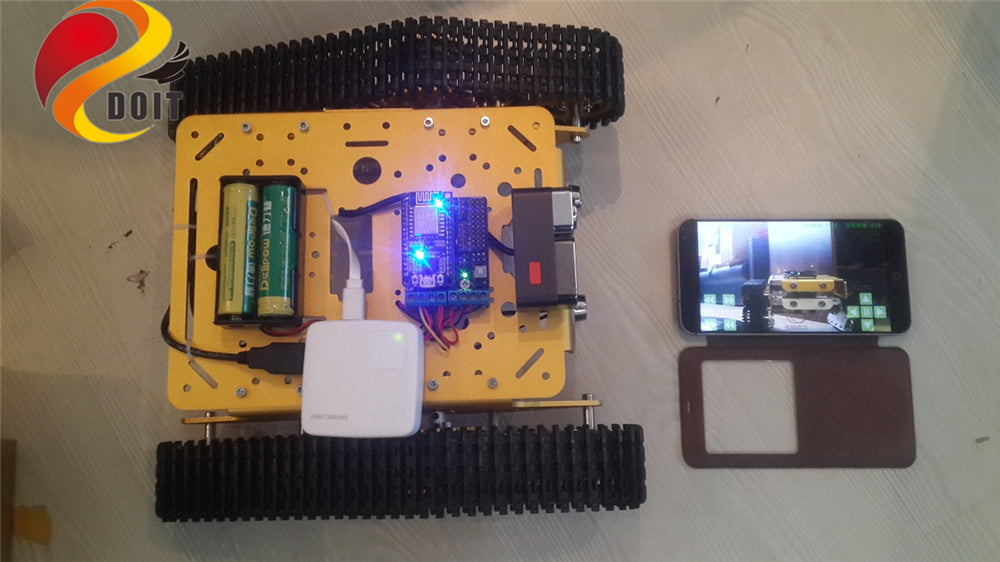

• The wifi video kit is installed on the chassis, and the mobile phone can control the chassis operation and video recording;
• The chassis is equipped with 2 high-power motors, the chassis can advance, retreat, turn left, turn right, turn forward, etc;
• The tank is made up of 2 LED lights that illuminate the dark;
• Space is reserved for the servo, and mounting holes are designed for the development board and the robot arm, which can be modified into a 4-wheel drive vehicle；

Function :

• Video
• Education
• Competition
• Investigation
• Off-road
• Load
• DIY

Tank Chassis Parameters :

• Name: T300 tank chassis
• Color: gold / silver
• Size: 290 * 270 * 100 mm (length * width * height)
• Weight: 1.65 kg
• Load: 5-8 kg
• Track: engineering plastics

Nodemcu kit parameters:

• ESP12 DEV KIT development board expansion module;
• Leads all function pins of ESP12 DEV KIT: SPI, UART, GPIO, AI and 3.3V power interface;
• Expand two-way motor drive to directly drive two motors;
• Onboard power switch;
• Motor power supply range: 4.5V~36V;
• Control power supply range: 4.5V~9V;
• Motor power supply and control power supply are separated. In the experiment, VIN and VM can be short-circuited by short-circuit block combination, and the motor and control board can be supplied with power;
• Quick and easy development of WiFi smart car.

We will ship the latest version of the camera and router：

Shipping LIst :

• 1× tank chassis (with 2 Pcs 12V 300rpm motor)
• 1× OpenWrt wireless router
• 1 × ESP8266 Development Board Kit
• 1 × HD camera

Note :

• In order to facilitate transportation, the product is not assembled.
• More documents can be downloaded at wiki.doit.am.
• This product does not contain battery and control kit.
