SZDOIT Wifi/Bluetooth/Handle Control 7DOF RC Vehicle Robot 7-axis Robot Arm with Gripper + T900 Tank Chassis Kit DIY for Arduino

Tank chassis parameters:

• Name: T900 intelligent tank chassis
• Material: aluminum alloy
• Surface treatment: sandblasting oxidation
• Color: silver
• Track: engineering plastics
• Size: about 550*280*110mm (length * width * height)
• Weight: 3.8kg
• Motor: 9V 150rpm with encoder motor

7-axis robot arm:

• The 7DOF robot arm is made of aluminum alloy, and the bottom joints are made of metal gear servo MG996R. The force is large and the structure is beautiful and practical.
• The robot arm will send the latest version：

Metal gripper parameters:

• Material: hard aluminum alloy
• Weight: about 40g
• Maximum angular separation: 86mm
• Overall length: 83mm (the overall longest length when the paw is closed)
• Overall width ①: 150mm (maximum overall width when the paw is open)
• Overall width ②: 55mm (maximum overall width when the paw is closed)
• Overall thickness: 54mm (maximum overall thickness with servo paws)

MG996R servo parameters:

• Name: MG996R
• Net weight: 55 g
• Size: 40.7*19.7*42.9 mm
• Pulling force: 9.4 kg/cm (4.8 V), 11 kg/cm (6 V)
• Reaction rate: 0.17 sec / 60 degree (4.8 V ), 0.14 sec / 60 degree (6 V)
• Working voltage: 4.8-7.2 V
• Working temperature: 0°C-55°C
• Gear form: metal gear
• Working dead zone: 5 us (microseconds)

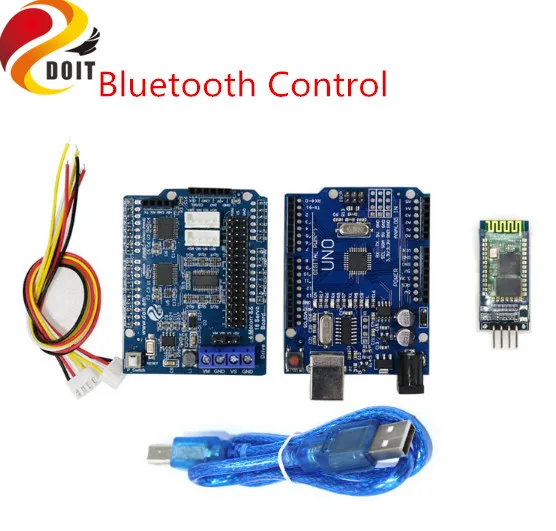

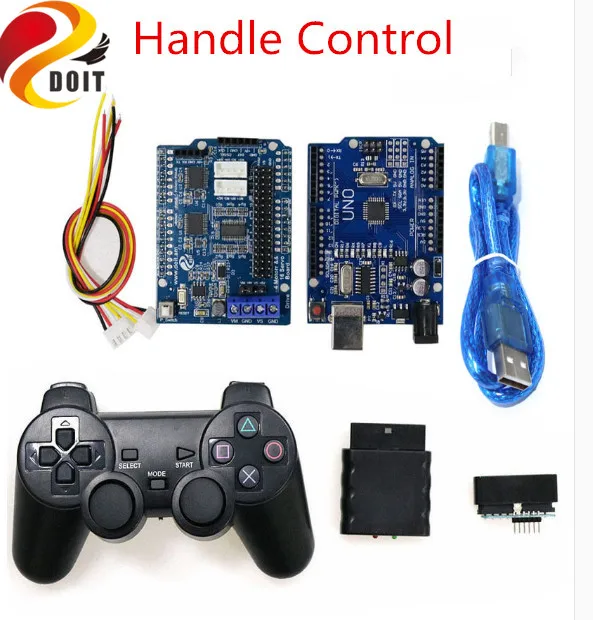

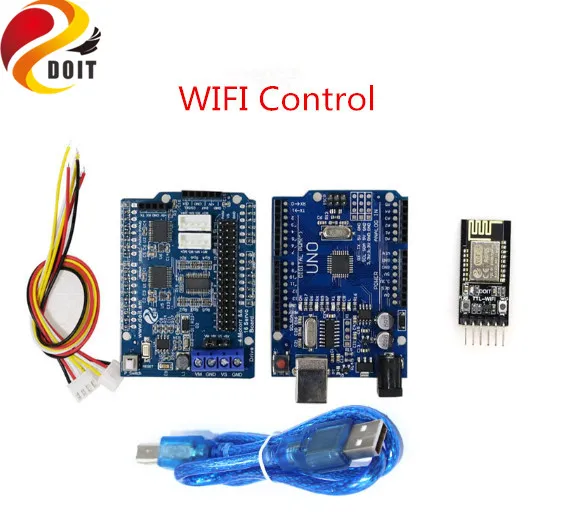

Control Type:

Shipping list:

• 1 × T900 tank chassis
• 4 × 9V 150rpm with encoder motor
• 1 × 7-axis robot arm bracket kit
• 1 × Gripper
• 7 × MG996R servo
• 1 × wifi/bluetooth/handle control kit (optional)
• Free: Battery box, hex wrench, USB cable

Note:

• This product does not include a battery;
• In order to facilitate transportation, the product is not assembled.
• More documents can be downloaded at wiki.doit.am.
