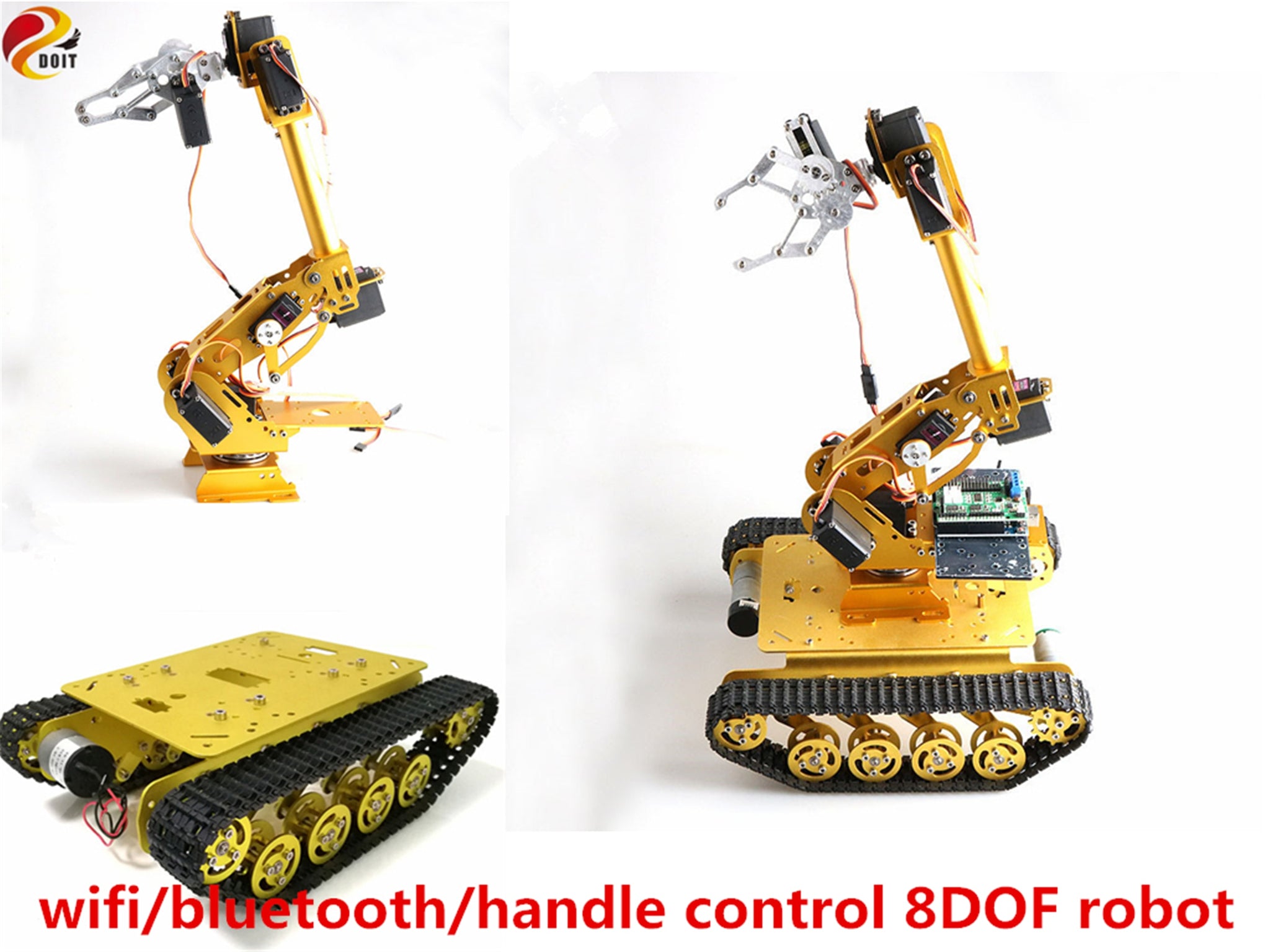

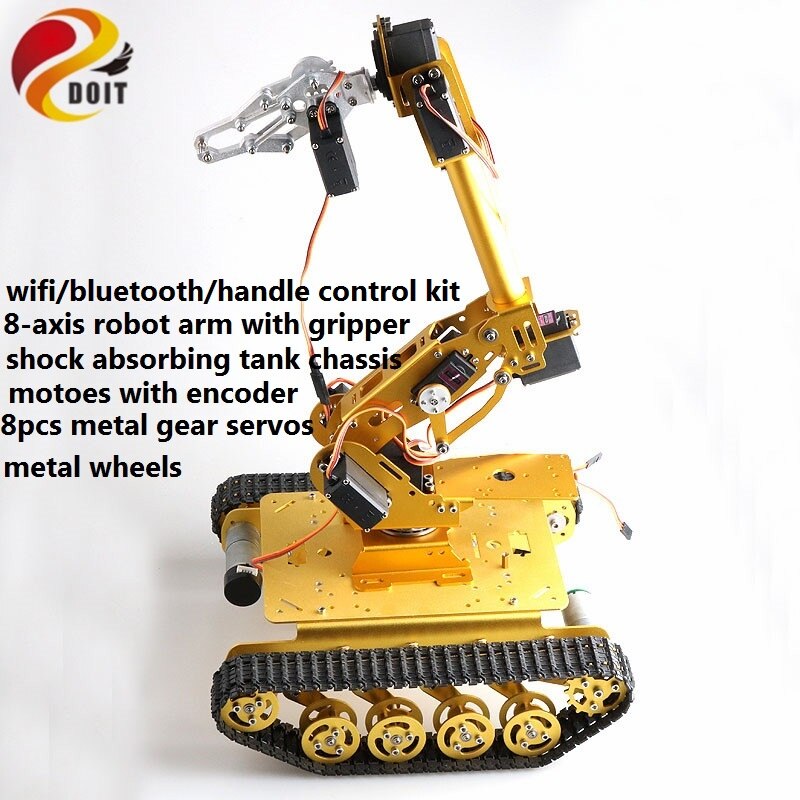

SZDOIT Wifi/Bluetooth/Handle Control 8DOF Vehicle Robot 8-Axis Robot Arm with Gripper +TS100 Tank Chassis Kit Servos for Arduino

TS100 chassis parameters:

• Material: aluminum alloy
• Surface: sandblasting oxidation
• Track: engineering plastics
• Motor: 9V150rpm with encoder motor (measured speed feedback)
• Weight: 1.1kg
• Load: 5kg
• Drive wheel: metal shock absorbing drive wheel
• Load-bearing wheel: metal shock-absorbing bearing wheel
• Independent shock absorbing system

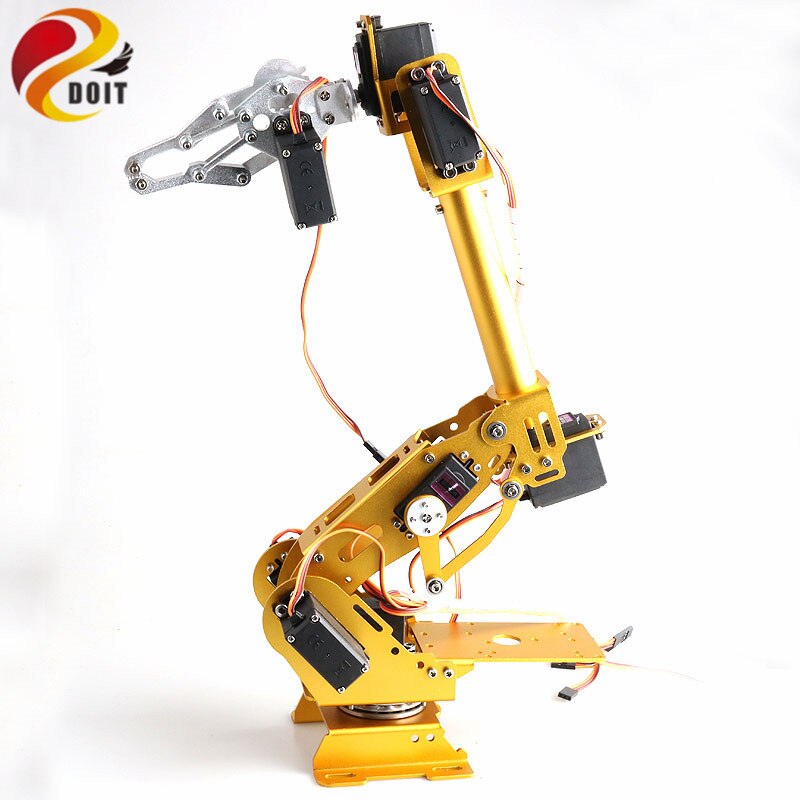

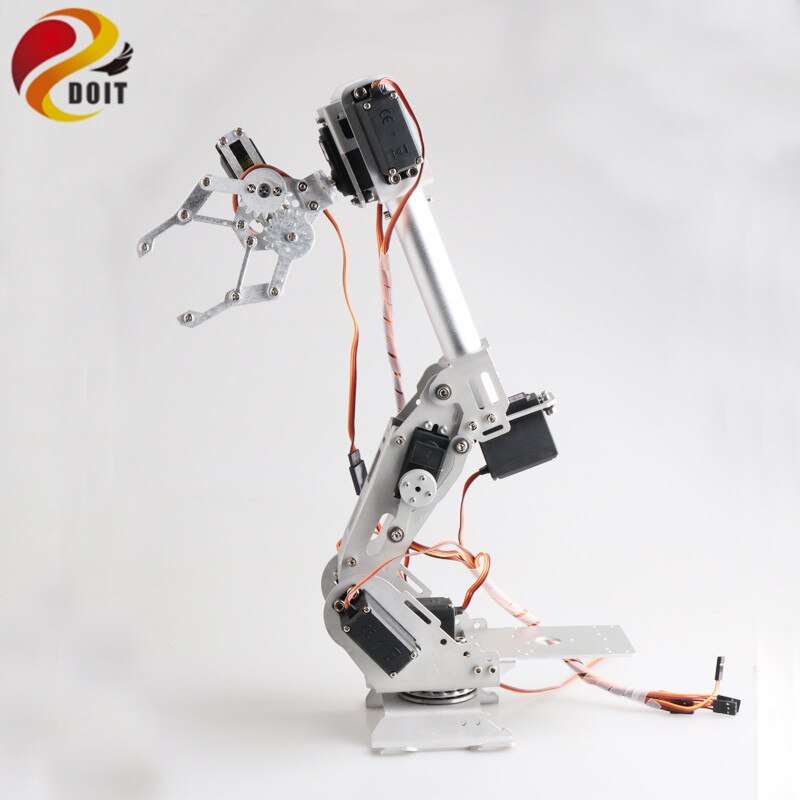

8-Axis Mechanical Arm :

• Mechanical arm body material: aluminum alloy
• Weight: 0.82kg (including servo weight)
• Color: black, silver
• Servo optional: MG996R metal gear large servo
• Features: The mechanical arm can be equipped with a mechanical gripper, the weight of the grip is about 500g; the base of the robot arm can be rotated 360 degrees.

G2 Gripper :

Control type:

MG996R Servo :

• Size: 40.7*19.7*42.9mm
• Pulling force: 15kg/cm (6V)
• Working speed: 0.17sec/60 degrees (4.8V no load)
• Working speed: 0.13sec/60 degrees (6.0V no load)
• Stall torque: 9 kg - cm (180.5 oz.) at 4.8V
• Stall torque: 12 kg - cm (208.3 oz.) at 6V
• Working voltage: 4.8 - 7.2V
• Gear: metal gear

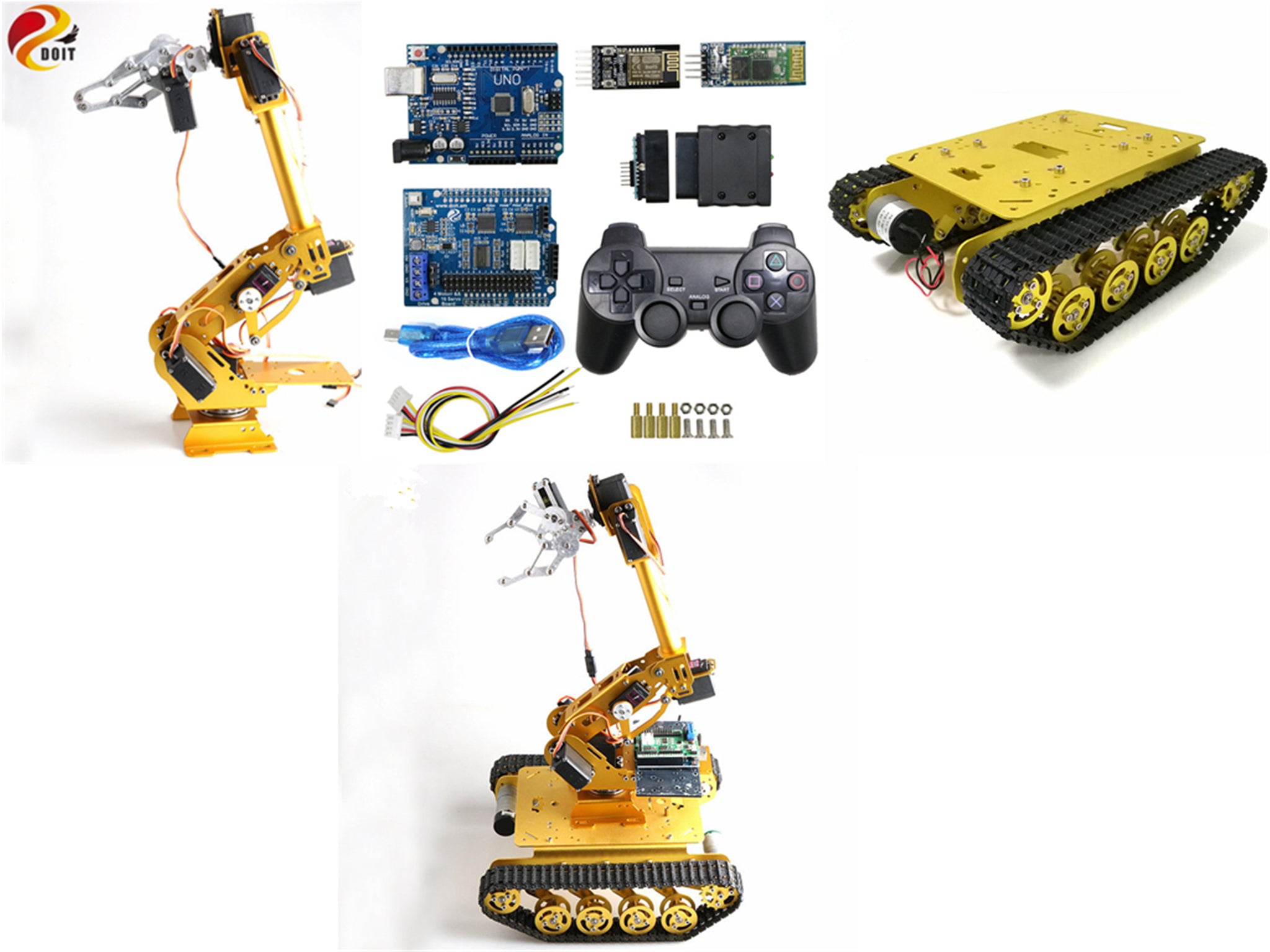

Shipping List :

• 1 × TS100 tank chassis(with 9V 150rpm with encoder motor)
• 1 × 8-Axis robot arm bracket kit

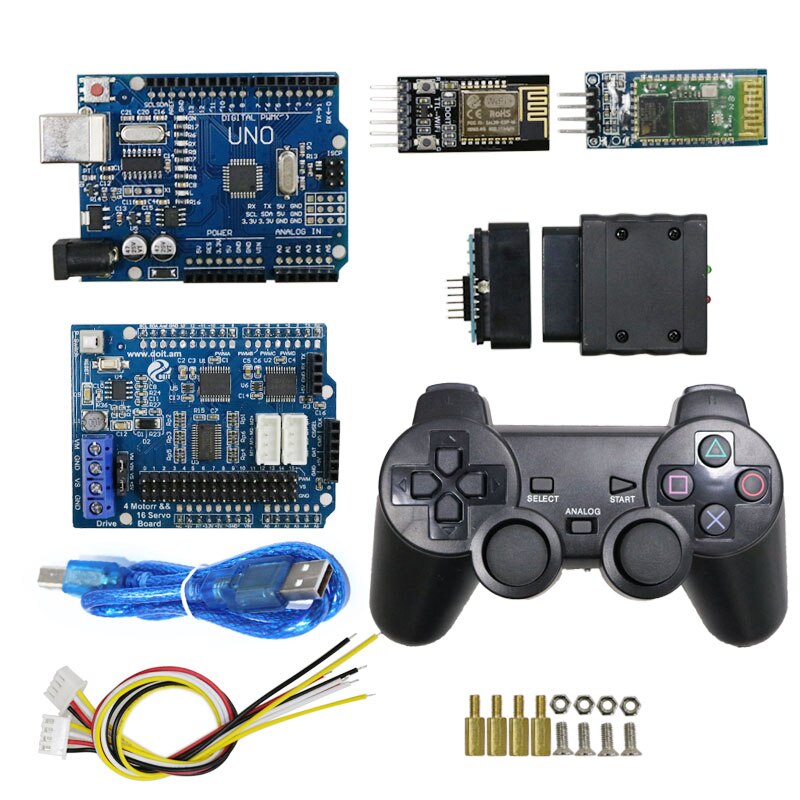

• 1 × wifi/bluetooth/handle control kit
• 8 × MG996R servo
• 1 × G2 gripper

NOTE :

• Product does not contain battery.
• 8DOF robot color: black / gold / silver, optional, please specify when placing the order.
• In order to facilitate transportation, the product is not assembled.
• More documents can be downloaded at wiki.doit.am.
